XZC630D-TMFMX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

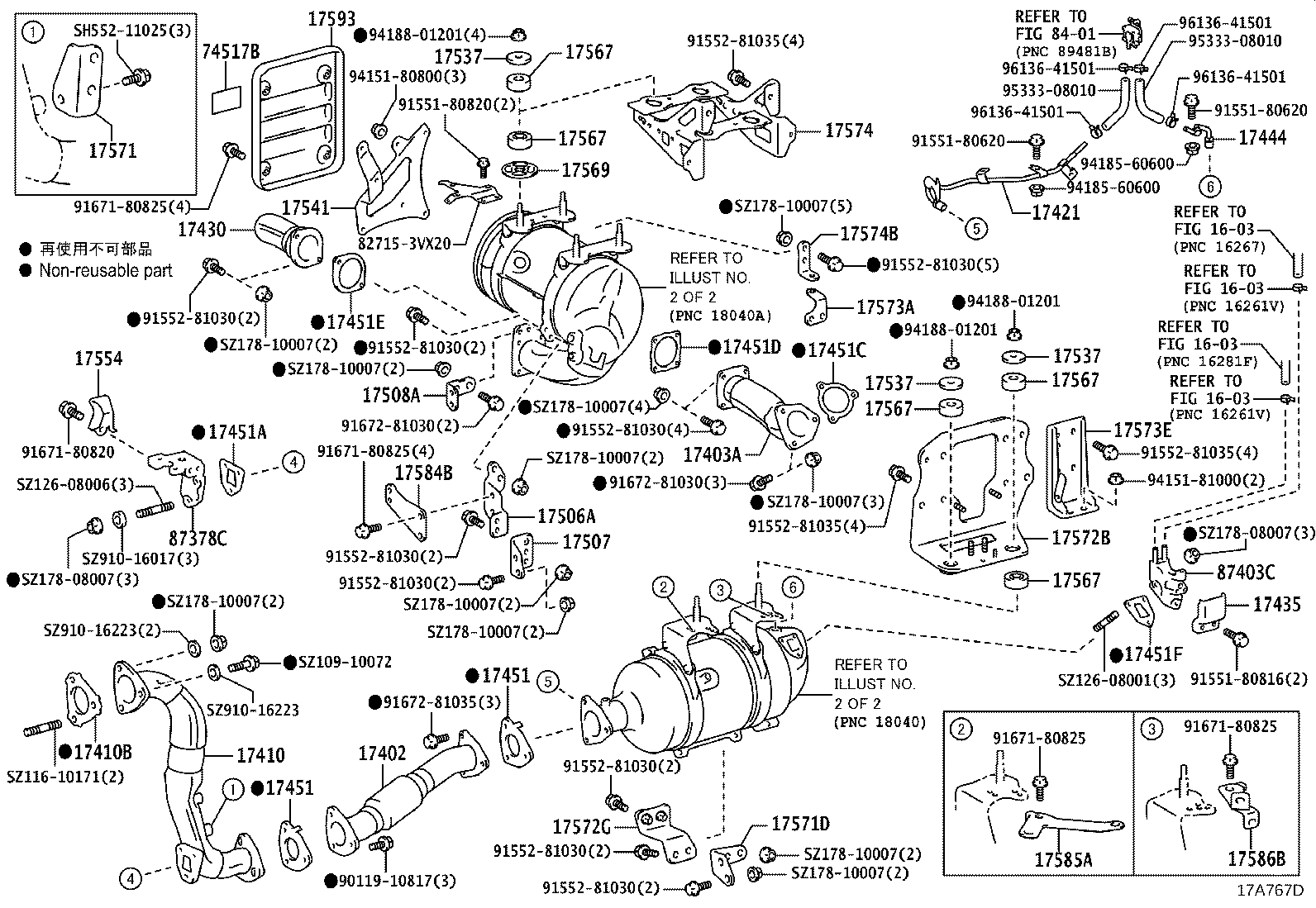

ILLUST NO. 1 OF 2(1905- )N04C..XZC630,XZU630..DCRWD

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 17402 17403A 17410 17410B 17421 17430 17435 17444 17451 17451 17451A 17451C 17451D 17451E 17451F 17506A 17507 17508A 17537 17537 17537 17541 17554 17567 17567 17567 17567 17567 17569 17571 17571D 17572B 17572G 17573A 17573E 17574 17574B 17584B 17585A 17586B 17593 74517B 827153VX20 8401 87378C 87403C 9011910817 9155180620 9155180620 9155180816 9155180820 9155281030 9155281030 9155281030 9155281030 9155281030 9155281030 9155281030 9155281030 9155281030 9155281035 9155281035 9155281035 9167180820 9167180825 9167180825 9167180825 9167180825 9167281030 9167281030 9167281035 9415180800 9415181000 9418560600 9418560600 9418801201 9418801201 9418801201 9533308010 9533308010 9613641501 9613641501 9613641501 9613641501 SH55211025 SZ10910072 SZ11610171 SZ12608001 SZ12608006 SZ17808007 SZ17808007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ17810007 SZ91016017 SZ91016223 SZ91016223
Part # Description Qty Price
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-78251

N04C..XZC60#,630,XZU60#,630..SCB..(DCRWD,DCVTO)

 1
17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2
17403-78C00

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78420

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
17410B - GASKET, EXHAUST PIPE
17451-E0110

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17421 - PIPE, EXHAUST, NO.2
17421-78330

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78J80

N04C..XZU645..20T..DCRWD;N04C..XZC60#,630,645,XZU600,605,630..SCB..(DM3,DM5,DM6,DM7,T2,T4,T5)..DCRWD

 1
17435 - INSULATOR, EXHAUST PIPE HEAT
17551-E0760

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
17444 - PIPE, EXHAUST, NO.4
17444-78210

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17451 - GASKET, EXHAUST PIPE
17451-78061

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 2
17451 - GASKET, EXHAUST PIPE
17451-78061

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 2
17451A - GASKET, EXHAUST PIPE, NO.2
17451-E0121

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17451C - GASKET, EXHAUST PIPE, NO.3
S1710-41490

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17451D - GASKET, EXHAUST PIPE, NO.4
S1710-41580

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17451E - GASKET, EXHAUST PIPE, NO.5
17451-78120

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17451-E0090

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17451F - GASKET, EXHAUST PIPE, NO.6
17451-E0121

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17584-78110

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17584-78100

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17584-78040

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17537 - PLATE, EXHAUST PIPE
17537-78030

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 6
17537 - PLATE, EXHAUST PIPE
17537-78030

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 6
17537 - PLATE, EXHAUST PIPE
17537-78030

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 6
17541 - STAY, EXHUST PIPE PROTECTOR, NO.1
17541-78020

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17554 - INSULATOR, EXHAUST PIPE HEAT, FRONT
17554-78101

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78060

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 11
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78060

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 11
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78060

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 11
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78060

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 11
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78060

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 11
17569 - PLATE, EXHAUST PIPE SUPPORT
17537-78020

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 4
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78140

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
17571D - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17585-78130

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-78510

N04C..XZC630,XZU630..DCRWD

 1
17572G - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17585-78140

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17586-78150

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17573E - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-78560

N04C..XZC630,XZU630..DCRWD

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-78200

N04C..XZC630,XZU630..DCRWD

 1
17574B - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17586-78160

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17584-78140

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17585A - BRACKET, EXHAUST PIPE NO.2 SUPPORT
17585-78221

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
17585-78220

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
17585-78220

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
17585-78222

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
17586B - BRACKET, EXHAUST PIPE NO.3 SUPPORT
17586-78201

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
17593 - PROTECTOR, EXHAUST PIPE, NO.1
17551-78130

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
74517B - LABEL, EXHAUST TEMPERATURE CAUTION
74517-37040

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
87378C - PIPE, EXHAUST
87378-E0033

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
87403C - PIPE SUB-ASSY, EXHAUST
87403-E0010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
Common parts
82715-3VX20
90119-10817
91551-80620
91551-80816
91551-80820
91552-81030
91552-81035
91671-80820
91671-80825
91672-81030
91672-81035
94151-80800
94151-81000
94185-60600
94188-01201
95333-08010
96136-41501
SH552-11025
SZ109-10072
SZ116-10171
SZ126-08001
SZ126-08006
SZ178-08007
SZ178-10007
SZ910-16017
SZ910-16223
Linked diagrams
1603
8401

ILLUST NO. 2 OF 2(1905- )N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..DCRWD,DCVTO

Click highlighted areas on diagram

diagram 12118C 17551 17552 17553 17554A 17555 17556 17557 17558 17576 17577 17578D 17579 18040 18040A 9155281030 9155281030 9167281030 SH56210816 SH56210816 SL18500809 SL18500809 SZ17810007 SZ17810007 SZ17810007
Part # Description Qty Price
12118C - PLUG, DRAIN
12118-78010

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17553-78130

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2
17553-78140

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3
17553-78170

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17554A - INSULATOR, EXHAUST PIPE HEAT, NO.4
17553-78180

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17555 - INSULATOR, EXHAUST PIPE HEAT, NO.5
17554-78190

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17556 - INSULATOR, EXHAUST PIPE HEAT, NO.6
17554-78200

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17557 - INSULATOR, EXHAUST PIPE HEAT, NO.7
17554-78220

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
17558 - INSULATOR, EXHAUST PIPE HEAT, NO.8
17554-78210

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17576 - BRACKET, MUFFLER CLAMP
17576-78180

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-78390

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-78490

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
17579 - BRACKET, EXHAUST PIPE SUPPORT NO.1 SUB
17579-78080

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
18040 - CONVERTER ASSY, EXHAUST PIPE, NO.1
18040-78200

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
18040A - CONVERTER ASSY, EXHAUST PIPE, NO.2
18040-78210

N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO)

 1
Common parts
91552-81030
91672-81030
SH562-10816
SL185-00809
SZ178-10007
