XZC610D-TWTMB (2011)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 5(1107- )DCB,SCB..DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VP00 |
XZC610,XZU610..6FC |
1 | ||
| 51001-3VP01 |
XZC610,XZU610..6FC |
1 | ||
| 51001-3VP02 |
XZC610,XZU610..6FC |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37081 |
XZU650..20T;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC600,610,630,XZU600,610,620,630..(DM5,DM7,T4,T5)..WT TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37141 |
XZU650..20T;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC600,610,630,XZU600,610,620,630..(DM5,DM7,T4,T5)..WT TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37840 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZC600,610,XZU610,620..WT;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6) |
1 | ||
| 82715K - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-3VN20 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..SCB..WT |
1 | ||
| Common parts | ||||
| 90467-09101 | ||||
| 91552-81240 | ||||
| 91552-F1240 | ||||
| 94151-21201 | ||||
| 94151-81200 | ||||
ILLUST NO. 4 OF 5(1107- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37620 |
XZC610,XZU610,620 |
2 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37290 |
XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..(T3,T4)..MTM;XZU605..(T2,T4)..(CBU,IV3);XZU600..SCB..(T3,T4)..6FC..(20T,30T);XZC60#,610,XZU610,620,685..(DM5,T2,T3,T4)..(CBU,IV3,IV6) |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37290 |
XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..(T3,T4)..MTM;XZU605..(T2,T4)..(CBU,IV3);XZU600..SCB..(T3,T4)..6FC..(20T,30T);XZC60#,610,XZU610,620,685..(DM5,T2,T3,T4)..(CBU,IV3,IV6) |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
ILLUST NO. 5 OF 5(1107- )
ﾘﾍﾞｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||
| 95121-01040 | ||||

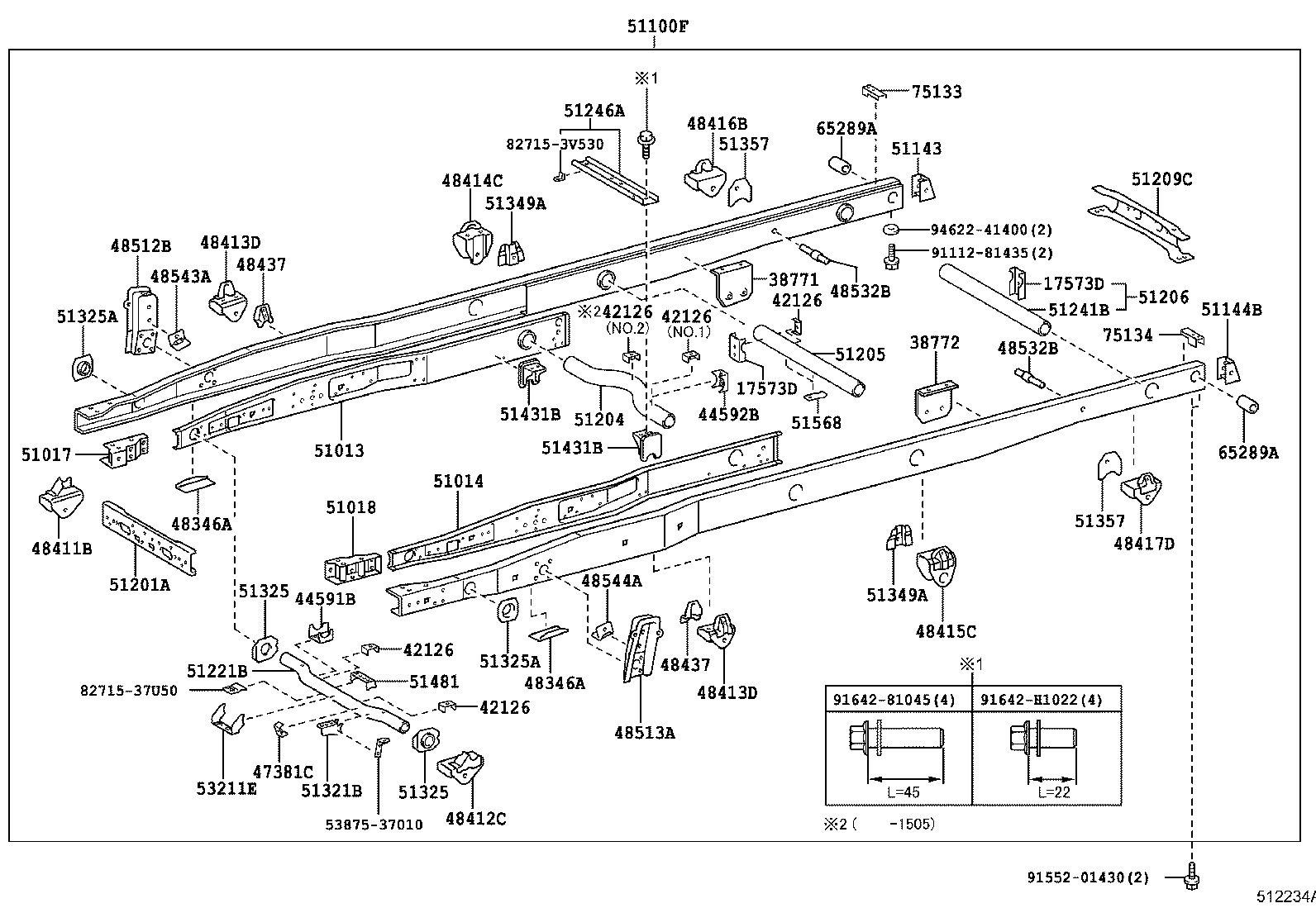

ILLUST NO. 2 OF 5(1107- )XZC610,XZU610,620
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17573D - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78030 |
N04C..XZC610,XZU610,620 |
2 | ||
| 17573D - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78030 |
N04C..XZC610,XZU610,620 |
2 | ||
| 38771 - STAY, TRUNNION BRACKET, RH | ||||
| 38771-37010 |
XZC610,630,XZU610,620,630 |
1 | ||
| 38772 - STAY, TRUNNION BRACKET, LH | ||||
| 38772-37010 |
XZC610,630,XZU610,620,630 |
1 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37070 |
XZC610,XZU610,620 NO.2 ｾﾝﾀ |
1 | ||
| 42126-37070 |
XZC610,630,XZU610,620,630 ﾌﾛﾝﾄ |
2 | ||
| 42126-37020 |
XZC610,XZU610,620 NO.1 & NO.2 ｾﾝﾀ |
2 | ||
| 42126-37020 |
XZU620..5F;XZC610,630,XZU610,630 ﾘﾔ |
2 | ||
| 42126-37020 |
XZU620..5F;XZC610,XZU610 NO.1 ｾﾝﾀ |
1 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37070 |
XZC610,XZU610,620 NO.2 ｾﾝﾀ |
1 | ||
| 42126-37070 |
XZC610,630,XZU610,620,630 ﾌﾛﾝﾄ |
2 | ||
| 42126-37020 |
XZC610,XZU610,620 NO.1 & NO.2 ｾﾝﾀ |
2 | ||
| 42126-37020 |
XZU620..5F;XZC610,630,XZU610,630 ﾘﾔ |
2 | ||
| 42126-37020 |
XZU620..5F;XZC610,XZU610 NO.1 ｾﾝﾀ |
1 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37070 |
XZC610,XZU610,620 NO.2 ｾﾝﾀ |
1 | ||
| 42126-37070 |
XZC610,630,XZU610,620,630 ﾌﾛﾝﾄ |
2 | ||
| 42126-37020 |
XZC610,XZU610,620 NO.1 & NO.2 ｾﾝﾀ |
2 | ||
| 42126-37020 |
XZU620..5F;XZC610,630,XZU610,630 ﾘﾔ |
2 | ||
| 42126-37020 |
XZU620..5F;XZC610,XZU610 NO.1 ｾﾝﾀ |
1 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37070 |
XZC610,XZU610,620 NO.2 ｾﾝﾀ |
1 | ||
| 42126-37070 |
XZC610,630,XZU610,620,630 ﾌﾛﾝﾄ |
2 | ||
| 42126-37020 |
XZC610,XZU610,620 NO.1 & NO.2 ｾﾝﾀ |
2 | ||
| 42126-37020 |
XZU620..5F;XZC610,630,XZU610,630 ﾘﾔ |
2 | ||
| 42126-37020 |
XZU620..5F;XZC610,XZU610 NO.1 ｾﾝﾀ |
1 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37070 |
XZC610,XZU610,620 NO.2 ｾﾝﾀ |
1 | ||
| 42126-37070 |
XZC610,630,XZU610,620,630 ﾌﾛﾝﾄ |
2 | ||
| 42126-37020 |
XZC610,XZU610,620 NO.1 & NO.2 ｾﾝﾀ |
2 | ||
| 42126-37020 |
XZU620..5F;XZC610,630,XZU610,630 ﾘﾔ |
2 | ||
| 42126-37020 |
XZU620..5F;XZC610,XZU610 NO.1 ｾﾝﾀ |
1 | ||
| 44591B - BRACKET, BRAKE ACTUATOR | ||||
| 44591-37270 |
XZC610,630,XZU610,620,630 |
1 | ||
| 44592B - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-37061 |
XZC610,XZU610,620 |
1 | ||
| 44592-37060 |
XZC610,XZU610,620 |
1 | ||
| 47381C - BRACKET, TUBE CLAMP | ||||
| 47381-37310 |
XZC610,630,675,XZU610,620,630,675,685,695 |
1 | ||
| 48346A - STOPPER, BUMPER, FR | ||||
| 48346-37030 |
XZC610,630,XZU610,620,630 |
2 | ||
| 48346A - STOPPER, BUMPER, FR | ||||
| 48346-37030 |
XZC610,630,XZU610,620,630 |
2 | ||
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37051 |
XZC610,630,XZU610,620,630 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37041 |
XZC610,630,XZU610,620,630 |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37050 |
XZC610,XZU610,620 |
2 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37050 |
XZC610,XZU610,620 |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37080 |
XZC610,XZU610,620 |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48414-37080 |
XZC610,XZU610,620 |
2 | ||
| 48414-37080 |
XZU620..5F;XZC610,XZU610 |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37070 |
XZC610,630,XZU610,620,630 |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37070 |
XZC610,630,XZU610,620,630 |
1 | ||
| 48437 - ATTACHMENT, SPRING BRACKET | ||||
| 48437-37010 |
XZC610,630,XZU610,620,630 |
2 | ||
| 48437 - ATTACHMENT, SPRING BRACKET | ||||
| 48437-37010 |
XZC610,630,XZU610,620,630 |
2 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37130 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT | ||||
| 48532-37010 |
XZC610,630,675,XZU610,620,630,675..DM5,DM7 |
2 | ||
| 48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT | ||||
| 48532-37010 |
XZC610,630,675,XZU610,620,630,675..DM5,DM7 |
2 | ||
| 48543A - REINFORCEMENT, FRONT ABSORBER BRACKET, RH | ||||
| 48543-37010 |
XZC610,630,XZU610,620,630 |
1 | ||
| 48544A - REINFORCEMENT, FRONT ABSORBER BRACKET, LH | ||||
| 48543-37010 |
XZC610,630,XZU610,620,630 |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37341 |
XZC610,XZU610,620 |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37311 |
XZC610,XZU610,620 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37050 |
XZC610,630,XZU610,620,630 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37050 |
XZC610,630,XZU610,620,630 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VP00 |
XZC610,XZU610..6FC |
1 | ||
| 51001-3VP01 |
XZC610,XZU610..6FC |
1 | ||
| 51001-3VP02 |
XZC610,XZU610..6FC |
1 | ||
| 51143 - REINFORCEMENT, SIDE RAIL, REAR RH | ||||
| 51143-37030 |
XZC610,675,XZU610,620,675..DM5 |
1 | ||
| 51144B - REINFORCEMENT, SIDE RAIL, REAR LH | ||||
| 51143-37030 |
XZC610,675,XZU610,620,675..DM5 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-37141 |
XZC610,630,XZU610,620,630 |
1 | ||
| 51201-37142 |
XZC610,630,XZU610,620,630 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51231-37060 |
XZC610,XZU610,620 |
1 | ||
| 51231-37061 |
XZC610,XZU610,620 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51241-37030 |
XZC610,630,XZU610,620,630 |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-37090 |
XZC610,XZU610,620 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37160 |
XZC610,XZU610,620 |
1 | ||
| 51221B - CROSSMEMBER, FRONT SUSPENSION | ||||
| 51221-37190 |
XZC610,630,XZU610,620,630 |
1 | ||
| 51241B - CROSSMEMBER, FRAME, NO.4 | ||||
| 51241-37030 |
XZC610,XZU610,620 |
1 | ||
| 51246A - MEMBER, ENGINE REAR SUPPORT | ||||
| 51022-37020 |
XZC610,XZU610,620..6FC |
1 | ||
| 51321B - GUSSET, CROSSMEMBER, NO.2 | ||||
| 51321-37120 |
XZC610,630,XZU610,620,630 |
1 | ||
| 51325 - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37021 |
XZC610,630,XZU610,620,630 |
2 | ||
| 51325 - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37021 |
XZC610,630,XZU610,620,630 |
2 | ||
| 51325A - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37040 |
XZC610,630,XZU610,620,630 |
2 | ||
| 51325A - RETAINER, FRAME NO.2 CROSSMEMBER | ||||
| 51325-37040 |
XZC610,630,XZU610,620,630 |
2 | ||
| 51349A - REINFORCEMENT, REAR SPRING FRONT BRACKET, NO.2 | ||||
| 51349-37022 |
XZC610,XZU610,620 |
2 | ||
| 51349A - REINFORCEMENT, REAR SPRING FRONT BRACKET, NO.2 | ||||
| 51349-37022 |
XZC610,XZU610,620 |
2 | ||
| 51357 - REINFORCEMENT, REAR SPRING REAR BRACKET, RH | ||||
| 51357-37030 |
XZC610,XZU610 |
2 | ||
| 51357 - REINFORCEMENT, REAR SPRING REAR BRACKET, RH | ||||
| 51357-37030 |
XZC610,XZU610 |
2 | ||
| 51431B - BRACKET, ENGINE REAR MOUNTING | ||||
| 51431-37030 |
XZC610,XZU610,620 |
2 | ||
| 51431B - BRACKET, ENGINE REAR MOUNTING | ||||
| 51431-37030 |
XZC610,XZU610,620 |
2 | ||
| 51481 - BRACKET, POWER STEERING TUBE CLAMP | ||||
| 51481-37130 |
XZC610,630,XZU610,620,630 |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37620 |
XZC610,XZU610,620 |
2 | ||
| 53211E - SUPPORT, RADIATOR | ||||
| 53211-37090 |
XZC610,630,XZU610,620,630 |
1 | ||
| 65289A - SUPPORT, VESSEL HINGE | ||||
| 65289-37010 |
XZC610,630,675,XZU610,620,630,675..DM5,DM7 |
2 | ||
| 65289A - SUPPORT, VESSEL HINGE | ||||
| 65289-37010 |
XZC610,630,675,XZU610,620,630,675..DM5,DM7 |
2 | ||
| 75133 - BASE, COMBINATION REAR LAMP BRACKET, RH | ||||
| 75133-37030 |
XZC610,675,XZU610,620,675..DM5 |
1 | ||
| 75134 - BASE, COMBINATION REAR LAMP BRACKET, LH | ||||
| 75133-37030 |
XZC610,675,XZU610,620,675..DM5 |
1 | ||
| Common parts | ||||
| 53875-37010 | ||||
| 82715-37U50 | ||||
| 82715-3V530 | ||||
| 91112-81435 | ||||
| 91552-01430 | ||||
| 91642-81045 | ||||
| 91642-H1022 | ||||
| 94622-41400 | ||||
