XZC605V-RRTMA (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2016
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCR

Click highlighted areas on diagram

diagram 1603 1603 8712437090 8712437480 8712437480 8712437480 8712437490 8714 8714 87245A 87245B 87246A 87246B 87248A 87249A 9011908802 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9155180814 9155180814 9415180800 9415180800
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-37A00

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
87245-37A00

TRC600,XZC605..(DCB,VAN)..(06S,T4)

ﾘﾔﾋｰﾀ−有り

 1
87245B - HOSE, HEATER WATER, INLET B
87245-37C81

XZC605..06S

 1
87245-37C81

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37A00

TRC600,XZC605..(DCB,VAN)..(06S,T4)

ﾘﾔﾋｰﾀ−有り

 1
87245-37A00

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37640

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87246-37640

XZC605..06S

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37C90

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87248-37C60

XZC605..06S

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37C20

XZC605..06S

 1
87248-37C30

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
Common parts
87124-37090
87124-37480
87124-37490
90119-08802
90467-21010
91551-80814
94151-80800
Linked diagrams
1603
8714

(1107-1605)06S

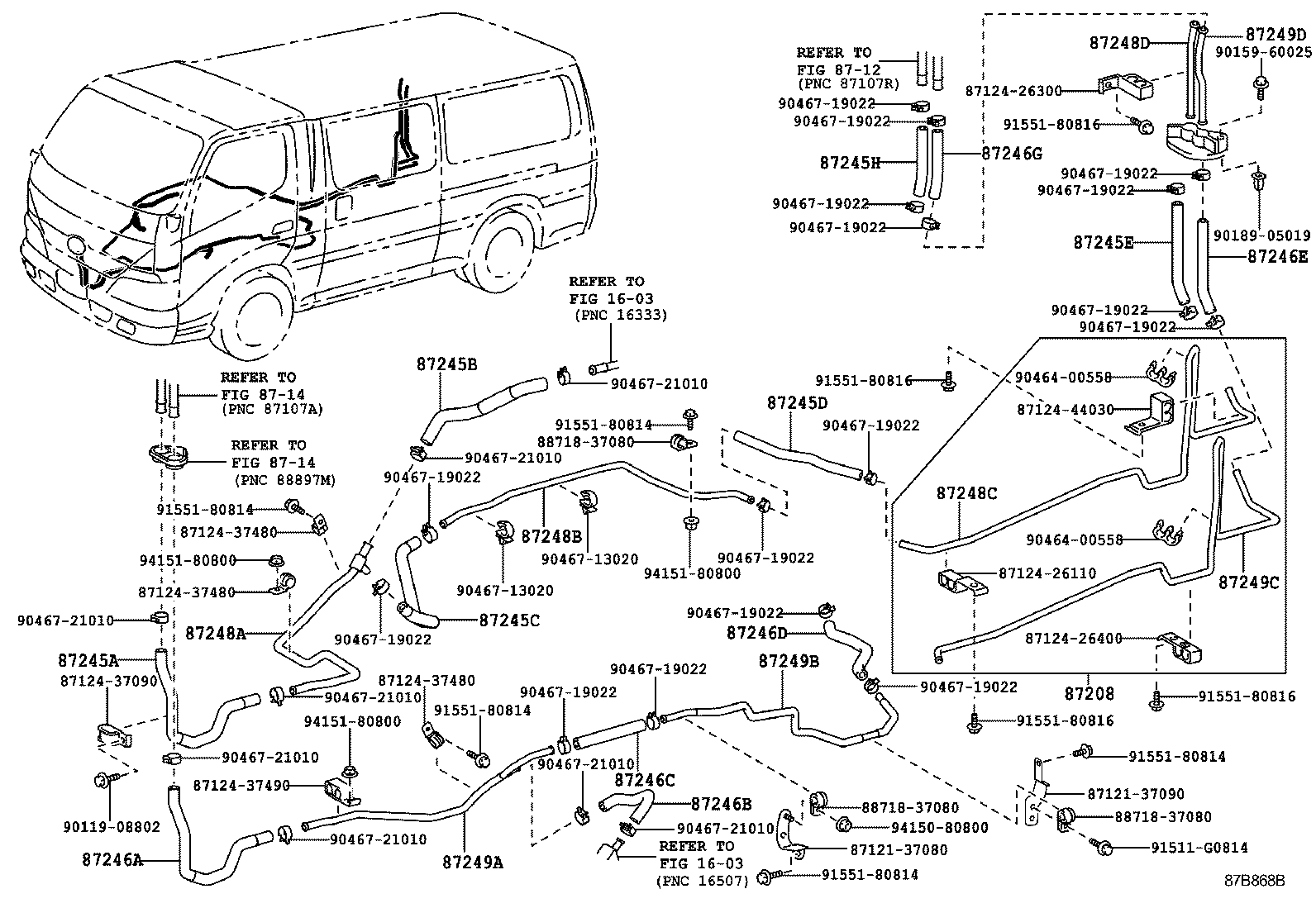

Click highlighted areas on diagram

ｱﾘ(ﾘﾔﾋｰﾀ)

diagram 1603 1603 8712 8712137080 8712137090 8712426110 8712426300 8712426400 8712437090 8712437480 8712437480 8712437480 8712437490 8712444030 8714 8714 87208 87245A 87245B 87245C 87245D 87245E 87245H 87246A 87246B 87246C 87246D 87246E 87246G 87248A 87248B 87248C 87248D 87249A 87249B 87249C 87249D 8871837080 8871837080 8871837080 9011908802 9015960025 9018905019 9046400558 9046400558 9046713020 9046713020 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 91511G0814 9155180814 9155180814 9155180814 9155180814 9155180814 9155180816 9155180816 9155180816 9155180816 9415080800 9415180800 9415180800 9415180800
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-37440

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87245A - HOSE, HEATER WATER, INLET A
87245-37A00

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
87245-37A00

TRC600,XZC605..(DCB,VAN)..(06S,T4)

ﾘﾔﾋｰﾀ−有り

 1
87245B - HOSE, HEATER WATER, INLET B
87245-37C81

XZC605..06S

 1
87245-37C81

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-37D90

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87245D - HOSE, HEATER WATER, INLET D
87245-37C10

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87245E - HOSE, HEATER WATER, INLET E
99556-20300

XZC605..06S

*H,L=260,ﾘﾔﾋｰﾀ−有り

 1
87245H - HOSE, HEATER WATER, INLET H
99556-20300

XZC605..06S

*H,L=210,ﾘﾔﾋｰﾀ−有り

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37A00

TRC600,XZC605..(DCB,VAN)..(06S,T4)

ﾘﾔﾋｰﾀ−有り

 1
87245-37A00

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37640

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87246-37640

XZC605..06S

 1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20200

XZC605..06S

*H,L=160,ﾘﾔﾋｰﾀ−有り

 1
87246D - HOSE, HEATER WATER, OUTLET D
87245-37C20

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-20300

XZC605..06S

*H,L=270,ﾘﾔﾋｰﾀ−有り

 1
87246G - HOSE, HEATER WATER, OUTLET G
99556-20200

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37C90

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87248-37C60

XZC605..06S

 1
87248B - PIPE, HEATER WATER INLET, B
87248-37A00

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87248C - PIPE, HEATER WATER INLET, C
87248-37560

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87248D - PIPE, HEATER WATER INLET, D
87248-37350

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37C20

XZC605..06S

 1
87248-37C30

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-37710

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-37570

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
87249D - PIPE, HEATER WATER OUTLET, D
87248-37340

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
Common parts
87121-37080
87121-37090
87124-26110
87124-26300
87124-26400
87124-37090
87124-37480
87124-37490
87124-44030
88718-37080
90119-08802
90159-60025
90189-05019
90464-00558
90467-13020
90467-19022
90467-21010
91511-G0814
91551-80814
91551-80816
94150-80800
94151-80800
Linked diagrams
1603
8712
8714
