XZC605V-RRTMA (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2016
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

ﾋｰﾀｺﾝﾄﾛｰﾙﾊﾟﾈﾙ(ﾌﾛﾝﾄ)

diagram 55519R 55900A 55905A 55905A 55905B 55906D 55908A 55909A 55937 84661A 84732H 84732K 9356855016 9356855016
Part # Description Qty Price
55519R - PLATE, HEATER CONTROL NAME
55519-95J05

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
55519-37170

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-37480

XZC605..06S

 1
55905A - KNOB, HEATER CONTROL
55905-37030

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 2
55905A - KNOB, HEATER CONTROL
55905-37030

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 2
55905B - KNOB, HEATER CONTROL, NO.2
55905-37040

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2
55906-37090

TRC600..T4;XZC605..06S;TRU600..T4..IV3

ｹｰﾌﾞﾙｶﾗｰ : ﾅﾁｭﾗﾙ

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-37090

TRC600..T4;XZC605..06S;TRU600..T4..IV3

ｹｰﾌﾞﾙｶﾗｰ : ｸﾞﾚｲ

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-37100

TRC600..T4;XZC605..06S;TRU600..T4..IV3

ｹｰﾌﾞﾙｶﾗｰ : ﾌﾞﾙｰ

 1
55937 - KNOB, HEATER CONTROL LEVER
55925-37010

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
84661A - KNOB, COOLER CONTROL SWITCH
84661-37010

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
84732H - SWITCH, HEATER BLOWER
84732-37070

XZC605..06S

 1
84732K - BULB, HEATER BLOWER SWITCH
90010-11014

XZC605..06S

24V

 2
Common parts
93568-55016

ILLUST NO. 2 OF 3(1107- )

Click highlighted areas on diagram

ｴｱﾀﾞｸﾄ(ﾌﾛﾝﾄ)

diagram 55843A 55844 55845A 55870B 55950G 55967B 55971C 55972C 87201 87201B 87201F 87201L 87211R 87211R 87211R 9046707117 9046707117 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-37140

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-37060

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-37060

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
55870B - DUCT ASSY, HEATER TO REGISTER
55870-37010

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-37100

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
55967B - NOZZLE, DEFROSTER, LOWER
55967-37080

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-37080

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-37070

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87212-37050

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87213-37050

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZC610,675,XZU610,620,675;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);BZU600,TRC600,XZC60#,630,645,655,XZU60#,630,645,655,685,695..(03S,06S,DM3,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87214-37040

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
87201L - DUCT SUB-ASSY, AIR, NO.4
87214-37090

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
87211R - CLIP, AIR DUCT
90467-07041P5

TRC600..T4;XZC605..06S;TRU600..T4..IV3

GRAY,TRIM1#

 3
87211R - CLIP, AIR DUCT
90467-07041P5

TRC600..T4;XZC605..06S;TRU600..T4..IV3

GRAY,TRIM1#

 3
87211R - CLIP, AIR DUCT
90467-07041P5

TRC600..T4;XZC605..06S;TRU600..T4..IV3

GRAY,TRIM1#

 3
Common parts
90467-07117
93568-55014

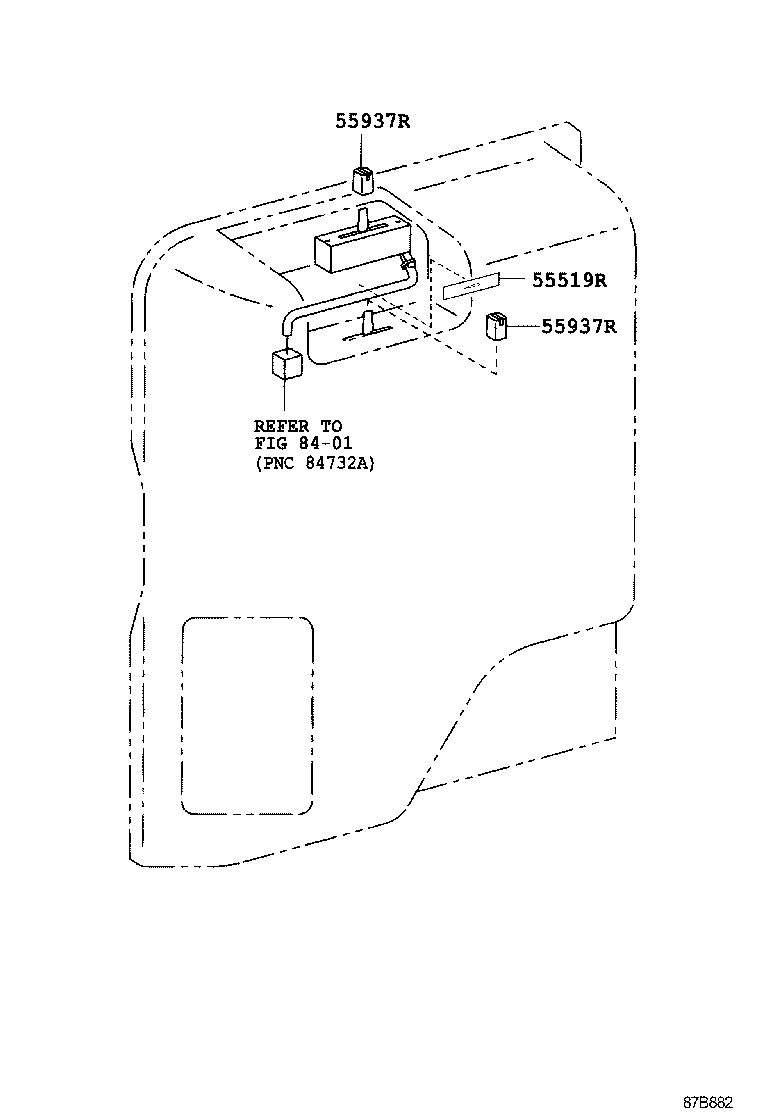

ILLUST NO. 3 OF 3(1107-1605)06S

Click highlighted areas on diagram

ﾋｰﾀｺﾝﾄﾛｰﾙﾊﾟﾈﾙ(ﾘﾔ)

diagram 55519R 55937R 55937R 8401
Part # Description Qty Price
55519R - PLATE, HEATER CONTROL NAME
55519-95J05

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 1
55519-37170

TRC600..T4;XZC605..06S;TRU600..T4..IV3

 1
55937R - KNOB, HEATER CONTROL LEVER
55905-10110

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 2
55937R - KNOB, HEATER CONTROL LEVER
55905-10110

XZC605..06S

ﾘﾔﾋｰﾀ−有り

 2
Linked diagrams
8401
