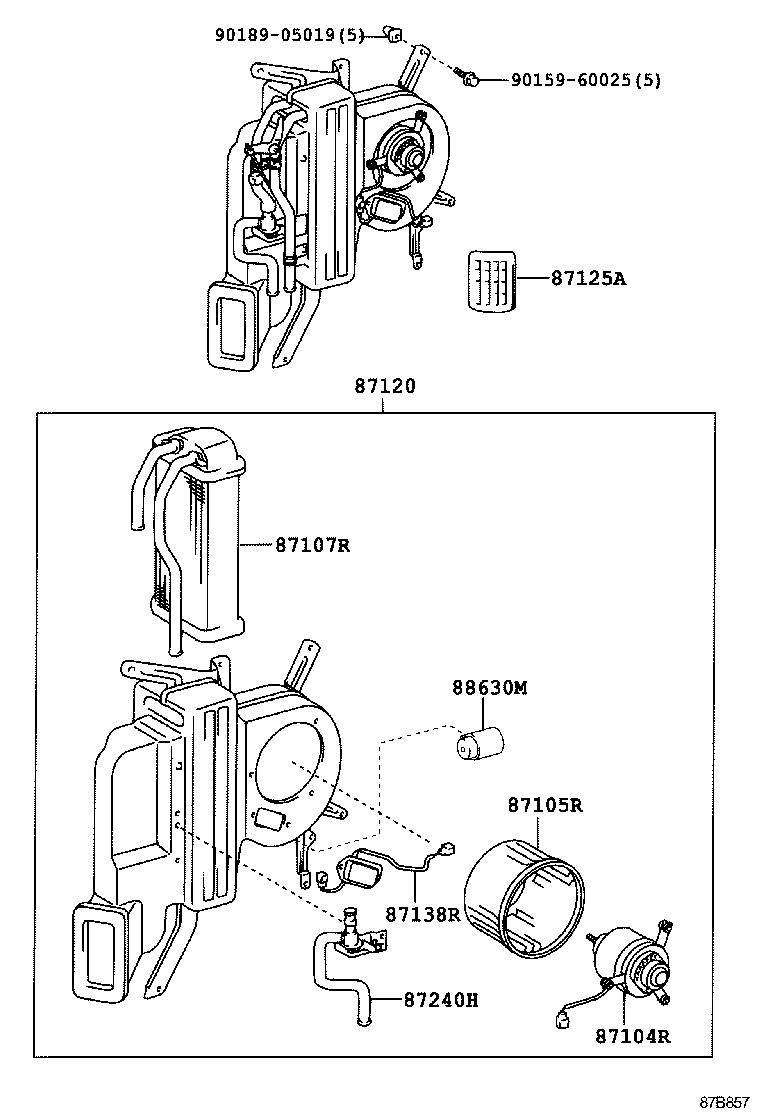

Toyota Dyna/toyoace XZC605 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Part #	Description	Period	Qty
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-37100	XZC605..06S ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2016	1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-95J00	XZC605..06S ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2016	1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-26160	XZC605..06S ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2016	1
87120 - HEATER ASSY, REAR
87110-37110	XZC605..06S ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2016	1
87125A - GRILLE, AIR OUTLET
87125-95J07B0	XZC605..06S ﾘﾔﾋｰﾀ−有り,BLUISH GRAY,TRIM1#	07/2011 - 05/2016	1
87138R - RESISTOR, REAR HEATER BLOWER
87138-37170	XZC605..06S ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2016	1
87240H - VALVE ASSY, WATER UNIT
87240-26040	XZC605..06S ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2016	1
88630M - RELAY ASSY, COOLER
88630-37060	XZC605..06S ﾘﾔﾋｰﾀ−有り	07/2011 - 05/2016	1
Common parts
90159-60025
90189-05019

XZC605V-RRTMA (2011)
