XZC605V-RRTMA (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2016
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )VAN

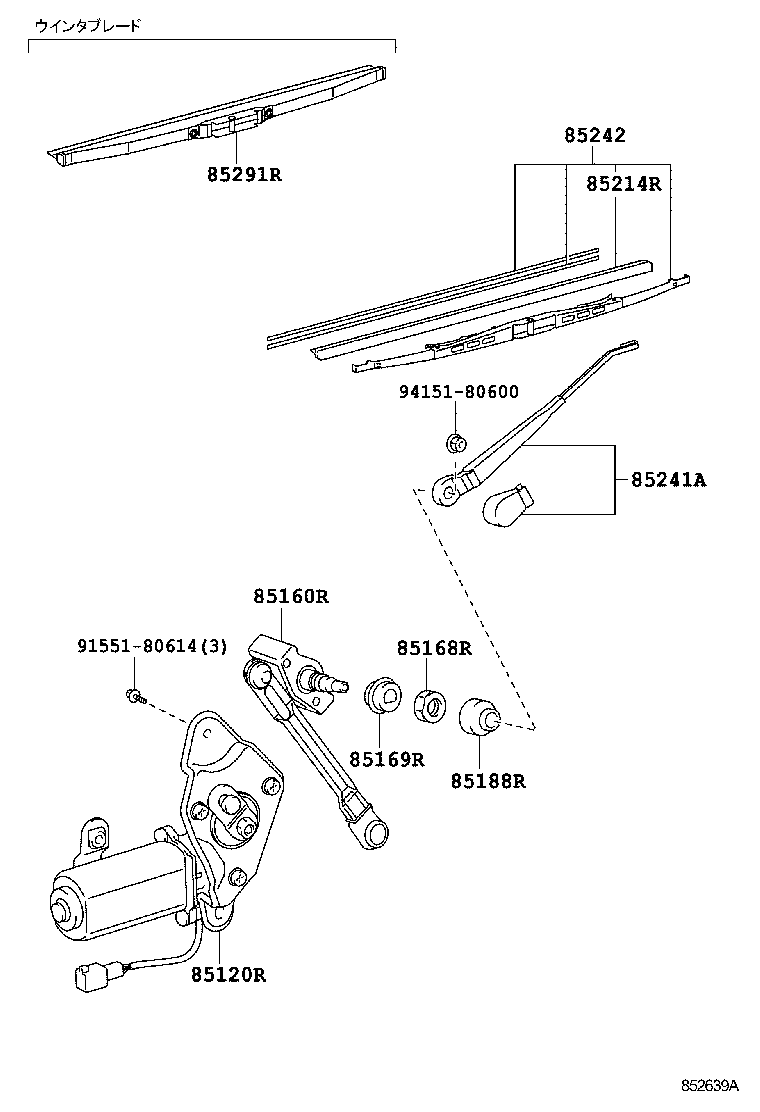

Click highlighted areas on diagram

diagram 85120R 85160R 85168R 85169R 85188R 85214R 85241A 85242 85291R 9155180614 9415180600
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85130-37010

XZC605..VAN

ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き)

 1
85160R - LINK ASSY, REAR WIPER
85160-95J04

XZC605..VAN

ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き)

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
85168-95700

XZC605..VAN

ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き)

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-95J01

XZC605..VAN

ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き)

 1
85188R - CAP, REAR WIPER PIVOT, NO.1
85178-95J00

XZC605..VAN

ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き)

 1
85214R - RUBBER, REAR WIPER
85214-26010

XZC605..VAN

ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き)

 1
85241A - ARM, REAR WIPER
85241-26020

XZC605..VAN

ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き)

 1
85242 - BLADE, RR WIPER
85242-26020

XZC605..VAN

ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き)

 1
85291R - BLADE,REAR WIPER, WINTER
85291-44080

XZC605..VAN

ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き)&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
Common parts
91551-80614
94151-80600
