XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 3(1107-1505)
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89183A - SENSOR, YAWRATE | ||||
| 89183-37010 |
XZC605..06S |
1 | ||
| 89183-37010 |
XZC605..06S VSC−無し |
1 | ||
| 89437F - COVER, SENSOR | ||||
| 89437-37021 |
XZC605..06S..6FC |
1 | ||
| 89441A - SENSOR, DECELERATION | ||||
| 89441-E0010 |
XZC675,XZU675,685,695;XZC60#,610,630,645,655,XZU60#,610,64#,65#..6FC |
1 | ||
| 89441-E0010 |
XZC605..06S..6FC VSC−無し |
1 | ||
| Common parts | ||||
| 87615-37010 | ||||
| 91551-80616 | ||||
| 91621-40616 | ||||
ILLUST NO. 2 OF 3(1107- )XZC605,645,655,XZU605,645,655
ﾌﾛﾝﾄｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-37100 |
XZC605..06S |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-37280 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
ILLUST NO. 3 OF 3(1107- )TRC600,TRU600,XZC60#,645,655,XZU605,640,645,650,655..03S,06S,T2,T3,T4,T5
ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 42141-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 42141-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 42141-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89549E - BRACKET, SPEED SENSOR | ||||
| 82715-3V690 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 82715-3V690 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 82715-3V690 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 82715-3V690 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| Common parts | ||||
| 42141-37330 | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 94151-80800 | ||||
ILLUST NO. 3 OF 3(1107-1605)DM3 ; (1107-1605)XZC675,XZU675,685,695..T3,T4..CBU,IV3,IV6 ; (1107-1705)
ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 42141-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 42141-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 42141-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89549E - BRACKET, SPEED SENSOR | ||||
| 82715-3V690 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 82715-3V690 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 82715-3V690 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 82715-3V690 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| Common parts | ||||
| 42141-37330 | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 94151-80800 | ||||

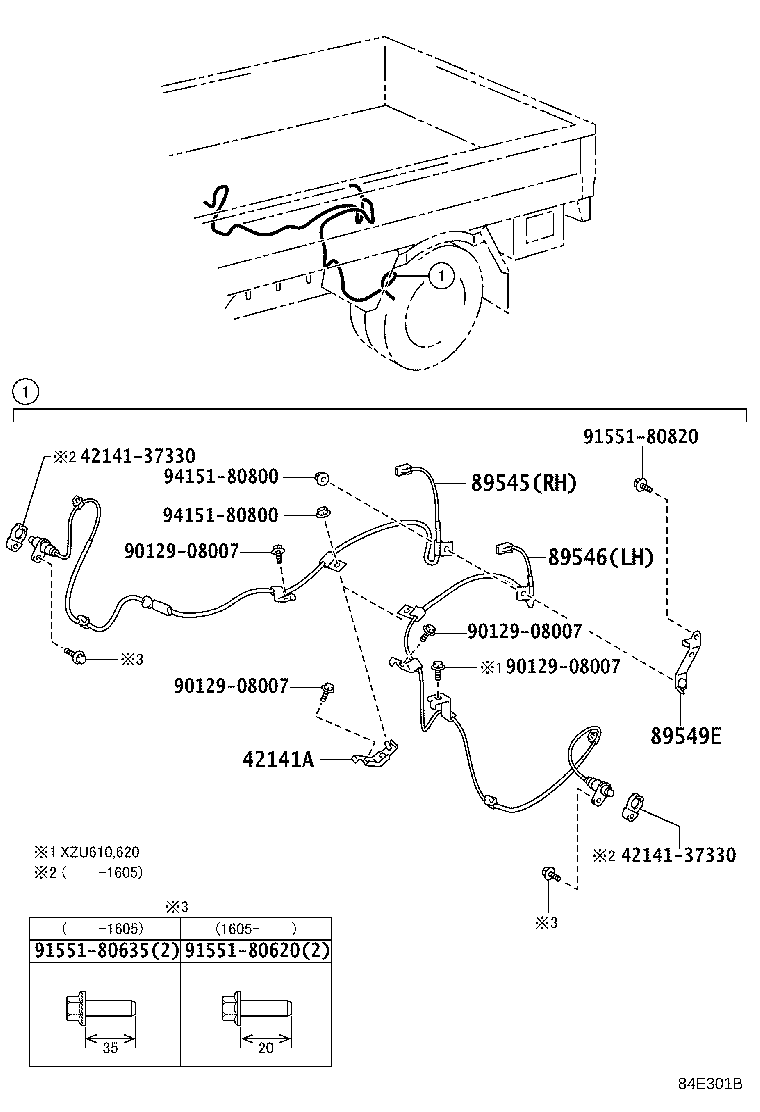

ILLUST NO. 3 OF 3(1302-1605)XZU630 ; (1302- )XZC610,630,XZU610,620..DCRTJ,DCRTK ; (1905- )XZC6
ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89545-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37110 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..(03S,06S,T2,T4,T5)..20T..WT |
1 | ||
| 89546-37111 |
TRC600..T4;XZC605..06S |
1 | ||
| 89549E - BRACKET, SPEED SENSOR | ||||
| 82715-3V690 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| Common parts | ||||
| 42141-37330 | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91551-80820 | ||||
| 94151-80800 | ||||
ILLUST NO. 1 OF 3(1505- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89183A - SENSOR, YAWRATE | ||||
| 89183-37010 |
XZC605..06S |
1 | ||
| 89183-37010 |
XZC605..06S VSC−無し |
1 | ||
| 89437F - COVER, SENSOR | ||||
| 89437-37021 |
XZC605..06S..6FC |
1 | ||
| 89441A - SENSOR, DECELERATION | ||||
| 89441-E0010 |
XZC675,XZU675,685,695;XZC60#,610,630,645,655,XZU60#,610,64#,65#..6FC |
1 | ||
| 89441-E0010 |
XZC605..06S..6FC VSC−無し |
1 | ||
| Common parts | ||||
| 87615-37010 | ||||
| 91551-80616 | ||||
| 91621-40616 | ||||
