XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace
(1107- )XZC60#,610,630,645,655,675,XZU602,605,610,620,630,642,645,652,655,675,68
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85915Q - RELAY, COMPUTER (FOR DIESEL) | ||||
| 85900-37150 |
XZC605..06S |
1 | ||
| 85900-37150 |
XZC605..06S |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-37A20 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37A20 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37C20 |
XZC60#,XZU605..6FC..DCRTH DENSO |
1 | ||
| 89661-37C20 |
XZC60#,XZU605..6FC..DCRTH DENSO |
1 | ||
| 89661-37C21 |
XZC60#,XZU605..6FC..DCRTH DENSO |
1 | ||
| 89661-37C21 |
XZC60#,XZU605..6FC..DCRTH DENSO |
1 | ||
| 89661-37A21 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37A21 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37A22 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37A22 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37C22 |
XZC60#,XZU605..6FC..DCRTH DENSO |
1 | ||
| 89661-37C22 |
XZC60#,XZU605..6FC..DCRTH DENSO |
1 | ||
| 89661-37F70 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F70 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37G10 |
XZC60#,XZU605..6FC..DCRTH DENSO |
1 | ||
| 89661-37G10 |
XZC60#,XZU605..6FC..DCRTH DENSO |
1 | ||
| 89661-37F71 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F71 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F72 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F72 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F73 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F73 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F74 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F74 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F75 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F75 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F76 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..WT..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F76 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..WT..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37G11 |
XZC60#..(06S,T2,T4)..6FC..DCRTH DENSO |
1 | ||
| 89661-37G11 |
XZC60#..(06S,T2,T4)..6FC..DCRTH DENSO |
1 | ||
| 89661-37F77 |
XZC600..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F77 |
XZC600..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-37130 |
XZC605..06S |
1 | ||
| 89667-37130 |
XZC605..06S |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-37120 |
XZC605..06S |
1 | ||
| 89668-37120 |
XZC605..06S |
1 | ||
| 89870A - DRIVER ASSY, INJECTOR | ||||
| 89870-37120 |
XZC605..06S |
1 | ||
| 89870-37120 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90159-50386 | ||||
| 91551-80610 | ||||
| 91551-80820 | ||||

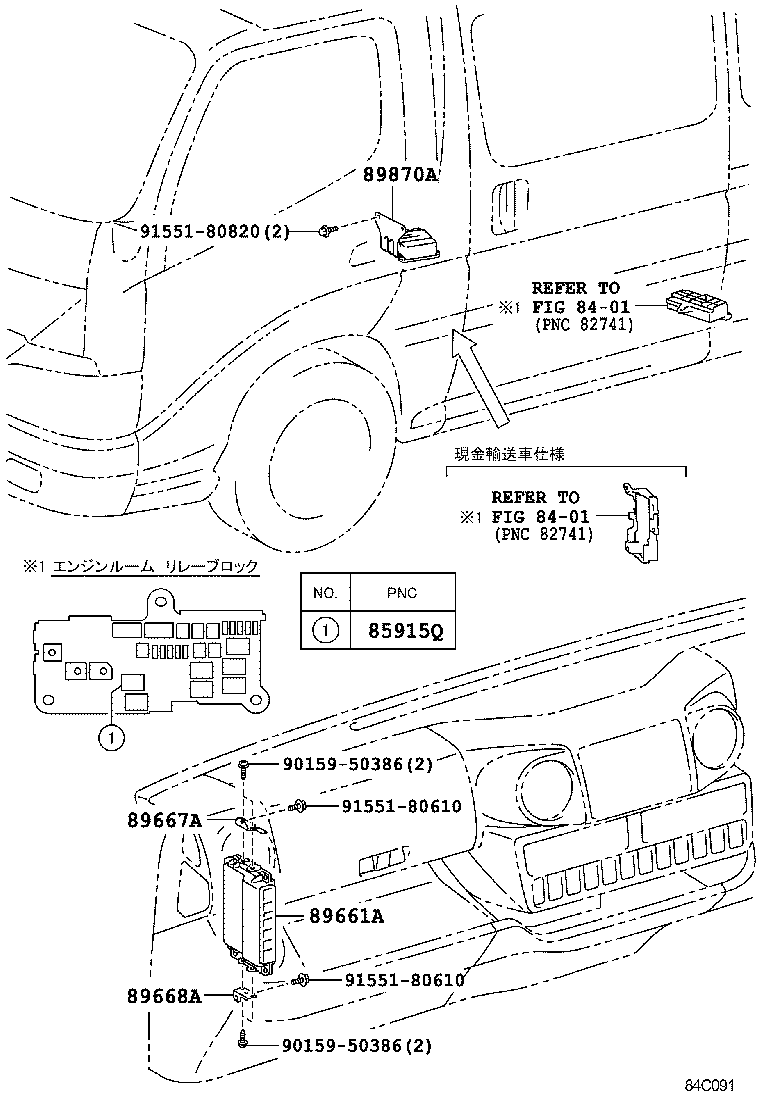

| Linked diagrams | ||||
| 8401 | ||||
(1107- )VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85915Q - RELAY, COMPUTER (FOR DIESEL) | ||||
| 85900-37150 |
XZC605..06S |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-37A20 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37C20 |
XZC60#,XZU605..6FC..DCRTH DENSO |
1 | ||
| 89661-37C21 |
XZC60#,XZU605..6FC..DCRTH DENSO |
1 | ||
| 89661-37A21 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37A22 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37C22 |
XZC60#,XZU605..6FC..DCRTH DENSO |
1 | ||
| 89661-37F70 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37G10 |
XZC60#,XZU605..6FC..DCRTH DENSO |
1 | ||
| 89661-37F71 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F72 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F73 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F74 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F75 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37F76 |
XZC600..5F..ST..DCRTH;XZC60#,XZU605..6FC..WT..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89661-37G11 |
XZC60#..(06S,T2,T4)..6FC..DCRTH DENSO |
1 | ||
| 89661-37F77 |
XZC600..ST..DCRTH;XZC60#,XZU605..6FC..DCRTH DENSO,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-37130 |
XZC605..06S |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-37120 |
XZC605..06S |
1 | ||
| 89870A - DRIVER ASSY, INJECTOR | ||||
| 89870-37120 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90159-50386 | ||||
| 91551-80610 | ||||
| 91551-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
