XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace
ILLUST NO. 7 OF10(1107- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37121 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 84140-37131 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZC610,675,XZU610,620,675;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);BZU600,TRC600,XZC60#,630,645,655,XZU60#,630,645,655,685,695..(03S,06S,DM3,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37031 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 84306-37030 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37031 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 84306-37030 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-37011 |
XZC605..06S |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-E0020 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37310 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 84652-37300 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-37030 |
XZC605..06S..6FC |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||
ILLUST NO. 6 OF10(1107-1705)TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-37030 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37060 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 84152-37061 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..WT..(CBU,IV3,IV6) |
1 | ||
| 84270A - SWITCH ASSY, MIRROR HEATER | ||||
| 84270-37240 |
XZC605..06S ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH&*CR(DOP)) |
1 | ||
| 84270-37240 |
XZC605..06S ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH) |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37230 |
XZC605..06S |
1 | ||
| 84270L - SWITCH ASSY, IDLE STOP | ||||
| 84270-37270 |
XZC605..06S..6FC |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37030 |
XZC605..06S |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84270-37340 |
XZC605..06S..6FC |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-37040 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-37030 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
XZC605..06S ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH&*CR(DOP)) |
1 | ||
| 84870-34010 |
XZC605..06S ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH) |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52030 |
XZC605..06S ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH) |
1 | ||
| 84872-52030 |
XZC605..06S ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH&*CR(DOP)) |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37030 |
XZC605..06S ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH) |
1 | ||
| 84873-37030 |
XZC605..06S ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH&*CR(DOP)) |
1 | ||
| 84873-37030 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*SHS&*TM) |
1 | ||
| 84873-37030 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*SHS)､*CR(DOP) |
1 | ||
| 84873-37030 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*SHS&*WVM) |
1 | ||
| 84873-37030 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 ｱｳﾀﾐﾗｰ−*DRS(*WVM)､*PAS(*57&*SHS&*TM(*WVM)) |
1 | ||
| 84986C - SWITCH, VSC OFF | ||||
| 84270-37300 |
XZC605..06S |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37050 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| Linked diagrams | ||||
| 7851 | ||||
| 8413 | ||||
| 8420 | ||||
| 8609 | ||||

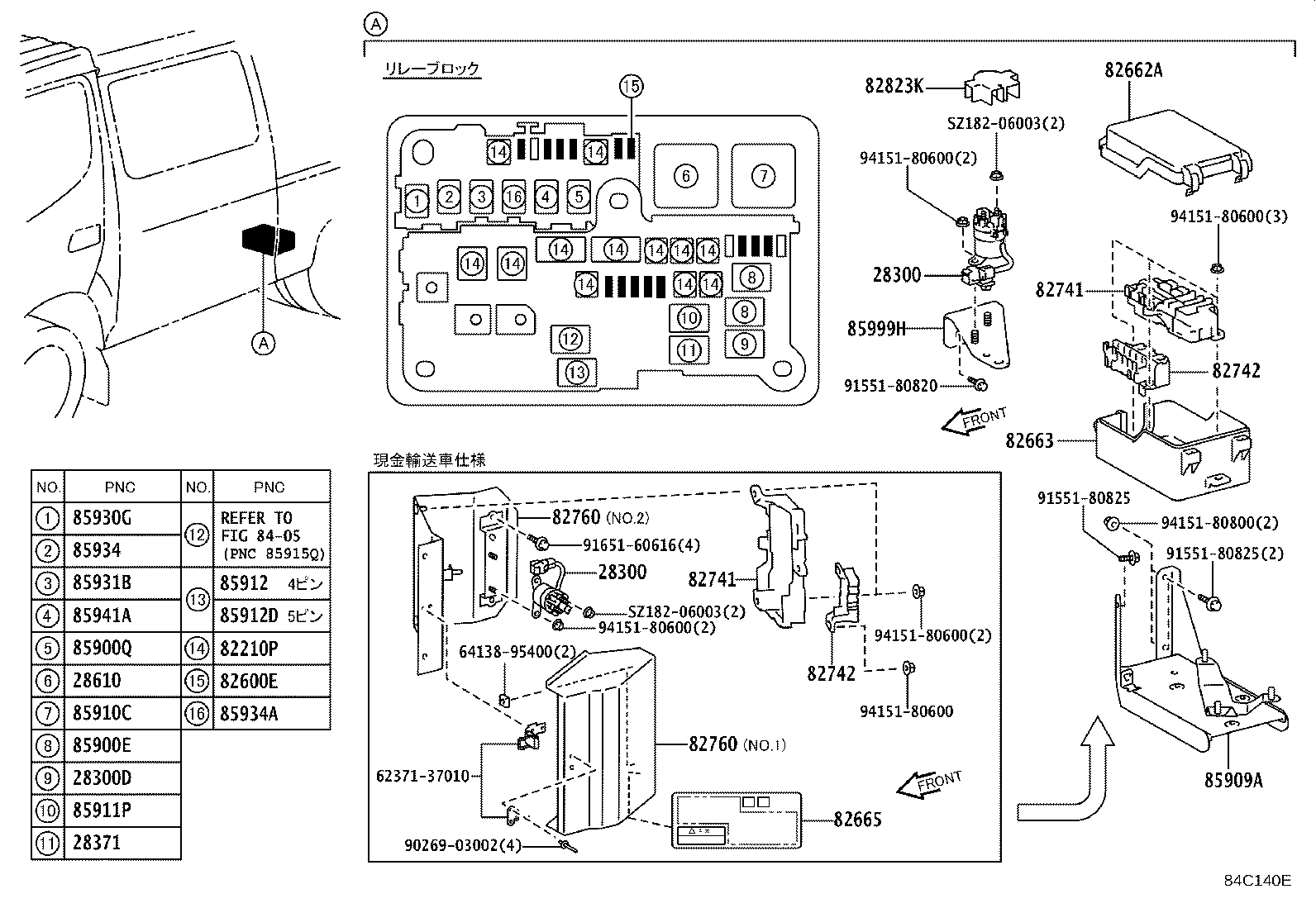

ILLUST NO. 5 OF10(1107- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81713 - HOLDER, FUSEE | ||||
| SZ950-79033 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37270 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 81980-37271 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37270 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 81980-37271 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09019 |
XZC605..06S 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09021 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37540 |
XZC605..06S |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-37200 |
XZC60#,610,630,645,655,XZU60#,610,64#,65#..6FC |
1 | ||
| 82730-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 82730-37200 |
XZC605..06S..6FC VSC−無し |
1 | ||
| 82730-37021 |
XZC605..06S |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-37250 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37050 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 85900J - RELAY, BRAKE LOCK | ||||
| 85900-37150 |
XZC605..06S..6FC |
2 | ||
| 85900J - RELAY, BRAKE LOCK | ||||
| 85900-37150 |
XZC605..06S..6FC |
2 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 85900-37150 |
XZC605..06S |
2 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 85900-37150 |
XZC605..06S |
2 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-37020 |
XZC605..06S..6FC |
1 | ||
| 85934B - RELAY, IDLE STOP | ||||
| 90987-04008 |
XZC605..06S..6FC |
2 | ||
| 85934B - RELAY, IDLE STOP | ||||
| 90987-04008 |
XZC605..06S..6FC |
2 | ||
| 89070D - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89070-37151 |
XZC60#,XZU605..6FC..DCRTH |
1 | ||
| 89070-37152 |
XZC60#,XZU605..6FC..WT..DCRTH |
1 | ||
| 89070-37153 |
XZC605..06S..6FC |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 55641-37021 |
XZC605..06S..6FC |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 89539-37031 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 89880 - COMPUTER ASSY, ELECTRIC VEHICLE CONTROL | ||||
| 89880-37011 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37191 |
XZC605..VAN..6FC |
1 | ||
| 89880-37021 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37192 |
XZC605..VAN..6FC |
1 | ||
| 89880-37260 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37270 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37193 |
XZC605..VAN..6FC |
1 | ||
| 89880-37261 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37271 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37271 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37271 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37194 |
XZC605..VAN..6FC |
1 | ||
| 89880-37262 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37272 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37272 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37272 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37195 |
XZC605..VAN..6FC |
1 | ||
| 89880-37263 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37273 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37273 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37273 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37273 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37273 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37273 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日) |
1 | ||
| 89880-37273 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37273 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37450 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37273 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日) |
1 | ||
| 89880-37273 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37273 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37460 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37460 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37460 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37460 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37460 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日) |
1 | ||
| 89880-37460 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37460 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日) |
1 | ||
| 89880-37460 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37460 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37460 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37460 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37610 |
XZC605..VAN..6FC |
1 | ||
| 89880-37611 |
XZC605..VAN..6FC |
1 | ||
| 89880-37451 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37461 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37461 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用) |
1 | ||
| 89880-37461 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−ECU(燃費ﾃﾞｰﾀ通信用)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37461 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日) |
1 | ||
| 89880-37461 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37461 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1週間)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37461 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1日)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37461 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間) |
1 | ||
| 89880-37461 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| 89880-37461 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H) & 記録期間(1日) |
1 | ||
| 89880-37461 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H) & 記録期間(1週間)&ﾃﾚﾏﾃｨｸｽ−日野ｺﾝﾊﾟｽ(DOP) |
1 | ||
| Common parts | ||||
| 87241-37060 | ||||
| 90119-06536 | ||||
| 90159-50322 | ||||
| 90159-50386 | ||||
| 90159-60382 | ||||
| 90467-07211 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8413 | ||||
ILLUST NO.10 OF10(1107-1705)TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,
ﾘﾔﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80465 |
XZC605..06S |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-37050 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 83161-20200 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91611-B0816 | ||||
| 91611-B0825 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-80800 | ||||
ILLUST NO. 8 OF10(1107- )VAN
ﾄﾞｱ,ﾙｰﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-37040 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-26031 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 84231-26031 |
XZC605..06S |
1 | ||
| 84231-26031 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-26031 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 84231-26031 |
XZC605..06S |
1 | ||
| 84231-26031 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 84231-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 84231-95J04 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 84231-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 84231-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 84238A - STRIKER, COURTESY LAMP SWITCH | ||||
| 84238-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 84238-95J00 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 84238-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 84238-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 84238-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-26071 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
2 | ||
| 84261-26071 |
XZC605..06S |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-26071 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
2 | ||
| 84261-26071 |
XZC605..06S |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-95J03 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
2 | ||
| 84262-95J03 |
XZC605..06S |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-95J03 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
2 | ||
| 84262-95J03 |
XZC605..06S |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37050 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 84550-37070 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37050 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 84550-37070 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-37020 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-95J06 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37050 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37033 |
XZC605..06S |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-37020 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 86206D - CONVERTER SUB-ASSY, VOLTAGE | ||||
| 86206-37130 |
XZC605..06S |
1 | ||
| 86245C - BRACKET, VOLTAGE CONVERTER | ||||
| 86245-37130 |
XZC605..06S |
1 | ||
| 86245D - BRACKET, VOLTAGE CONVERTER, NO.2 | ||||
| 86245-37140 |
XZC605..06S |
1 | ||
| 86245E - BRACKET, VOLTAGE CONVERTER, NO.3 | ||||
| 86245-37160 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 81973-37010 | ||||
| 90119-06390 | ||||
| 90119-06885 | ||||
| 90153-60012 | ||||
| 90159-50386 | ||||
| 90161-50004 | ||||
| 90164-30009 | ||||
| 90183-06090 | ||||
| 90189-05063 | ||||
| 90901-48003 | ||||
| 91551-80610 | ||||
| 91551-80812 | ||||
| 93590-16014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 4 OF10(1107- )VAN
ﾘﾚｰﾌﾞﾛｯｸ(24V)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78070 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 28300-78110 |
N04C..XZC605..06S |
1 | ||
| 28300-78071 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78070 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 28300-78110 |
N04C..XZC605..06S |
1 | ||
| 28300-78071 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-04008 |
N04C..XZC605..06S |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 85900-37150 |
N04C..XZC605..06S |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
N04C..XZC605..06S 寒冷地仕様 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 82627-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV4,IV5,IV6 60A,ﾒｽ端子 |
1 | ||
| 90982-08202 |
XZC605,XZU605,655,685,695..(DCB,VAN)..20T 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08282 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F;XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(SCB,VAN)..(06S,T2,T3,T4,T5)..6FC..WT..(CBU,IV3) 50A,ﾒｽ端子,赤,ﾏｰｸ 32V |
1 | ||
| 90982-08295 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) 30A,ﾒｽ端子,桃 |
1 | ||
| 82627-37030 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 20A,ﾒｽ端子 |
1 | ||
| 90982-08274 |
XZC605..06S 120A,ｵｽ端子,白 |
1 | ||
| 90982-08296 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F;XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(SCB,VAN)..(06S,T2,T3,T4,T5)..6FC..WT..(CBU,IV3) 50A,ﾒｽ端子,赤,ﾏｰｸ 58V |
1 | ||
| 90982-08203 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08294 |
XZC605..06S 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08308 |
XZC605..06S 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08301 |
XZC605..06S 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08286 |
XZC605..06S 140A,ｵｽ端子,赤茶 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09025 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
XZC605,XZU605,655,685,695..(DCB,VAN)..20T 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
XZC605,XZU605,655,685,695..(DCB,VAN)..20T 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37430 |
XZC605,XZU60#,640,655,685,695..DCB,VAN |
1 | ||
| 82662-37430 |
XZC605..VAN 現金輸送車仕様 |
1 | ||
| 82662-37431 |
XZC605..VAN 現金輸送車仕様 |
1 | ||
| 82662-37431 |
XZC605,XZU60#,640,655,685,695..DCB,VAN |
1 | ||
| 82662-37432 |
XZC605..VAN 現金輸送車仕様 |
1 | ||
| 82662-37433 |
XZC605..06S 現金輸送車仕様 |
1 | ||
| 82662-37433 |
XZC605..06S |
1 | ||
| 82662-37432 |
XZC605,XZU60#,640,655,685,695..DCB,VAN |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37140 |
XZC605..06S |
1 | ||
| 82665 - LABEL, RELAY BLOCK | ||||
| 82665-37190 |
XZC605..VAN 現金輸送車仕様 |
1 | ||
| 82665-37191 |
XZC605..VAN 現金輸送車仕様 |
1 | ||
| 82665-37192 |
XZC605..06S 現金輸送車仕様 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37050 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37050 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-37030 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-37030 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37310 |
XZC605..06S 現金輸送車仕様,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 82760-37231 |
XZC605..VAN 現金輸送車仕様,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 82760-37230 |
XZC605..VAN 現金輸送車仕様,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 82760-37220 |
XZC605..06S 現金輸送車仕様,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37310 |
XZC605..06S 現金輸送車仕様,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 82760-37231 |
XZC605..VAN 現金輸送車仕様,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 82760-37230 |
XZC605..VAN 現金輸送車仕様,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 82760-37220 |
XZC605..06S 現金輸送車仕様,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 82823K - CAP, TERMINAL | ||||
| 82823-37030 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 82823-37040 |
XZC605..06S |
1 | ||
| 85900E - RELAY, IDLE STOP | ||||
| 85900-37150 |
XZC605..06S..6FC |
2 | ||
| 85900Q - RELAY, TAIL | ||||
| 85900-37150 |
XZC605..06S |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 82760-37250 |
XZC605..06S |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XZC605..06S |
1 | ||
| 85911P - RELAY, ACTUATOR POWER | ||||
| 85900-37150 |
XZC605..06S |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 85900-37150 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 85930G - RELAY, ACC | ||||
| 85900-37150 |
XZC605..06S |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 85900-37150 |
XZC605..06S ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
XZC605..06S |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02017 |
XZC605..06S |
1 | ||
| 85941A - RELAY, REAR WINDSHIELD WASHER | ||||
| 85900-37150 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-37290 |
XZC605..06S |
1 | ||
| 85999-37280 |
XZC605..VAN |
1 | ||
| Common parts | ||||
| 62371-37010 | ||||
| 64138-95400 | ||||
| 90269-03002 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91651-60616 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| SZ182-06003 | ||||
| Linked diagrams | ||||
| 8405 | ||||
ILLUST NO. 1 OF10(1107- )XZU642..DCRTK,DCRVT ; (1107- )XZC60#,610,630,645,655,675,XZU60#,610,6
ｴﾝｼﾞﾝ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XZC605..06S |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0220 |
XZC605..06S |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| 89421-E0050 |
XZC605..06S |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-37020 |
XZC605..06S |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37310 |
XZC605..06S |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37310 |
XZC605..06S |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37160 |
XZC605..06S |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37160 |
XZC605..06S |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-37190 |
XZC605..06S |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-37190 |
XZC605..06S |
1 | ||
| 89425C - SENSOR, EXHAUST GAS TEMPERATURE, NO.4 | ||||
| 89425-37230 |
XZC605..06S |
1 | ||
| 89425C - SENSOR, EXHAUST GAS TEMPERATURE, NO.4 | ||||
| 89425-37230 |
XZC605..06S |
1 | ||
| 89458D - SENSOR, FUEL PRESSURE | ||||
| 89458-E0030 |
XZC605..06S |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-37010 |
XZC605..06S |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-37010 |
XZC605..06S |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-37010 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 82715-3VM31 | ||||
| 82715-3VM50 | ||||
| 89188-37010 | ||||
| 90119-10883 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| SH511-10614 | ||||
| SH552-10816 | ||||
| SL722-01010 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||
ILLUST NO. 2 OF10(1107- )XZC60#,655,XZU60#,65#..DCRTH,DCRTJ,DCRTK
ｴﾝｼﾞﾝ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55173A - BRACKET | ||||
| 55173-37220 |
XZC605..06S |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-37021 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 89463-37022 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 82711-48060 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
ILLUST NO. 3 OF10(1107- )6FC
ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83380B - SWITCH ASSY, PRESSURE, NO.1 | ||||
| 83380-37050 |
XZC605..06S..6FC |
1 | ||
| 83380C - SWITCH ASSY, PRESSURE, NO.2 | ||||
| 83380-37050 |
XZC605..06S..6FC |
1 | ||
| 83380D - SWITCH ASSY, PRESSURE, NO.3 | ||||
| 83380-37040 |
XZC605..06S..6FC |
1 | ||
| 83380E - SWITCH ASSY, PRESSURE, NO.6 | ||||
| 83380-37040 |
XZC605..06S..6FC |
1 | ||
| 83380F - SWITCH ASSY, PRESSURE, NO.7 | ||||
| 83380-37050 |
XZC605..06S..6FC |
1 | ||
| 83380G - SWITCH ASSY, PRESSURE, NO.8 | ||||
| 83380-37040 |
XZC605..06S..6FC |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-37050 |
XZC605..06S..6FC |
1 | ||
| Common parts | ||||
| 91651-40825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
