XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace

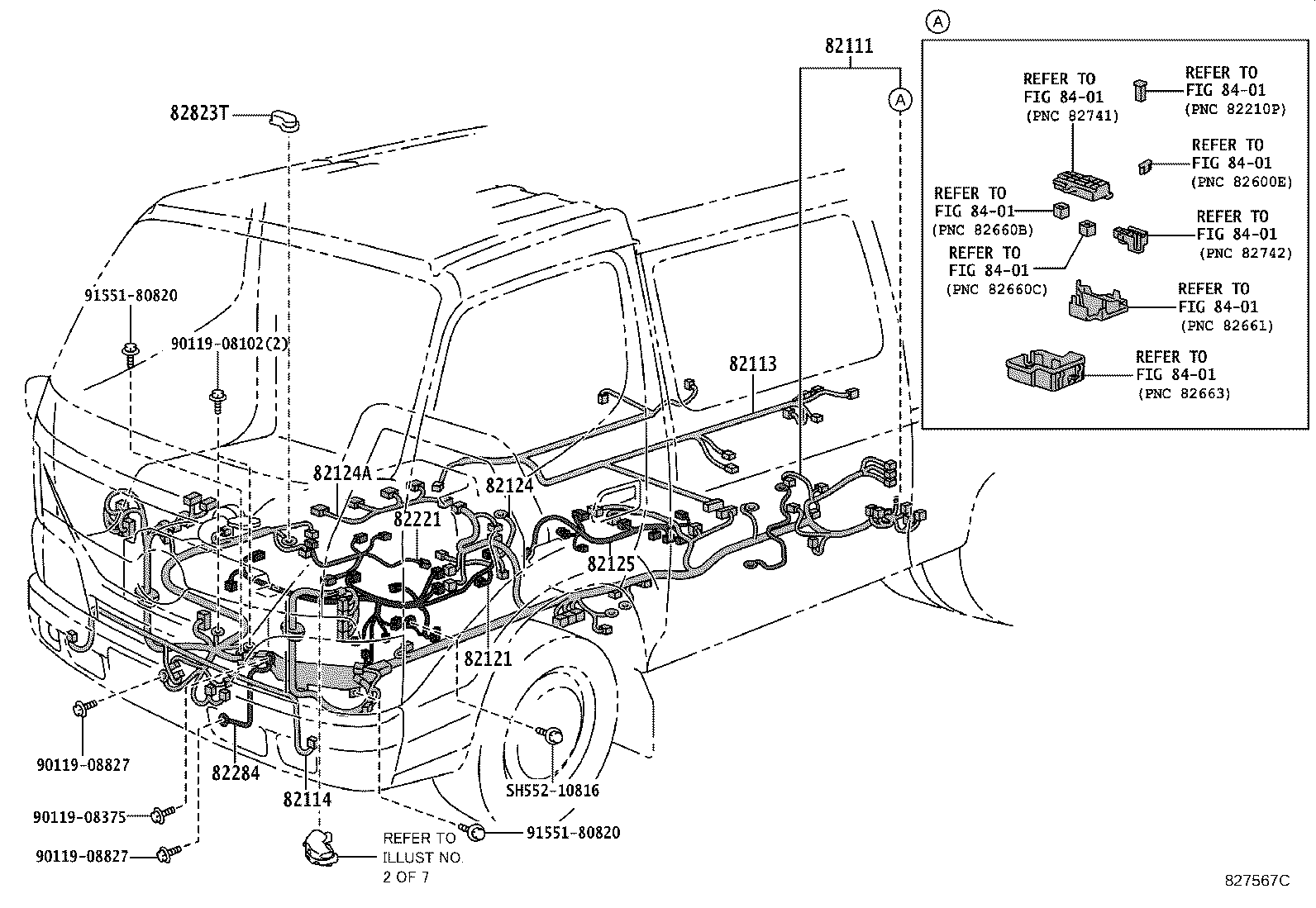

ILLUST NO. 1 OF10(1107- )VAN
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-37R22 |
XZC605..VAN..6FC |
1 | ||
| 82115-37R32 |
XZC605..VAN..6FC 現金輸送車仕様 |
1 | ||
| 82115-37R20 |
XZC605..VAN..6FC |
1 | ||
| 82115-37R30 |
XZC605..VAN..6FC 現金輸送車仕様 |
1 | ||
| 82115-37R31 |
XZC605..VAN..6FC 現金輸送車仕様 |
1 | ||
| 82115-37R21 |
XZC605..VAN..6FC |
1 | ||
| 82115-37R33 |
XZC605..VAN..6FC 現金輸送車仕様 |
1 | ||
| 82115-37R23 |
XZC605..VAN..6FC |
1 | ||
| 82115-37R25 |
XZC605..VAN..6FC |
1 | ||
| 82115-37R35 |
XZC605..VAN..6FC 現金輸送車仕様 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-37B40 |
XZC605..06S |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37120 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC610,675,XZU610,620,675,685,695..SCB;BZU600,TRC600,XZC60#,630,645,655,XZU60#,630,645,655..(03S,06S,DM3,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾙﾌﾞ) |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-E1E72 |
XZC605..06S |
1 | ||
| 82121-E1E71 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82121-E1M60 |
XZC605..06S |
1 | ||
| 82121-E1E80 |
XZC605..06S 寒冷地仕様 |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| S8206-47882 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-37460 |
XZC605..06S..6FC |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-37210 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(20T,30T)..WT |
1 | ||
| 82221-37211 |
XZC605..06S |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-37030 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| Common parts | ||||
| 90119-08102 | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 91551-80820 | ||||
| SH552-10816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF10(1107- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82129-37R80 |
XZC605..VAN..6FC |
1 | ||
| 82129-37R81 |
XZC605..VAN..6FC |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-37220 |
XZC605..06S..6FC |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-37030 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..SCB..30T..DCRTK;XZC610,675,XZU610,620,675;TRU600,XZU640..T4..5F..IV3;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);BZU600,TRC600,XZC60#,630,645,655,XZU605,630,645,655,685,695..(03S,06S,DM6,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV5,IV6) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-37N30 |
XZC60#,645,655,XZU60#,64#,65#..(03S,06S,T2,T3,T4,T5)..6FC..(CBU,IV3,IV6) |
1 | ||
| 82141-37N31 |
XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3) |
1 | ||
| 82141-37N31 |
XZC605,XZU605..(DCB,VAN)..(06S,T4)..6FC ﾘﾔﾋｰﾀ−有り |
1 | ||
| 82141-37N31 |
XZC605,XZU605..(DCB,VAN)..6FC ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 82141-3V420 |
XZC60#,645,655,XZU60#,64#,65#..6FC..(CBU,IV3) |
1 | ||
| 82141-37N31 |
XZC605,XZU605..(DCB,VAN)..(06S,T4)..6FC ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-37870 |
XZC605..VAN |
1 | ||
| 82142-37871 |
XZC605..VAN |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-37050 |
XZC605..06S..6FC |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-37330 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-37330 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-37440 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| Common parts | ||||
| 82712-37010 | ||||
| 82712-37401 | ||||
| 82712-37420 | ||||
| 90119-06923 | ||||
| 90467-07041P5 | ||||
| 91551-80616 | ||||

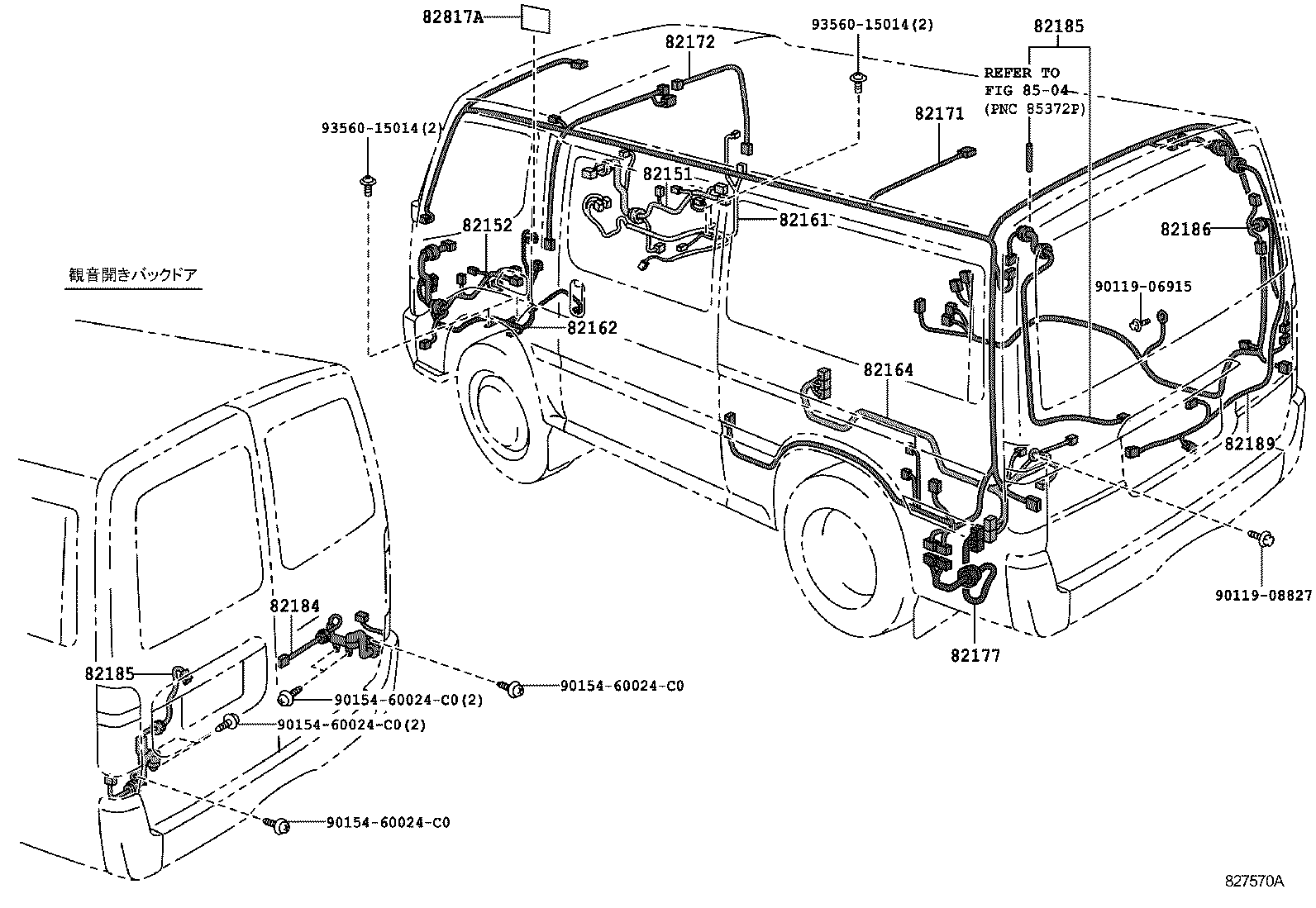

ILLUST NO. 3 OF10(1107- )VAN
ﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-37B10 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZC610,675,XZU610,620,675;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);BZU600,TRC600,XZC60#,630,645,655,XZU60#,630,645,655,685,695..(03S,06S,DM3,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 82151-37B30 |
XZC600..5F..ST;XZC60#,610,630,675,XZU60#,610,620,630,675..(03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH) |
1 | ||
| 82151-37B80 |
XZC605,XZU605..DCB,VAN ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH) |
1 | ||
| 82151-37B70 |
TRC600,XZC605,XZU605,655,685,695..(DCB,VAN)..20T ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 82151-37B30 |
XZC600..5F..ST;XZC60#,610,630,675,XZU60#,610,620,630,675..(03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH&*CR(DOP)) |
1 | ||
| 82151-37E90 |
TRC600,XZC605,XZU605,655,685,695..(DCB,VAN)..20T ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 82151-37B11 |
XZC605..06S;TRC600,TRU600 |
1 | ||
| 82151-37B80 |
XZC605,XZU605..DCB,VAN ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH&*CR(DOP)) |
1 | ||
| 82151-37B31 |
XZC605..06S ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH&*CR(DOP)) |
1 | ||
| 82151-37F40 |
XZC605,XZU605..DCB,VAN ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH) |
1 | ||
| 82151-37B31 |
XZC605..06S ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH) |
1 | ||
| 82151-37F40 |
XZC605,XZU605..DCB,VAN ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｱｳﾀﾐﾗｰ−*DRP(*273&*SHS&*WIH&*CR(DOP)) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-37A10 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-37C30 |
XZC605..06S |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-37570 |
XZC605..VAN |
1 | ||
| 82162-37571 |
XZC605..VAN |
1 | ||
| 82162-37E20 |
XZC605..06S |
1 | ||
| 82162-37571 |
XZC605..06S VSC−無し |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-37S50 |
XZC605..06S |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37B20 |
XZC605..VAN |
1 | ||
| 82171-37B30 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 82171-37B30 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 82171-37B31 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 82171-37B31 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 82171-37B21 |
XZC605..06S |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-37040 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 82177 - WIRE, REAR BODY | ||||
| 82177-37040 |
XZC605..06S |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-26040 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 82184-26040 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-26120 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 82185-37010 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 82185-26120 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-26120 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 82185-37010 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 82185-26120 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-37010 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 82189 - WIRE, BACK DOOR, NO.4 | ||||
| 82189-37010 |
XZC605..06S |
1 | ||
| 82189-37010 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 82189-37010 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12400 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08827 | ||||
| 90154-60024C0 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 4 OF10(1107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-28380 | ||||
| 82711-37310 | ||||
| 82715-37220 | ||||
| 82715-37680 | ||||
| 82715-37690 | ||||
| 82715-37770 | ||||
| 82715-37A90 | ||||
| 82715-37B40 | ||||
| 82715-37C50 | ||||
| 82715-37D20 | ||||
| 82715-37J10 | ||||
| 82715-37J90 | ||||
| 82715-37L20 | ||||
| 82715-37L30 | ||||
| 82715-37L60 | ||||
| 82715-37L80 | ||||
| 82715-37L90 | ||||
| 82715-37M00 | ||||
| 82715-37W20 | ||||
| 82715-37W70 | ||||
| 82715-37Z30 | ||||
| 82715-37Z70 | ||||
| 82715-3V050 | ||||
| 82715-3V090 | ||||
| 82715-3V140 | ||||
| 82715-3V190 | ||||
| 82715-3V210 | ||||
| 82715-3V240 | ||||
| 82715-3V490 | ||||
| 82715-3VG20 | ||||
| 82715-3VJ10 | ||||
| 82715-3VJ30 | ||||
| 82715-3VL30 | ||||
| 82729-37060 | ||||
| 82729-37090 | ||||
| 82729-3V040 | ||||
| 90119-08827 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91651-60614 | ||||
| 94151-80800 | ||||
ILLUST NO. 5 OF10(1107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-37330 | ||||
| 82715-37D20 | ||||
| 82715-37K90 | ||||
| 82715-37L00 | ||||
| 82715-37Z41 | ||||
| 82715-37Z60 | ||||
| 82715-3V160 | ||||
| 82715-3V320 | ||||
| 82715-3VQ50 | ||||
| 82715-3VQ60 | ||||
| 82715-3VQ70 | ||||
| 82715-3VR10 | ||||
| 82715-3VR20 | ||||
| 82715-3VR30 | ||||
| 82715-3VR40 | ||||
| 82715-3VU00 | ||||
| 82715-3VU60 | ||||
| 82715-3VV30 | ||||
| 82715-3VV50 | ||||
| 82715-3VW60 | ||||
| 82715-3VY30 | ||||
| 82729-37240 | ||||
| 90119-08827 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
ILLUST NO. 6 OF10(1107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37711 | ||||
| 82702-37720 | ||||
| 82702-37730 | ||||
| 82702-37752 | ||||
| 82702-37801 | ||||
| 82702-37890 | ||||
| 82702-37A02 | ||||
| 82702-37A10 | ||||
| 82702-37B40 | ||||
| 82702-E1F90 | ||||
| 82702-E1G02 | ||||
| 82702-E1G11 | ||||
| 82702-E1G20 | ||||
| 82702-E1G31 | ||||
| 82702-E1W60 | ||||
| 82712-37230 | ||||
| 82715-25830 | ||||
| 82715-25840 | ||||
| 82715-25850 | ||||
| 82715-25870 | ||||
| 82715-25A30 | ||||
| 82715-3VA40 | ||||
| 82715-3VQ80 | ||||
| 82715-3VS21 | ||||
| 82715-E1P00 | ||||
| 82715-E1P20 | ||||
| 82715-E1V20 | ||||
| 82729-37850 | ||||
| 82729-37860 | ||||
| 82729-37870 | ||||
| 82729-37880 | ||||
| 82729-37890 | ||||
| 90119-10056 | ||||
| 91612-B1020 | ||||
| 91621-J0612 | ||||
| 91651-60816 | ||||
| 91651-60835 | ||||
| 94151-80800 | ||||
| S1549-27010 | ||||
| SH552-10816 | ||||
| SH552-10850 | ||||
| SH552-11225 | ||||
ILLUST NO. 9 OF10(1107- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-37T60 | ||||
| 82824-60460 | ||||
| 90980-10173 | ||||
| 90980-10355 | ||||
| 90980-10942 | ||||
| 90980-11003 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11290 | ||||
| 90980-11294 | ||||
ILLUST NO. 7 OF10(1107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37700 | ||||
| 82715-37D00 | ||||
| 82715-37V10 | ||||
| 82715-3V300 | ||||
| 82715-3VA60 | ||||
| 82715-3VA80 | ||||
| 82715-3VA90 | ||||
| 82715-3VB00 | ||||
| 82715-3VB50 | ||||
| 82715-3VB91 | ||||
| 82715-3VC60 | ||||
| 82715-3VC90 | ||||
| 82715-3VR00 | ||||
| 82715-3VU10 | ||||
| 82715-3VU30 | ||||
| 82715-3VV90 | ||||
| 82715-3VW10 | ||||
| 82715-3VW20 | ||||
| 82715-95D04 | ||||
| 82729-37680 | ||||
| 90950-01796 | ||||
| 91551-80610 | ||||
| 91551-80614 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91651-60816 | ||||
ILLUST NO.10 OF10(1107- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10868 | ||||
| 90980-11070 | ||||
| 90980-11856 | ||||
| 90980-11973 | ||||
| 90980-12520 | ||||
| 90980-12686 | ||||
ILLUST NO. 8 OF10(1107- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12220 | ||||
| 82711-37340 | ||||
| 82715-37W40 | ||||
| 82715-3V050 | ||||
| 82715-3V140 | ||||
| 82715-3V250 | ||||
| 82715-3VB71 | ||||
| 82715-3VC30 | ||||
| 82715-3VC40 | ||||
| 82715-3VC70 | ||||
| 82715-3VC80 | ||||
| 82715-3VL80 | ||||
| 82715-3VM70 | ||||
| 82715-3VR90 | ||||
| 82715-3VU20 | ||||
| 82715-3VV10 | ||||
| 82715-3VV20 | ||||
| 82715-3VV60 | ||||
| 82715-3VV70 | ||||
| 82715-3VV80 | ||||
| 82715-3VW50 | ||||
| 82715-3VW70 | ||||
| 82715-3VY20 | ||||
| 90159-50322 | ||||
| 90463-12011 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4702 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
