XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace
Production
Jul 2011
-
May 2016
Engine
N04C
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )XZU685..DCRTK..IV4 ; (1107- )XZC605,XZU600,640..DCB,VAN..DCRTH,DCRTJ,

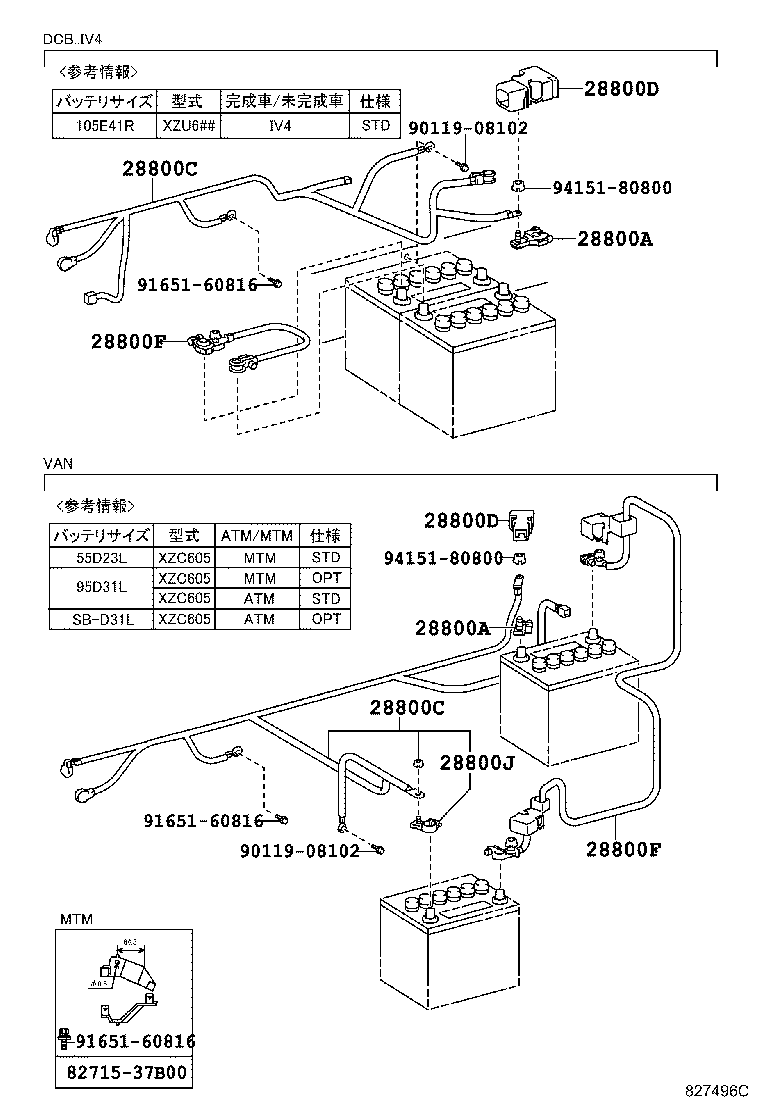

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05068 |
N04C..XZC605..06S |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05068 |
N04C..XZC605..06S |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37E72 |
N04C..XZC605..06S |
1 | ||
| 82122-37E70 |
N04C..XZC605..VAN |
1 | ||
| 82122-37E71 |
N04C..XZC605..VAN |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37E72 |
N04C..XZC605..06S |
1 | ||
| 82122-37E70 |
N04C..XZC605..VAN |
1 | ||
| 82122-37E71 |
N04C..XZC605..VAN |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
2TRFE..TRC600..T4;N04C..XZC605..06S;2TRFE..TRU600..T4..IV3 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
2TRFE..TRC600..T4;N04C..XZC605..06S;2TRFE..TRU600..T4..IV3 |
1 | ||
| 28800F - CABLE, BATTERY TO BATTERY | ||||
| 82123-37250 |
N04C..XZC605..06S |
1 | ||
| 28800F - CABLE, BATTERY TO BATTERY | ||||
| 82123-37250 |
N04C..XZC605..06S |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06060 |
N04C..XZC605..06S |
1 | ||
| Common parts | ||||
| 82715-37B00 | ||||
| 90119-08102 | ||||
| 91651-60816 | ||||
| 94151-80800 | ||||
