XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace
Production
Jul 2011
-
May 2016
Engine
N04C
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )VAN

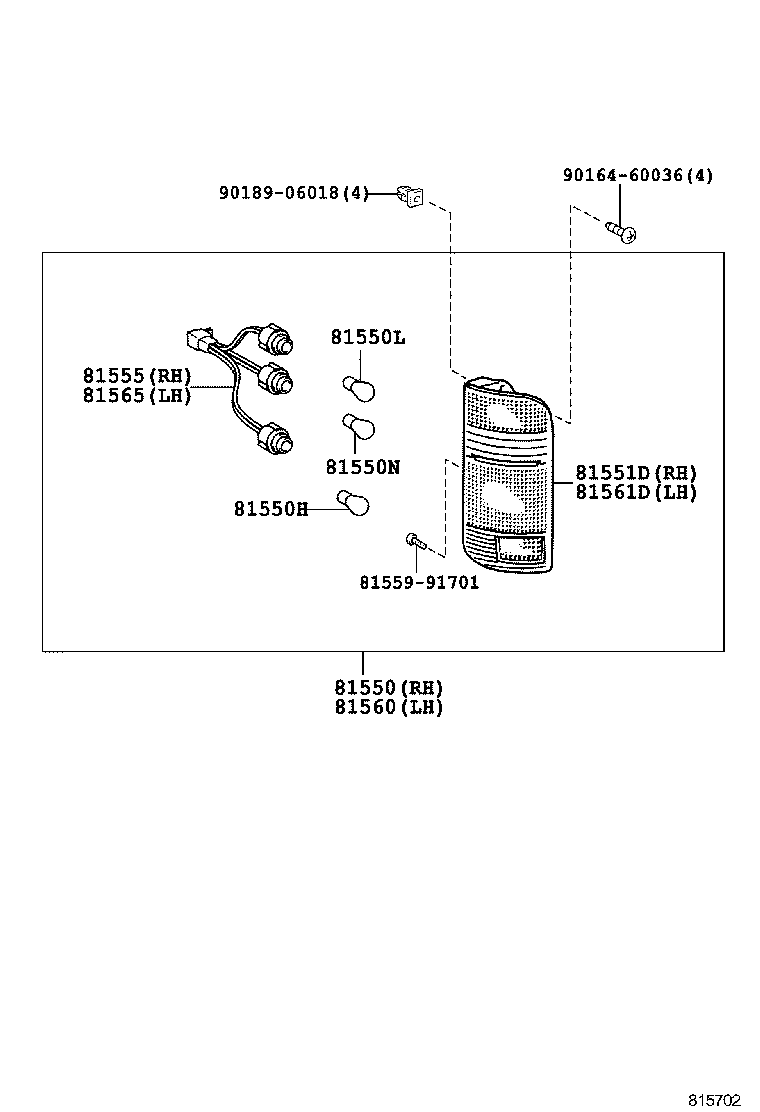

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-37210 |
XZC605..06S |
1 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-16015 |
XZC605..06S 24V 21/5W |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-16014 |
XZC605..06S 24V 21W |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-16014 |
XZC605..06S 24V 21W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-37210 |
XZC605..06S |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-37100 |
XZC605..06S |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-37210 |
XZC605..06S |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-37210 |
XZC605..06S |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-37100 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 81559-91701 | ||||
| 90164-60036 | ||||
| 90189-06018 | ||||
