XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace

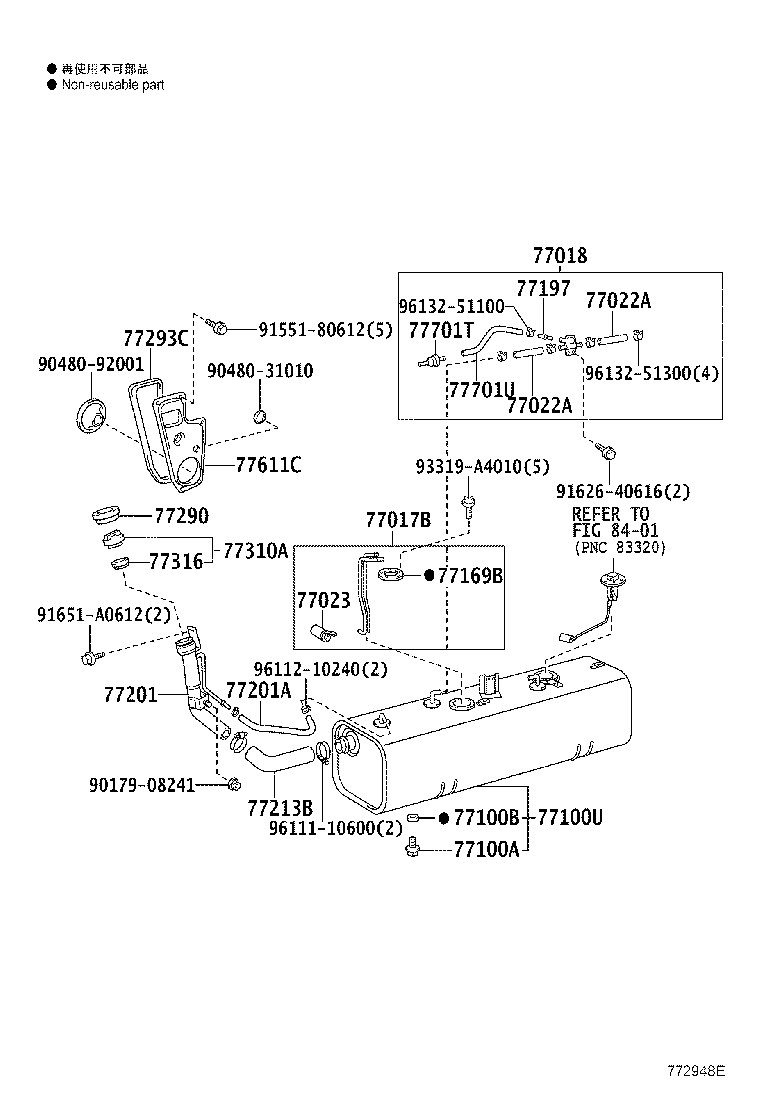

ILLUST NO. 1 OF 4(1107- )VAN
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37030 |
XZC605..06S |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37140 |
XZC605..06S |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95337-08020 |
XZC605..06S *H,L=160,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95337-08020 |
XZC605..06S *H,L=160,内径=7.6 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
XZC605..06S |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37292 |
XZC605..06S 1030X258X285 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZC605..06S |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-37031 |
XZC605..VAN |
1 | ||
| 77201-37032 |
XZC605..06S |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-24015 |
XZC605..06S |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-37020 |
XZC605..06S |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-37010 |
XZC605..06S |
1 | ||
| 77293C - PACKING, FUEL TANK OUTER FILLER PIPE | ||||
| 77293-37010 |
XZC605..06S |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-32011 |
XZC605..06S |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
XZC605..06S |
1 | ||
| 77611C - COVER, FUEL TANK GUARD | ||||
| 77612-37010 |
XZC605..06S |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
XZC605..06S |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
XZC605..06S *H,L=220 |
1 | ||
| Common parts | ||||
| 90179-08241 | ||||
| 90480-31010 | ||||
| 90480-92001 | ||||
| 91551-80612 | ||||
| 91626-40616 | ||||
| 91651-A0612 | ||||
| 93319-A4010 | ||||
| 96111-10600 | ||||
| 96112-10240 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||

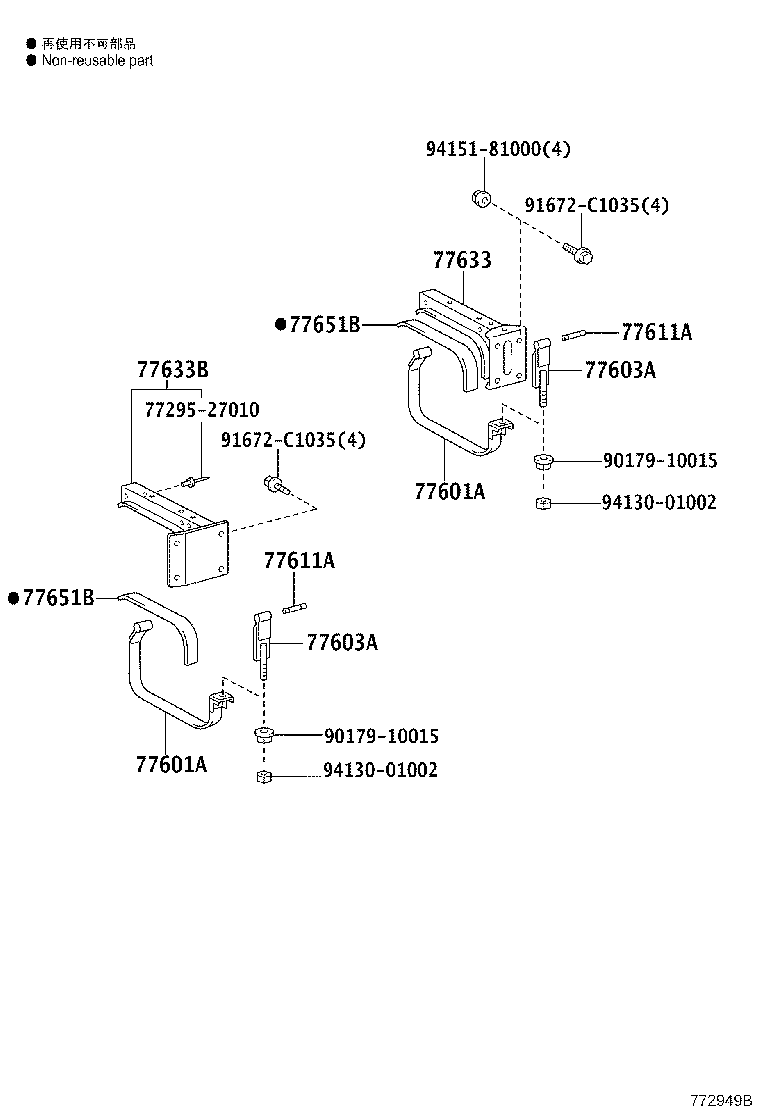

ILLUST NO. 2 OF 4(1107- )VAN
ﾌｭｰｴﾙﾀﾝｸｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-37010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-37010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZC605..06S |
1 | ||
| 77633B - STAY, FUEL TANK | ||||
| 77501-37300 |
XZC605..06S |
1 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-26040 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-26040 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| Common parts | ||||
| 77295-27010 | ||||
| 90179-10015 | ||||
| 91672-C1035 | ||||
| 94130-01002 | ||||
| 94151-81000 | ||||

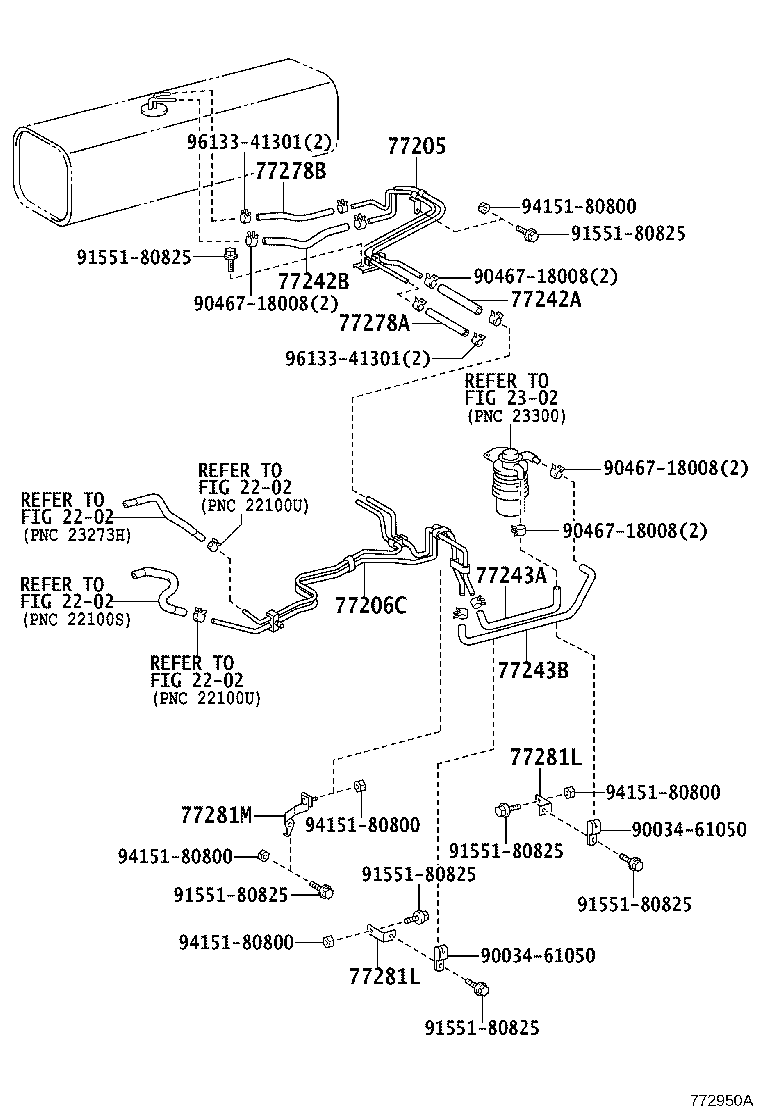

ILLUST NO. 3 OF 4(1107- )VAN
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37D40 |
XZC605..06S |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37G20 |
XZC605..06S |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95337-12016 |
XZC605..06S 長さ=160 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95337-12022 |
XZC605..06S 長さ=220 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 77259-37320 |
XZC605..06S |
1 | ||
| 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) | ||||
| 77279-37080 |
XZC605..06S |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
XZC605..06S 長さ=160 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08022 |
XZC605..06S 長さ=220 |
1 | ||
| 77281L - CLAMP, FUEL HOSE | ||||
| 77281-37280 |
XZC605..06S |
2 | ||
| 77281L - CLAMP, FUEL HOSE | ||||
| 77281-37280 |
XZC605..06S |
2 | ||
| 77281M - CLAMP, FUEL HOSE | ||||
| 77281-37320 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90034-61050 | ||||
| 90467-18008 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||

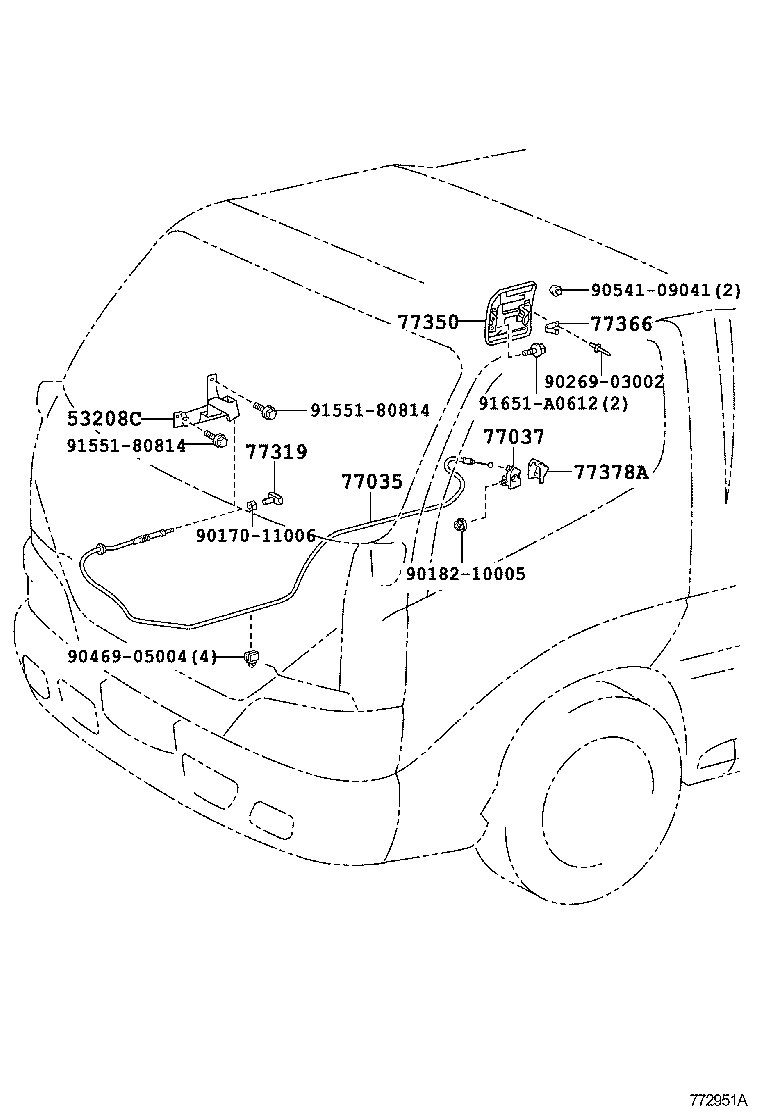

ILLUST NO. 4 OF 4(1107- )VAN
ﾌｭｰｴﾙﾘｯﾄﾞｵｰﾌﾟﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53208C - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-37030 |
XZC605..06S |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-37030 |
XZC605..06S |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-90K00 |
XZC605..06S |
1 | ||
| 77319 - KNOB, FUEL TANK CAP | ||||
| 77319-90K00 |
XZC605..06S |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-37010 |
XZC605..06S |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-95J01 |
XZC605..06S |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77378-90K00 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90170-11006 | ||||
| 90182-10005 | ||||
| 90269-03002 | ||||
| 90469-05004 | ||||
| 90541-09041 | ||||
| 91551-80814 | ||||
| 91651-A0612 | ||||
ILLUST NO. 1 OF 3(1107- )XZC60#,610,630,645,655,675,XZU602,610,620,630,642,645,652,655,675,695..D
ﾌｭｰｴﾙﾀﾝｸ(690(780 OR 992)X310X385)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37030 |
XZC605..06S |
1 | ||
| 77017-37030 |
XZC605..06S |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37030 |
XZC605..06S |
1 | ||
| 77017-37030 |
XZC605..06S |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
XZC605..06S |
1 | ||
| 77023-60010 |
XZC605..06S |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
XZC605..06S |
1 | ||
| 77023-60010 |
XZC605..06S |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 90105-12116 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 90430-12245 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37292 |
XZC605..06S 1030X258X285 |
1 | ||
| 77001-37292 |
XZC605..06S 1030X258X285 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 77169-14020 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 77169-14020 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
XZC605..06S *H,L=220 |
1 | ||
| 95333-06030 |
XZC605..06S *H,L=220 |
1 | ||
| Common parts | ||||
| 93319-A4010 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||

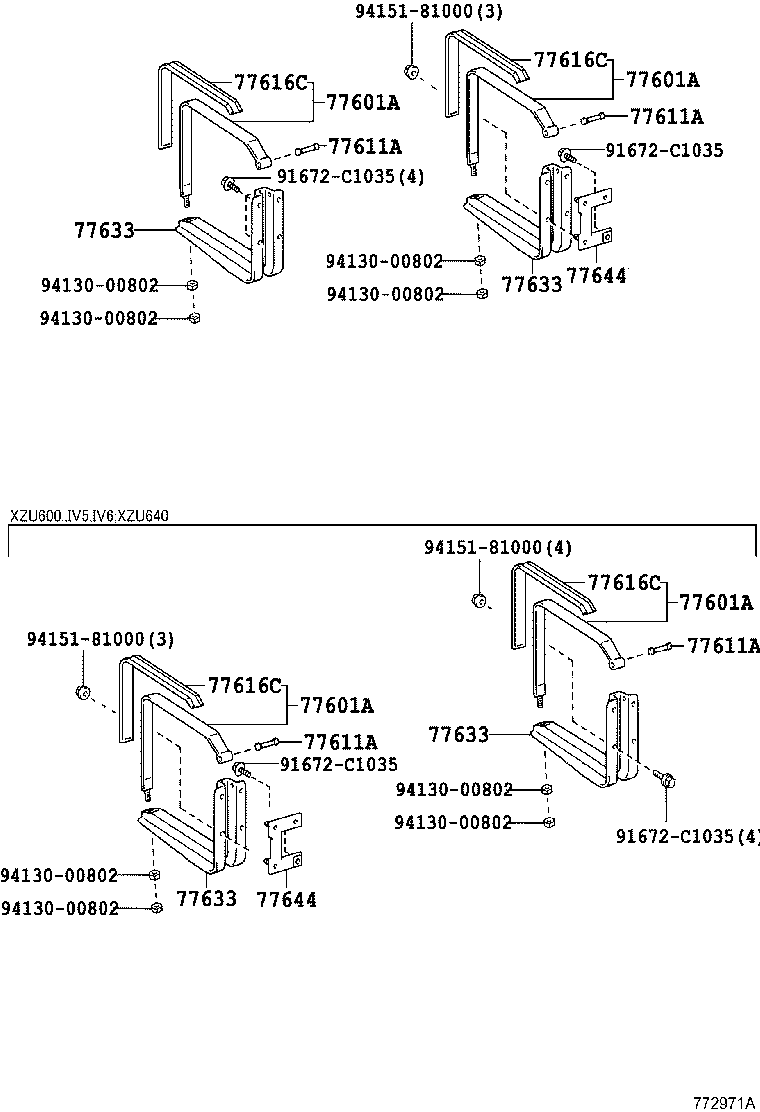

ILLUST NO. 2 OF 3(1107- )XZU640..T3..5F..IV3 ; (1107- )XZU645..30T..DCRTJ..CBU ; (1107- )XZ
ﾌｭｰｴﾙﾀﾝｸｽﾃｰ(ﾌｭｰｴﾙﾀﾝｸ=70L)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77601-26060 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77653-25010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZC605..06S |
1 | ||
| 77501-25091 |
XZC605..06S |
1 | ||
| 77501-25091 |
XZC605..06S |
1 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZC605..06S |
1 | ||
| 77501-25091 |
XZC605..06S |
1 | ||
| 77501-25091 |
XZC605..06S |
1 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZC605..06S |
1 | ||
| 77501-25091 |
XZC605..06S |
1 | ||
| 77501-25091 |
XZC605..06S |
1 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
XZC605..06S |
1 | ||
| 77501-25091 |
XZC605..06S |
1 | ||
| 77501-25091 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 91672-C1035 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||
