XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace
Production
Jul 2011
-
May 2016
Engine
N04C
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )VAN

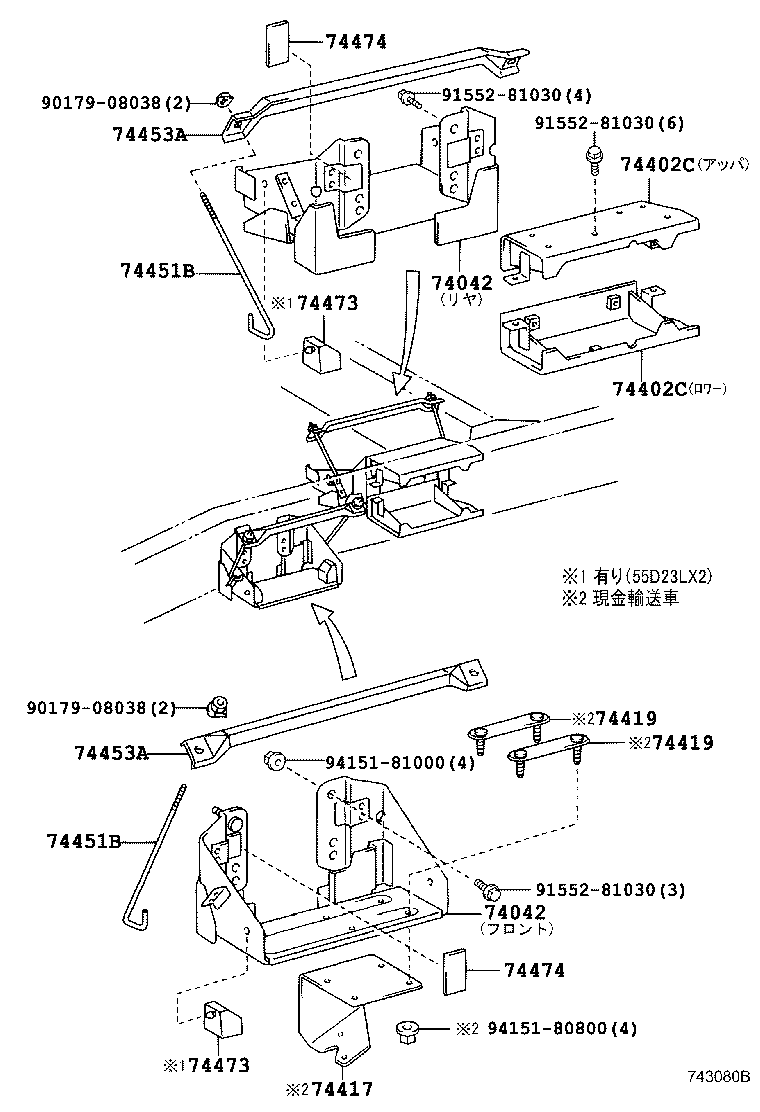

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74042 - BRACKET SUB-ASSY, BATTERY | ||||
| 74042-37070 |
XZC605..VAN ﾌﾛﾝﾄ |
1 | ||
| 74042-37290 |
XZC605..VAN ﾘﾔ |
1 | ||
| 74042 - BRACKET SUB-ASSY, BATTERY | ||||
| 74042-37070 |
XZC605..VAN ﾌﾛﾝﾄ |
1 | ||
| 74042-37290 |
XZC605..VAN ﾘﾔ |
1 | ||
| 74402C - BRACKET SUB-ASSY, BATTERY CARRIER, REAR | ||||
| 74402-37030 |
XZC605..06S 下側 |
1 | ||
| 74402-37020 |
XZC605..06S 上側 |
1 | ||
| 74402C - BRACKET SUB-ASSY, BATTERY CARRIER, REAR | ||||
| 74402-37030 |
XZC605..06S 下側 |
1 | ||
| 74402-37020 |
XZC605..06S 上側 |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-37010 |
XZC605..06S 現金輸送車仕様 |
1 | ||
| 74419 - PLATE, BATTERY SEAT | ||||
| 74419-37030 |
XZC605..06S 現金輸送車仕様 |
2 | ||
| 74419 - PLATE, BATTERY SEAT | ||||
| 74419-37030 |
XZC605..06S 現金輸送車仕様 |
2 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-37011 |
XZC605..VAN |
4 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-37011 |
XZC605..VAN |
4 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-36080 |
XZC605..06S |
2 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-36080 |
XZC605..06S |
2 | ||
| 74474 - PAD, BATTERY | ||||
| 74475-36040 |
XZC605..06S |
4 | ||
| 74474 - PAD, BATTERY | ||||
| 74475-36040 |
XZC605..06S |
4 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
| 94151-81000 | ||||
