XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace

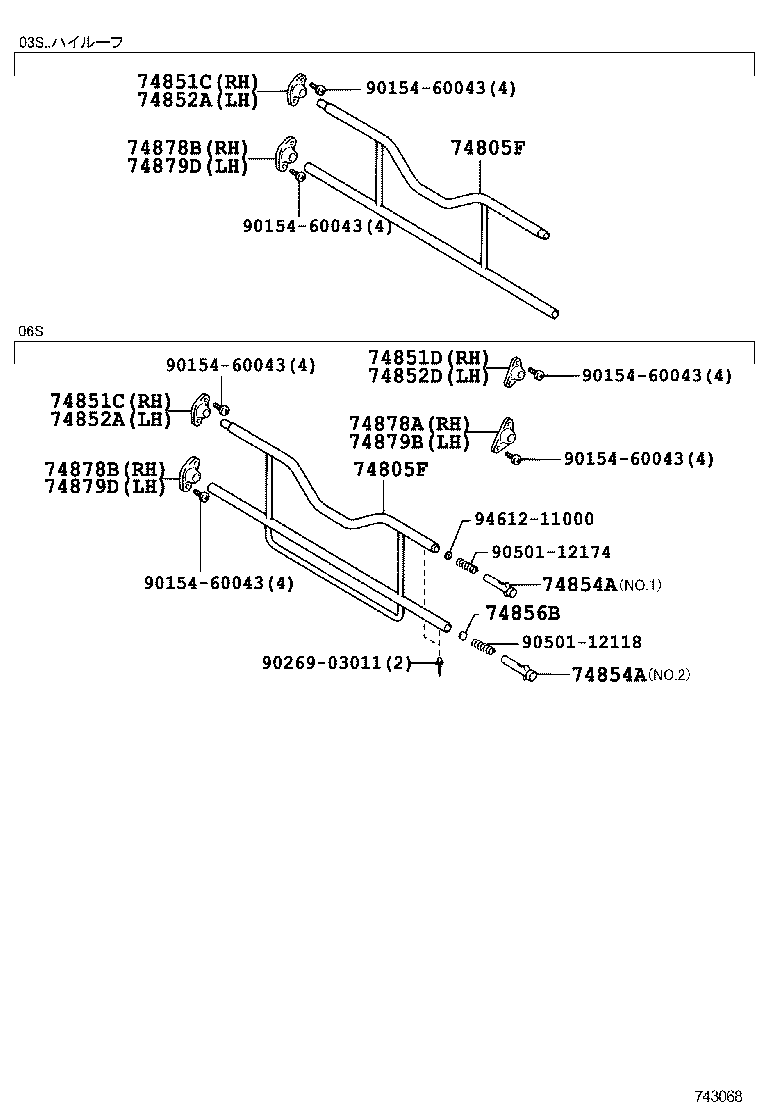

ILLUST NO. 1 OF 2(1107- )VAN
ｾﾊﾟﾚｰﾀ ﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74805F - BAR SUB-ASSY, SEPARATOR, A | ||||
| 74805-37130 |
XZC605..06S |
1 | ||
| 74805F - BAR SUB-ASSY, SEPARATOR, A | ||||
| 74805-37130 |
XZC605..06S |
1 | ||
| 74851C - BRACKET, SEPARATOR, UPPER RH | ||||
| 74851-95J04B2 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 74851C - BRACKET, SEPARATOR, UPPER RH | ||||
| 74851-95J04B2 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 74851D - BRACKET, SEPARATOR BAR, UPPER RH | ||||
| 74851-95J01B2 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 74852A - BRACKET, SEPARATOR, UPPER LH | ||||
| 74852-95J04B2 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 74852A - BRACKET, SEPARATOR, UPPER LH | ||||
| 74852-95J04B2 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 74852D - BRACKET, SEPARATOR BAR, UPPER LH | ||||
| 74852-95J00B2 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 74854A - STOP, SEPARATOR | ||||
| 74854-95J06B0 |
XZC605..06S BLUISH GRAY,NO.1 |
1 | ||
| 74854-95J07B0 |
XZC605..06S BLUISH GRAY,NO.2 |
1 | ||
| 74854A - STOP, SEPARATOR | ||||
| 74854-95J06B0 |
XZC605..06S BLUISH GRAY,NO.1 |
1 | ||
| 74854-95J07B0 |
XZC605..06S BLUISH GRAY,NO.2 |
1 | ||
| 74856B - PLATE, SPRING SET | ||||
| 74856-95A00 |
XZC605..06S |
1 | ||
| 74878A - BRACKET, SEPARATOR BAR, LOWER | ||||
| 74867-95J00B2 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 74878B - BRACKET, SEPARATOR BAR, LOWER RH | ||||
| 74879-95J01B2 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 74878B - BRACKET, SEPARATOR BAR, LOWER RH | ||||
| 74879-95J01B2 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 74879B - BRACKET, SEPARATOR BAR, LOWER LH | ||||
| 74879-95J01B2 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 74879D - BRACKET, SEPARATOR BAR, LOWER LH | ||||
| 74867-95J00B2 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 74879D - BRACKET, SEPARATOR BAR, LOWER LH | ||||
| 74867-95J00B2 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90154-60043 | ||||
| 90269-03011 | ||||
| 90501-12118 | ||||
| 90501-12174 | ||||
| 94612-11000 | ||||

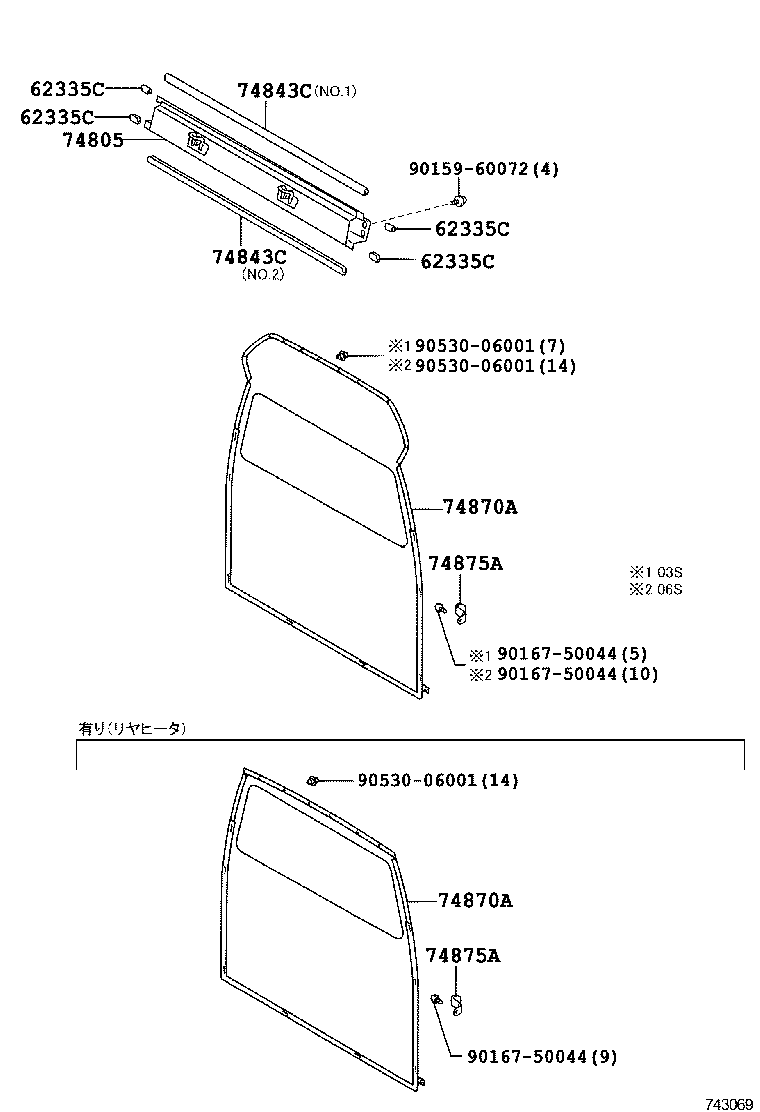

ILLUST NO. 2 OF 2(1107-1705)VAN
ｾﾊﾟﾚｰﾀ ｶｰﾃﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62335C - COVER, SEPARATOR BAR | ||||
| 62335-37010B1 |
XZC605..06S GRAY,TRIM1# |
4 | ||
| 62335C - COVER, SEPARATOR BAR | ||||
| 62335-37010B1 |
XZC605..06S GRAY,TRIM1# |
4 | ||
| 62335C - COVER, SEPARATOR BAR | ||||
| 62335-37010B1 |
XZC605..06S GRAY,TRIM1# |
4 | ||
| 62335C - COVER, SEPARATOR BAR | ||||
| 62335-37010B1 |
XZC605..06S GRAY,TRIM1# |
4 | ||
| 74805 - SEPARATOR SUB-ASSY | ||||
| 74805-37150 |
XZC605..06S |
1 | ||
| 74843C - TRIM, SEPARATOR, UPPER REAR | ||||
| 74843-25010B1 |
XZC605..06S GRAY,TRIM1#,NO.1 |
1 | ||
| 74843-25020B1 |
XZC605..06S GRAY,TRIM1#,NO.2 |
1 | ||
| 74843C - TRIM, SEPARATOR, UPPER REAR | ||||
| 74843-25010B1 |
XZC605..06S GRAY,TRIM1#,NO.1 |
1 | ||
| 74843-25020B1 |
XZC605..06S GRAY,TRIM1#,NO.2 |
1 | ||
| 74870A - CURTAIN ASSY, SEPARATOR | ||||
| 74870-37011 |
XZC605..06S |
1 | ||
| 74870-37030 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 74870A - CURTAIN ASSY, SEPARATOR | ||||
| 74870-37011 |
XZC605..06S |
1 | ||
| 74870-37030 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 74875A - PLATE, CURTAIN REAR SEPARATOR | ||||
| 74875-95J00 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
9 | ||
| 74875-95J00 |
XZC605..06S |
10 | ||
| 74875A - PLATE, CURTAIN REAR SEPARATOR | ||||
| 74875-95J00 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
9 | ||
| 74875-95J00 |
XZC605..06S |
10 | ||
| Common parts | ||||
| 90159-60072 | ||||
| 90167-50044 | ||||
| 90530-06001 | ||||
