XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace

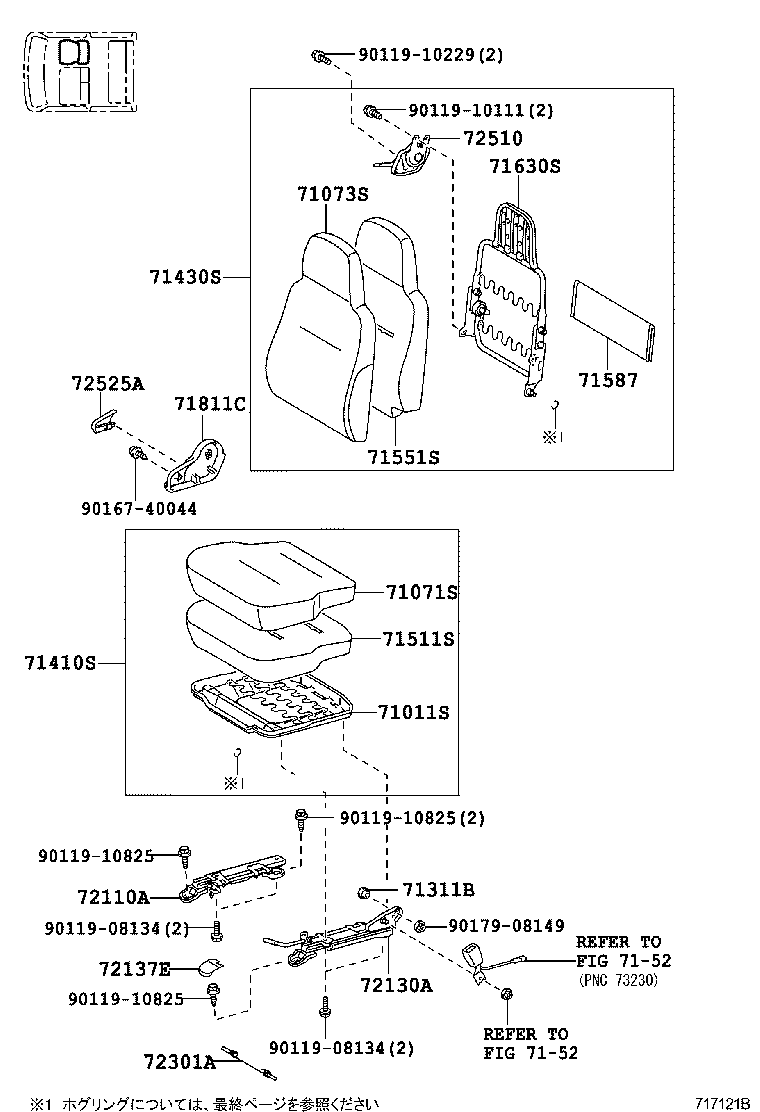

ILLUST NO. 1 OF 3(1107- )VAN
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-37010 |
XZC605..VAN |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-37890B1 |
XZC605..VAN 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71071-37890B1 |
XZC605..VAN ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71071-37890B1 |
XZC605..VAN 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71071-37880B1 |
XZC605..VAN GRAY,TRIM1# |
1 | ||
| 71071-37890B1 |
XZC605..VAN ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-37A70B0 |
XZC605..VAN GRAY,TRIM1# |
1 | ||
| 71073-37A80B0 |
XZC605..VAN ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073-37A80B0 |
XZC605..VAN 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073-37A80B0 |
XZC605..VAN 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71073-37A80B0 |
XZC605..VAN ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12053 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-37B20B1 |
XZC605..VAN ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71410-37B20B1 |
XZC605..VAN ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71410-37B40B1 |
XZC605..VAN ***,現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71410-37B30B1 |
XZC605..VAN ***,現金輸送車仕様,GRAY,TRIM1# |
1 | ||
| 71410-37B10B1 |
XZC605..VAN ***,GRAY,TRIM1# |
1 | ||
| 71410-37B30B1 |
XZC605..VAN ***,現金輸送車仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71410-37B40B1 |
XZC605..VAN ***,現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-37A70B0 |
XZC605..VAN ***,GRAY,TRIM1# |
1 | ||
| 71430-37A80B0 |
XZC605..VAN ***,現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71430-37A80B0 |
XZC605..VAN ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71430-37A80B0 |
XZC605..VAN ***,現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71430-37A80B0 |
XZC605..VAN ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-37080 |
XZC605..VAN |
1 | ||
| 71511-37140 |
XZC605..VAN 現金輸送車仕様 |
1 | ||
| 71511-37140 |
XZC605..VAN 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71511-37140 |
XZC605..VAN 現金輸送車仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71511-37140 |
XZC605..VAN 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-37140 |
XZC605..VAN |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-37021 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
1 | ||
| 71587-37020 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-37130 |
XZC605..VAN |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-37011B1 |
XZC605..VAN GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37020 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37020 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
1 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-37050B0 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 72137-37010B1 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 72137-37010B1 |
XZC605..06S;TRC600,TRU600 GRAY,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-37030 |
XZU685,695..DCB..(DCRTJ,DCRTK);BZU600,TRC600,TRU600,XZC60#,610,630,645,655,XZU600,605,610,620,630,640,645,650,655..DCRTH,DCRTJ,DCRTK,EFI,LPG |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-37040 |
XZC605..06S |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-37010B1 |
XZC605..VAN GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 90119-10111 | ||||
| 90119-10229 | ||||
| 90119-10825 | ||||
| 90167-40044 | ||||
| 90179-08149 | ||||
| Linked diagrams | ||||
| 7152 | ||||

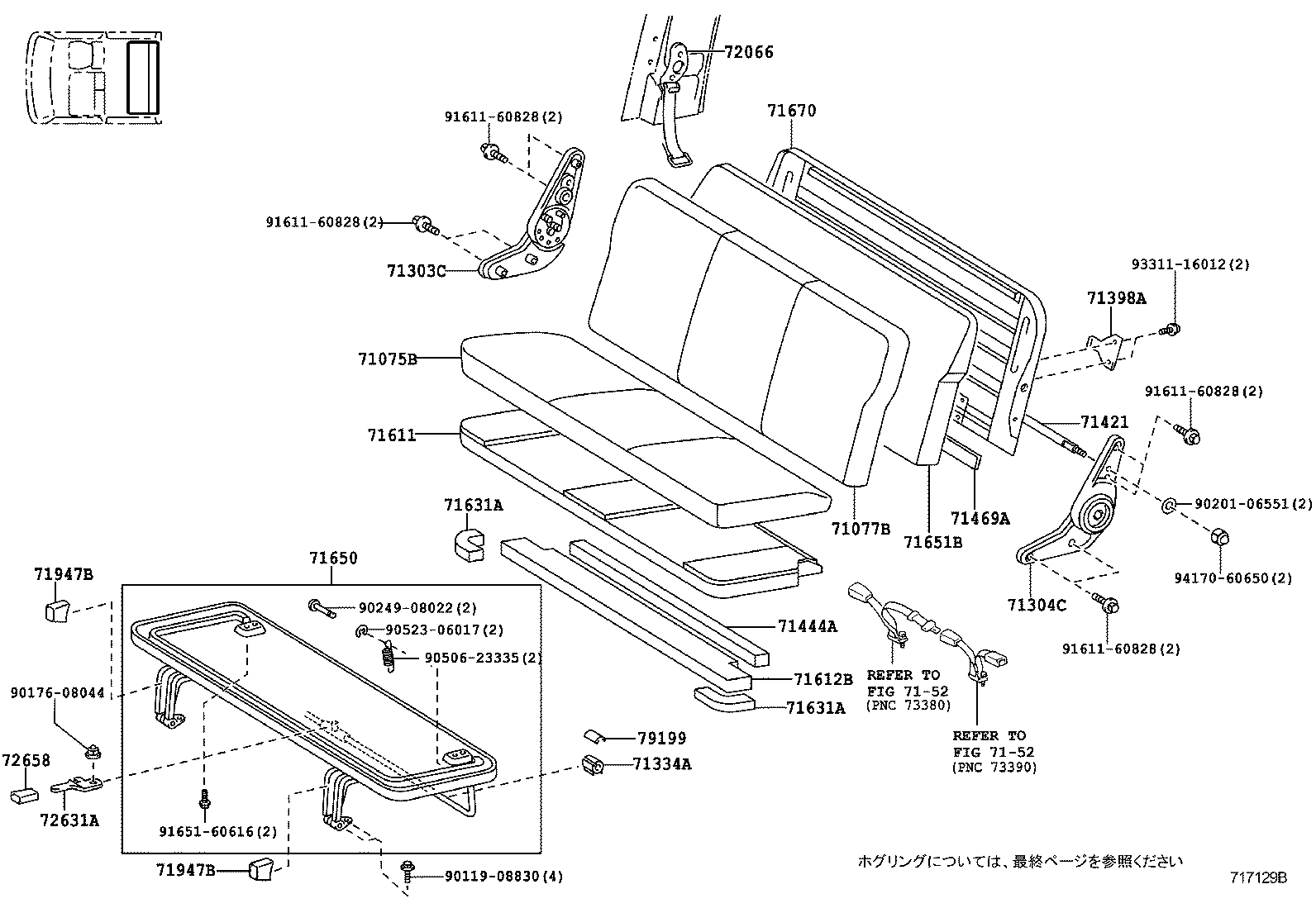

ILLUST NO. 3 OF 3(1107- )VAN
ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 79011-37130B0 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 79011-37140B0 |
XZC605..06S ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 79013-37140B0 |
XZC605..06S ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 79013-37130B0 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-37010 |
XZC605..06S |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-37010 |
XZC605..06S |
1 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-37040 |
XZC605..06S |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71266-37010 |
XZC605..06S |
1 | ||
| 71421 - BAR, REAR SEAT BACK EQUALIZING | ||||
| 71421-95A00 |
XZC605..06S |
1 | ||
| 71444A - PAD, REAR SEAT CUSHION, REAR | ||||
| 71444-95A02 |
XZC605..06S |
1 | ||
| 71469A - PAD, REAR SEAT BACK | ||||
| 71469-95A00 |
XZC605..06S |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-37040 |
XZC605..06S |
1 | ||
| 71612B - PAD, REAR SEAT CUSHION, B | ||||
| 71612-37010 |
XZC605..06S |
1 | ||
| 71631A - PAD, REAR SEAT CUSHION CORNER | ||||
| 71631-95A00 |
XZC605..06S |
2 | ||
| 71631A - PAD, REAR SEAT CUSHION CORNER | ||||
| 71631-95A00 |
XZC605..06S |
2 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71210-37010 |
XZC605..06S |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-37040 |
XZC605..06S |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71202-92600 |
XZC605..06S |
1 | ||
| 71947B - BUMPER, REAR PASSENGER SEAT CUSHION | ||||
| 71947-95663 |
XZC605..06S |
2 | ||
| 71947B - BUMPER, REAR PASSENGER SEAT CUSHION | ||||
| 71947-95663 |
XZC605..06S |
2 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72066-95J02 |
XZC605..06S |
1 | ||
| 72631A - HANDLE, REAR SEAT LEG STOPPER | ||||
| 72631-26010 |
XZC605..06S |
1 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72639-95J00B1 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
XZC605..06S |
4 | ||
| Common parts | ||||
| 90119-08830 | ||||
| 90176-08044 | ||||
| 90201-06551 | ||||
| 90249-08022 | ||||
| 90506-23335 | ||||
| 90523-06017 | ||||
| 91611-60828 | ||||
| 91651-60616 | ||||
| 93311-16012 | ||||
| 94170-60650 | ||||
| Linked diagrams | ||||
| 7152 | ||||

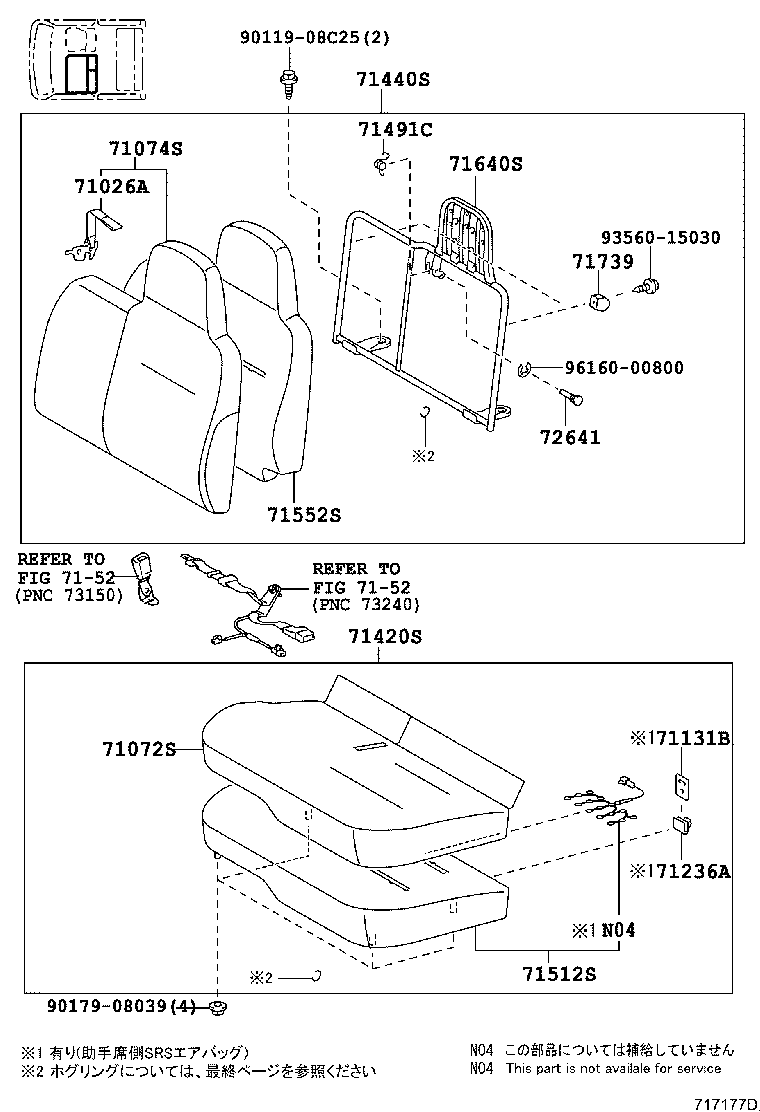

ILLUST NO. 2 OF 3(1107- )VAN
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71026A - SUPPORT, FRONT SEAT BACK, LH | ||||
| 71026-37010B3 |
XZC605..06S ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71026-37010B1 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 71026-37010B3 |
XZC605..06S 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71026-37010B3 |
XZC605..06S ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71026-37010B3 |
XZC605..06S 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-37C60B0 |
XZC605..VAN 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37C60B0 |
XZC605..VAN ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37C50B0 |
XZC605..VAN GRAY,TRIM1# |
1 | ||
| 71072-37C60B0 |
XZC605..VAN 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37C60B0 |
XZC605..VAN ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-37B40B0 |
XZC605..VAN GRAY,TRIM1# |
1 | ||
| 71074-37B50B0 |
XZC605..VAN ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37B50B0 |
XZC605..VAN 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37B50B0 |
XZC605..VAN ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71074-37B50B0 |
XZC605..VAN 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71131-37030 |
XZC605..VAN 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC605..VAN 現金輸送車仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
BZU600,TRC600,TRU600,XZC60#..(03S,06S,T2,T3,T4,T5)..(DCRTH,DCRTJ,EFI,LPG);XZC645,655,675,XZU600,605,640,645,650,655,675,685,695..(DM6,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236A - CLAMP, REAR SEAT CUSHION SPRING | ||||
| 71236-37010 |
XZC605..VAN 現金輸送車仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC605..VAN 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
BZU600,TRC600,TRU600,XZC60#..(03S,06S,T2,T3,T4,T5)..(DCRTH,DCRTJ,EFI,LPG);XZC645,655,675,XZU600,605,640,645,650,655,675,685,695..(DM6,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-37J70B0 |
XZC605..VAN ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37J80B0 |
XZC605..VAN ***,現金輸送車仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37J90B0 |
XZC605..VAN ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37J60B0 |
XZC605..VAN ***,GRAY,TRIM1# |
1 | ||
| 71420-37J70B0 |
XZC605..VAN ***,現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37J80B0 |
XZC605..VAN ***,SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37J90B0 |
XZC605..VAN ***,現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-37740B0 |
XZC605..VAN ***,現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71070-37740B0 |
XZC605..VAN ***,現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71070-37740B0 |
XZC605..VAN ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71070-37720B0 |
XZC605..VAN ***,GRAY,TRIM1# |
1 | ||
| 71070-37740B0 |
XZC605..VAN ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71491C - SPRING, REAR SEAT SET | ||||
| 71491-89101 |
BZU600,TRC600,TRU600..SCB;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(SCB,VAN)..(DCRTH,DCRTJ,DCRTK) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-37250 |
XZC605..VAN 現金輸送車仕様&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-37250 |
XZC605..VAN 現金輸送車仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-37250 |
XZC605..VAN ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-37250 |
XZC605..VAN SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71502-37340 |
XZC605..VAN |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-37090 |
XZC605..VAN |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-37140 |
XZC605..VAN |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-37010 |
BZU600,TRC600,TRU600..SCB;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(SCB,VAN)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 72641 - PIN, REAR SEAT BACK LOCK | ||||
| 72641-37010 |
BZU600,TRC600,TRU600..SCB;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(SCB,VAN)..(DCRTH,DCRTJ,DCRTK) |
1 | ||
| Common parts | ||||
| 90119-08C25 | ||||
| 90179-08039 | ||||
| 93560-15030 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1107- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
