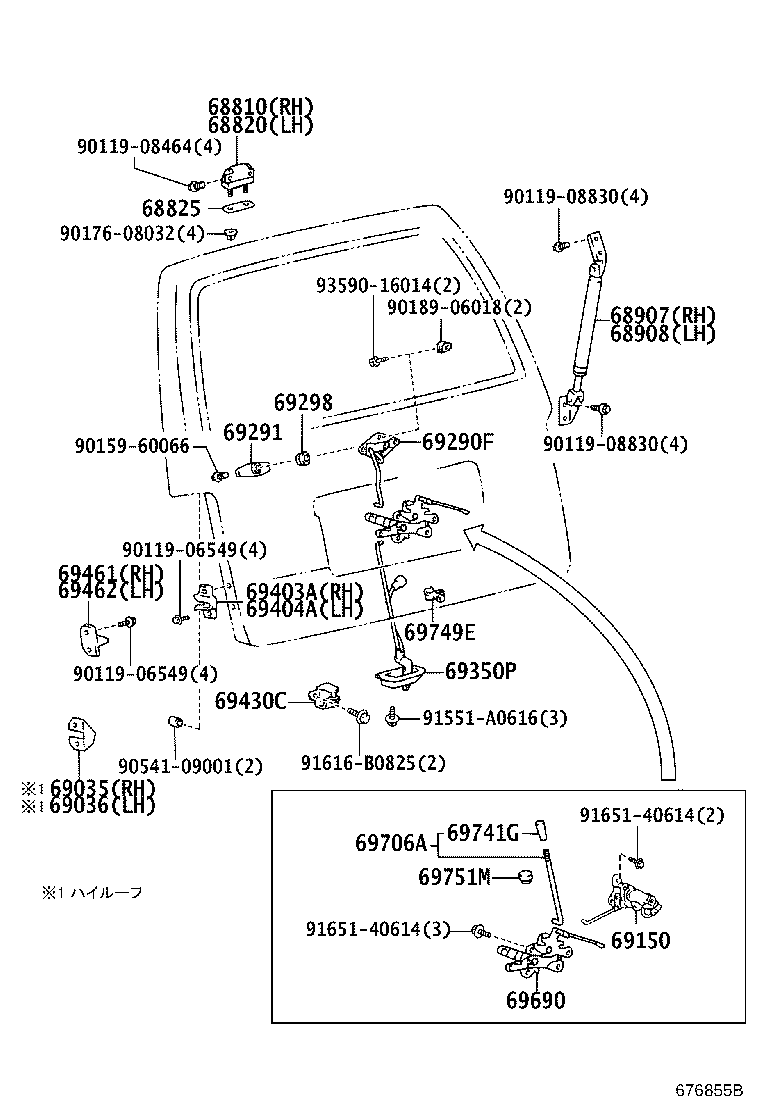

XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace
(1107- )VAN
ﾊﾈｱｹﾞｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810 - HINGE ASSY, BACK DOOR, UPPER | ||||
| 68810-95J03 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68810-95J02 |
XZC605..VAN |
1 | ||
| 68810-95J03 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68820 - HINGE ASSY, BACK DOOR, LOWER | ||||
| 68820-95J02 |
XZC605..VAN |
1 | ||
| 68820-95J03 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68820-95J03 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68825 - PLATE, BACK DOOR HINGE | ||||
| 68825-95700 |
XZC605..VAN |
2 | ||
| 68907 - STAY SUB-ASSY, BACK DOOR DAMPER, RH | ||||
| 68907-26480 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68907-26480 |
XZC605..VAN |
1 | ||
| 68907-26490 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 68907-26480 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68908 - STAY SUB-ASSY, BACK DOOR DAMPER, LH | ||||
| 68908-26480 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68908-26480 |
XZC605..VAN |
1 | ||
| 68908-26490 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 68908-26480 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69150 - ACTUATOR ASSY, BACK DOOR LOCK | ||||
| 69150-37010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69150-37010 |
XZC605..VAN |
1 | ||
| 69150-37010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69290F - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69290-95J01 |
XZC605..VAN |
1 | ||
| 69291 - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69291-95J00B5 |
XZC605..VAN GRAY,TRIM1# |
1 | ||
| 69291-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69291-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69298 - COVER, BACK DOOR INSIDE HANDLE | ||||
| 69298-95J00 |
XZC605..VAN |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-95J01 |
XZC605..VAN |
1 | ||
| 69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH | ||||
| 69403-26050 |
XZC605..VAN |
1 | ||
| 69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH | ||||
| 69403-26050 |
XZC605..VAN |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-95J00 |
XZC605..VAN |
1 | ||
| 69461 - STOPPER, BACK DOOR SIDE MALE, RH | ||||
| 69461-95J04 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69461-26060 |
XZC605..VAN |
1 | ||
| 69461-95J04 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69462 - STOPPER, BACK DOOR SIDE MALE, LH | ||||
| 69462-37010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 69462-37010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 69461-26060 |
XZC605..VAN |
1 | ||
| 69690 - CONTROL ASSY, BACK DOOR REMOTE | ||||
| 69690-95J04 |
XZC605..VAN |
1 | ||
| 69706A - ROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL | ||||
| 69706-95J01 |
XZC605..VAN |
1 | ||
| 69741G - KNOB, DOOR LOCK CONTROL | ||||
| 69741-28010C1 |
XZC605..VAN BLACK |
1 | ||
| 69749E - CLAMP, BACK DOOR LOCK LINK | ||||
| 69749-30020 |
XZC605..VAN |
1 | ||
| 69751M - HOLDER, DOOR LOCK CONTROL KNOB | ||||
| 69751-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69751-95J00C0 |
XZC605..VAN BLACK |
1 | ||
| 69751-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| Common parts | ||||
| 90119-06549 | ||||
| 90119-08464 | ||||
| 90119-08830 | ||||
| 90159-60066 | ||||
| 90176-08032 | ||||
| 90189-06018 | ||||
| 90541-09001 | ||||
| 91551-A0616 | ||||
| 91616-B0825 | ||||
| 91651-40614 | ||||
| 93590-16014 | ||||

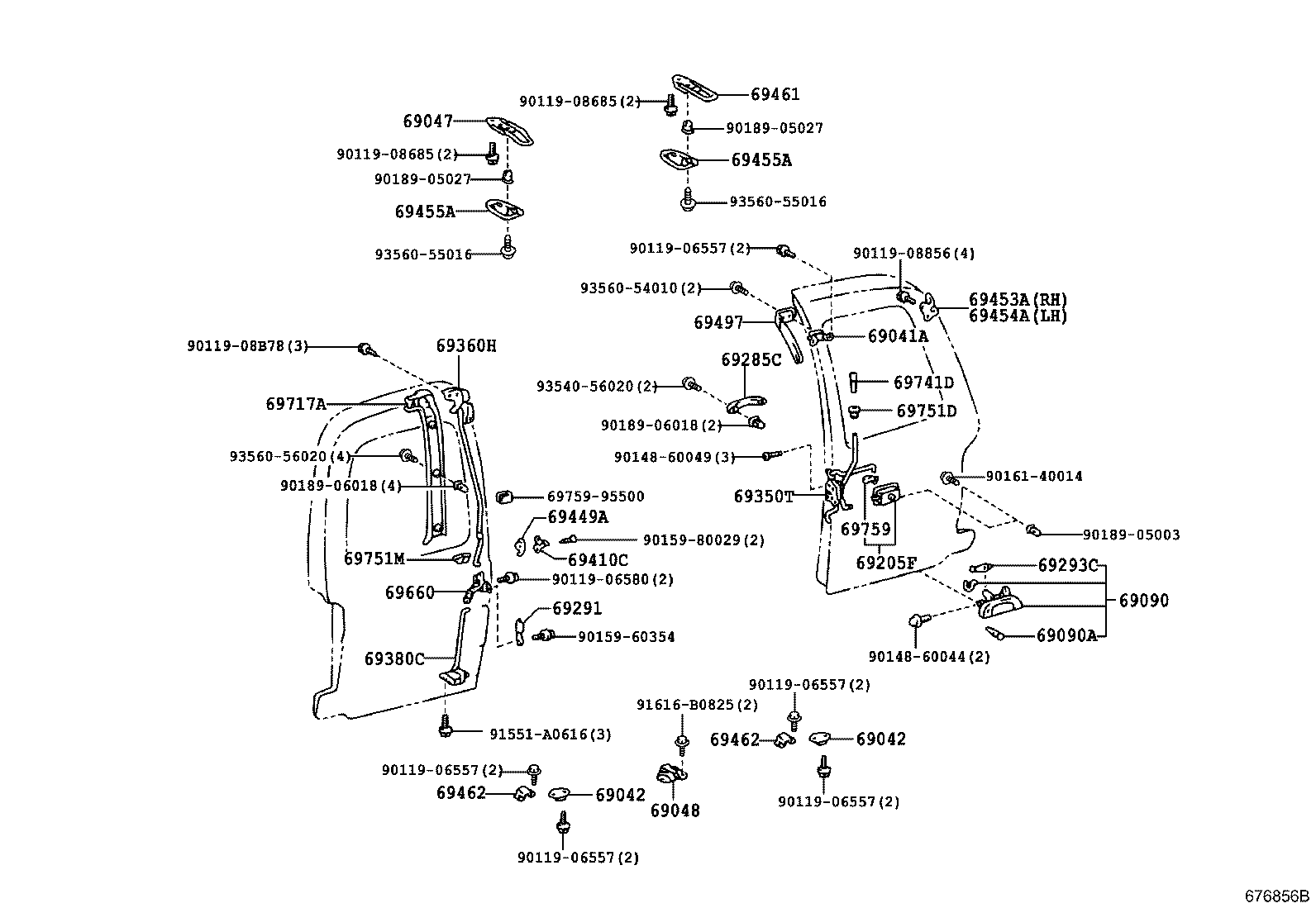

ILLUST NO. 1 OF 2(1107- )VAN
ｶﾝﾉﾝﾋﾞﾗｷｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69041A - STOPPER SUB-ASSY, BACK DOOR, UPPER | ||||
| 69041-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69041-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69042 - STOPPER SUB-ASSY, BACK DOOR, LOWER | ||||
| 69042-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 69042-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 69042 - STOPPER SUB-ASSY, BACK DOOR, LOWER | ||||
| 69042-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 69042-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 69047 - STRIKER SUB-ASSY, BACK DOOR UPPER LOCK | ||||
| 69047-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69047-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69048 - STRIKER SUB-ASSY, BACK DOOR LOWER LOCK | ||||
| 69048-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69048-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69090 - HANDLE ASSY, BACK DOOR, OUTSIDE | ||||
| 69090-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69090-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69090A - CUSHION(FOR BACK DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 90541-04014 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 69205F - HANDLE SUB-ASSY, FRONT DOOR INSIDE | ||||
| 69205-95703B5 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式,GRAY,TRIM1# |
1 | ||
| 69205-95703B5 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様),GRAY,TRIM1# |
1 | ||
| 69285C - HANDLE, PULL | ||||
| 69285-95700B4 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式,GRAY,TRIM1# |
1 | ||
| 69285-95700B4 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様),GRAY,TRIM1# |
1 | ||
| 69291 - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69291-95J00B5 |
XZC605..VAN GRAY,TRIM1# |
1 | ||
| 69291-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69291-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69293C - SNAP, BACK DOOR HANDLE | ||||
| 69293-12030 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69293-12030 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69350T - LOCK ASSY, BACK DOOR, RH | ||||
| 69350-95J03 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69350-95J03 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69360H - LOCK ASSY, BACK DOOR, UPPER LH | ||||
| 69360-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69360-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69380C - LOCK ASSY, BACK DOOR, LOWER | ||||
| 69390-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69390-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69410C - PLATE ASSY, BACK DOOR LOCK STRIKER | ||||
| 69410-26020 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69410-26020 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69449A - SHIM, BACK DOOR LOCK STRIKER | ||||
| 69449-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69449-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69453A - STOPPER, BACK DOOR UPPER SIDE, RH | ||||
| 69453-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69453-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69454A - STOPPER, BACK DOOR UPPER SIDE, LH | ||||
| 69454-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69454-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69455A - COVER, BACK DOOR UPPER LOCK STRIKER | ||||
| 69455-95J00B2 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式,GRAY,TRIM1# |
2 | ||
| 69455-95J00B2 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様),GRAY,TRIM1# |
2 | ||
| 69455A - COVER, BACK DOOR UPPER LOCK STRIKER | ||||
| 69455-95J00B2 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式,GRAY,TRIM1# |
2 | ||
| 69455-95J00B2 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様),GRAY,TRIM1# |
2 | ||
| 69461 - STOPPER, BACK DOOR SIDE MALE, RH | ||||
| 69461-95J04 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69461-26060 |
XZC605..VAN |
1 | ||
| 69461-95J04 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69462 - STOPPER, BACK DOOR SIDE MALE, LH | ||||
| 69462-37010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 69462-37010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 69461-26060 |
XZC605..VAN |
1 | ||
| 69462 - STOPPER, BACK DOOR SIDE MALE, LH | ||||
| 69462-37010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 69462-37010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 69461-26060 |
XZC605..VAN |
1 | ||
| 69497 - CUSHION, BACK DOOR UPPER STOPPER, NO.2 | ||||
| 69045-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69045-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69660 - CONTROL ASSY, BACK DOOR LOCK REMOTE, LH | ||||
| 69670-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69670-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69717A - COVER, BACK DOOR LOCK CONTROL LINK | ||||
| 69717-95J00B2 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様),GRAY,TRIM1# |
1 | ||
| 69717-95J00B2 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式,GRAY,TRIM1# |
1 | ||
| 69741D - KNOB, DOOR LOCK CONTROL(FOR BACK DOOR) | ||||
| 69741-28010B3 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様),GRAY,TRIM1# |
1 | ||
| 69741-28010B3 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式,GRAY,TRIM1# |
1 | ||
| 69751D - HOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR) | ||||
| 69751-95J00B3 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様),GRAY,TRIM1# |
1 | ||
| 69751-95J00B3 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式,GRAY,TRIM1# |
1 | ||
| 69751M - HOLDER, DOOR LOCK CONTROL KNOB | ||||
| 69751-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69751-95J00C0 |
XZC605..VAN BLACK |
1 | ||
| 69751-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-14050 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 69759-14050 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| Common parts | ||||
| 69759-95500 | ||||
| 90119-06557 | ||||
| 90119-06580 | ||||
| 90119-08685 | ||||
| 90119-08856 | ||||
| 90119-08B78 | ||||
| 90148-60044 | ||||
| 90148-60049 | ||||
| 90159-60354 | ||||
| 90159-80029 | ||||
| 90161-40014 | ||||
| 90189-05003 | ||||
| 90189-05027 | ||||
| 90189-06018 | ||||
| 91551-A0616 | ||||
| 91616-B0825 | ||||
| 93540-56020 | ||||
| 93560-54010 | ||||
| 93560-55016 | ||||
| 93560-56020 | ||||

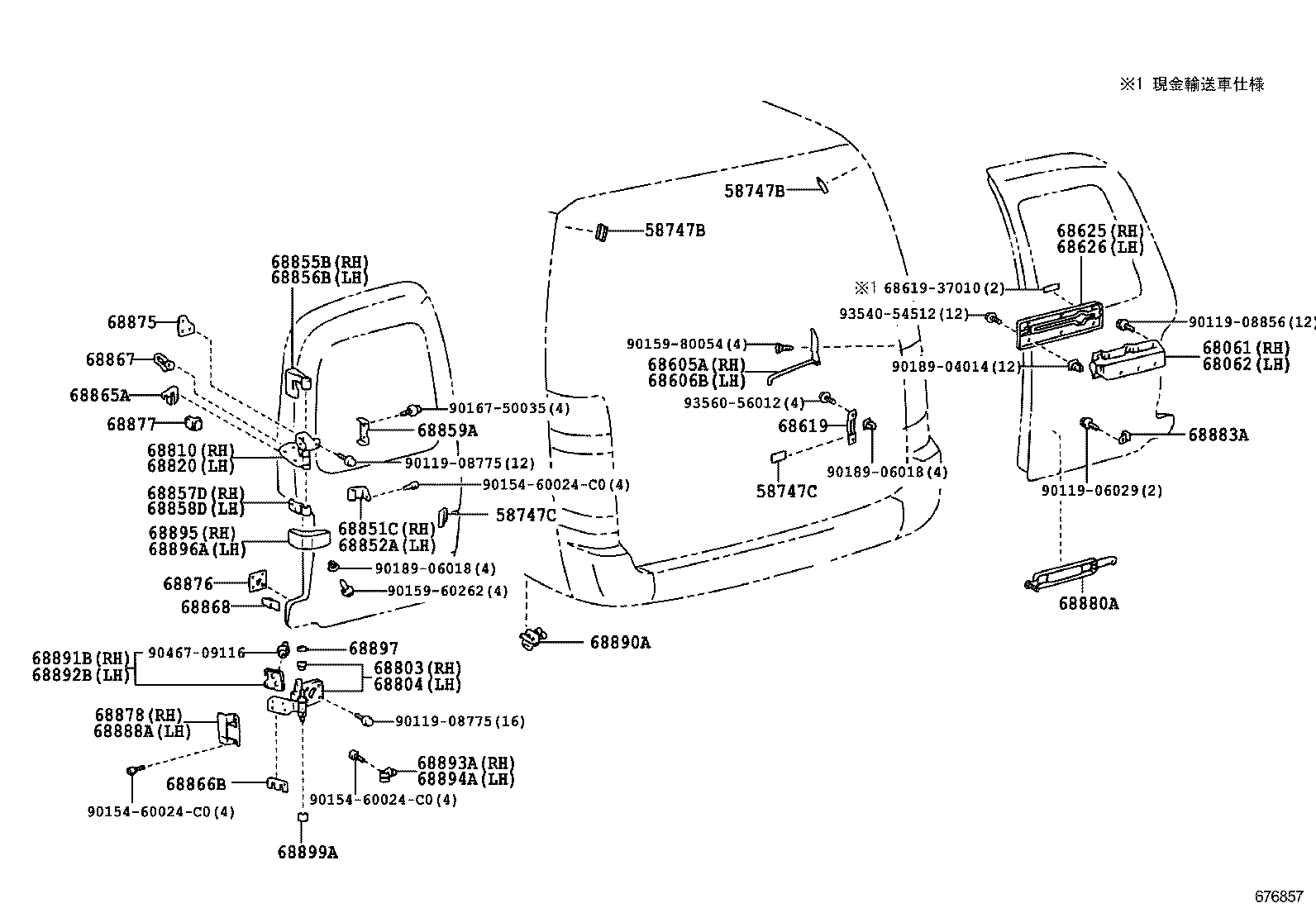

ILLUST NO. 2 OF 2(1107- )VAN
ｶﾝﾉﾝﾋﾞﾗｷｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58747B - PROTECTOR, QUARTER PANEL, REAR | ||||
| 58747-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 58747-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 58747B - PROTECTOR, QUARTER PANEL, REAR | ||||
| 58747-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 58747-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 58747C - PROTECTOR, QUARTER PANEL, REAR | ||||
| 58747-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
3 | ||
| 58747-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
3 | ||
| 58747C - PROTECTOR, QUARTER PANEL, REAR | ||||
| 58747-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
3 | ||
| 58747-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
3 | ||
| 68061 - GUIDE SUB-ASSY, BACK DOOR CHECK, RH | ||||
| 68061-95J02 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68061-37011 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68062 - GUIDE SUB-ASSY, BACK DOOR CHECK, LH | ||||
| 68062-37011 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68062-95J02 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68605A - ARM SUB-ASSY, BACK DOOR CHECK, RH | ||||
| 68605-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68605-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68606B - ARM SUB-ASSY, BACK DOOR CHECK, LH | ||||
| 68606-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68606-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68619 - HOLDER, BACK DOOR CHECK ARM | ||||
| 68619-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 68619-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 68625 - COVER, BACK DOOR CHECK GUIDE, RH | ||||
| 68625-95J00B3 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様),GRAY,TRIM1# |
1 | ||
| 68625-95J00B3 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式,GRAY,TRIM1# |
1 | ||
| 68626 - COVER, BACK DOOR CHECK GUIDE, LH | ||||
| 68626-95J00B3 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様),GRAY,TRIM1# |
1 | ||
| 68626-95J00B3 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式,GRAY,TRIM1# |
1 | ||
| 68803 - HINGE ASSY, BACK DOOR, LOWER RH | ||||
| 68830-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68830-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68804 - HINGE ASSY, BACK DOOR, LOWER LH | ||||
| 68840-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68840-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68810 - HINGE ASSY, BACK DOOR, UPPER | ||||
| 68810-95J03 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68810-95J02 |
XZC605..VAN |
1 | ||
| 68810-95J03 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68820 - HINGE ASSY, BACK DOOR, LOWER | ||||
| 68820-95J02 |
XZC605..VAN |
1 | ||
| 68820-95J03 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68820-95J03 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68851C - COVER, BACK DOOR HINGE, RH | ||||
| 68851-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68851-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68852A - COVER, BACK DOOR HINGE, LH | ||||
| 68852-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68852-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68855B - COVER, BACK DOOR UPPER HINGE FEMALE, NO.1 RH | ||||
| 68855-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68855-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68856B - COVER, BACK DOOR UPPER HINGE FEMALE, NO.1 LH | ||||
| 68856-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68856-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68857D - COVER, BACK DOOR UPPER HINGE FEMALE, NO.2 RH | ||||
| 68857-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68857-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68858D - COVER, BACK DOOR UPPER HINGE FEMALE, NO.2 LH | ||||
| 68858-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68858-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68859A - SPACER, BACK DOOR HINGE COVER | ||||
| 68859-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 68859-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 68865A - SPACER, BACK DOOR UPPER HINGE DOOR SIDE | ||||
| 68865-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68865-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68866B - SPACER, BACK DOOR LOWER HINGE DOOR SIDE | ||||
| 68866-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68866-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68867 - CUSHION, BACK DOOR HINGE MALE, UPPER | ||||
| 68867-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 68867-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 68868 - SEAL, BACK DOOR HINGE | ||||
| 68868-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 68868-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 68875 - SPACER, BACK DOOR UPPER HINGE | ||||
| 68875-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式,厚さ=1.0 |
1 | ||
| 68875-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様),厚さ=1.0 |
1 | ||
| 68875-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様),厚さ=1.6 |
1 | ||
| 68875-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式,厚さ=1.6 |
1 | ||
| 68876 - SPACER, BACK DOOR LOWER HINGE | ||||
| 68876-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式,厚さ=1.0 |
1 | ||
| 68876-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様),厚さ=1.6 |
1 | ||
| 68876-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式,厚さ=1.6 |
1 | ||
| 68876-26010 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様),厚さ=1.0 |
1 | ||
| 68877 - CUSHION, BACK DOOR HINGE FEMALE, UPPER | ||||
| 68877-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 68877-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 68878 - CUSHION, BACK DOOR HINGE FEMALE, LOWER RH | ||||
| 68878-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68878-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68880A - BAND ASSY, BACK DOOR OPEN STOPPER | ||||
| 68880-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 68880-95J01 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 68883A - HOLDER, BACK DOOR OPEN STOPPER | ||||
| 68883-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 68883-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 68888A - CUSHION, BACK DOOR HINGE FEMALE, LOWER LH | ||||
| 68888-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68888-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68890A - BRACKET ASSY, BACK DOOR OPEN STOPPER | ||||
| 68890-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 68890-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 68891B - COVER, BACK DOOR LOWER HINGE MALE, NO.1 RH | ||||
| 68891-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68891-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68892B - COVER, BACK DOOR LOWER HINGE MALE, NO.1 LH | ||||
| 68892-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68892-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68893A - COVER, BACK DOOR LOWER HINGE MALE, NO.2 RH | ||||
| 68893-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68893-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68894A - COVER, BACK DOOR LOWER HINGE MALE, NO.2 LH | ||||
| 68894-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68894-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68895 - COVER, BACK DOOR LOWER HINGE FEMALE, NO.1 RH | ||||
| 68895-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68895-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68896A - COVER, BACK DOOR LOWER HINGE FEMALE, NO.1 LH | ||||
| 68896-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 68896-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 68897 - COVER, BACK DOOR LOWER HINGE FEMALE, NO.2 | ||||
| 68897-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 68897-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| 68899A - COVER, BACK DOOR LOWER HINGE FEMALE, NO.3 | ||||
| 68899-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式 |
2 | ||
| 68899-95J00 |
XZC605..VAN ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
2 | ||
| Common parts | ||||
| 68619-37010 | ||||
| 90119-06029 | ||||
| 90119-08775 | ||||
| 90119-08856 | ||||
| 90154-60024C0 | ||||
| 90159-60262 | ||||
| 90159-80054 | ||||
| 90167-50035 | ||||
| 90189-04014 | ||||
| 90189-06018 | ||||
| 90467-09116 | ||||
| 93540-54512 | ||||
| 93560-56012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
