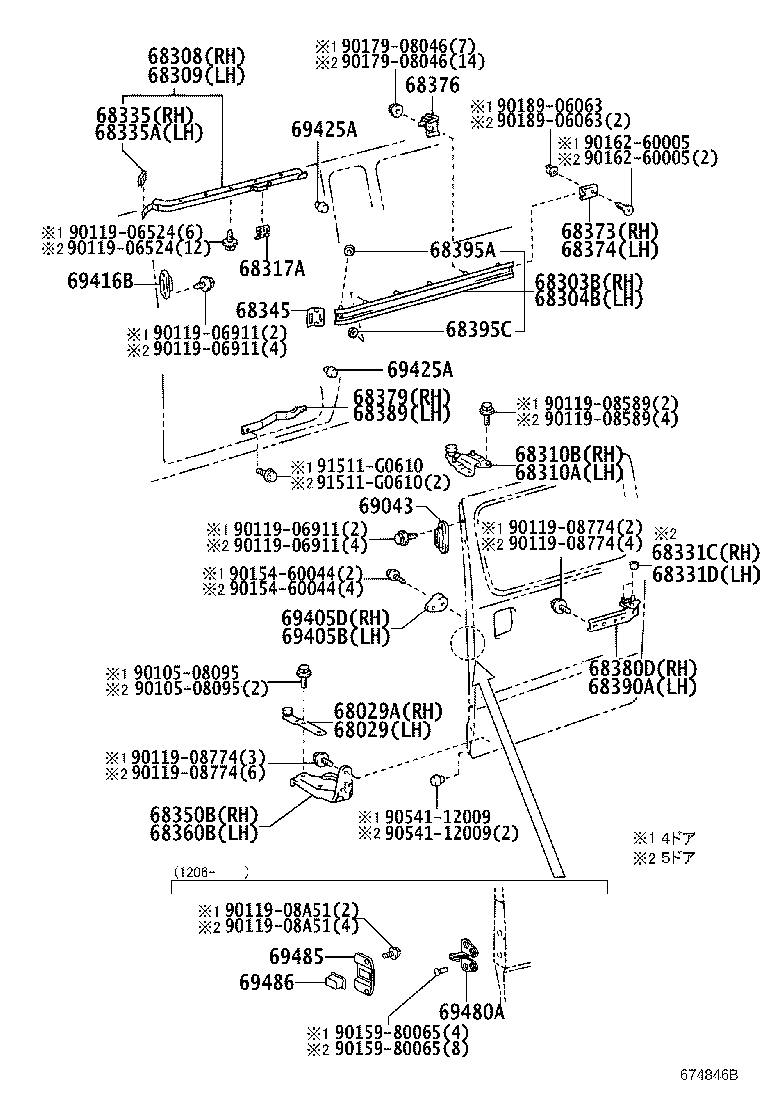

Toyota Dyna/toyoace XZC605 SLIDE ROLLER & RAIL

Part #	Description	Period	Qty
68029 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER
68029-26050	XZC605..VAN	07/2011 - 05/2017	1
68029A - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH
68029-26050	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	1
68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68303-26070	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	1
68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68304-26080	XZC605..VAN	07/2011 - 05/2017	1
68308 - RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68308-26010	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	1
68309 - RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68309-26010	XZC605..VAN	07/2011 - 05/2017	1
68310A - ROLLER ASSY, SLIDE DOOR, UPPER, LH
68310-26030	XZC605..VAN	07/2011 - 05/2017	1
68310B - ROLLER ASSY, SLIDE DOOR, UPPER RH
68310-26030	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	1
68317A - STOPPER, SLIDE DOOR UPPER RAIL
68317-26010	XZC605..VAN	07/2011 - 05/2017	1
68331C - ROLLER, SLIDE DOOR, RH
68334-95700	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	2
68331D - ROLLER, SLIDE DOOR, LH
68334-95700	XZC605..VAN	07/2011 - 05/2017	2
68335 - PAD, SLIDE DOOR UPPER RAIL
68335-95702	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	1
68335A - PAD, SLIDE DOOR UPPER RAIL, LH
68335-95702	XZC605..VAN	07/2011 - 05/2017	1
68345 - COVER, SLIDE DOOR CENTER RAIL
68345-95J01B2	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ,GRAY,TRIM1#	07/2011 - 05/2017	2
68345-95J01B2	XZC605..VAN 寒冷地仕様&ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ,GRAY,TRIM1#	07/2011 - 05/2017	2
68345-95J01B2	XZC605..VAN GRAY,TRIM1#	07/2011 - 05/2017	1
68350B - ROLLER ASSY, SLIDE DOOR, LOWER RH
68350-37020	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	1
68360B - ROLLER ASSY, SLIDE DOOR, LOWER LH
68360-26050	XZC605..VAN	07/2011 - 05/2017	1
68373 - MOULDING, SLIDE RAIL END, RH
68373-26060	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	1
68374 - MOULDING, SLIDE RAIL END, LH
68374-26060	XZC605..VAN	07/2011 - 05/2017	1
68376 - BRACKET, SLIDE DOOR CENTER RAIL
68376-95J00	XZC605..VAN	07/2011 - 05/2017	1
68379 - SPRING, SLIDE DOOR CATCH, RH
68379-95J01	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	1
68380D - HINGE ASSY, SLIDE DOOR, CENTER RH
68380-26020	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	1
68389 - SPRING, SLIDE DOOR CATCH, LH
68389-95J01	XZC605..VAN	07/2011 - 05/2017	1
68390A - HINGE ASSY, SLIDE DOOR, CENTER LH
68390-26030	XZC605..VAN	07/2011 - 05/2017	1
68395A - PACKING, SLIDE DOOR CENTER RAIL
68395-26010	XZC605..VAN	07/2011 - 05/2017	1
68395C - PACKING, SLIDE DOOR CENTER RAIL
68395-95J00	XZC605..VAN	07/2011 - 05/2017	5
69043 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
69043-95J00	XZC605..VAN	07/2011 - 05/2017	1
69043-95J00	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	2
69405B - STOP SUB-ASSY, SLIDE DOOR OPEN
69405-95J05	XZC605..VAN	07/2011 - 05/2017	1
69405D - STOP SUB-ASSY, SLIDE DOOR OPEN, RH
69405-95J04	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	1
69416B - STOPPER, SLIDE DOOR DOWN MALE
69416-26010	XZC605..VAN	07/2011 - 05/2017	1
69416-26010	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	2
69425A - CUSHION, SLIDE DOOR STOP
90541-09027	XZC605..VAN	07/2011 - 05/2017	2
90541-09027	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	4
69425A - CUSHION, SLIDE DOOR STOP
90541-09027	XZC605..VAN	07/2011 - 05/2017	2
90541-09027	XZC605..VAN ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2017	4
Common parts
90105-08095
90119-06524
90119-06911
90119-08589
90119-08774
90119-08A51
90154-60044
90159-80065
90162-60005
90179-08046
90189-06063
90541-12009
91511-G0610

XZC605V-RRTMA (2011)

(1107- )VAN
