XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace
(1107- )VAN

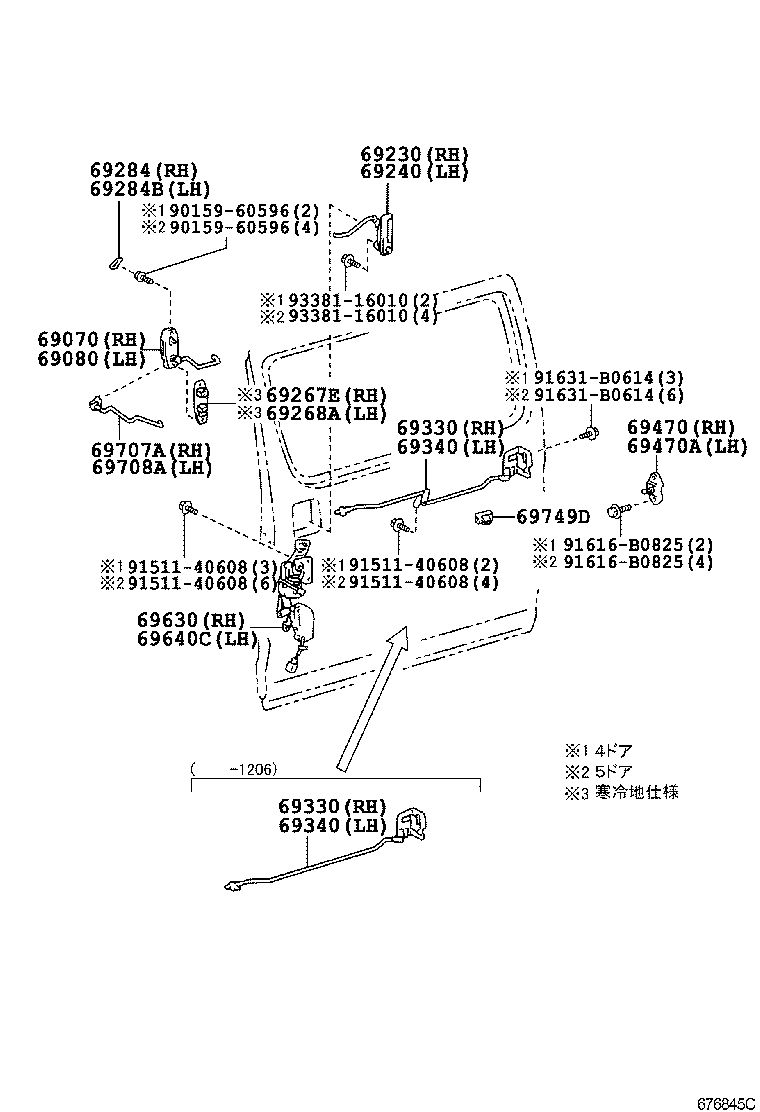

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69070 - HANDLE ASSY, SLIDE DOOR, INSIDE, RH | ||||
| 69070-26030B3 |
XZC605..06S 寒冷地仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ,GRAY,TRIM1# |
1 | ||
| 69070-26030B3 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ,GRAY,TRIM1# |
1 | ||
| 69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH | ||||
| 69080-26030B3 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-26020 |
XZC605..06S 塗装不要,ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 69230-26020 |
XZC605..06S 塗装不要,寒冷地仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-26040 |
XZC605..06S ﾌﾞﾗｯｸ,塗装不要 |
1 | ||
| 69267E - SEAL, SLIDE DOOR INSIDE HANDLE, NO.1 | ||||
| 69267-26010 |
XZC605..06S 寒冷地仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 69268A - SEAL, SLIDE DOOR INSIDE HANDLE, LH | ||||
| 69268-95J01 |
XZC605..06S 寒冷地仕様 |
1 | ||
| 69284 - PLUG, SLIDE DOOR INSIDE HANDLE | ||||
| 69284-95J00B5 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ,GRAY,TRIM1# |
2 | ||
| 69284-95J00B5 |
XZC605..06S 寒冷地仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ,GRAY,TRIM1# |
2 | ||
| 69284B - PLUG, SLIDE DOOR INSIDE HANDLE, LH | ||||
| 69284-95J00B5 |
XZC605..06S GRAY,TRIM1# |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-95J00 |
XZC605..VAN ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 69330-37080 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-95J00 |
XZC605..VAN ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 69330-37080 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-25020 |
XZC605..06S |
1 | ||
| 69340-95J01 |
XZC605..VAN |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-25020 |
XZC605..06S |
1 | ||
| 69340-95J01 |
XZC605..VAN |
1 | ||
| 69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER | ||||
| 69470-26010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 69470-26010 |
XZC605..06S |
1 | ||
| 69630 - CONTROL ASSY, SLIDE DOOR LOCK REMOTE | ||||
| 69630-37010 |
XZC605..VAN ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 69630-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-37010 |
XZC605..VAN |
1 | ||
| 69640-37030 |
XZC605..06S |
1 | ||
| 69707A - ROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH | ||||
| 69707-95J01B3 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ,GRAY,TRIM1# |
1 | ||
| 69708A - ROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH | ||||
| 69708-95J01B3 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 69749D - CLAMP, SLIDE DOOR LOCK LINK | ||||
| 69749-95J00 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90159-60596 | ||||
| 91511-40608 | ||||
| 91616-B0825 | ||||
| 91631-B0614 | ||||
| 93381-16010 | ||||
