XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace

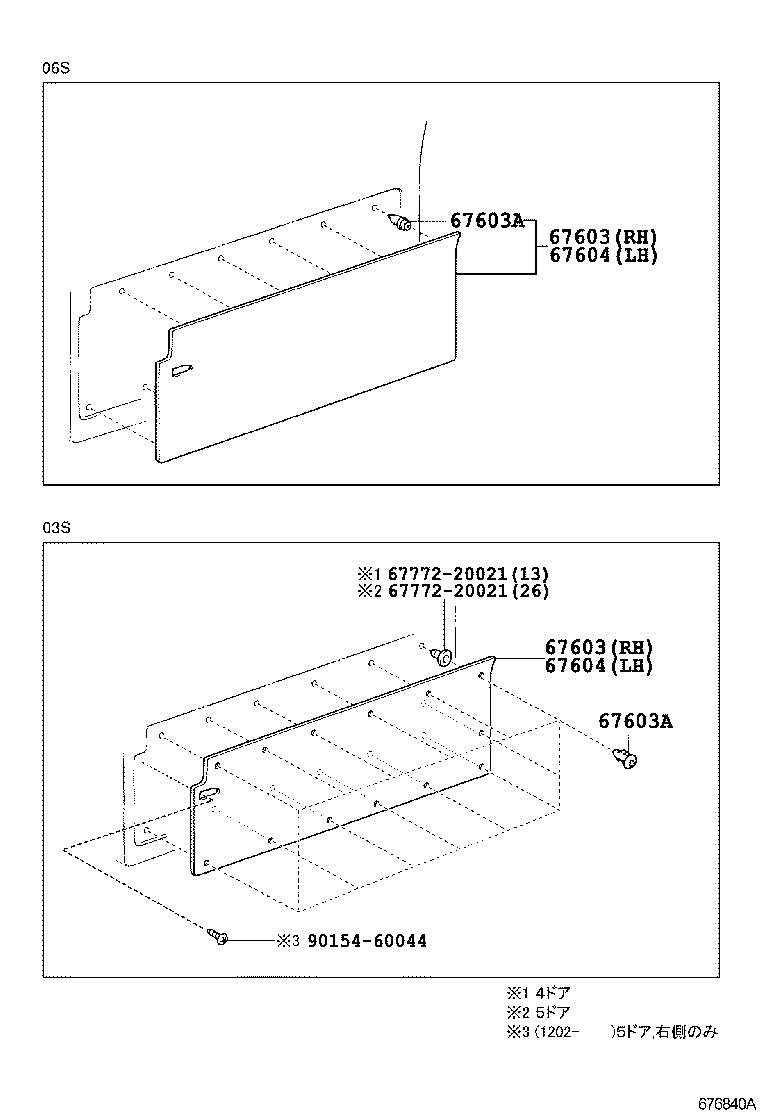

ILLUST NO. 2 OF 2(1107- )VAN
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-37100B1 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ,GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-37100B1 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ,GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-26010 |
XZC605..06S |
13 | ||
| 67771-26010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-26010 |
XZC605..06S |
13 | ||
| 67771-26010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
26 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-25030B1 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-25030B1 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90154-60044 | ||||

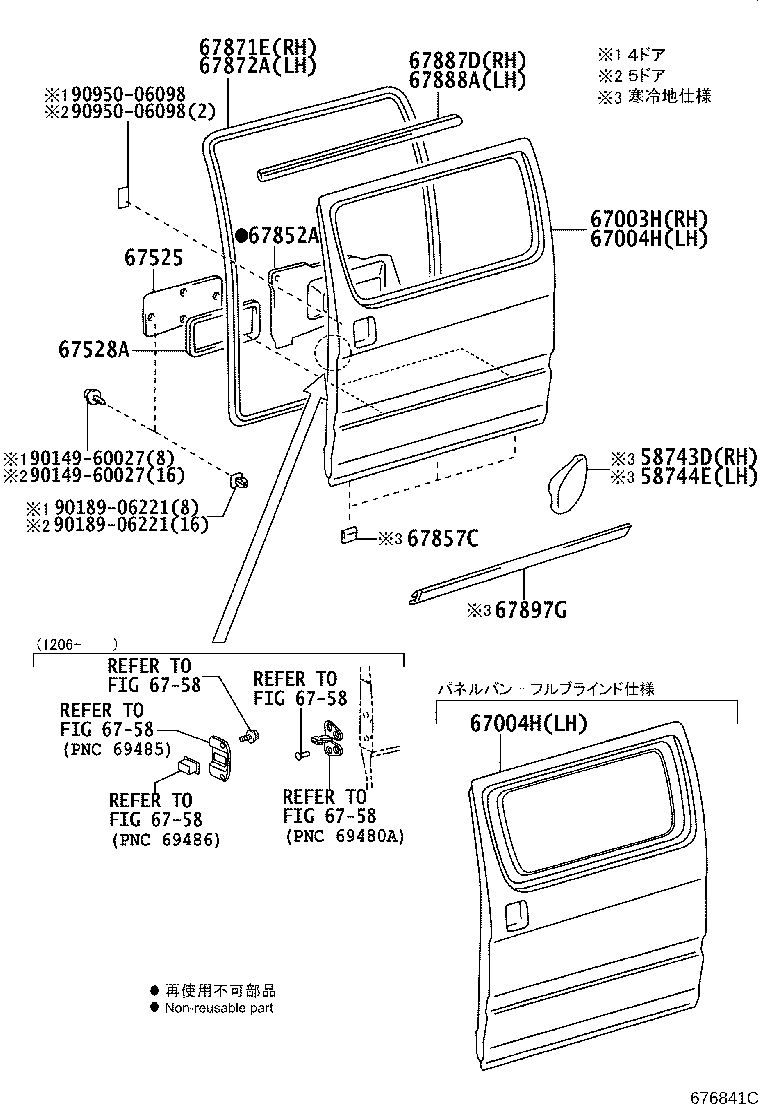

ILLUST NO. 1 OF 2(1107- )VAN
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58743D - PROTECTOR, SLIDE DOOR PANEL, RH | ||||
| 58743-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 58744E - PROTECTOR, SLIDE DOOR PANEL, LH | ||||
| 58744-95J00 |
XZC605..06S |
1 | ||
| 67003H - DOOR SUB-ASSY, SLIDE, RH | ||||
| 67003-37050 |
XZC605..VAN ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ,ｲﾗｽﾄ参照 |
1 | ||
| 67003-37080 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ,ｲﾗｽﾄ参照 |
1 | ||
| 67004H - DOOR SUB-ASSY, SLIDE, LH | ||||
| 67004-26120 |
XZC605..VAN ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様,ｲﾗｽﾄ参照 |
1 | ||
| 67004-25010 |
XZC605..06S ｲﾗｽﾄ参照 |
1 | ||
| 67004-26060 |
XZC605..VAN ｲﾗｽﾄ参照 |
1 | ||
| 67004-37100 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様,ｲﾗｽﾄ参照 |
1 | ||
| 67004H - DOOR SUB-ASSY, SLIDE, LH | ||||
| 67004-26120 |
XZC605..VAN ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様,ｲﾗｽﾄ参照 |
1 | ||
| 67004-25010 |
XZC605..06S ｲﾗｽﾄ参照 |
1 | ||
| 67004-26060 |
XZC605..VAN ｲﾗｽﾄ参照 |
1 | ||
| 67004-37100 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様,ｲﾗｽﾄ参照 |
1 | ||
| 67525 - COVER, SLIDE DOOR PANEL, LOWER | ||||
| 67525-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
4 | ||
| 67525-95J00 |
XZC605..06S |
2 | ||
| 67525-95J00 |
XZC605..06S 寒冷地仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
4 | ||
| 67528A - PACKING, SLIDE DOOR LOWER COVER | ||||
| 67528-95J00 |
XZC605..06S 寒冷地仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
4 | ||
| 67528-95J00 |
XZC605..06S |
2 | ||
| 67528-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
4 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-95J03 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
2 | ||
| 67852-95J03 |
XZC605..06S 寒冷地仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
2 | ||
| 67852-95J03 |
XZC605..06S |
1 | ||
| 67857C - SEAL, SLIDE DOOR PANEL HOLE | ||||
| 67857-95J00 |
XZC605..06S 寒冷地仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
6 | ||
| 67857-95J00 |
XZC605..06S 寒冷地仕様 |
3 | ||
| 67871E - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 67871-95J02 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 67872-95J00 |
XZC605..06S |
1 | ||
| 67887D - WEATHERSTRIP, SLIDE DOOR, NO.2 RH | ||||
| 67887-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67887-95J00 |
XZC605..06S |
1 | ||
| 67897G - SEAL, SLIDE DOOR, LOWER | ||||
| 67897-95J00 |
XZC605..06S |
1 | ||
| 67897-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
2 | ||
| Common parts | ||||
| 90149-60027 | ||||
| 90189-06221 | ||||
| 90950-06098 | ||||
| Linked diagrams | ||||
| 6758 | ||||
