XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace

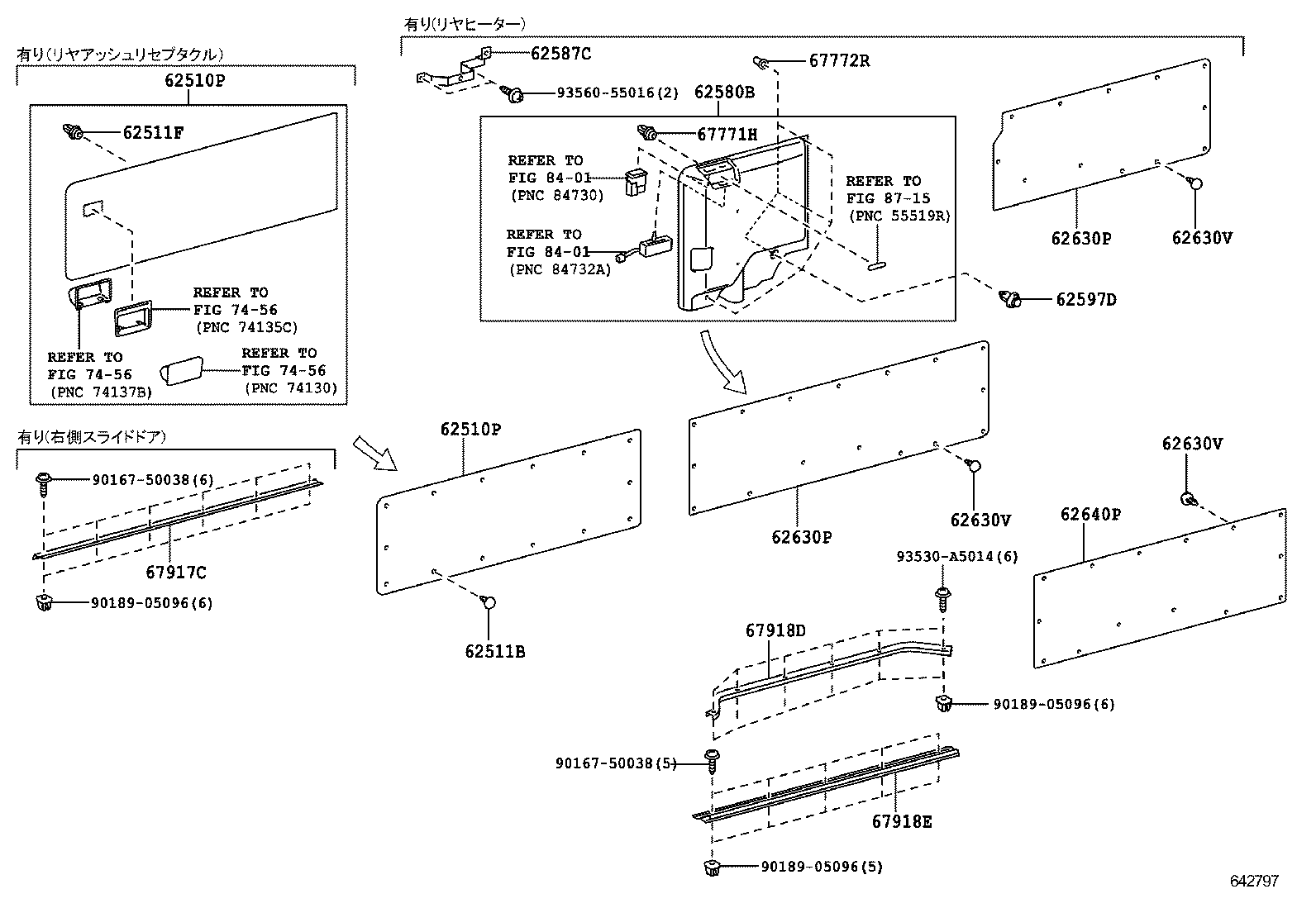

ILLUST NO. 2 OF 2(1107- )VAN
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-37021B1 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-37021B1 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-89109 |
XZC605..06S |
14 | ||
| 62580B - BOARD ASSY, SIDE HEATER COVER, RH | ||||
| 62580-37030B1 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り,GRAY,TRIM1# |
1 | ||
| 62580-37040B1 |
XZC605..06S ﾘﾔﾋｰﾀ−有り,GRAY,TRIM1# |
1 | ||
| 62587C - PLATE, QUARTER TRIM POCKET | ||||
| 62587-37010 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 62587-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 62597D - CLIP | ||||
| 90467-07043B8 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り,GRAY,TRIM1# |
4 | ||
| 90467-07043B8 |
XZC605..06S ﾘﾔﾋｰﾀ−有り,GRAY,TRIM1# |
4 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62631-25020 |
XZC605..06S |
1 | ||
| 62631-25010 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62631-25020 |
XZC605..06S |
1 | ||
| 62631-25010 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 62630V - CLIP (FOR QUARTER REAR TRIM) | ||||
| 90467-10034N8 |
XZC605..06S CREAM YELLOW,TRIM1# |
30 | ||
| 90467-10034N8 |
XZC605..06S ﾘﾔﾋｰﾀ−有り,CREAM YELLOW,TRIM1# |
25 | ||
| 62630V - CLIP (FOR QUARTER REAR TRIM) | ||||
| 90467-10034N8 |
XZC605..06S CREAM YELLOW,TRIM1# |
30 | ||
| 90467-10034N8 |
XZC605..06S ﾘﾔﾋｰﾀ−有り,CREAM YELLOW,TRIM1# |
25 | ||
| 62630V - CLIP (FOR QUARTER REAR TRIM) | ||||
| 90467-10034N8 |
XZC605..06S CREAM YELLOW,TRIM1# |
30 | ||
| 90467-10034N8 |
XZC605..06S ﾘﾔﾋｰﾀ−有り,CREAM YELLOW,TRIM1# |
25 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62632-25011 |
XZC605..06S |
1 | ||
| 67771H - RETAINER, DOOR TRIM | ||||
| 67771-30070 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 67771-30070 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 67772R - CAP, DOOR TRIM RETAINER | ||||
| 67772-95J02 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
3 | ||
| 67772-95J02 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
3 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 58577-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 58578-37020 |
XZC605..06S |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-95J05 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90167-50038 | ||||
| 90189-05096 | ||||
| 93530-A5014 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8401 | ||||
| 8715 | ||||

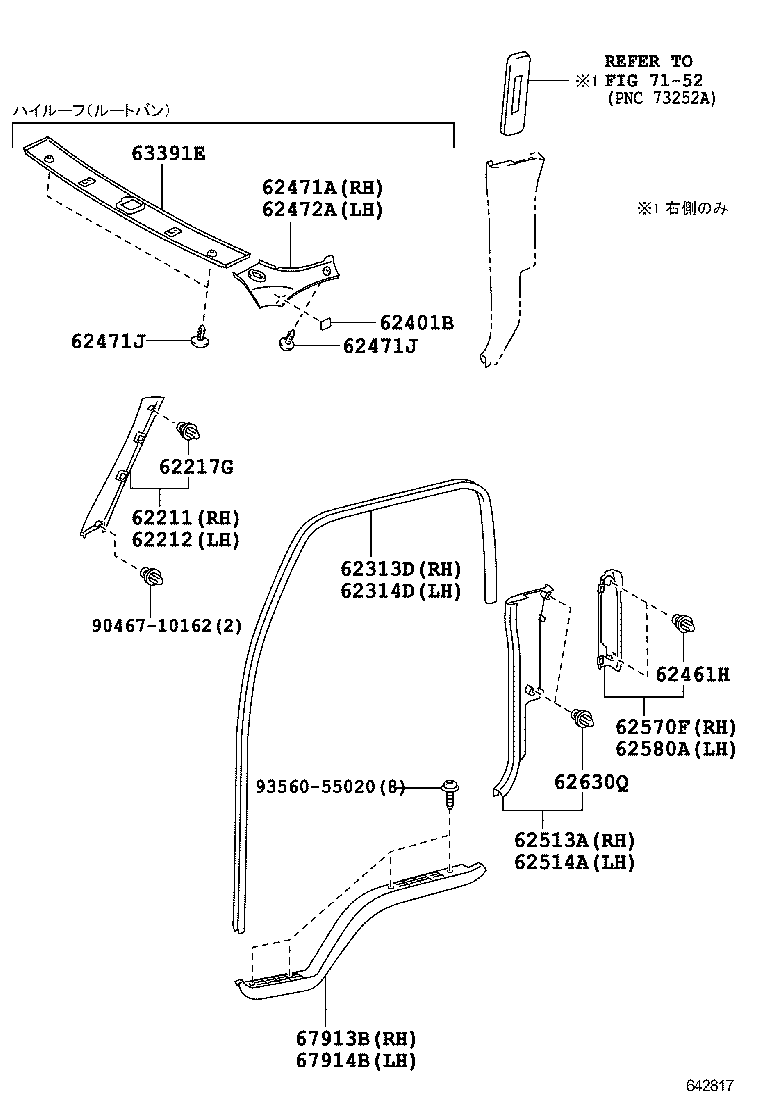

ILLUST NO. 1 OF 2(1107- )VAN
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-37010B0 |
XZU650..20T;XZC600..5F..ST;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;BZU600,XZC610,675,XZU605,610,620,655,675,685,695..SCB;TRC600,XZC60#,630,645,655,XZU600,630,645..(06S,DM3,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT..(CBU,IV3,IV5,IV6,IV7) GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-37010B0 |
XZU650..20T;XZC600..5F..ST;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;BZU600,XZC610,675,XZU605,610,620,655,675,685,695..SCB;TRC600,XZC60#,630,645,655,XZU600,630,645..(06S,DM3,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT..(CBU,IV3,IV5,IV6,IV7) GRAY,TRIM1# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10188 |
XZU650..20T;XZC600..5F..ST;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;BZU600,XZC610,675,XZU605,610,620,655,675,685,695..SCB;TRC600,XZC60#,630,645,655,XZU600,630,645..(06S,DM3,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT..(CBU,IV3,IV5,IV6,IV7) |
2 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-37080B0 |
XZU650..20T;XZC600..5F..ST;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;BZU600,XZC610,675,XZU605,610,620,655,675,685,695..SCB;TRC600,XZC60#,630,645,655,XZU600,630,645..(06S,DM3,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT..(CBU,IV3,IV5,IV6,IV7) GRAY,TRIM1# |
1 | ||
| 62313-37060B1 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62314-37040B0 |
XZU650..20T;XZC600..5F..ST;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;BZU600,XZC610,675,XZU605,610,620,655,675,685,695..SCB;TRC600,XZC60#,630,645,655,XZU600,630,645..(06S,DM3,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT..(CBU,IV3,IV5,IV6,IV7) GRAY,TRIM1# |
1 | ||
| 62314-37020B1 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 62461H - CLIP (FOR ROOF SIDE INNER GARNISH) | ||||
| 90467-10161 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
4 | ||
| 62513A - PANEL, QUARTER TRIM, LOWER RH | ||||
| 62530-37020B0 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 GRAY,TRIM1# |
1 | ||
| 62513-37011B1 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 62514A - PANEL, QUARTER TRIM, LOWER LH | ||||
| 62540-37020B0 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 GRAY,TRIM1# |
1 | ||
| 62514-37011B1 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 62570F - GARNISH ASSY, ROOF SIDE, INNER LOWER RH | ||||
| 62570-37010B1 |
XZC605..VAN GRAY,TRIM1# |
1 | ||
| 62570-37010B1 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 62570-37030B0 |
XZC605..VAN GRAY,TRIM1# |
1 | ||
| 62580A - GARNISH ASSY, ROOF SIDE, INNER LOWER LH | ||||
| 62580-37050B0 |
XZC605..VAN GRAY,TRIM1# |
1 | ||
| 62580-37010B1 |
XZC605..06S GRAY,TRIM1# |
1 | ||
| 62580-37010B1 |
XZC605..VAN GRAY,TRIM1# |
1 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 90467-10161 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-37010B1 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 GRAY,TRIM1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-37010B1 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-10162 | ||||
| 93560-55020 | ||||
| Linked diagrams | ||||
| 7152 | ||||
