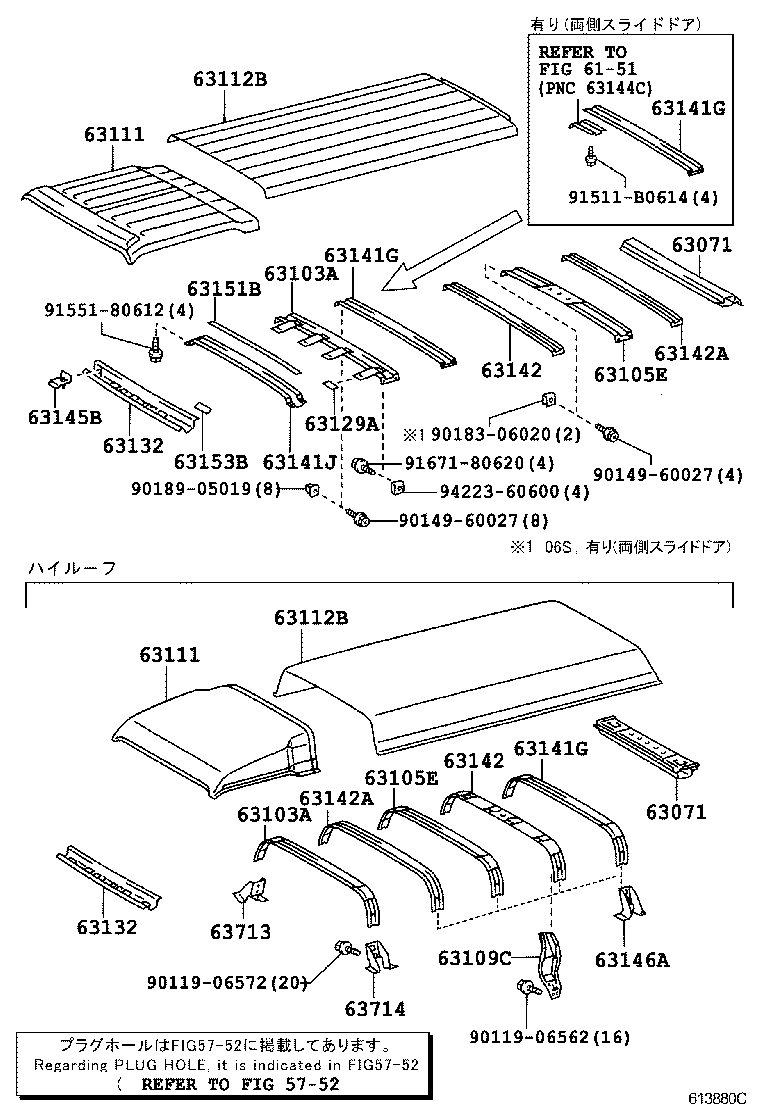

Toyota Dyna/toyoace XZC605 ROOF PANEL & BACK PANEL

Part #	Description	Period	Qty
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-26030	XZC605..06S	07/2011 - 05/2016	1
63071-26060	XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式	07/2011 - 05/2016	1
63071-26060	XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様)	07/2011 - 05/2016	1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-26030	XZC605..06S	07/2011 - 05/2016	1
63071-26060	XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式	07/2011 - 05/2016	1
63071-26060	XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様)	07/2011 - 05/2016	1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-37030	XZC605..VAN	07/2011 - 03/2014	1
63103-37031	XZC605..06S	04/2014 - 05/2016	1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-37030	XZC605..VAN	07/2011 - 03/2014	1
63103-37031	XZC605..06S	04/2014 - 05/2016	1
63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
63105-26900	XZC605..VAN	07/2011 - 03/2014	1
63105-37041	XZC605..06S	04/2014 - 05/2016	1
63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
63105-26900	XZC605..VAN	07/2011 - 03/2014	1
63105-37041	XZC605..06S	04/2014 - 05/2016	1
63111 - PANEL, ROOF
63111-37160	XZC605..06S	07/2011 - 05/2016	1
63111 - PANEL, ROOF
63111-37160	XZC605..06S	07/2011 - 05/2016	1
63112B - PANEL, ROOF, REAR
63112-37030	XZC605..06S	07/2011 - 05/2016	1
63112B - PANEL, ROOF, REAR
63112-37030	XZC605..06S	07/2011 - 05/2016	1
63129A - CUSHION, ROOF REINFORCEMENT
63129-37020	XZC605..06S	07/2011 - 05/2016	4
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-37131	XZC605..VAN	07/2011 - 12/2014	1
63132-37132	XZC605..VAN	12/2014 - 04/2016	1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-37131	XZC605..VAN	07/2011 - 12/2014	1
63132-37132	XZC605..VAN	12/2014 - 04/2016	1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-26900	XZC605..06S	07/2011 - 05/2016	1
63141-37080	XZC605..06S ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2016	1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-26900	XZC605..06S	07/2011 - 05/2016	1
63141-37080	XZC605..06S ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2016	1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-26900	XZC605..06S	07/2011 - 05/2016	1
63141-37080	XZC605..06S ﾘﾔｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ	07/2011 - 05/2016	1
63141J - REINFORCEMENT, ROOF PANEL
63141-37090	XZC605..06S	07/2011 - 05/2016	1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-26900	XZC605..06S	07/2011 - 05/2016	1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-26900	XZC605..06S	07/2011 - 05/2016	1
63142A - REINFORCEMENT, ROOF PANEL, NO.2
63142-26900	XZC605..06S	07/2011 - 05/2016	1
63142A - REINFORCEMENT, ROOF PANEL, NO.2
63142-26900	XZC605..06S	07/2011 - 05/2016	1
63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL
63145-37030	XZC605..06S	07/2011 - 05/2016	1
63151B - SEAL, ROOF PANEL REINFORCEMENT
63151-37050	XZC605..06S	07/2011 - 05/2016	2
63153B - SHIM, ROOF REINFORCEMENT
63153-37010	XZC605..06S	07/2011 - 05/2016	1
Common parts
90119-06562
90119-06572
90149-60027
90183-06020
90189-05019
91511-B0614
91551-80612
91671-80620
94223-60600
Linked diagrams
5752
6151

XZC605V-RRTMA (2011)

(1107- )VAN
