XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace

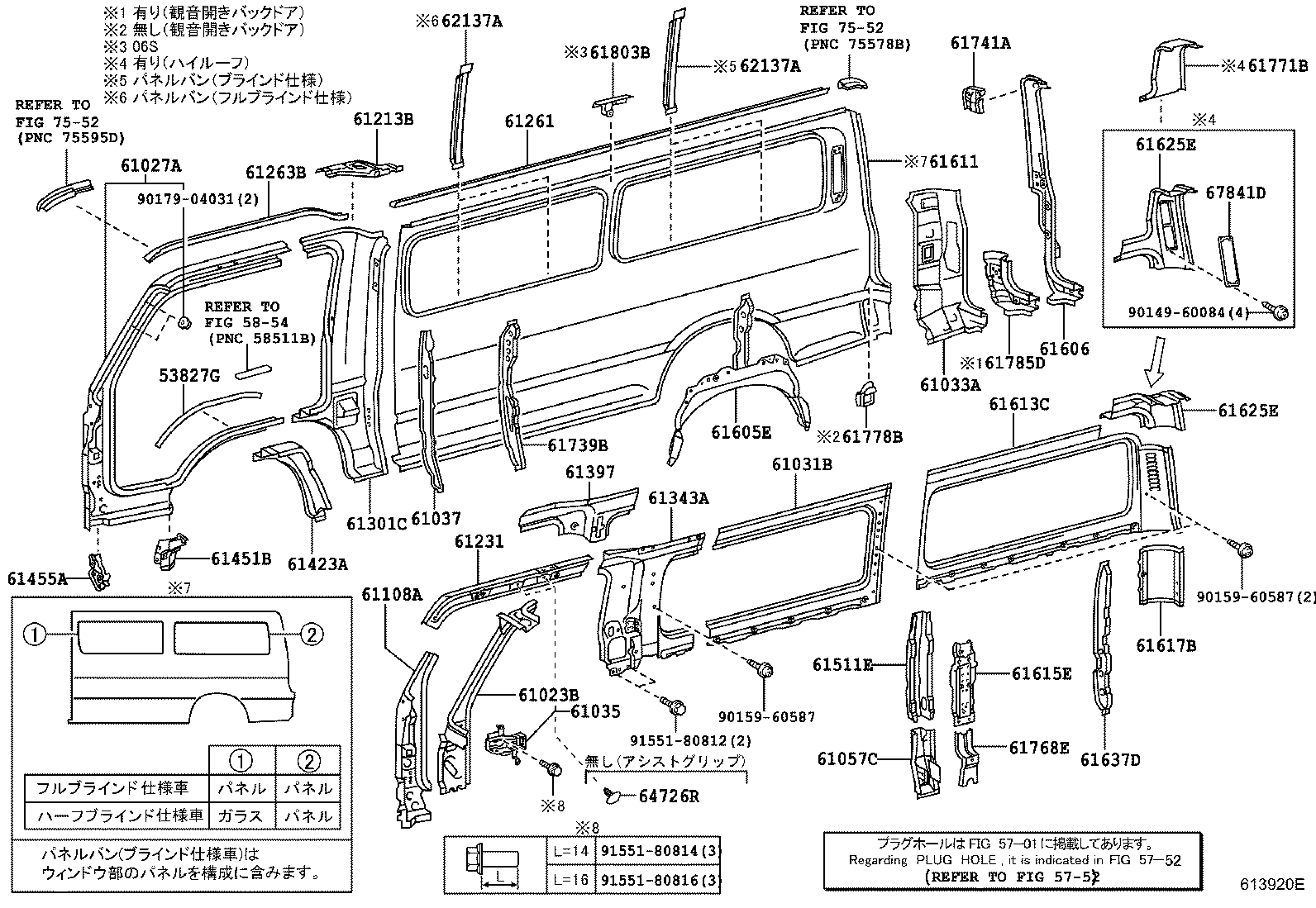

ILLUST NO. 1 OF 2(1107- )VAN
4ﾄﾞｱ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-37040 |
TRC600..DM5;XZU600,640,650,685..IV4,IV6;TRC600,XZU655,685,695..DCB..20T;XZC60#,610,630,675,XZU60#,610,620,630,675..03S,06S,DM3,DM5,DM7,T2,T4,T5 |
1 | ||
| 61023-37041 |
TRC600..DCB;XZC600..5F..ST;XZU600,685..(20T,30T)..IV6;XZC60#,610,630,675,XZU60#,610,620,630,675..(SCB,VAN)..(06S,DM3,DM5,DM7,T2,T4,T5)..WT |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61131-37101 |
XZC605..VAN |
1 | ||
| 61131-37102 |
XZC605..06S |
1 | ||
| 61031B - EXTENSION SUB-ASSY, QUARTER PANEL, RH | ||||
| 61031-37030 |
XZC605..06S |
1 | ||
| 61031-37080 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61031-37080 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61031-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61031-37080 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE | ||||
| 61033-95J07 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61033-37010 |
XZC605..06S |
1 | ||
| 61033-95J07 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61033-95J07 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61033-95J07 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61033-95J09 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61033-95J09 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61033-37030 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61033-95J07 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61033-95J07 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61033-95J09 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61035-37070 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 61037 - REINFORCE SUB-ASSY, FRONT BODY PILLAR, CENTER | ||||
| 61037-95J01 |
XZC605..06S |
1 | ||
| 61057C - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR | ||||
| 61057-95J07 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61057-95J07 |
XZC605..06S |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-37041 |
XZC605..06S |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61215-37020 |
XZC605..06S |
1 | ||
| 61215-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37080 |
XZC605..06S |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-37040 |
XZC605..06S |
1 | ||
| 61263B - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-37010 |
XZC605..06S |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-37061 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61301-37060 |
XZC605..VAN ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61301-37040 |
XZC605..06S |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61307-37160 |
XZC605..06S |
1 | ||
| 61307-37150 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61307-37250 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61307-37250 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61397 - PATCH, CENTER BODY PILLAR, INNER RH | ||||
| 61397-37050 |
XZC605..06S |
1 | ||
| 61397-37040 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-37040 |
XZC605..06S |
1 | ||
| 61451B - PLATE, STEP, LOWER RH | ||||
| 61451-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 61455A - RETAINER, FRONT STEP, RH | ||||
| 61455-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 61511E - PILLAR, QUARTER LOCK, RH | ||||
| 61511-95J04 |
XZC605..06S |
1 | ||
| 61605E - PANEL, QUARTER, RH | ||||
| 61605-37010 |
XZC605..06S |
1 | ||
| 61605-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61605-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61605-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61705-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61705-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61705-37010 |
XZC605..06S |
1 | ||
| 61705-37030 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61705-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61705-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61705-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-37180 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61601-37420 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61601-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61601-37380 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61601-37270 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61601-37420 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61601-37270 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61601-37300 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61601-37280 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61601-37270 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61601-37340 |
XZC605..06S |
1 | ||
| 61601-37180 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61601-37270 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61613C - PANEL SUB-ASSY, QUARTER, INNER REAR RH | ||||
| 61613-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61613-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61613-37230 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61613-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61607-37180 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61613-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61613-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61607-37030 |
XZC605..06S |
1 | ||
| 61613-37230 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61613-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61607-37090 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61607-37140 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61613-37230 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61615E - PILLAR, QUARTER LOCK, INNER RH | ||||
| 61615-37010 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 61615-26020 |
XZC605..06S |
1 | ||
| 61617B - PANEL, QUARTER INNER, LOWER RH | ||||
| 61067-95J02 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61617-95J00 |
XZC605..06S |
1 | ||
| 61067-95J02 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-95J04 |
XZC605..06S |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-95J04 |
XZC605..06S |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-95J00 |
XZC605..06S |
1 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-95J02 |
XZC605..06S |
1 | ||
| 61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH | ||||
| 61741-95J01 |
XZC605..06S |
1 | ||
| 61768E - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH | ||||
| 61677-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61677-37020 |
XZC605..06S |
1 | ||
| 61778B - PLATE, BACK DOOR OPENING, LOWER RH | ||||
| 61778-95J01 |
XZC605..06S |
1 | ||
| 61785D - EXTENSION, BACK DOOR OPENING SIDE, RH | ||||
| 61785-95J01 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61785-95J01 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61785-95J01 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61785-95J01 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61785-95J01 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61785-95J01 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61785-95J01 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61803B - REINFORCE SUB-ASSY, ROOF SIDE, OUTER RH | ||||
| 61803-26010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61803-95J01 |
XZC605..06S |
1 | ||
| 61803-26010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 62137A - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
4 | ||
| 62137-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
4 | ||
| 62137-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
2 | ||
| 62137A - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
4 | ||
| 62137-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
4 | ||
| 62137-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
2 | ||
| 64726R - CLIP, ROOF SIDE PANEL | ||||
| 90467-06048B9 |
XZC605..06S ｱｼｽﾄｸﾞﾘｯﾌﾟ−ﾌﾛﾝﾄ & ﾘﾔ(運転席:1 助手席:2 後席:2),MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-06048B9 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 MD.CHARCOAL,TRIM1# |
4 | ||
| Common parts | ||||
| 90149-60084 | ||||
| 90159-60587 | ||||
| 90179-04031 | ||||
| 91551-80812 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5854 | ||||
| 7552 | ||||

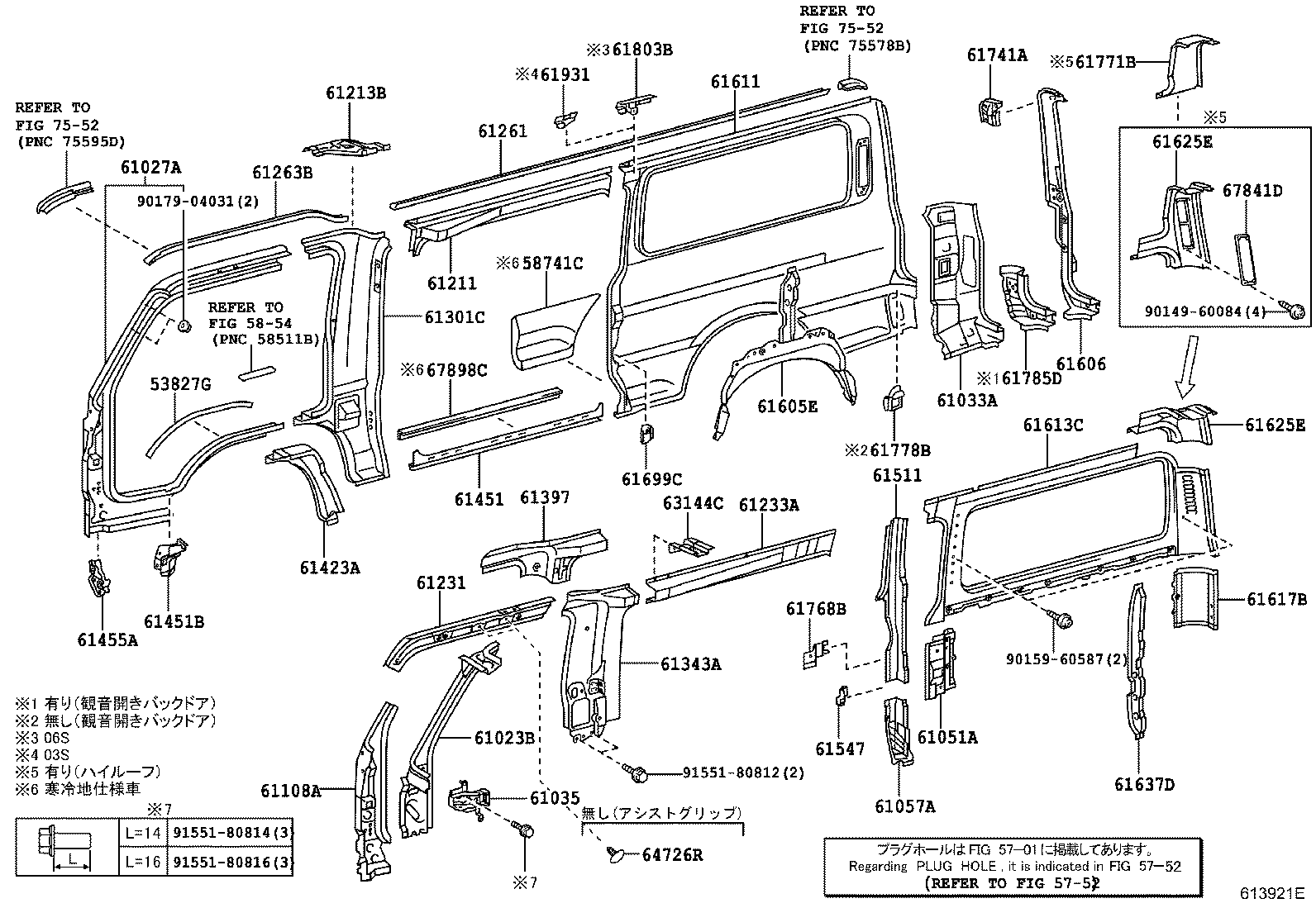

ILLUST NO. 1 OF 2(1107- )VAN
5ﾄﾞｱ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 58741C - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-37040 |
TRC600..DM5;XZU600,640,650,685..IV4,IV6;TRC600,XZU655,685,695..DCB..20T;XZC60#,610,630,675,XZU60#,610,620,630,675..03S,06S,DM3,DM5,DM7,T2,T4,T5 |
1 | ||
| 61023-37041 |
TRC600..DCB;XZC600..5F..ST;XZU600,685..(20T,30T)..IV6;XZC60#,610,630,675,XZU60#,610,620,630,675..(SCB,VAN)..(06S,DM3,DM5,DM7,T2,T4,T5)..WT |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61131-37101 |
XZC605..VAN |
1 | ||
| 61131-37102 |
XZC605..06S |
1 | ||
| 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE | ||||
| 61033-95J07 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61033-37010 |
XZC605..06S |
1 | ||
| 61033-95J07 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61033-95J07 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61033-95J07 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61033-95J09 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61033-95J09 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61033-37030 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61033-95J07 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61033-95J07 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61033-95J09 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61035-37070 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 61051A - PANEL SUB-ASSY, QUARTER LOCK, INNER RH | ||||
| 61051-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61057A - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR | ||||
| 61057-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61057-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-37041 |
XZC605..06S |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61201-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61215-37020 |
XZC605..06S |
1 | ||
| 61215-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37080 |
XZC605..06S |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61207-37060 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-37040 |
XZC605..06S |
1 | ||
| 61263B - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-37010 |
XZC605..06S |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-37061 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61301-37060 |
XZC605..VAN ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61301-37040 |
XZC605..06S |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61307-37160 |
XZC605..06S |
1 | ||
| 61307-37150 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61307-37250 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61307-37250 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61397 - PATCH, CENTER BODY PILLAR, INNER RH | ||||
| 61397-37050 |
XZC605..06S |
1 | ||
| 61397-37040 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-37040 |
XZC605..06S |
1 | ||
| 61451 - PANEL, ROCKER, OUTER RH | ||||
| 61451-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61451B - PLATE, STEP, LOWER RH | ||||
| 61451-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 61455A - RETAINER, FRONT STEP, RH | ||||
| 61455-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61501-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61501-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61547 - REINFORCEMENT, QUARTER PILLAR, INNER RH | ||||
| 61547-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61547-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61605E - PANEL, QUARTER, RH | ||||
| 61605-37010 |
XZC605..06S |
1 | ||
| 61605-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61605-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61605-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61705-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61705-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61705-37010 |
XZC605..06S |
1 | ||
| 61705-37030 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61705-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61705-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61705-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-37180 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61601-37420 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61601-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61601-37380 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61601-37270 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61601-37420 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61601-37270 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61601-37300 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61601-37280 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61601-37270 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61601-37340 |
XZC605..06S |
1 | ||
| 61601-37180 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61601-37270 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61613C - PANEL SUB-ASSY, QUARTER, INNER REAR RH | ||||
| 61613-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61613-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61613-37230 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61613-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61607-37180 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61613-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61613-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61607-37030 |
XZC605..06S |
1 | ||
| 61613-37230 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61613-37200 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61607-37090 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61607-37140 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61613-37230 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61617B - PANEL, QUARTER INNER, LOWER RH | ||||
| 61067-95J02 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61617-95J00 |
XZC605..06S |
1 | ||
| 61067-95J02 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-95J04 |
XZC605..06S |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-95J04 |
XZC605..06S |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-95J00 |
XZC605..06S |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J01 |
XZC605..06S |
1 | ||
| 61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH | ||||
| 61741-95J01 |
XZC605..06S |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61677-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61677-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61778B - PLATE, BACK DOOR OPENING, LOWER RH | ||||
| 61778-95J01 |
XZC605..06S |
1 | ||
| 61785D - EXTENSION, BACK DOOR OPENING SIDE, RH | ||||
| 61785-95J01 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61785-95J01 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61785-95J01 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61785-95J01 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61785-95J01 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61785-95J01 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61785-95J01 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61803B - REINFORCE SUB-ASSY, ROOF SIDE, OUTER RH | ||||
| 61803-26010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 61803-95J01 |
XZC605..06S |
1 | ||
| 61803-26010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 63144C - EXTENSION, ROOF PANEL REINFORCE, NO.2 | ||||
| 63144-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 64726R - CLIP, ROOF SIDE PANEL | ||||
| 90467-06048B9 |
XZC605..06S ｱｼｽﾄｸﾞﾘｯﾌﾟ−ﾌﾛﾝﾄ & ﾘﾔ(運転席:1 助手席:2 後席:2),MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-06048B9 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 MD.CHARCOAL,TRIM1# |
4 | ||
| 67898C - SEAL, SLIDE DOOR, LOWER NO.2 | ||||
| 67898-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
2 | ||
| 67898-95J00 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90149-60084 | ||||
| 90159-60587 | ||||
| 90179-04031 | ||||
| 91551-80812 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5854 | ||||
| 7552 | ||||

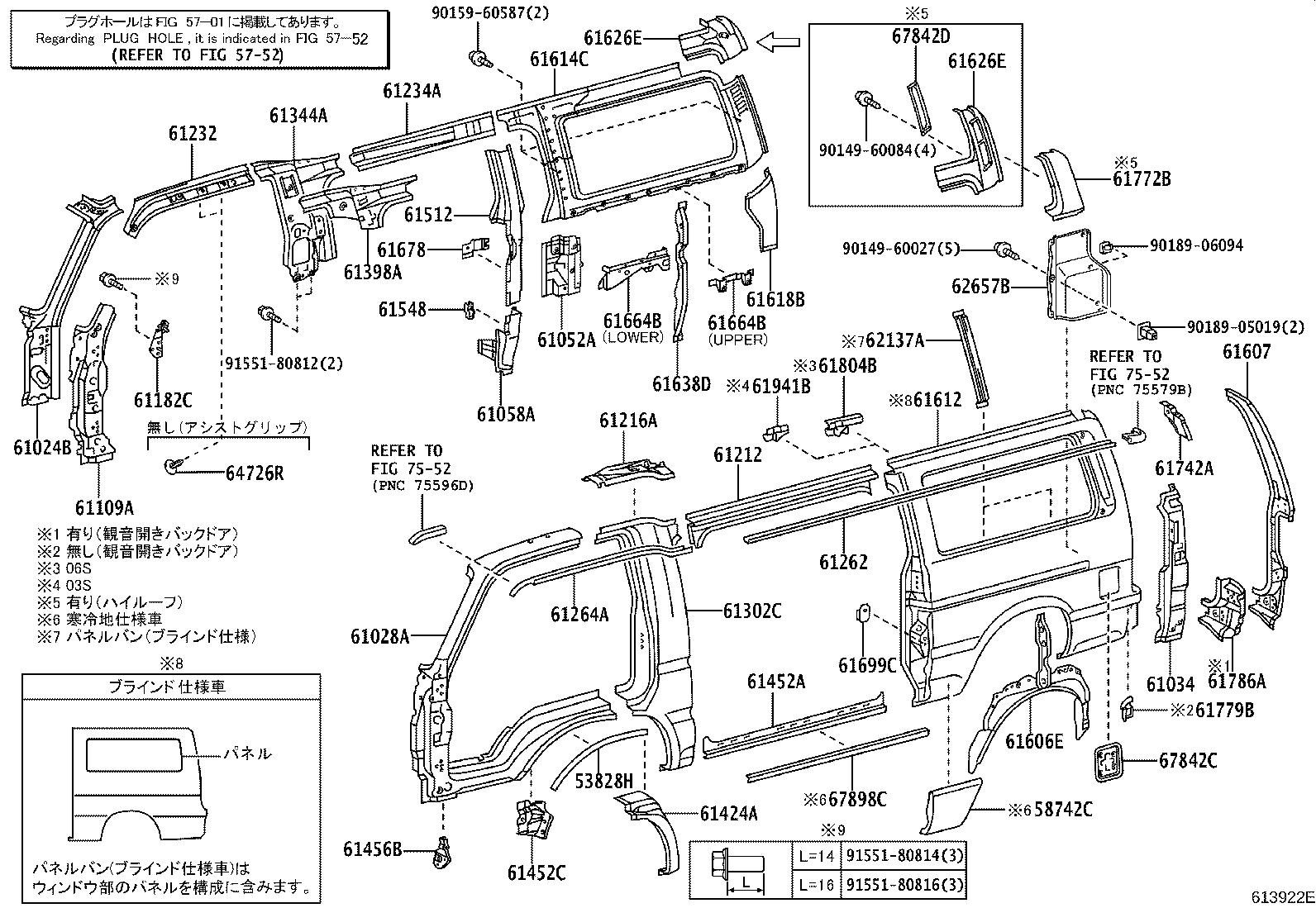

ILLUST NO. 2 OF 2(1107- )VAN
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 58742C - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-95J04 |
XZC605..06S |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-37090 |
TRC600..DM5;XZU600,640,650,685..IV4,IV6;TRC600,XZU655,685,695..DCB..20T;XZC60#,610,630,675,XZU60#,610,620,630,675..03S,06S,DM3,DM5,DM7,T2,T4,T5 |
1 | ||
| 61024-37091 |
TRC600..DCB;XZC600..5F..ST;XZU600,685..(20T,30T)..IV6;XZC60#,610,630,675,XZU60#,610,620,630,675..(SCB,VAN)..(06S,DM3,DM5,DM7,T2,T4,T5)..WT |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61112-37151 |
XZC605..VAN |
1 | ||
| 61112-37152 |
XZC605..06S |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-37050 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61034-95J10 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 61034-95J10 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61034-95J10 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61034-95J13 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61034-95J10 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61034-95J10 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 61034-37040 |
XZC605..06S |
1 | ||
| 61034-95J13 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61034-95J10 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 61034-95J13 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61034-95J13 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61034-95J13 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61034-95J13 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61052A - PANEL SUB-ASSY, QUARTER LOCK, INNER LH | ||||
| 61052-37010 |
XZC605..06S |
1 | ||
| 61058A - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61058-95J08 |
XZC605..06S |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-37021 |
XZC605..06S |
1 | ||
| 61182C - BRACKET, INSTRUMENT SIDE, LH | ||||
| 61182-37040 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61202-37020 |
XZC605..06S |
1 | ||
| 61216A - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61216-37020 |
XZC605..06S |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-37090 |
XZC605..06S |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61208-37060 |
XZC605..06S |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-37040 |
XZC605..06S |
1 | ||
| 61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-37010 |
XZC605..06S |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-37050 |
XZC605..VAN |
1 | ||
| 61302-25030 |
XZC605..06S |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61308-25100 |
XZC605..06S |
1 | ||
| 61398A - PATCH, CENTER BODY PILLAR, INNER LH | ||||
| 61398-37020 |
XZC605..06S |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-37040 |
XZC605..06S |
1 | ||
| 61452A - PANEL, ROCKER OUTER, LH | ||||
| 61451-95J00 |
XZC605..06S |
1 | ||
| 61452C - PLATE, STEP, LOWER LH | ||||
| 61452-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 61456B - RETAINER, FRONT STEP, LH | ||||
| 61456-37010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61512-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61512-95J02 |
XZC605..06S |
1 | ||
| 61512-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61512-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61512-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61512-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61512-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61512-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61512-95J04 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61548 - REINFORCEMENT, QUARTER PILLAR, INNER LH | ||||
| 61548-95J00 |
XZC605..06S |
1 | ||
| 61606E - PANEL, QUARTER, LH | ||||
| 61606-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61606-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61606-37010 |
XZC605..06S |
1 | ||
| 61606-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61706-37010 |
XZC605..06S |
1 | ||
| 61706-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61706-37040 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 61706-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61706-37030 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61706-37040 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 61706-37040 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 61706-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61706-37040 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−跳ね上げ式(ﾘﾔﾜｲﾊﾟ&ﾃﾞﾌｫｯｶﾞ付き) |
1 | ||
| 61706-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61706-37030 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-37170 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61602-37170 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61602-37190 |
XZC605..06S |
1 | ||
| 61602-37170 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61602-37090 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61602-37170 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61602-37090 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61602-37170 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61602-37170 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61602-37090 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61602-37230 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61614C - PANEL SUB-ASSY, QUARTER, INNER REAR LH | ||||
| 61608-37110 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61608-37050 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61608-37090 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61608-37110 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61608-37030 |
XZC605..06S |
1 | ||
| 61608-37110 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61608-37110 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61608-37090 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 61608-37090 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 61608-37110 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61608-37110 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61618B - PANEL, QUARTER, INNER LOWER LH | ||||
| 61068-95J02 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61068-95J02 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61618-95J00 |
XZC605..06S |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-95J03 |
XZC605..06S |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-95J03 |
XZC605..06S |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-95J01 |
XZC605..06S |
1 | ||
| 61664B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER CENTER LH | ||||
| 61664-37010 |
XZC605..06S 上側 |
1 | ||
| 61664-37020 |
XZC605..06S 下側 |
1 | ||
| 61664B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER CENTER LH | ||||
| 61664-37010 |
XZC605..06S 上側 |
1 | ||
| 61664-37020 |
XZC605..06S 下側 |
1 | ||
| 61678 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH | ||||
| 61678-37010 |
XZC605..06S |
1 | ||
| 61699C - RETAINER, COURTESY SWITCH | ||||
| 61699-95J01 |
XZC605..06S |
1 | ||
| 61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH | ||||
| 61742-95J01 |
XZC605..06S |
1 | ||
| 61779B - PLATE, BACK DOOR OPENING, LOWER LH | ||||
| 61779-95J01 |
XZC605..06S |
1 | ||
| 61786A - EXTENSION, BACK DOOR OPENING SIDE, LH | ||||
| 61786-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61786-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61786-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61786-95J00 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61786-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 61786-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61786-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 61804B - REINFORCE SUB-ASSY, ROOF SIDE, OUTER LH | ||||
| 61804-26020 |
XZC605..06S |
1 | ||
| 62137A - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
4 | ||
| 62137-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
4 | ||
| 62137-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
2 | ||
| 62657B - COVER, QUARTER PANEL INNER, LH | ||||
| 62657-95J01 |
XZC605..06S |
1 | ||
| 64726R - CLIP, ROOF SIDE PANEL | ||||
| 90467-06048B9 |
XZC605..06S ｱｼｽﾄｸﾞﾘｯﾌﾟ−ﾌﾛﾝﾄ & ﾘﾔ(運転席:1 助手席:2 後席:2),MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-06048B9 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 MD.CHARCOAL,TRIM1# |
4 | ||
| 67842C - COVER, QUARTER SERVICE HOLE, LH | ||||
| 67842-37030 |
XZC605..06S |
1 | ||
| 67898C - SEAL, SLIDE DOOR, LOWER NO.2 | ||||
| 67898-95J00 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
2 | ||
| 67898-95J00 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90149-60027 | ||||
| 90149-60084 | ||||
| 90159-60587 | ||||
| 90189-05019 | ||||
| 90189-06094 | ||||
| 91551-80812 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 7552 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
