XZC605V-RRTMA (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2016
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )VAN

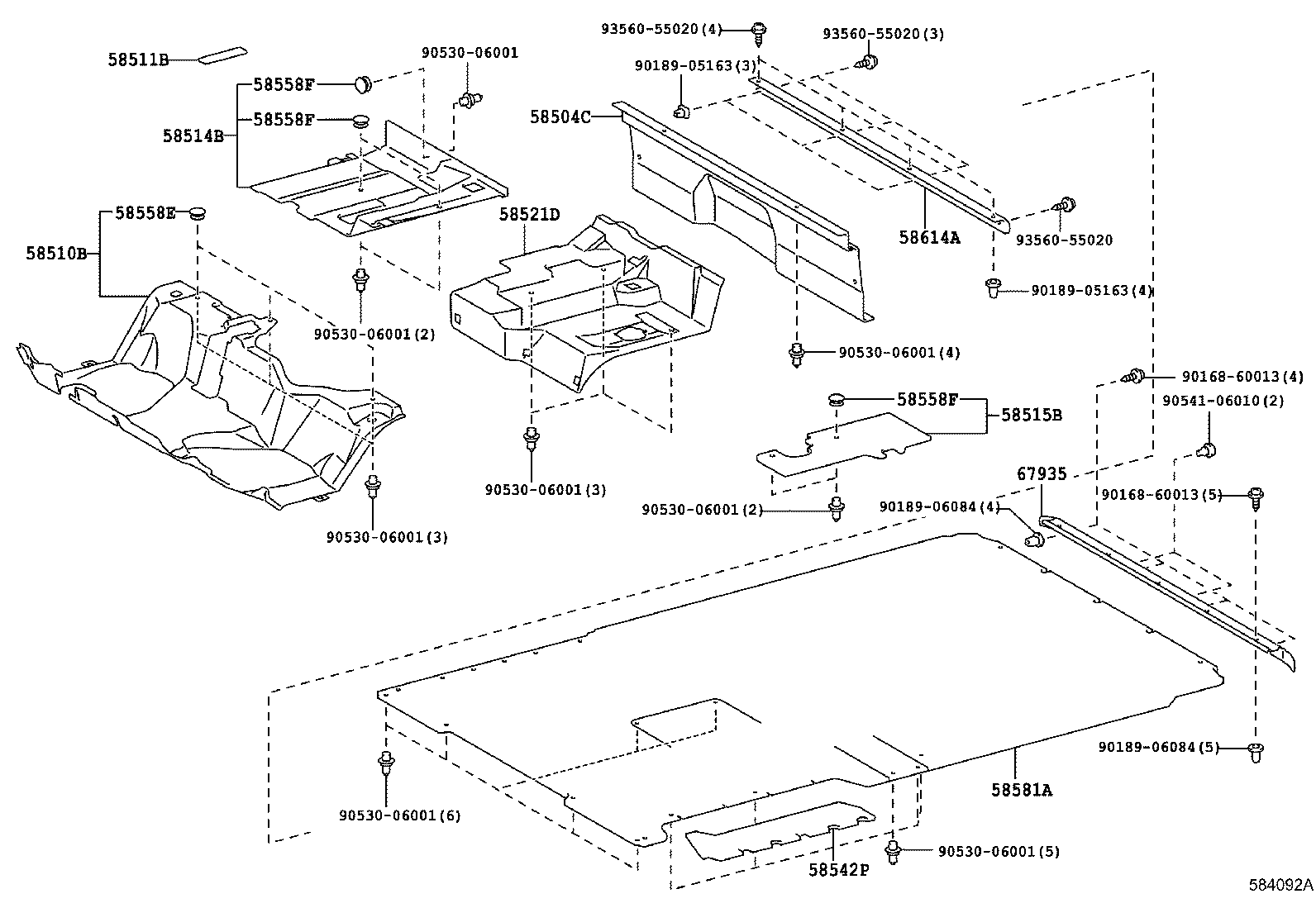

Click highlighted areas on diagram

diagram 58504C 58510B 58511B 58514B 58515B 58521D 58542P 58558E 58558F 58558F 58558F 58581A 58614A 67935 9016860013 9016860013 9018905163 9018905163 9018906084 9018906084 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9054106010 9356055020 9356055020 9356055020
Part # Description Qty Price
58504C - MAT SUB-ASSY, HEADER
58504-37350B1

XZC605..06S

GRAY,TRIM1#

 1
58504-37360B1

XZC605..06S

現金輸送車仕様,GRAY,TRIM1#

 1
58510B - MAT, FRONT FLOOR, FRONT
58510-37M60B1

XZC605,XZU60#,640,655,685,695..DCB,VAN

GRAY,TRIM1#

 1
58511B - MAT, FLOOR, FRONT SIDE
58515-37110

BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695

 1
58515-37080C0

XZC605..06S;TRC600,TRU600

BLACK,TRIM1#

 1
58514B - MAT, FLOOR, REAR RH
58514-37150B1

XZC605..06S

GRAY,TRIM1#

 1
58515B - MAT, FLOOR, REAR LH
58515-37100B1

TRC600,XZC605..(DCB,VAN)..(06S,T4)

GRAY,TRIM1#

 1
58521D - MAT, ENGINE SERVICE HOLE COVER
58521-37320B1

XZC605..06S

GRAY,TRIM1#

 1
58542P - MAT, STEP, LH
58542-37010B3

XZC605..06S

GRAY,TRIM1#

 1
58558E - FASTENER, PILE
90530-04005S6

XZC675,XZU675,685,695;TRC600,XZC605,XZU60#,640,655..DCB,VAN

GRAY,TRIM1#

 3
58558F - FASTENER, PILE, UPR
90530-04005S6

TRC600,XZC605..(DCB,VAN)..(06S,T4)

GRAY,TRIM1#

 5
58558F - FASTENER, PILE, UPR
90530-04005S6

TRC600,XZC605..(DCB,VAN)..(06S,T4)

GRAY,TRIM1#

 5
58558F - FASTENER, PILE, UPR
90530-04005S6

TRC600,XZC605..(DCB,VAN)..(06S,T4)

GRAY,TRIM1#

 5
58581A - MAT, REAR FLOOR
58581-37610B1

XZC605..06S

ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ,GRAY,TRIM1#

 1
58581-37590B1

XZC605..06S

ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り,GRAY,TRIM1#

 1
58581-37600B1

XZC605..06S

GRAY,TRIM1#

 1
58581-37580B1

XZC605..06S

ﾘﾔﾋｰﾀ−有り,GRAY,TRIM1#

 1
58614A - PLATE, MAT SET, NO.4
58614-25021B1

TRC600,XZC605,XZU605,655,685,695..(DCB,VAN)..20T

GRAY,TRIM1#

 1
58614-37090B0

TRC600,XZC605,XZU605,655,685,695..(DCB,VAN)..20T

GRAY,TRIM1#

 1
58614-25021B1

TRC600,XZC605..(DCB,VAN)..(06S,T4)

GRAY,TRIM1#

 1
67935 - PLATE, BACK DOOR SCUFF
67935-37010

XZC605..06S

 1
Common parts
90168-60013
90189-05163
90189-06084
90530-06001
90541-06010
93560-55020
