XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace

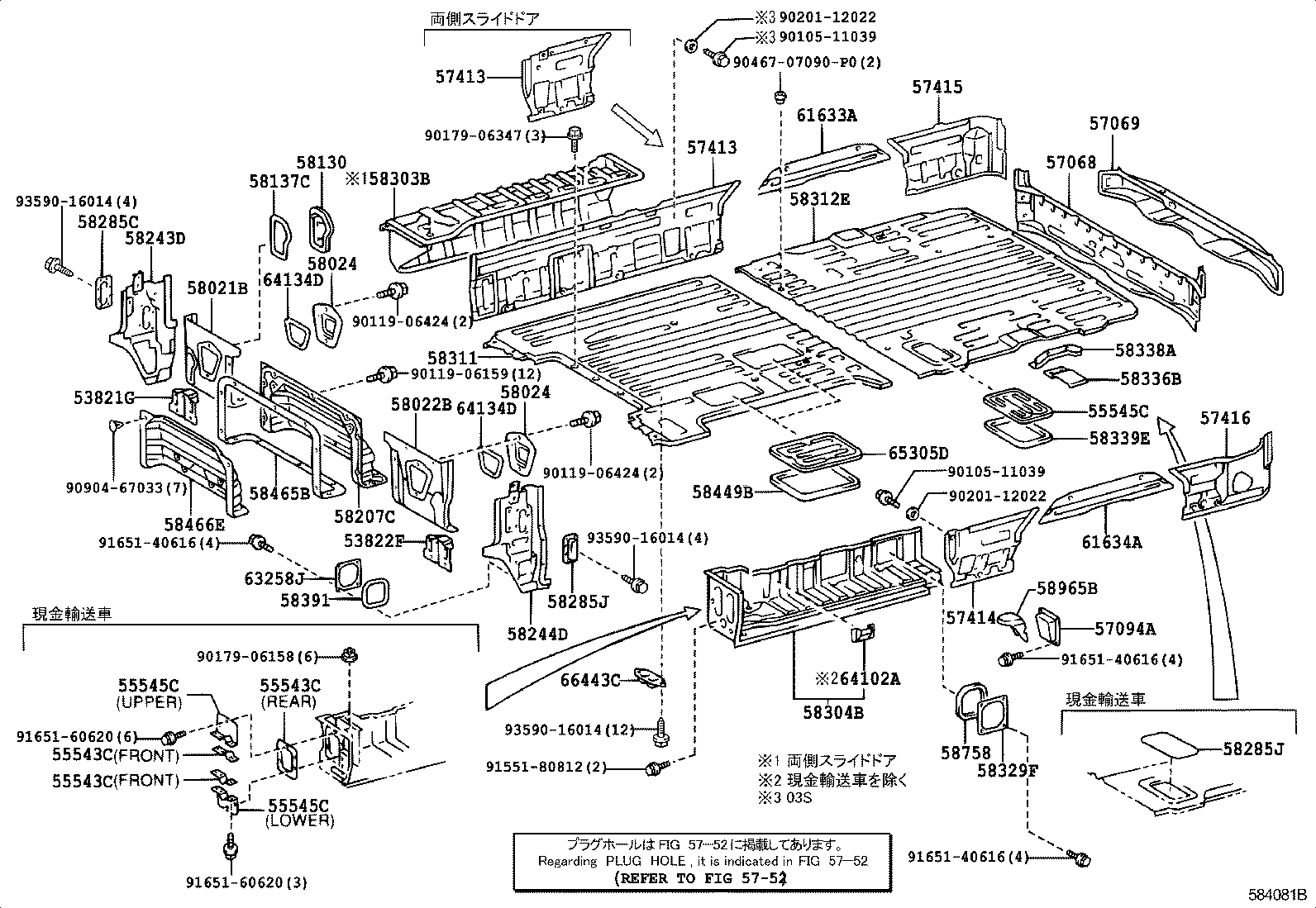

ILLUST NO. 1 OF 2(1107- )VAN
ﾌﾛｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821G - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-37080 |
XZC605..06S |
1 | ||
| 53822F - BRACKET, FRONT FENDER, REAR LH | ||||
| 53822-37040 |
XZC605..06S |
1 | ||
| 55543C - CUSHION, FUSE BOX OPENING COVER | ||||
| 55543-37040 |
XZC605..06S 現金輸送車仕様,ﾘﾔ |
1 | ||
| 55543-37030 |
XZC605..06S 現金輸送車仕様,ﾌﾛﾝﾄ |
2 | ||
| 55543C - CUSHION, FUSE BOX OPENING COVER | ||||
| 55543-37040 |
XZC605..06S 現金輸送車仕様,ﾘﾔ |
1 | ||
| 55543-37030 |
XZC605..06S 現金輸送車仕様,ﾌﾛﾝﾄ |
2 | ||
| 55543C - CUSHION, FUSE BOX OPENING COVER | ||||
| 55543-37040 |
XZC605..06S 現金輸送車仕様,ﾘﾔ |
1 | ||
| 55543-37030 |
XZC605..06S 現金輸送車仕様,ﾌﾛﾝﾄ |
2 | ||
| 55545C - COVER ASSY, FUSE BOX OPENING | ||||
| 55545-37060 |
XZC605..06S 現金輸送車仕様,上側 |
1 | ||
| 55540-37010 |
XZC605..06S |
1 | ||
| 55545-37050 |
XZC605..06S 現金輸送車仕様,下側 |
1 | ||
| 55545C - COVER ASSY, FUSE BOX OPENING | ||||
| 55545-37060 |
XZC605..06S 現金輸送車仕様,上側 |
1 | ||
| 55540-37010 |
XZC605..06S |
1 | ||
| 55545-37050 |
XZC605..06S 現金輸送車仕様,下側 |
1 | ||
| 55545C - COVER ASSY, FUSE BOX OPENING | ||||
| 55545-37060 |
XZC605..06S 現金輸送車仕様,上側 |
1 | ||
| 55540-37010 |
XZC605..06S |
1 | ||
| 55545-37050 |
XZC605..06S 現金輸送車仕様,下側 |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-25010 |
XZC605..06S |
1 | ||
| 57068-37020 |
XZC605..06S 現金輸送車仕様 |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-37030 |
XZC605..06S 現金輸送車仕様&ﾊﾞｯｸﾄﾞｱ−観音開き式(現金輸送車仕様) |
1 | ||
| 57069-37020 |
XZC605..06S ﾊﾞｯｸﾄﾞｱ−観音開き式 |
1 | ||
| 57069-37010 |
XZC605..06S |
1 | ||
| 57094A - COVER SUB-ASSY, OUTRIGGER NO.2 HOLE, LH | ||||
| 57094-37010 |
XZC605..06S |
1 | ||
| 57361-37010 |
XZC605..06S 現金輸送車仕様 |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-37050 |
XZC605..06S |
1 | ||
| 57413-37100 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 57405-37100 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57413-37060 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-37050 |
XZC605..06S |
1 | ||
| 57413-37100 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 57405-37100 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57413-37060 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-37030 |
XZC605..06S |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-37070 |
XZC605..06S |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-37070 |
XZC605..06S |
1 | ||
| 58021B - PANEL SUB-ASSY, HEADER, RH | ||||
| 58221-37090 |
XZC605..06S |
1 | ||
| 58022B - PANEL SUB-ASSY, HEADER, LH | ||||
| 58222-37110 |
XZC605..06S |
1 | ||
| 58024 - COVER, HEADER PANEL | ||||
| 58227-37060 |
TRC600,XZC605,XZU60#,640,655,685,695..DCB,VAN |
2 | ||
| 58227-37061 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 58024 - COVER, HEADER PANEL | ||||
| 58227-37060 |
TRC600,XZC605,XZU60#,640,655,685,695..DCB,VAN |
2 | ||
| 58227-37061 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 58130 - COVER ASSY, RESERVE TANK SERVICE HOLE | ||||
| 58106-37010 |
TRC600,XZC605,XZU60#,640,655,685,695..DCB,VAN |
1 | ||
| 58106-37011 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
1 | ||
| 58137C - SEAL, RESERVE TANK SERVICE HOLE COVER | ||||
| 58137-37010 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-37190 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
1 | ||
| 58243D - PANEL, FLOOR SIDE, REAR RH | ||||
| 58025-37100 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 58025-37090 |
XZC605..06S |
1 | ||
| 58244D - PANEL, FLOOR SIDE, REAR LH | ||||
| 58026-37040 |
XZC605..06S |
1 | ||
| 58285C - COVER, REAR FLOOR HOLE | ||||
| 62429-37010 |
XZC605..06S |
1 | ||
| 58285J - COVER, CENTER FLOOR HOLE | ||||
| 58285-25010 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 58285-25010 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 58285-25010 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 58285-25010 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 62429-37010 |
XZC605..06S |
1 | ||
| 58285-25010 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 58285-25010 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 58285J - COVER, CENTER FLOOR HOLE | ||||
| 58285-25010 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 58285-25010 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 58285-25010 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様 |
1 | ||
| 58285-25010 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 62429-37010 |
XZC605..06S |
1 | ||
| 58285-25010 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面) |
1 | ||
| 58285-25010 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 58303B - STEP SUB-ASSY, REAR FLOOR, RH | ||||
| 58303-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-37090 |
XZC605..06S 現金輸送車仕様 |
1 | ||
| 58304-37040 |
XZC605..06S |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-37300 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 58311-37300 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 58311-37290 |
XZC605..06S |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-37110 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 58312-37120 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 58312-37120 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 58312-37120 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 58312-37100 |
XZC605..06S |
1 | ||
| 58312-37130 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 58312-37120 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-37010 |
XZC605..06S |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-37050 |
XZC605..06S |
2 | ||
| 58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2 | ||||
| 58338-37030 |
XZC605..06S |
2 | ||
| 58339E - REINFORCEMENT, REAR FLOOR PAN, NO.2 LH | ||||
| 58449-95J00 |
XZC605..06S |
1 | ||
| 58391 - BRACE, REAR BUMPER STONE DEFLECTOR | ||||
| 77293-37010 |
XZC605..06S |
1 | ||
| 58449B - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
XZC605..06S |
2 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-25020 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-37130 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
1 | ||
| 58758 - PACKING, FUEL TANK INSPECTION HOLE COVER | ||||
| 77293-37010 |
XZC605..06S |
1 | ||
| 58965B - HOLDER, JACK | ||||
| 58965-95400 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-37060 |
XZC605..06S |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61633-37060 |
XZC605..06S |
1 | ||
| 63258J - COVER, WIRING HARNESS HOLE | ||||
| 63258-37010 |
XZC605..06S |
1 | ||
| 64102A - BRACKET SUB-ASSY, JACK HANDLE SUPPORT | ||||
| 64102-95403 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 64134D - PACKING, HEADER PANEL COVER | ||||
| 64134-37020 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 64134D - PACKING, HEADER PANEL COVER | ||||
| 64134-37020 |
TRC600,XZC605..(DCB,VAN)..(06S,T4) |
2 | ||
| 65305D - COVER SUB-ASSY, BATTERY HOLE | ||||
| 65305-37030 |
XZC605..06S |
2 | ||
| 66443C - CUSHION, REAR FLOOR SPACER | ||||
| 66443-37030 |
XZC605..06S |
6 | ||
| Common parts | ||||
| 90105-11039 | ||||
| 90119-06159 | ||||
| 90119-06424 | ||||
| 90179-06158 | ||||
| 90179-06347 | ||||
| 90201-12022 | ||||
| 90467-07090P0 | ||||
| 90904-67033 | ||||
| 91551-80812 | ||||
| 91651-40616 | ||||
| 91651-60620 | ||||
| 93590-16014 | ||||
| Linked diagrams | ||||
| 5752 | ||||

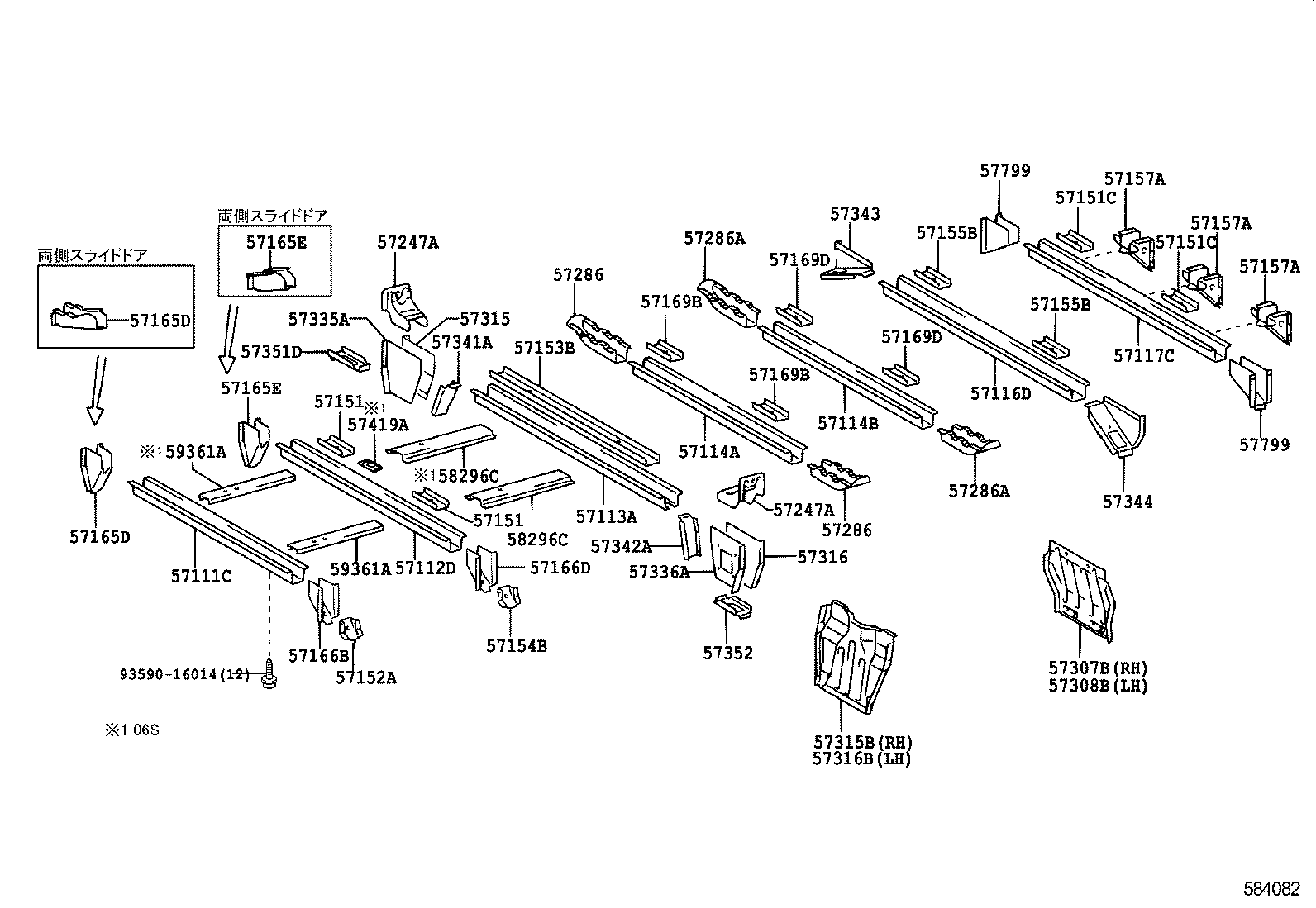

ILLUST NO. 2 OF 2(1107- )VAN
ﾌﾛｱﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57111C - CROSSMEMBER, FLOOR, NO.1 | ||||
| 57111-37121 |
XZC605..06S |
1 | ||
| 57111-37141 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57111-37130 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 57111-37150 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57111-37141 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾙﾌﾞﾗｲﾝﾄﾞ仕様&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57111-37141 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾊｰﾌﾌﾞﾗｲﾝﾄﾞ仕様&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57111-37141 |
XZC605..06S 現金輸送車仕様&ﾘﾔ ｻｲﾄﾞﾄﾞｱ−ｽﾗｲﾄﾞﾄﾞｱ(左側のみ),ﾌﾞﾗｲﾝﾄﾞ仕様(ﾘﾔ3面)&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57112D - CROSSMEMBER, FLOOR, NO.2 | ||||
| 57112-37040 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57112-37040 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 57112-37030 |
XZC605..06S |
1 | ||
| 57113A - CROSSMEMBER, FLOOR, NO.3 | ||||
| 57113-37060 |
XZC605..06S |
1 | ||
| 57113-37070 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57113-37070 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 57114A - CROSSMEMBER, FLOOR, NO.4 | ||||
| 57114-37040 |
XZC605..06S |
1 | ||
| 57114B - CROSSMEMBER, FLOOR, NO.5 | ||||
| 57114-37040 |
XZC605..06S |
1 | ||
| 57116D - CROSSMEMBER, FLOOR, NO.6 | ||||
| 57116-37080 |
XZC605..06S |
1 | ||
| 57117C - CROSSMEMBER, FLOOR, NO.7 | ||||
| 57117-37060 |
XZC605..06S |
1 | ||
| 57151 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 | ||||
| 57151-37020 |
XZC605..06S |
2 | ||
| 57151 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 | ||||
| 57151-37020 |
XZC605..06S |
2 | ||
| 57151C - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 | ||||
| 57151-37020 |
XZC605..06S |
2 | ||
| 57151C - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 | ||||
| 57151-37020 |
XZC605..06S |
2 | ||
| 57152A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57152-37030 |
XZC605..06S |
1 | ||
| 57153B - REINFORCEMENT, CROSSMEMBER FLOOR, NO.3 | ||||
| 57153-37020 |
XZC605..06S |
1 | ||
| 57154B - REINFORCEMENT, CROSSMEMBER FLOOR, NO.4 | ||||
| 57154-37030 |
XZC605..06S |
1 | ||
| 57155B - REINFORCEMENT, FRONT SIDE MEMBER, NO.3 | ||||
| 57155-37030 |
XZC605..06S |
2 | ||
| 57155B - REINFORCEMENT, FRONT SIDE MEMBER, NO.3 | ||||
| 57155-37030 |
XZC605..06S |
2 | ||
| 57157A - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH | ||||
| 57157-37040 |
XZC605..06S 左側 & 右側 |
2 | ||
| 57157-25020 |
XZC605..06S ｾﾝﾀ |
1 | ||
| 57157A - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH | ||||
| 57157-37040 |
XZC605..06S 左側 & 右側 |
2 | ||
| 57157-25020 |
XZC605..06S ｾﾝﾀ |
1 | ||
| 57157A - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH | ||||
| 57157-37040 |
XZC605..06S 左側 & 右側 |
2 | ||
| 57157-25020 |
XZC605..06S ｾﾝﾀ |
1 | ||
| 57165D - GUSSET, FLOOR MEMBER, RH | ||||
| 57165-37040 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57165-37040 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 57165-37030 |
XZC605..06S |
1 | ||
| 57165D - GUSSET, FLOOR MEMBER, RH | ||||
| 57165-37040 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57165-37040 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 57165-37030 |
XZC605..06S |
1 | ||
| 57165E - GUSSET, FLOOR MEMBER, RH | ||||
| 57283-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 57283-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57165-37030 |
XZC605..06S |
1 | ||
| 57165E - GUSSET, FLOOR MEMBER, RH | ||||
| 57283-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ |
1 | ||
| 57283-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57165-37030 |
XZC605..06S |
1 | ||
| 57166B - GUSSET, FLOOR MEMBER, LH | ||||
| 57166-37050 |
XZC605..06S |
1 | ||
| 57166D - GUSSET, FLOOR MEMBER, LH | ||||
| 57166-37050 |
XZC605..06S |
1 | ||
| 57169B - REINFORCEMENT, FRONT CROSSMEMBER, NO.4 | ||||
| 57169-37100 |
XZC605..06S |
2 | ||
| 57169B - REINFORCEMENT, FRONT CROSSMEMBER, NO.4 | ||||
| 57169-37100 |
XZC605..06S |
2 | ||
| 57169D - REINFORCEMENT, FRONT CROSSMEMBER, NO.5 | ||||
| 57169-37100 |
XZC605..06S |
2 | ||
| 57169D - REINFORCEMENT, FRONT CROSSMEMBER, NO.5 | ||||
| 57169-37100 |
XZC605..06S |
2 | ||
| 57247A - BRACKET, ANCHOR SIDE STRENGTH | ||||
| 57247-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り,左側 |
1 | ||
| 57247-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り,右側 |
1 | ||
| 57247-37020 |
XZC605..06S ﾘﾔﾋｰﾀ−有り,右側 |
1 | ||
| 57247-37010 |
XZC605..06S ﾘﾔﾋｰﾀ−有り,左側 |
1 | ||
| 57247-37010 |
XZC605..06S |
2 | ||
| 57247A - BRACKET, ANCHOR SIDE STRENGTH | ||||
| 57247-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り,左側 |
1 | ||
| 57247-37010 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り,右側 |
1 | ||
| 57247-37020 |
XZC605..06S ﾘﾔﾋｰﾀ−有り,右側 |
1 | ||
| 57247-37010 |
XZC605..06S ﾘﾔﾋｰﾀ−有り,左側 |
1 | ||
| 57247-37010 |
XZC605..06S |
2 | ||
| 57286 - GUSSET, REAR FLOOR CROSSMEMBER, NO.5 | ||||
| 57286-37010 |
XZC605..06S |
2 | ||
| 57286 - GUSSET, REAR FLOOR CROSSMEMBER, NO.5 | ||||
| 57286-37010 |
XZC605..06S |
2 | ||
| 57286A - GUSSET, REAR FLOOR CROSSMEMBER, NO.5 | ||||
| 57286-37010 |
XZC605..06S |
2 | ||
| 57286A - GUSSET, REAR FLOOR CROSSMEMBER, NO.5 | ||||
| 57286-37010 |
XZC605..06S |
2 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-37010 |
XZC605..06S |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57318-37010 |
XZC605..06S |
1 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57333-37010 |
XZC605..06S |
1 | ||
| 57315B - OUTRIGGER SUB-ASSY, NO.3 RH | ||||
| 57315-37010 |
XZC605..06S |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57334-37010 |
XZC605..06S |
1 | ||
| 57316B - OUTRIGGER SUB-ASSY, NO.3 LH | ||||
| 57315-37010 |
XZC605..06S |
1 | ||
| 57335A - OUTRIGGER, NO.2 FRONT RH | ||||
| 57335-37010 |
XZC605..06S |
1 | ||
| 57336A - OUTRIGGER, NO.2 FRONT LH | ||||
| 57336-37010 |
XZC605..06S |
1 | ||
| 57341A - GUSSET, OUTRIGGER, NO.2 RH | ||||
| 57341-37010 |
XZC605..06S |
1 | ||
| 57342A - GUSSET, OUTRIGGER, NO.2 LH | ||||
| 57342-37010 |
XZC605..06S |
1 | ||
| 57343 - CUSHION, CAB ROLLING STOPPER | ||||
| 57343-37010 |
XZC605..06S |
1 | ||
| 57344 - GUSSET, OUTRIGGER, NO.4 LH | ||||
| 57344-37010 |
XZC605..06S |
1 | ||
| 57351D - EXTENSION, OUTRIGGER, NO.2 RH | ||||
| 57351-37020 |
XZC605..06S ﾘﾔ ｻｲﾄﾞﾄﾞｱ−両側ｽﾗｲﾄﾞﾄﾞｱ&ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57351-37020 |
XZC605..06S ﾘﾔﾋｰﾀ−有り |
1 | ||
| 57351-37010 |
XZC605..06S |
1 | ||
| 57352 - EXTENSION, OUTRIGGER, NO.2 LH | ||||
| 57351-37010 |
XZC605..06S |
1 | ||
| 57419A - PLATE, REAR SEAT LOCK | ||||
| 57419-95J01 |
XZC605..06S |
1 | ||
| 57799 - GUSSET, REAR FLOOR CROSSMEMBER | ||||
| 57799-37070 |
XZC605..06S |
2 | ||
| 57799 - GUSSET, REAR FLOOR CROSSMEMBER | ||||
| 57799-37070 |
XZC605..06S |
2 | ||
| 58296C - REINFORCEMENT, BELT ANCHOR, NO.1 | ||||
| 58296-37050 |
XZC605..06S |
2 | ||
| 58296C - REINFORCEMENT, BELT ANCHOR, NO.1 | ||||
| 58296-37050 |
XZC605..06S |
2 | ||
| 59361A - RETAINER, REAR SEAT, NO.1 | ||||
| 59361-37020 |
XZC605..06S |
2 | ||
| 59361A - RETAINER, REAR SEAT, NO.1 | ||||
| 59361-37020 |
XZC605..06S |
2 | ||
| Common parts | ||||
| 93590-16014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
