XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace
Production
Jul 2011
-
May 2016
Engine
N04C
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

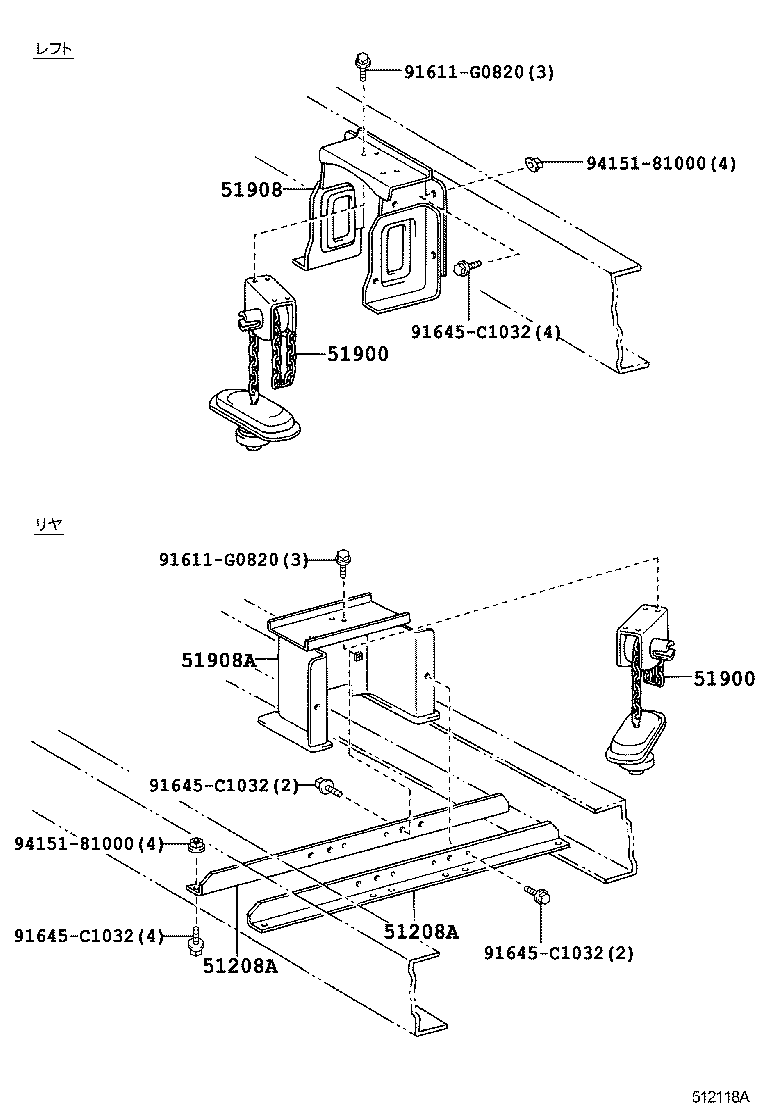

(1107- )VAN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51208A - MEMBER SUB-ASSY, SPARE WHEEL SET | ||||
| 51261-37020 |
XZC605..06S |
2 | ||
| 51208A - MEMBER SUB-ASSY, SPARE WHEEL SET | ||||
| 51261-37020 |
XZC605..06S |
2 | ||
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-37100 |
XZC605..06S 現金輸送車仕様,ﾘﾔ |
1 | ||
| 51900-37100 |
XZC605..06S |
2 | ||
| 51900-37150 |
XZC605..06S 現金輸送車仕様,左側 |
1 | ||
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-37100 |
XZC605..06S 現金輸送車仕様,ﾘﾔ |
1 | ||
| 51900-37100 |
XZC605..06S |
2 | ||
| 51900-37150 |
XZC605..06S 現金輸送車仕様,左側 |
1 | ||
| 51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER | ||||
| 51908-37330 |
XZC605..VAN |
1 | ||
| 51908A - BRACKET SUB-ASSY, SPARE WHEEL MOUNTING | ||||
| 51908-37450 |
XZC605..VAN |
1 | ||
| Common parts | ||||
| 91611-G0820 | ||||
| 91645-C1032 | ||||
| 94151-81000 | ||||

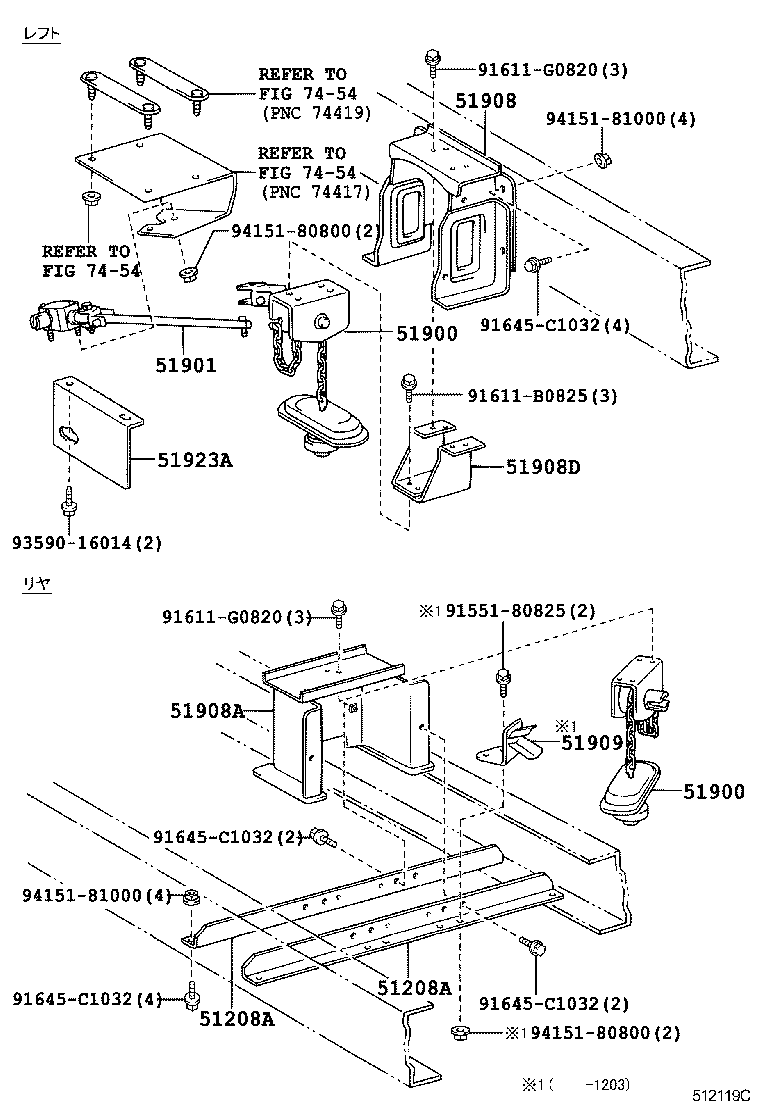

(1107- )VAN
Click highlighted areas on diagram
ｹﾞﾝｷﾝﾕｿｳｼｬｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51208A - MEMBER SUB-ASSY, SPARE WHEEL SET | ||||
| 51261-37020 |
XZC605..06S |
2 | ||
| 51208A - MEMBER SUB-ASSY, SPARE WHEEL SET | ||||
| 51261-37020 |
XZC605..06S |
2 | ||
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-37100 |
XZC605..06S 現金輸送車仕様,ﾘﾔ |
1 | ||
| 51900-37100 |
XZC605..06S |
2 | ||
| 51900-37150 |
XZC605..06S 現金輸送車仕様,左側 |
1 | ||
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-37100 |
XZC605..06S 現金輸送車仕様,ﾘﾔ |
1 | ||
| 51900-37100 |
XZC605..06S |
2 | ||
| 51900-37150 |
XZC605..06S 現金輸送車仕様,左側 |
1 | ||
| 51901 - ROD SUB-ASSY, SPARE WHEEL CARRIER | ||||
| 51901-37030 |
XZC605..06S 現金輸送車仕様 |
1 | ||
| 51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER | ||||
| 51908-37330 |
XZC605..VAN |
1 | ||
| 51908A - BRACKET SUB-ASSY, SPARE WHEEL MOUNTING | ||||
| 51908-37450 |
XZC605..VAN |
1 | ||
| 51908D - BRACKET SUB-ASSY, SPARE WHEEL CARRIER, RH | ||||
| 51908-37340 |
XZC605..06S 現金輸送車仕様 |
1 | ||
| 51909 - HINGE SUB-ASSY, SPARE WHEEL CARRIER | ||||
| 51909-37010 |
XZC605..06S;XZC605..03S..5F 現金輸送車仕様 |
1 | ||
| 51923A - GUIDE, SPARE WHELL CARRIER HANDLE | ||||
| 51923-37011 |
XZC605..06S 現金輸送車仕様 |
1 | ||
| 51923-37010 |
XZC605..VAN 現金輸送車仕様 |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
| 91611-B0825 | ||||
| 91611-G0820 | ||||
| 91645-C1032 | ||||
| 93590-16014 | ||||
| 94151-80800 | ||||
| 94151-81000 | ||||
| Linked diagrams | ||||
| 7454 | ||||
