XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace

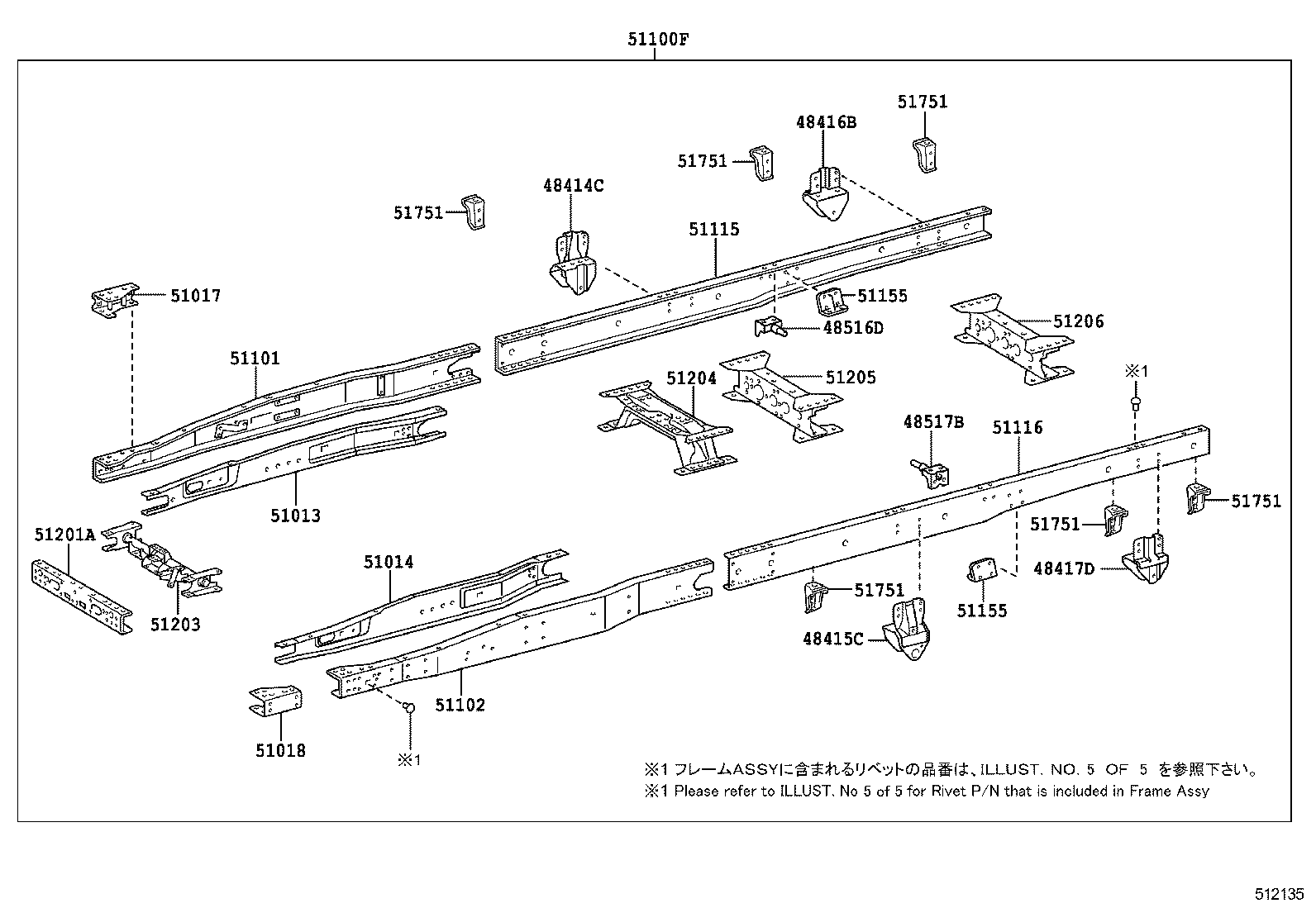

ILLUST NO. 2 OF 5(1107- )VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37190 |
XZC605..06S |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37050 |
XZC605..VAN |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37150 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37150 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
XZC675,XZU675..T4;BZU600,TRC600,TRU600,XZC60#,645,655,XZU600,605,640,645,650,655,685,695..WT..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
XZC675,XZU675..T4;BZU600,TRC600,TRU600,XZC60#,645,655,XZU600,605,640,645,650,655,685,695..WT..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37430 |
XZC605..06S |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37410 |
XZU645..20T;XZC605,645,655,XZU605,655 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37170 |
XZC605..06S |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37140 |
XZC605..06S |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VL10 |
XZC605..VAN |
1 | ||
| 51101 - RAIL, FRONT FRAME SIDE, RH | ||||
| 51101-37140 |
XZC605..06S |
1 | ||
| 51102 - RAIL, FRONT FRAME SIDE, LH | ||||
| 51102-37140 |
XZC605..06S |
1 | ||
| 51115 - RAIL, FRAME SIDE, REAR RH | ||||
| 51107-37100 |
XZC605..06S |
1 | ||
| 51116 - RAIL, FRAME SIDE, REAR LH | ||||
| 51108-37040 |
XZC605..06S |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37090 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;BZU600,TRC600,TRU600;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;XZC605,XZU600..(06S,T3)..(5F,6FC)..(20T,40T)..(DCRTH,DCRTK) |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37220 |
XZC605..06S |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37341 |
XZU605,645,65#..20T,30T;XZC60#,645,655,XZU600..(03S,06S,T2,T3,T4,T5)..20T |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37160 |
XZU645..20T;XZC60#,645,XZU60#..(03S,06S,T2,T4,T5)..WT |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37060 |
XZU645..20T;XZC60#,645,XZU60#..(03S,06S,T2,T4,T5)..WT |
1 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51701-36050 |
XZC605..06S |
6 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51701-36050 |
XZC605..06S |
6 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51701-36050 |
XZC605..06S |
6 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51701-36050 |
XZC605..06S |
6 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51701-36050 |
XZC605..06S |
6 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51701-36050 |
XZC605..06S |
6 | ||

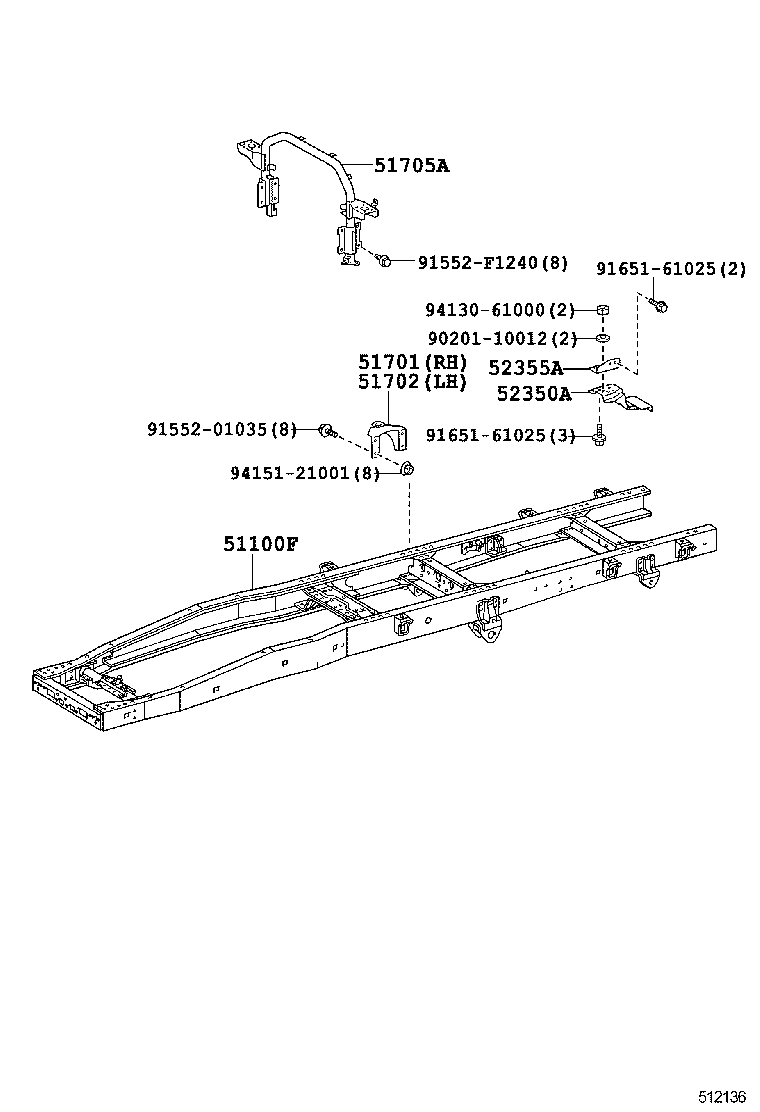

ILLUST NO. 1 OF 5(1107- )VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VL10 |
XZC605..VAN |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-37080 |
XZC605..06S |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51702-37020 |
XZC605..06S |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37830 |
XZC605..06S |
1 | ||
| 52350A - STEP ASSY, BACK | ||||
| 52350-37090 |
XZC605..06S |
1 | ||
| 52355A - BRACKET, BACK STEP | ||||
| 52355-37021 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90201-10012 | ||||
| 91552-01035 | ||||
| 91552-F1240 | ||||
| 91651-61025 | ||||
| 94130-61000 | ||||
| 94151-21001 | ||||
ILLUST NO. 3 OF 5(1107- )XZC605,645,655,XZU605,645,655..DCRTH,DCRTJ,DCRTK ; (1905- )XZC605,645
ｻｽﾍﾟﾝｼｮﾝﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX | ||||
| 51065-37030 |
XZC605..06S |
1 | ||
| 51101A - RAIL SUB-ASSY, FRONT FRAME SIDE, RH | ||||
| 51101-37100 |
XZC605..06S |
1 | ||
| 51102A - RAIL SUB-ASSY, FRONT FRAME SIDE, LH | ||||
| 51102-37100 |
XZC605..06S |
1 | ||
| 51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH | ||||
| 51107-37160 |
XZC605..06S |
1 | ||
| 51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH | ||||
| 51108-37210 |
XZC605..06S |
1 | ||
| 51210A - MEMBER ASSY, FRONT SUSPENSION | ||||
| 51210-37050 |
XZC605..06S |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-37040 |
XZC605..06S |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-37050 |
XZC605..06S |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37080 |
XZC605..06S NO.1 |
1 | ||
| 51508-37100 |
XZC605..06S NO.2 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37080 |
XZC605..06S NO.1 |
1 | ||
| 51508-37100 |
XZC605..06S NO.2 |
1 | ||
| 51508D - SUPPORT SUB-ASSY, STABILIZER, RH | ||||
| 51508-37090 |
XZC605..06S |
1 | ||
| 51509 - SUPPORT SUB-ASSY, STABILIZER | ||||
| 51509-37090 |
XZC605..06S |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37100 |
XZC605..06S NO.2 |
1 | ||
| 51509-37080 |
XZC605..06S NO.1 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37100 |
XZC605..06S NO.2 |
1 | ||
| 51509-37080 |
XZC605..06S NO.1 |
1 | ||
| 51677 - BRACKET, STEERING GEAR BOX | ||||
| 51607-37010 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 51751-37150 | ||||
| 90119-14133 | ||||
| 91672-L1470 | ||||
| 91672-L1495 | ||||
ILLUST NO. 4 OF 5(1107- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZC605..06S;TRC600..SCB..T4 |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZC605..06S;TRC600..SCB..T4 |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
ILLUST NO. 5 OF 5(1107- )
ﾘﾍﾞｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||
| 95121-01040 | ||||
