XZC605V-RRTMA (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2016
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XZC610,630..DCRTJ ; (1107- )XZC60#,645,655..03S,06S,T2,T3,T4,T5..WT

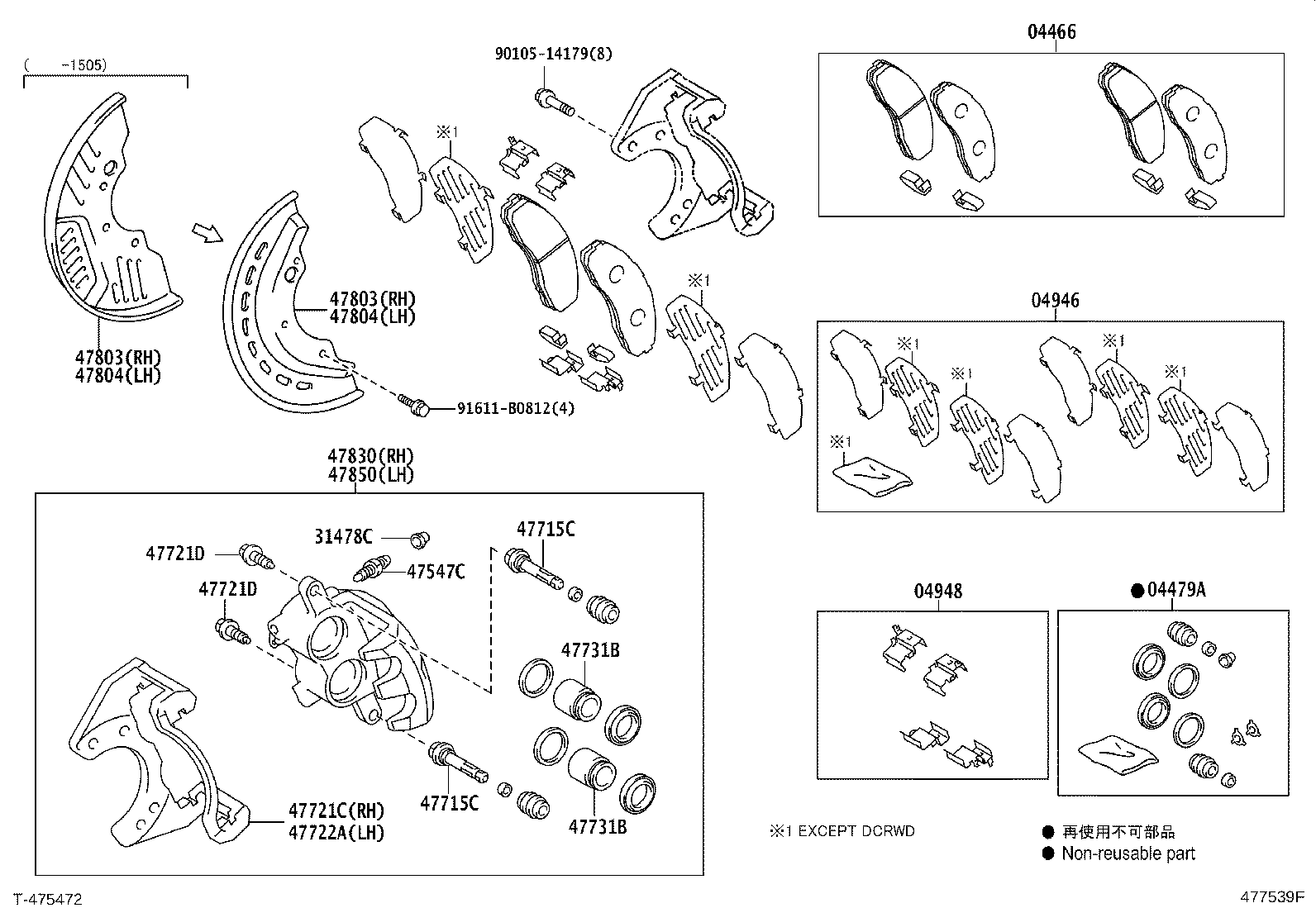

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 47547C 47715C 47715C 47721C 47721D 47721D 47722A 47731B 47731B 47803 47803 47804 47804 47830 47850 9010514179 91611B0812
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04465-37220

XZC605,610,630..06S,DM5,DM7

ﾏｰｸ ADVICS VC035

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
0447B-37010

XZC605,610,630..06S,DM5,DM7

 2
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04945-37150

XZC605,610,630..06S,DM5,DM7

 1
04948 - FITTING KIT, DISC BRAKE, REAR
0494A-37010

XZC605,610,630..06S,DM5,DM7

 2
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

XZC605,610,630..06S,DM5,DM7

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-12030

XZC605,610,630..06S,DM5,DM7

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-37260

XZC605,610,630..06S,DM5,DM7

 4
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-37260

XZC605,610,630..06S,DM5,DM7

 4
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-37040

XZC605,610,630..06S,DM5,DM7

 1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA601

XZC605,610,630..06S,DM5,DM7

*10−1.00PX20−9

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA601

XZC605,610,630..06S,DM5,DM7

*10−1.00PX20−9

 4
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-37040

XZC605,610,630..06S,DM5,DM7

 1
47731B - PISTON, REAR DISC BRAKE
47731-60070

XZC605,610,630..06S,DM5,DM7

 4
47731B - PISTON, REAR DISC BRAKE
47731-60070

XZC605,610,630..06S,DM5,DM7

 4
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47803-37020

XZC60#,610,630,645,655..WT

 1
47803-37040

XZC605,610,630..06S,DM5,DM7

 1
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47803-37020

XZC60#,610,630,645,655..WT

 1
47803-37040

XZC605,610,630..06S,DM5,DM7

 1
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47804-37040

XZC605,610,630..06S,DM5,DM7

 1
47804-37020

XZC60#,610,630,645,655..WT

 1
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47804-37040

XZC605,610,630..06S,DM5,DM7

 1
47804-37020

XZC60#,610,630,645,655..WT

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-37042

XZC605,610,630..06S,DM5,DM7

 1
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-37042

XZC605,610,630..06S,DM5,DM7

 1
Common parts
90105-14179
91611-B0812
