XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace

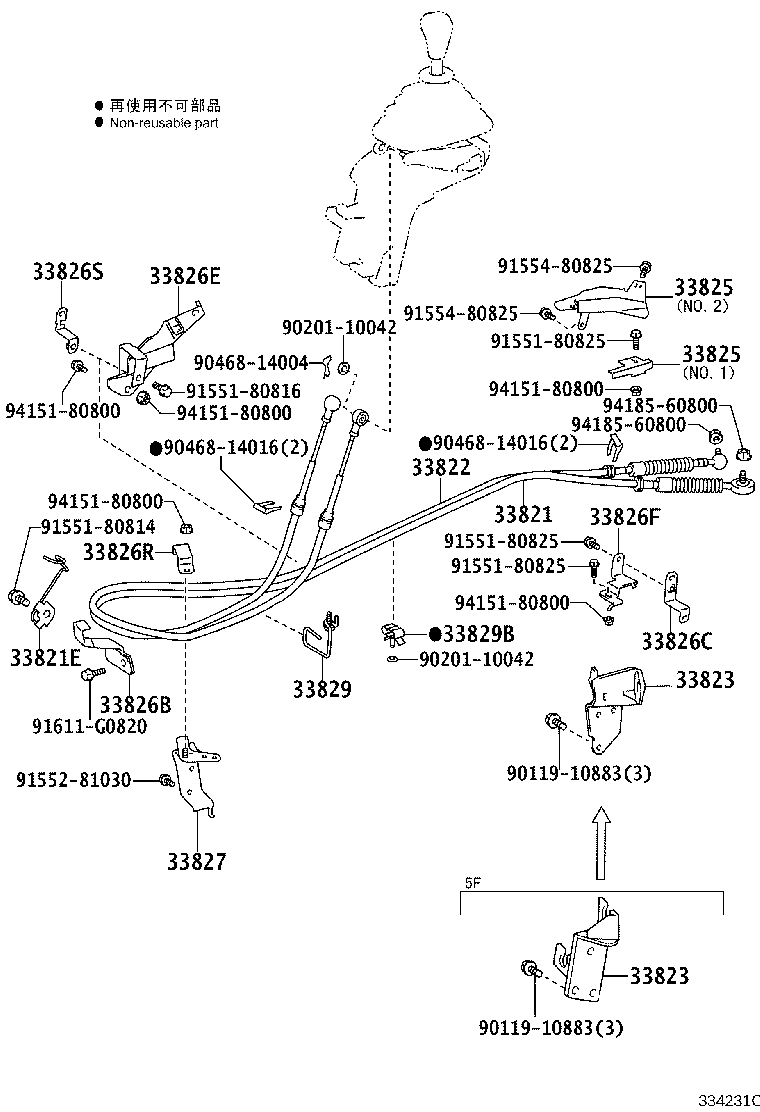

ILLUST NO. 1 OF 2(1107- )6FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90152-40003 |
XZC605..06S..6FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-37090C0 |
XZC605..06S..6FC BLACK,TRIM1# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-37350C0 |
XZC605..06S..6FC BLACK,TRIM1# |
1 | ||
| 35902 - COVER SUB-ASSY, POSITION INDICATOR HOUSING | ||||
| 35902-37080C0 |
XZC60#,610,630,645,655,XZU60#,610,64#,65#..6FC BLACK,TRIM1# |
1 | ||
| 35902-37081C0 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..6FC..(20T,30T)..WT BLACK,TRIM1# |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 82232-37020 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..6FC..(20T,30T)..WT |
1 | ||
| Common parts | ||||
| 90119-08C60 | ||||
| 93269-55014 | ||||
ILLUST NO. 2 OF 2(1107- )XZU650..35T..DCRTK ; (1107- )XZU640..MTM..DCRTJ,DCRTK ; (1107- )XZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33829-37330 |
XZC605,645,655,675,XZU605,645,655,675,685,695 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37880 |
XZC605..06S..6FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37880 |
XZC605..06S..6FC |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37031 |
XZC605..06S NO.1 |
1 | ||
| 33825-37040 |
XZC605..06S NO.2 |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37031 |
XZC605..06S NO.1 |
1 | ||
| 33825-37040 |
XZC605..06S NO.2 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-37310 |
XZC605..06S |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33827-37230 |
XZC605..06S |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33827-37210 |
XZC605..06S |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 33826S - BRACKET, TRANSMISSION CONTROL CABLE, NO.9 | ||||
| 33828-37030 |
XZC605..06S |
1 | ||
| 33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37241 |
XZC605..06S |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-37350 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 91554-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| 94185-60800 | ||||
ILLUST NO. 2 OF 2(1107- )XZU600..T4..6FC ; (1107- )XZC60#,610,630,645,655,XZU605,610,620,642,6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-37L80 |
XZC605..06S..6FC |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33829-37330 |
XZC605,645,655,675,XZU605,645,655,675,685,695 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37880 |
XZC605..06S..6FC |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37031 |
XZC605..06S NO.1 |
1 | ||
| 33825-37040 |
XZC605..06S NO.2 |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37031 |
XZC605..06S NO.1 |
1 | ||
| 33825-37040 |
XZC605..06S NO.2 |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37031 |
XZC605..06S NO.1 |
1 | ||
| 33825-37040 |
XZC605..06S NO.2 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33828-37310 |
XZC605..06S |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33827-37230 |
XZC605..06S |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33827-37210 |
XZC605..06S |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33826-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 33826S - BRACKET, TRANSMISSION CONTROL CABLE, NO.9 | ||||
| 33828-37030 |
XZC605..06S |
1 | ||
| 33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37241 |
XZC605..06S |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-37350 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14016 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80825 | ||||
| 91554-80825 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 94151-80800 | ||||
| 94185-60800 | ||||
