XZC605V-RRTMA (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2016
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )N04C..XZC605..VAN

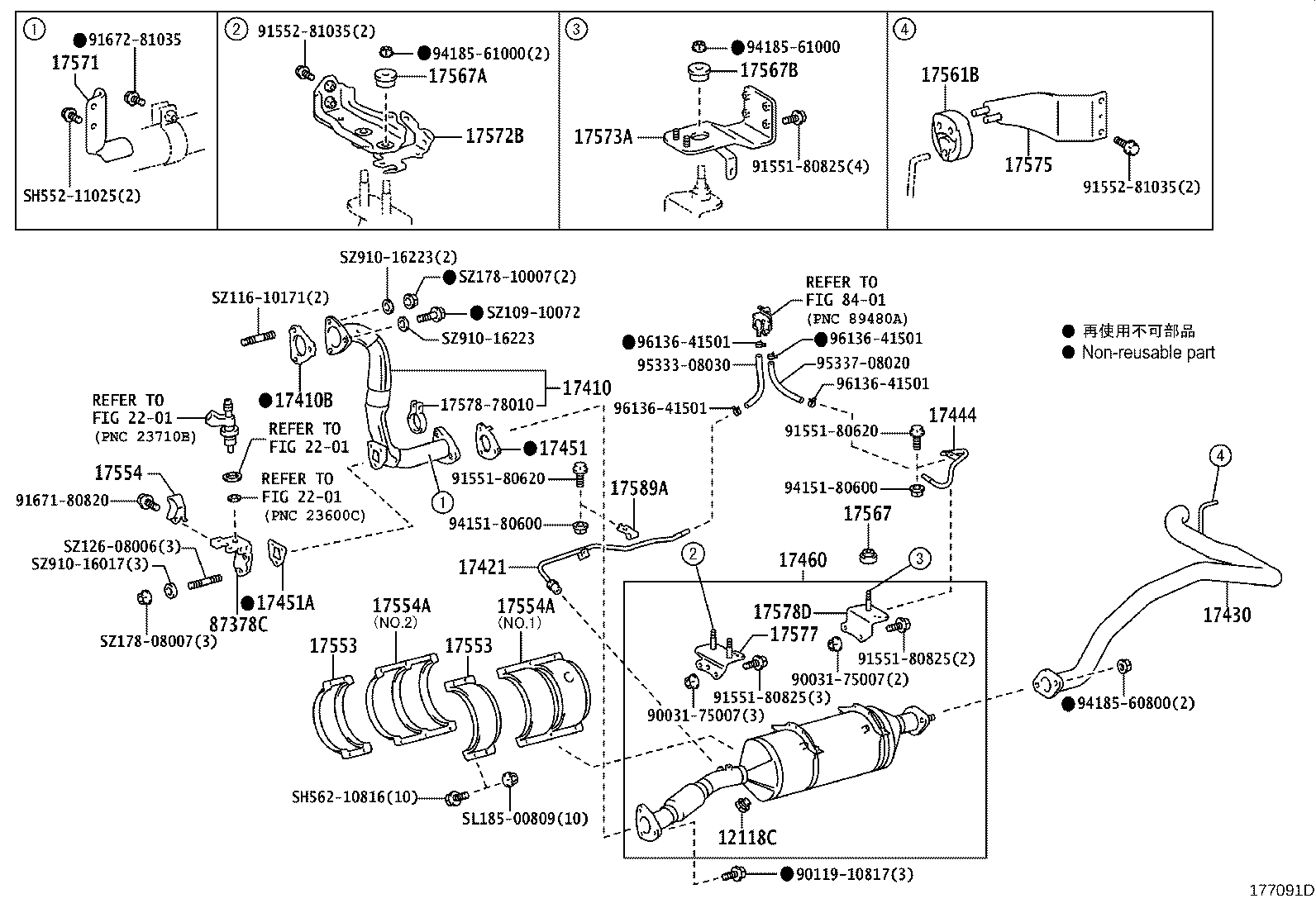

Click highlighted areas on diagram

diagram 12118C 17410 17410B 17421 17430 17444 17451 17451A 17460 17553 17553 17554 17554A 17554A 17561B 17567 17567A 17567B 17571 17572B 17573A 17575 17577 1757878010 17578D 17589A 2201 2201 2201 8401 87378C 9003175007 9003175007 9011910817 9155180620 9155180620 9155180825 9155180825 9155180825 9155281035 9155281035 9167180820 9167281035 9415180600 9415180600 9418560800 9418561000 9418561000 9533308030 9533708020 9613641501 9613641501 9613641501 9613641501 SH55211025 SH56210816 SL18500809 SZ10910072 SZ11610171 SZ12608006 SZ17808007 SZ17810007 SZ91016017 SZ91016223 SZ91016223
Part # Description Qty Price
12118C - PLUG, DRAIN
12118-78010

N04C..XZC605..06S

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-E0Q50

N04C..XZC605..06S

 1
17410B - GASKET, EXHAUST PIPE
17451-E0110

N04C..XZC605..06S

 1
17421 - PIPE, EXHAUST, NO.2
17421-78130

N04C..XZC605..06S

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78F40

N04C..XZC605..06S

 1
17444 - PIPE, EXHAUST, NO.4
17444-78100

N04C..XZC605..06S

 1
17451 - GASKET, EXHAUST PIPE
17451-78060

N04C..XZC605..06S

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-E0121

N04C..XZC605..06S

 1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17406-78300

N04C..XZC605..06S

 1
17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3
17553-78020

N04C..XZC605..06S

 2
17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3
17553-78020

N04C..XZC605..06S

 2
17554 - INSULATOR, EXHAUST PIPE HEAT, FRONT
17554-78101

N04C..XZC605..06S

 1
17554A - INSULATOR, EXHAUST PIPE HEAT, NO.4
17554-78090

N04C..XZC605..06S

NO.2

 1
17554-78080

N04C..XZC605..06S

NO.1

 1
17554A - INSULATOR, EXHAUST PIPE HEAT, NO.4
17554-78090

N04C..XZC605..06S

NO.2

 1
17554-78080

N04C..XZC605..06S

NO.1

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

2TRFE..TRC600..T4;N04C..XZC605..06S;2TRFE..TRU600..T4..IV3

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78040

N04C..XZC605..06S

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78030

N04C..XZC605..06S

 2
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-78030

N04C..XZC605..06S

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-E0480

N04C..XZC605..06S

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-78330

N04C..XZC605..06S

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-78360

N04C..XZC60#,XZU60#,695..WT

 1
17573-78361

N04C..XZC605..06S

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-78290

N04C..XZC605..06S

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-78190

N04C..XZC605..06S

 1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-78270

N04C..XZC605..06S

 1
17589A - CLAMP, EXHAUST PIPE
17589-78021

N04C..XZC605..06S

 1
87378C - PIPE, EXHAUST
87378-E0033

XZC605..06S

 1
87378-E0032

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695

 1
Common parts
17578-78010
90031-75007
90119-10817
91551-80620
91551-80825
91552-81035
91671-80820
91672-81035
94151-80600
94185-60800
94185-61000
95333-08030
95337-08020
96136-41501
SH552-11025
SH562-10816
SL185-00809
SZ109-10072
SZ116-10171
SZ126-08006
SZ178-08007
SZ178-10007
SZ910-16017
SZ910-16223
Linked diagrams
2201
8401
