XZC605V-RRTMA (2011)
Toyota Dyna/Toyoace

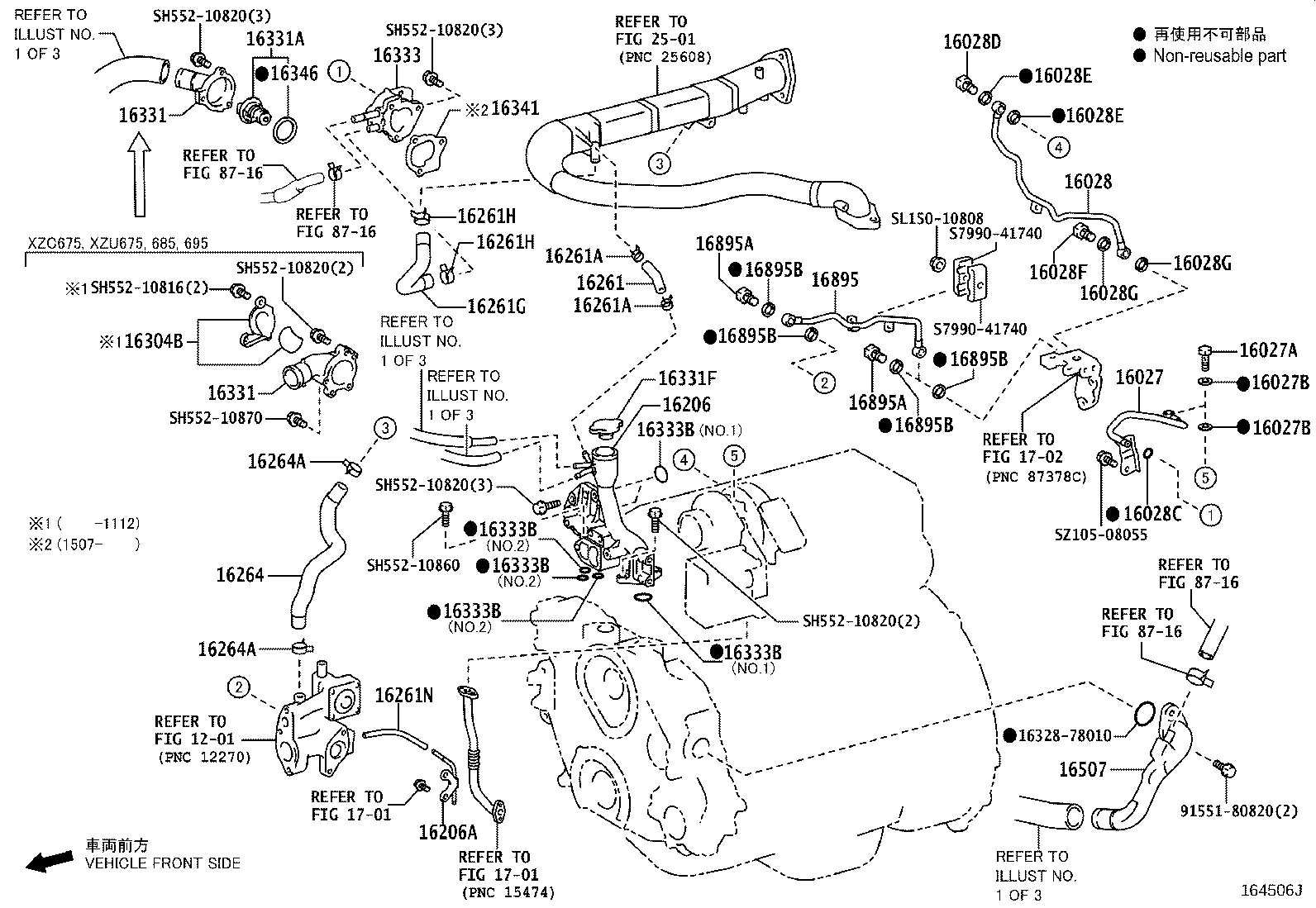

ILLUST NO. 1 OF 3(1107- )N04C..XZC60#,610,630,645,655,XZU602,605,610,620,630,642,645,652,655..DCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78100 |
N04C..XZC605..06S |
1 | ||
| 16361-78100 |
N04C..XZC605..06S |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78840 |
N04C..XZC605..06S..6FC |
1 | ||
| 16400-78840 |
N04C..XZC605..06S..6FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
N04C..XZC605..06S |
1 | ||
| 16417-15210 |
N04C..XZC605..06S |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
N04C..XZC605..06S |
1 | ||
| 16418-15520 |
N04C..XZC605..06S |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-78830 |
N04C..XZC605..06S |
1 | ||
| 16403-78830 |
N04C..XZC605..06S |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-78281 |
N04C..XZC605..06S |
1 | ||
| 16441-78281 |
N04C..XZC605..06S |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78080 |
N04C..XZC605..06S |
1 | ||
| 16442-78080 |
N04C..XZC605..06S |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78830 |
N04C..XZC605..06S |
1 | ||
| 16453-78830 |
N04C..XZC605..06S |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78830 |
N04C..XZC605..06S |
1 | ||
| 16454-78830 |
N04C..XZC605..06S |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-61160 |
N04C..XZC605..06S |
8 | ||
| 16455-61160 |
N04C..XZC605..06S |
8 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16460-78350 |
N04C..XZC605..06S..6FC |
1 | ||
| 16460-78350 |
N04C..XZC605..06S..6FC |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78080 |
N04C..XZC605..06S |
1 | ||
| 16442-78080 |
N04C..XZC605..06S |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
N04C..XZC605..06S |
2 | ||
| 16465-78080 |
N04C..XZC605..06S |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
N04C..XZC605..06S |
2 | ||
| 16465-78080 |
N04C..XZC605..06S |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78030 |
N04C..XZC605..06S |
1 | ||
| 16470-78030 |
N04C..XZC605..06S |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78030 |
N04C..XZC605..06S |
1 | ||
| 16470-78030 |
N04C..XZC605..06S |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C..XZC605..06S *H,L=180 |
1 | ||
| 90445-12078 |
N04C..XZC605..06S *H,L=180 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C..XZC605..06S *H,L=180 |
1 | ||
| 90445-12078 |
N04C..XZC605..06S *H,L=180 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78030 |
N04C..XZC605..06S |
1 | ||
| 16405-78030 |
N04C..XZC605..06S |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78030 |
N04C..XZC605..06S |
1 | ||
| 16405-78030 |
N04C..XZC605..06S |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78100 |
N04C..XZC605..06S |
1 | ||
| 16533-78100 |
N04C..XZC605..06S |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78140 |
N04C..XZC605..06S |
1 | ||
| 16534-78140 |
N04C..XZC605..06S |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-78120 |
N04C..XZC605..06S |
1 | ||
| 16581-78120 |
N04C..XZC605..06S |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-78120 |
N04C..XZC605..06S |
1 | ||
| 16581-78120 |
N04C..XZC605..06S |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78060 |
N04C..XZC605..06S |
1 | ||
| 16561-78060 |
N04C..XZC605..06S |
1 | ||
| 16565A - CLIP | ||||
| 90467-07206 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65# |
5 | ||
| 90467-07206 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65# |
5 | ||
| 90467-07206C0 |
N04C..XZC605..06S BLACK |
5 | ||
| 90467-07206C0 |
N04C..XZC605..06S BLACK |
5 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78370 |
N04C..XZC605,XZU605,655,685,695..(DCB,VAN)..20T NO.2 |
1 | ||
| 16567-78370 |
N04C..XZC605,XZU605,655,685,695..(DCB,VAN)..20T NO.2 |
1 | ||
| 16567-78790 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16567-78790 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16567-78110 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16567-78110 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78370 |
N04C..XZC605,XZU605,655,685,695..(DCB,VAN)..20T NO.2 |
1 | ||
| 16567-78370 |
N04C..XZC605,XZU605,655,685,695..(DCB,VAN)..20T NO.2 |
1 | ||
| 16567-78790 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16567-78790 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16567-78110 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16567-78110 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78370 |
N04C..XZC605,XZU605,655,685,695..(DCB,VAN)..20T NO.2 |
1 | ||
| 16567-78370 |
N04C..XZC605,XZU605,655,685,695..(DCB,VAN)..20T NO.2 |
1 | ||
| 16567-78790 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16567-78790 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16567-78110 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16567-78110 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12058 |
N04C..XZC605..06S |
4 | ||
| 90467-12058 |
N04C..XZC605..06S |
4 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12058 |
N04C..XZC605..06S |
4 | ||
| 90467-12058 |
N04C..XZC605..06S |
4 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12058 |
N04C..XZC605..06S |
4 | ||
| 90467-12058 |
N04C..XZC605..06S |
4 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12058 |
N04C..XZC605..06S |
4 | ||
| 90467-12058 |
N04C..XZC605..06S |
4 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12058 |
N04C..XZC605..06S |
4 | ||
| 90467-12058 |
N04C..XZC605..06S |
4 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12058 |
N04C..XZC605..06S |
4 | ||
| 90467-12058 |
N04C..XZC605..06S |
4 | ||
| 16568 - PIPE, RADIATOR TO RESERVE TANK | ||||
| 16568-58010 |
N04C..XZC605..06S |
1 | ||
| 16568-58010 |
N04C..XZC605..06S |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-78350 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65# |
1 | ||
| 16571-78350 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65# |
1 | ||
| 16571-78351 |
N04C..XZC605..06S |
1 | ||
| 16571-78351 |
N04C..XZC605..06S |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 16581-78191 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
2 | ||
| 16581-78191 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
2 | ||
| 16581-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
2 | ||
| 16581-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
2 | ||
| 16581-78151 |
N04C..XZC605..06S |
2 | ||
| 16581-78151 |
N04C..XZC605..06S |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 16581-78191 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
2 | ||
| 16581-78191 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
2 | ||
| 16581-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
2 | ||
| 16581-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
2 | ||
| 16581-78151 |
N04C..XZC605..06S |
2 | ||
| 16581-78151 |
N04C..XZC605..06S |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-78162 |
N04C..XZC605..06S |
1 | ||
| 16572-78162 |
N04C..XZC605..06S |
1 | ||
| 16572-78160 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 16572-78160 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 16581-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 16581-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 16581-78191 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 16581-78191 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 16581-78151 |
N04C..XZC605..06S |
2 | ||
| 16581-78151 |
N04C..XZC605..06S |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 16581-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 16581-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 16581-78191 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 16581-78191 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 |
2 | ||
| 16581-78151 |
N04C..XZC605..06S |
2 | ||
| 16581-78151 |
N04C..XZC605..06S |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-78041 |
N04C..XZC605..06S |
1 | ||
| 16575-78041 |
N04C..XZC605..06S |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-15022 |
N04C..XZC605..06S NO.1 |
1 | ||
| 90467-15022 |
N04C..XZC605..06S NO.1 |
1 | ||
| 96136-41501 |
N04C..XZC605..06S NO.2 |
1 | ||
| 96136-41501 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-15022 |
N04C..XZC605..06S NO.1 |
1 | ||
| 90467-15022 |
N04C..XZC605..06S NO.1 |
1 | ||
| 96136-41501 |
N04C..XZC605..06S NO.2 |
1 | ||
| 96136-41501 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78080 |
N04C..XZC605..06S |
1 | ||
| 16582-78080 |
N04C..XZC605..06S |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78080 |
N04C..XZC605..06S |
1 | ||
| 16582-78080 |
N04C..XZC605..06S |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78080 |
N04C..XZC605..06S |
1 | ||
| 16583-78080 |
N04C..XZC605..06S |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78080 |
N04C..XZC605..06S |
1 | ||
| 16583-78080 |
N04C..XZC605..06S |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78100 |
N04C..XZC605..06S |
1 | ||
| 16585-78100 |
N04C..XZC605..06S |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-78010 |
N04C..XZC605..06S |
1 | ||
| 16592-78010 |
N04C..XZC605..06S |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78150 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16593-78150 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16593-78140 |
N04C..XZC605..06S NO.3 |
1 | ||
| 16593-78140 |
N04C..XZC605..06S NO.3 |
1 | ||
| 16593-78200 |
N04C..XZC605..06S NO.4 |
1 | ||
| 16593-78200 |
N04C..XZC605..06S NO.4 |
1 | ||
| 16593-78210 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16593-78210 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78150 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16593-78150 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16593-78140 |
N04C..XZC605..06S NO.3 |
1 | ||
| 16593-78140 |
N04C..XZC605..06S NO.3 |
1 | ||
| 16593-78200 |
N04C..XZC605..06S NO.4 |
1 | ||
| 16593-78200 |
N04C..XZC605..06S NO.4 |
1 | ||
| 16593-78210 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16593-78210 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78150 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16593-78150 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16593-78140 |
N04C..XZC605..06S NO.3 |
1 | ||
| 16593-78140 |
N04C..XZC605..06S NO.3 |
1 | ||
| 16593-78200 |
N04C..XZC605..06S NO.4 |
1 | ||
| 16593-78200 |
N04C..XZC605..06S NO.4 |
1 | ||
| 16593-78210 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16593-78210 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78150 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16593-78150 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16593-78140 |
N04C..XZC605..06S NO.3 |
1 | ||
| 16593-78140 |
N04C..XZC605..06S NO.3 |
1 | ||
| 16593-78200 |
N04C..XZC605..06S NO.4 |
1 | ||
| 16593-78200 |
N04C..XZC605..06S NO.4 |
1 | ||
| 16593-78210 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16593-78210 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78120 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16594-78120 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16594-78130 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16594-78130 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78120 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16594-78120 |
N04C..XZC605..06S NO.1 |
1 | ||
| 16594-78130 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16594-78130 |
N04C..XZC605..06S NO.2 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78280 |
N04C..XZC605..06S |
1 | ||
| 16711-78280 |
N04C..XZC605..06S |
1 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90464-00840 | ||||
| 90467-13020 | ||||
| 91511-60612 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91651-B0820 | ||||
| 91653-40820 | ||||
| 94151-20841 | ||||
| 94151-80800 | ||||
ILLUST NO. 2 OF 3(1107- )N04C..XZU642..DCRTK,DCRVT ; (1107-)N04C..XZC60#,610,630,645,655,675,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16895-E0180 |
N04C..XZC605..06S |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| SZ401-12001 |
N04C..XZC605..06S |
1 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| SZ430-12005 |
N04C..XZC605..06S |
2 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| SZ430-12005 |
N04C..XZC605..06S |
2 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16895-E0141 |
N04C..XZC605..06S |
1 | ||
| 16028C - RING, O(FOR TURBO WATER PIPE) | ||||
| SN732-00092 |
N04C..XZC605..06S |
1 | ||
| 16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ401-12001 |
N04C..XZC605..06S |
1 | ||
| 16028E - GASKET, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ430-12005 |
N04C..XZC605..06S |
2 | ||
| 16028E - GASKET, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ430-12005 |
N04C..XZC605..06S |
2 | ||
| 16028F - BOLT, UNION, NO.2(FOR TURBO WATER PIPE) | ||||
| SZ401-14004 |
N04C..XZC605..06S |
1 | ||
| 16028G - GASKET, NO.2(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZC605..06S |
2 | ||
| 16028G - GASKET, NO.2(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZC605..06S |
2 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-78461 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| S1608-75320 |
N04C..XZC605..06S |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| SZ920-34333 |
N04C..XZC605..06S 長さ=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| SZ466-13007 |
N04C..XZC605..06S |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| SZ466-13007 |
N04C..XZC605..06S |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 87245-E0C20 |
N04C..XZC605..06S |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| SZ466-26001 |
N04C..XZC605..06S |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| SZ466-26001 |
N04C..XZC605..06S |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| SZ920-34294 |
N04C..XZC605..06S |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 87245-E0C11 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 87245-E0C12 |
N04C..XZC605..06S |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| SZ466-26001 |
N04C..XZC605..06S |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| SZ466-26001 |
N04C..XZC605..06S |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-E0111 |
N04C..XZC605..06S |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-E0111 |
N04C..XZC605..06S |
1 | ||
| 16331A - THERMOSTAT | ||||
| S1632-E9070 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 *WAX 82−95 |
1 | ||
| S1632-E9280 |
N04C..XZC605..06S *WAX 82−95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-E0051 |
N04C..XZC605..06S |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-E0621 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT 無し(PNC 16341) |
1 | ||
| 16303-E0620 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 16303-E0622 |
N04C..XZC605..06S 有り(PNC 16341) |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| SZ301-31011 |
N04C..XZC605..06S NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT NO.2 |
3 | ||
| 15518-E0010 |
N04C..XZC605..06S NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| SZ301-31011 |
N04C..XZC605..06S NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT NO.2 |
3 | ||
| 15518-E0010 |
N04C..XZC605..06S NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| SZ301-31011 |
N04C..XZC605..06S NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT NO.2 |
3 | ||
| 15518-E0010 |
N04C..XZC605..06S NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| SZ301-31011 |
N04C..XZC605..06S NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT NO.2 |
3 | ||
| 15518-E0010 |
N04C..XZC605..06S NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| SZ301-31011 |
N04C..XZC605..06S NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT NO.2 |
3 | ||
| 15518-E0010 |
N04C..XZC605..06S NO.2 |
3 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16346-E0040 |
N04C..XZC605..06S |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| S1632-51420 |
N04C..XZC605..06S |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-78010 |
N04C..XZC605..06S |
1 | ||
| 16895 - PIPE, TURBO WATER, NO.1 | ||||
| 16895-E0131 |
N04C..XZC605..06S |
1 | ||
| 16895A - BOLT, UNION(FOR TURBO WATER PIPE NO.1) | ||||
| SZ401-14004 |
N04C..XZC605..06S |
2 | ||
| 16895A - BOLT, UNION(FOR TURBO WATER PIPE NO.1) | ||||
| SZ401-14004 |
N04C..XZC605..06S |
2 | ||
| 16895B - GASKET(FOR TURBO WATER PIPE NO.1) | ||||
| SZ430-14003 |
N04C..XZC605..06S |
4 | ||
| 16895B - GASKET(FOR TURBO WATER PIPE NO.1) | ||||
| SZ430-14003 |
N04C..XZC605..06S |
4 | ||
| 16895B - GASKET(FOR TURBO WATER PIPE NO.1) | ||||
| SZ430-14003 |
N04C..XZC605..06S |
4 | ||
| 16895B - GASKET(FOR TURBO WATER PIPE NO.1) | ||||
| SZ430-14003 |
N04C..XZC605..06S |
4 | ||
| Common parts | ||||
| 16328-78010 | ||||
| 91551-80820 | ||||
| S7990-41740 | ||||
| SH552-10816 | ||||
| SH552-10820 | ||||
| SH552-10860 | ||||
| SH552-10870 | ||||
| SL150-10808 | ||||
| SZ105-08055 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 1702 | ||||
| 2501 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
