XZC605V-RRMMA (2011)
Toyota Dyna/Toyoace
ILLUST NO. 4 OF 4(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-37070 |
XZC60#,610,630,645,655..5F..WT ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 44050-37100 |
XZC60#,610,630,645,655..WT ﾃﾞｭﾄﾛ専用 |
1 | ||
| 44050-37170 |
XZC605..(03S,06S,T2)..5F 坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 44050-37250 |
XZC605..03S,06S,T2 |
1 | ||
| 44050-37071 |
XZC60#,610,630,645,655..5F..WT ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 44050-37101 |
XZC60#,610,630,645,655..WT ﾃﾞｭﾄﾛ専用 |
1 | ||
| 44050-37251 |
XZC605..03S,06S,T2 |
1 | ||
| 44050-37171 |
XZC605..(03S,06S,T2)..5F 坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 44050-37071 |
XZC60#,610,630,645,655..5F..WT ﾃﾞｭﾄﾛ専用&VSC−無し&坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 44050-37122 |
XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65# ﾃﾞｭﾄﾛ専用 |
1 | ||
| 44050-37101 |
XZC60#,610,630,645,655..WT ﾃﾞｭﾄﾛ専用&VSC−無し |
1 | ||
| 44050-37251 |
XZC605..03S,06S,T2 VSC−無し |
1 | ||
| 44050-37171 |
XZC605..(03S,06S,T2)..5F VSC−無し&坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 44050-37A50 |
XZC605..VAN |
1 | ||
| 44050-37072 |
XZC60#,610,630,645,655..5F..WT ﾃﾞｭﾄﾛ専用&VSC−無し&坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 44050-37102 |
XZC60#,610,630,645,655..WT ﾃﾞｭﾄﾛ専用&VSC−無し |
1 | ||
| 44050-37A51 |
XZC605..VAN |
1 | ||
| 44050-37123 |
XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65# ﾃﾞｭﾄﾛ専用 |
1 | ||
| 44050-37252 |
XZC605..06S,T2 VSC−無し |
1 | ||
| 44050-37172 |
XZC605..(06S,T2)..5F VSC−無し&坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37050 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 91551-80820 | ||||
ILLUST NO. 1 OF 4(1107- )5F..ST ; (1107- )XZC600,XZU602,642,652..WT..DCRTH,DCRTK,DCRVT ; (1107
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 82711-16820 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01603 | ||||
| 90959-01622 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 1 OF 4(1107- )XZC605,645,655..03S,06S,T2,T4,T5..DCRTH,DCRTJ ; (1905- )XZC60#,645,65
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 82711-16820 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01603 | ||||
| 90959-01622 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 1 OF 4(1107- )XZU600..DM6,T3..DCRTJ,DCRTK,DCRVT..IV3,IV5,IV6,IV7 ; (1107- )XZC600,6
ｱﾘ(ﾌﾞﾚｰｷﾛｯｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 82711-16820 | ||||
| 82711-34490 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01602 | ||||
| 91551-80814 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 1 OF 4(1107- )XZU650..6FC..DCRTK ; (1107- )XZU640..T3..5F..IV3 ; (1107- )XZU650,
ｱﾘ(ﾌﾞﾚｰｷﾛｯｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 82711-16820 | ||||
| 82711-34490 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01602 | ||||
| 91551-80814 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 1 OF 4(1107- )XZU675..30T..DCRTK..IV3 ; (1107- )XZU645,655..6FC..20T..DCRTJ ; (1107
ｱﾘ(ﾌﾞﾚｰｷﾛｯｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 82711-16820 | ||||
| 82711-34490 | ||||
| 90464-00447 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01603 | ||||
| 90959-01622 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| Linked diagrams | ||||
| 3102 | ||||

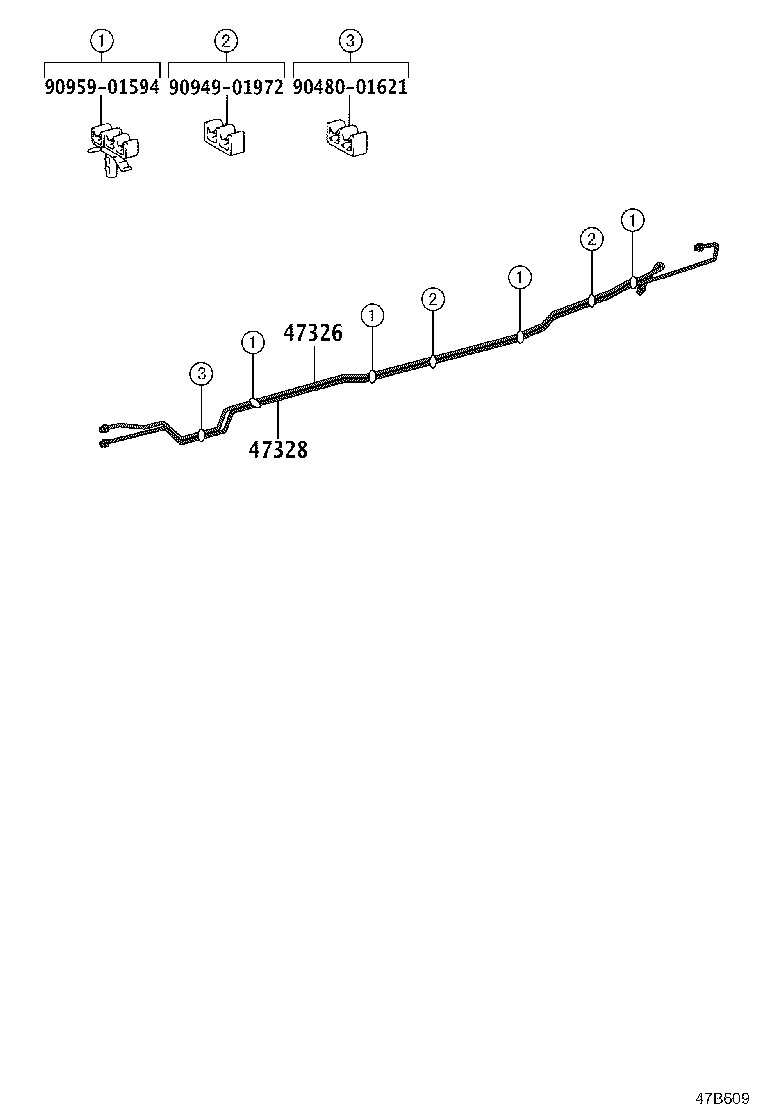

ILLUST NO. 2 OF 4(1107- )XZU650..35T..DCRTK ; (1107- )XZU640..SCB..DCRTJ,DCRTK ; (1107- )XZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37621 |
XZC605..06S |
1 | ||
| 47326-37621 |
XZC605..06S |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37480 |
XZC605..06S |
1 | ||
| 47328-37480 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90464-00833 | ||||
| 90480-01620 | ||||
| 90480-01621 | ||||
| 90949-01972 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 91551-80825 | ||||
ILLUST NO. 2 OF 4(1107- )VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37621 |
XZC605..06S |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37480 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90480-01621 | ||||
| 90949-01972 | ||||
| 90959-01594 | ||||
ILLUST NO. 3 OF 4(1107- )BZU600,TRU600,XZU600..T3..DCRTJ,DCRTK,EFI,LPG..CBU,IV3,IV4,IV7 ; (1905-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90947-02B29 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90947-02B29 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90947-02B29 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90947-02B29 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
2 | ||
| 90401-10015 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
2 | ||
| 90401-10015 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
2 | ||
| 90401-10015 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
2 | ||
| 90401-10015 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E73 |
TRU600..T4..IV3;XZC605,XZU600..06S,DM3;TRC600,XZC675,XZU675..T4 |
1 | ||
| 90947-02E73 |
TRU600..T4..IV3;XZC605,XZU600..06S,DM3;TRC600,XZC675,XZU675..T4 |
1 | ||
| 90947-02E73 |
TRU600..T4..IV3;XZC605,XZU600..06S,DM3;TRC600,XZC675,XZU675..T4 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E72 |
TRU600..T4..IV3;XZC605,XZU600..06S,DM3;TRC600,XZC675,XZU675..T4 |
1 | ||
| 90947-02E72 |
TRU600..T4..IV3;XZC605,XZU600..06S,DM3;TRC600,XZC675,XZU675..T4 |
1 | ||
| 90947-02E72 |
TRU600..T4..IV3;XZC605,XZU600..06S,DM3;TRC600,XZC675,XZU675..T4 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 90412-12051 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 90412-12051 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37700 |
XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..20T..WT..(CBU,IV3) |
1 | ||
| 47327-37700 |
XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..20T..WT..(CBU,IV3) |
1 | ||
| 47327-37700 |
XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..20T..WT..(CBU,IV3) |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37540 |
XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..20T..WT..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47329-37540 |
XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..20T..WT..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47329-37540 |
XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..20T..WT..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47353-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47353-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37170 |
XZC605..06S |
1 | ||
| 47353-37170 |
XZC605..06S |
1 | ||
| 47353-37170 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 91551-80825 | ||||
| 91552-81018 | ||||
| 91552-81020 | ||||
ILLUST NO. 3 OF 4(1107- )XZU600,605..T2,T4..20T..DCRTH,DCRTJ ;(1107- )BZU600,TRC600,XZC60#,64
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90947-02B29 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90947-02B29 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
2 | ||
| 90401-10015 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
2 | ||
| 90401-10015 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47389-30010 |
XZC675,XZU675;TRU600..T4..IV3;XZC605,610,XZU600,610,620..06S,DM3,DM5;TRC600,XZC630,XZU630,685,695..(DM7,T3,T4)..(CBU,IV3,IV6) |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E73 |
TRU600..T4..IV3;XZC605,XZU600..06S,DM3;TRC600,XZC675,XZU675..T4 |
1 | ||
| 90947-02E73 |
TRU600..T4..IV3;XZC605,XZU600..06S,DM3;TRC600,XZC675,XZU675..T4 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E72 |
TRU600..T4..IV3;XZC605,XZU600..06S,DM3;TRC600,XZC675,XZU675..T4 |
1 | ||
| 90947-02E72 |
TRU600..T4..IV3;XZC605,XZU600..06S,DM3;TRC600,XZC675,XZU675..T4 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 90412-12051 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37700 |
XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..20T..WT..(CBU,IV3) |
1 | ||
| 47327-37700 |
XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..20T..WT..(CBU,IV3) |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37540 |
XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..20T..WT..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47329-37540 |
XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,645..20T..WT..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47353-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37170 |
XZC605..06S |
1 | ||
| 47353-37170 |
XZC605..06S |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 91551-80825 | ||||
| 91552-81018 | ||||
| 91552-81020 | ||||
ILLUST NO. 1 OF 4(1107- )XZU610..5F ; (1107- )XZU600,640..5F..IV4,IV7 ; (1107- )XZC610,630,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37600 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37602 |
XZC605..06S |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311-37601 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391-37460 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311-37611 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 90947-02F90 |
BZU600;TRC600,TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..DCRTH,DCRTJ,DCRTK,EFI |
2 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47256-37020 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37A80 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47312-37B10 |
XZC605..06S NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313-37560 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 90947-02E92 |
XZC605..06S |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 90401-10015 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 90947-02E93 |
XZC605..06S |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47389-30010 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47314-37780 |
XZC605..06S |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37571 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37570 |
XZC60#,610,630,645,655..WT |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321-37572 |
XZC605..06S |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47321-37580 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37B00 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 NO.2 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47322-37A90 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F NO.1 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47323-37680 |
XZC605..06S |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47324-37380 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47325-37410 |
XZC605..06S |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47371-37150 |
TRC600..T4;TRU600..T4..IV3;XZC605..06S..5F |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47371-37160 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37360 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47371-37110 |
TRC600..T4;XZC605..06S;TRU600..T4..IV3 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37280 |
XZC605..06S NO.1 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| 47391-37300 |
XZC605..06S NO.2 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 82711-16820 | ||||
| 90129-08007 | ||||
| 90464-00447 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01603 | ||||
| 90959-01622 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
