XZC605-TQMMA3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1107- )MTM..DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG

Click highlighted areas on diagram

diagram 44610 44730B 44730B 44730J 44734B 44763B 44763B 44764A 44768 44775C 44775E 44776 44776 44776A 44778D 44781 44781 44781C 44799 4702 47262A 47264D 4737137040 4737137040 8414 8414 8414 9017908038 9046615003 9046615003 9046615003 9046615003 9046615003 9046615003 9048022022 9155180814 9155180814 9155180825 9155180825 9155180825 91611B0816 9415180800 9415180800 9415180800 9613240700 9613240700 9613240700 9613240700 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-37270

XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT

 1
44730B - CLAMP, VACUUM HOSE
44597-37021

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44730B - CLAMP, VACUUM HOSE
44597-37021

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37610

XZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5

 1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37610

XZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5

 1
44768 - TUBE, BOOSTER VACUUM
44768-37250

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44776 - HOSE, BRAKE BOOSTER
44776-37360

XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..5F..WT

 1
44776 - HOSE, BRAKE BOOSTER
44776-37360

XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..5F..WT

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-37170

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37250

BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..MTM

 1
44778-37251

XZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..MTM..(20T,35T);XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..MTM

 1
44781 - BRACKET, HOSE
44781-37171

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44781 - BRACKET, HOSE
44781-37171

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44781C - BRACKET, HOSE CLAMP, NO.2
44781-37020

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..SCB..WT..(CBU,IV3,IV7)

 1
44799 - WAY, BRAKE VACUUM HOSE
44799-37030

BZU600,TRC600;TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..MTM..(DCRTH,DCRTJ,DCRTK,EFI)

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
94120-41000

XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-42010

XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT

 1
Common parts
47371-37040
90179-08038
90466-15003
90480-22022
91551-80814
91551-80825
91611-B0816
94151-80800
96132-40700
96133-41500
Linked diagrams
4702
8414

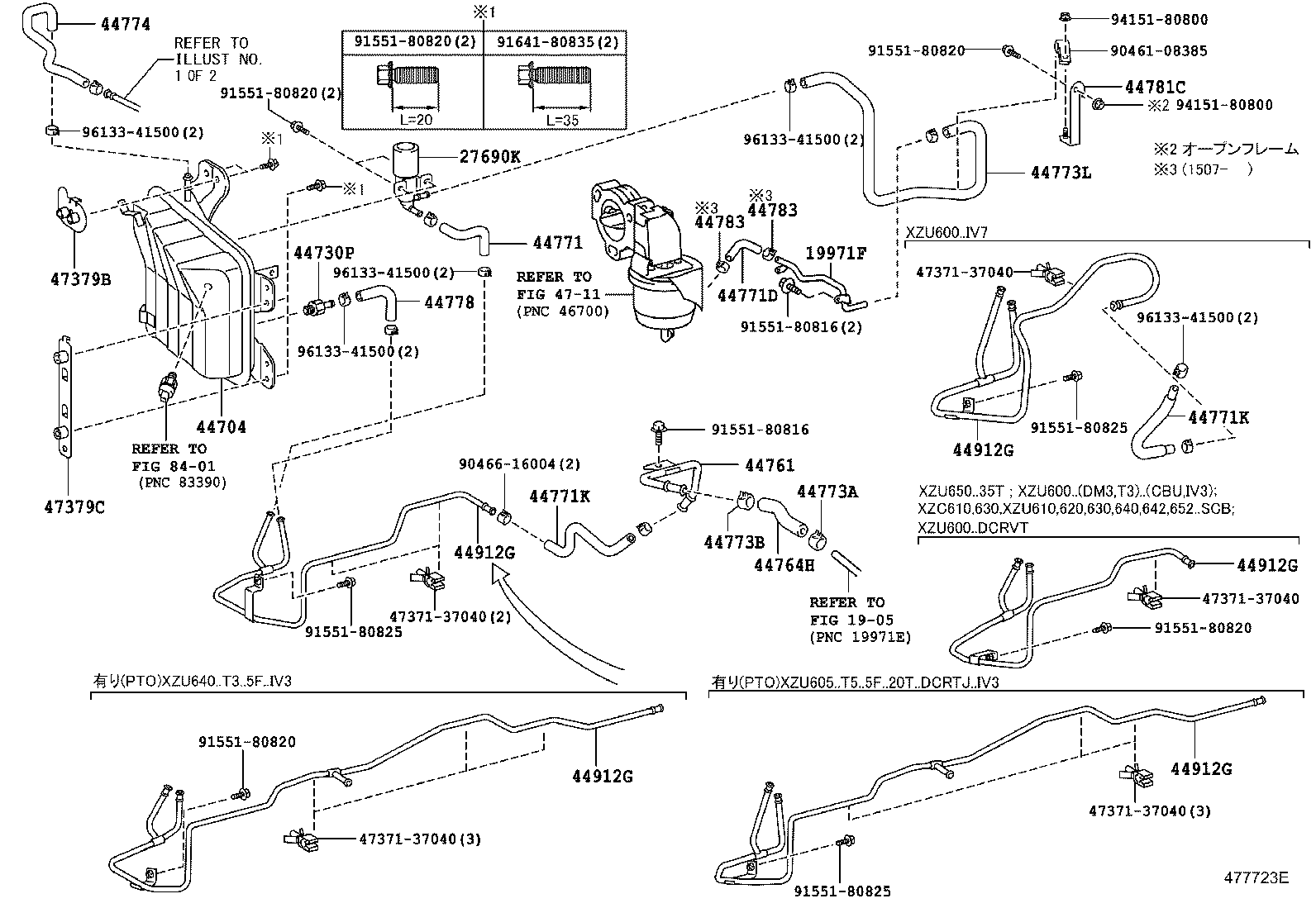

ILLUST NO. 2 OF 2(1107- )XZC60#,610,630,645,655,XZU602,610,620,630,64#,65#..SCB..DCRTH,DCRTJ,DCRT

Click highlighted areas on diagram

diagram 1905 19971F 27690K 44704 44730P 44761 44764H 44771 44771D 44771K 44771K 44773A 44773B 44773L 44774 44778 44781C 44783 44783 44912G 44912G 44912G 44912G 44912G 4711 4737137040 4737137040 4737137040 4737137040 4737137040 47379B 47379C 8401 9046108385 9046616004 9155180816 9155180816 9155180820 9155180820 9155180820 9155180820 9155180820 9155180825 9155180825 9155180825 9164180835 9415180800 9415180800 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
19971F - PIPE, VACUUM
19971-78270

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(20T,30T)..WT

 1
19971-78270

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(20T,30T)..WT

 1
19971-78271

N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5

 1
19971-78271

N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5

 1
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78130

N04C..XZU685..SCB;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,695..SCB..WT..(CBU,IV3,IV7)

 1
27690-78130

N04C..XZU685..SCB;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,695..SCB..WT..(CBU,IV3,IV7)

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37191

XZU685..SCB;XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,695..SCB..WT..(CBU,IV3,IV7)

 1
44704-37191

XZU685..SCB;XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,695..SCB..WT..(CBU,IV3,IV7)

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44730-60050

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37540

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6)

 1
44761-37540

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6)

 1
44761-37580

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6

 1
44761-37580

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6

 1
44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE)
95446-09120

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6)

 1
95446-09120

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6)

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37540

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..SCB..WT..(CBU,IV3,IV7)

 1
44771-37540

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..SCB..WT..(CBU,IV3,IV7)

 1
44771D - HOSE, VACUUM TUBE CONNECTOR
44771-37A60

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
44771-37A60

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
44771-37A61

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5

 1
44771-37A61

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37800

XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT

 1
44771-37800

XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37800

XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT

 1
44771-37800

XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
96133-41500

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6)

 1
96133-41500

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6)

 1
44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2)
90466-16004

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6

 1
90466-16004

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6

 1
96133-41500

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6)

 1
96133-41500

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6)

 1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37480

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..SCB..WT..(CBU,IV3,IV7)

 1
44773-37480

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..SCB..WT..(CBU,IV3,IV7)

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37321

XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..SCB..WT

 1
44774-37321

XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..SCB..WT

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37060

XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(DCB,SCB)..WT..(CBU,IV3,IV6)

 1
44778-37060

XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(DCB,SCB)..WT..(CBU,IV3,IV6)

 1
44781C - BRACKET, HOSE CLAMP, NO.2
44781-37020

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..SCB..WT..(CBU,IV3,IV7)

 1
44781-37020

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..SCB..WT..(CBU,IV3,IV7)

 1
44783 - CLAMP, VACUUM HOSE
44783-37020

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5

 2
44783-37020

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5

 2
44783 - CLAMP, VACUUM HOSE
44783-37020

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5

 2
44783-37020

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5

 2
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37C70

XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZU605,645,655..SCB..(CBU,IV3);XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..20T..WT

 1
44912-37C70

XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZU605,645,655..SCB..(CBU,IV3);XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..20T..WT

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37C70

XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZU605,645,655..SCB..(CBU,IV3);XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..20T..WT

 1
44912-37C70

XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZU605,645,655..SCB..(CBU,IV3);XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..20T..WT

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37C70

XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZU605,645,655..SCB..(CBU,IV3);XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..20T..WT

 1
44912-37C70

XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZU605,645,655..SCB..(CBU,IV3);XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..20T..WT

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37C70

XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZU605,645,655..SCB..(CBU,IV3);XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..20T..WT

 1
44912-37C70

XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZU605,645,655..SCB..(CBU,IV3);XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..20T..WT

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37C70

XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZU605,645,655..SCB..(CBU,IV3);XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..20T..WT

 1
44912-37C70

XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZU605,645,655..SCB..(CBU,IV3);XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..20T..WT

 1
Common parts
47371-37040
90461-08385
90466-16004
91551-80816
91551-80820
91551-80825
91641-80835
94151-80800
96133-41500
Linked diagrams
1905
4711
8401
