XZC605-TPMMB (2017)

Toyota Dyna/Toyoace

Production May 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

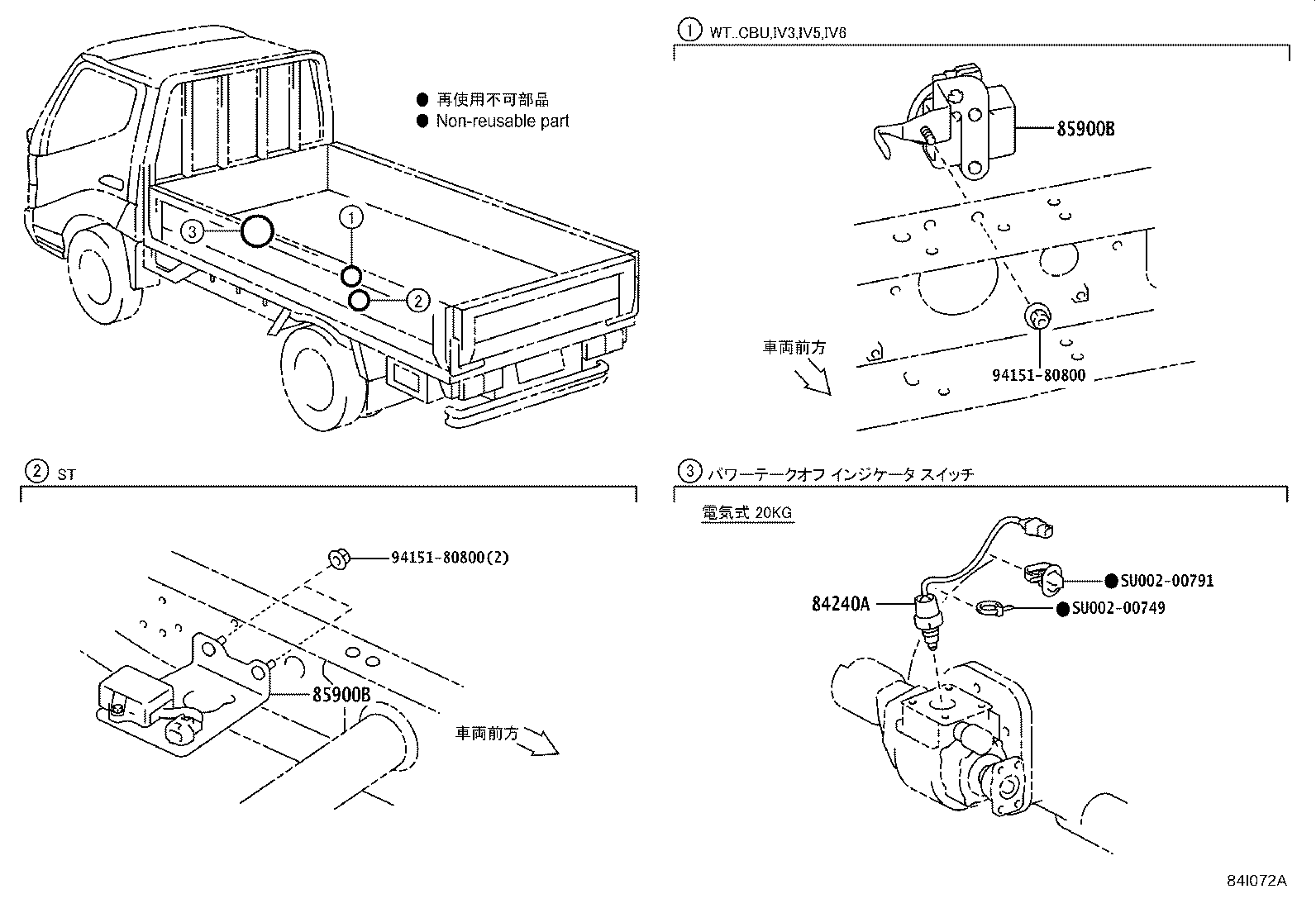

ILLUST NO. 2 OF 2(1705- )XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695

Click highlighted areas on diagram

diagram 84240A 85900B 85900B 9415180800 9415180800 SU00200749 SU00200791
Part # Description Qty Price
85900B - RELAY ASSY, CONTROL UNIT
85900-37250

XZU600..DCRVT;XZU640,650..SCB..MTM..(DCRTJ,DCRTK,DCRVT);XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..WT..(CBU,IV3)

ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ

 1
85900B - RELAY ASSY, CONTROL UNIT
85900-37250

XZU600..DCRVT;XZU640,650..SCB..MTM..(DCRTJ,DCRTK,DCRVT);XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..WT..(CBU,IV3)

ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ

 1
Common parts
94151-80800
SU002-00749
SU002-00791
