XZC605-TPMMB (2017)
Toyota Dyna/Toyoace

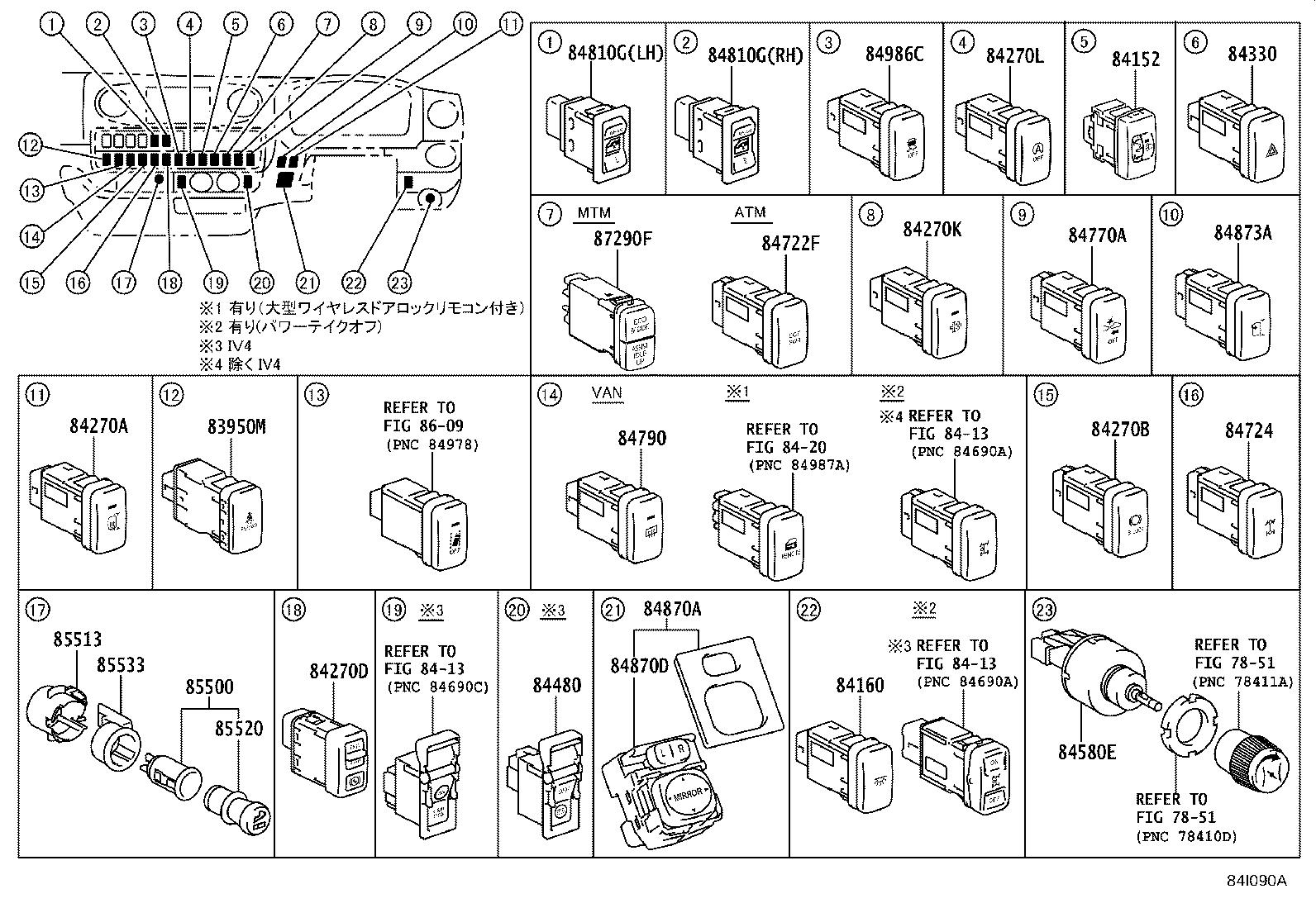

ILLUST NO. 6 OF10(1705- )DCRTH,DCRTJ,DCRTK,DCRVT
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-37030 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37081 |
XZC605,645,655,XZU605,645,655..SCB ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84152-37081 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84270-37260 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK,DCRVT) ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & 大型ﾙｰﾑﾗﾝﾌﾟ(LED) |
1 | ||
| 84270A - SWITCH ASSY, MIRROR HEATER | ||||
| 84270-37240 |
XZC60#,610,630,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH) |
1 | ||
| 84270-37240 |
XZC60#,610,630,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH & *CR(DOP)) |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37320 |
XZC60#,610..5F;XZC630,645,655,675,XZU600,605,610,620,630,640,645,65#,675,685,695..MTM..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV4,IV5,IV7) 坂道発進補助装置−有り(ESｽﾀｰﾄ) |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37230 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 84270L - SWITCH ASSY, IDLE STOP | ||||
| 84270-37270 |
XZC60#,610..5F;XZC630,645,655,675,XZU600,605,610,620,630,640,645,65#,675,685,695..MTM..(DCRTH,DCRTJ,DCRTK)..(CBU,IV3,IV4,IV5,IV7) 有り(ｱｲﾄﾞﾙｽﾄｯﾌﾟ & ｴｺﾗﾝ) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37110 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37030 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84270-37380 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
XZC60#,610,630,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH) |
1 | ||
| 84870-34010 |
XZC60#,610,630,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH & *CR(DOP)) |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52030 |
XZC60#,610,630,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH) |
1 | ||
| 84872-52030 |
XZC60#,610,630,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH & *CR(DOP)) |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37030 |
XZC60#,610,630,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH) |
1 | ||
| 84873-37030 |
XZC60#,610,630,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH & *CR(DOP)) |
1 | ||
| 84873-37030 |
XZC60#,610,630,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *SHS & *TM) |
1 | ||
| 84873-37030 |
XZC60#,610,630,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *SHS & *WVM) |
1 | ||
| 84873-37030 |
XZC60#,610,630,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *SHS &*TM),*CR(DOP) |
1 | ||
| 84873-37030 |
XZC60#,610,630,675,XZU600,605,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57 & *SHS & *TM(*WVM)) |
1 | ||
| 84986C - SWITCH, VSC OFF | ||||
| 84270-37300 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37050 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 87290F - SWITCH ASSY, ECO | ||||
| 84270-37410 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..MTM..(DCRTH,DCRTJ,DCRTK,DCRVT) |
1 | ||
| Linked diagrams | ||||
| 7851 | ||||
| 8413 | ||||
| 8420 | ||||
| 8609 | ||||

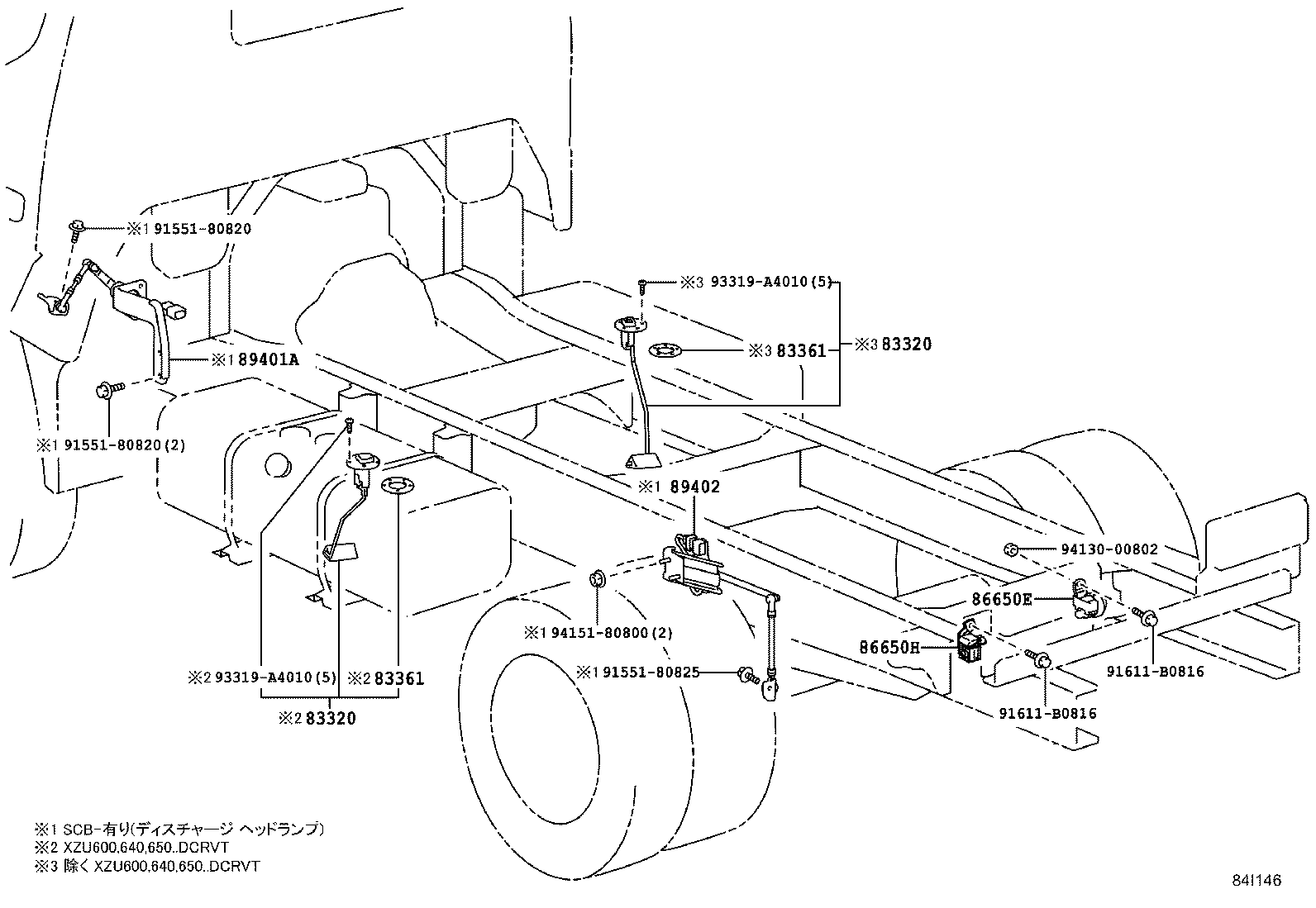

ILLUST NO.10 OF10(1705- )DCRTH,DCRTJ,DCRTK,DCRVT
ﾘﾔﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZU685..DCRTK..IV4;XZU605,685..SCB..(DCRTJ,DCRTK);XZC60#,610,630,645,655,675,XZU600,602,610,620,630,64#,65#,675,695..(DCB,SCB)..(DCRTH,DCRTJ,DCRTK,DCRVT) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZU685..DCRTK..IV4;XZU605,685..SCB..(DCRTJ,DCRTK);XZC60#,610,630,645,655,675,XZU600,602,610,620,630,64#,65#,675,695..(DCB,SCB)..(DCRTH,DCRTJ,DCRTK,DCRVT) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-37180 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 86650-37181 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 89401A - SENSOR, SUSPENSION STROKE, FRONT(FOR DISCHARGE HEADLAMP | ||||
| 89401-37020 |
XZC605,645,655,XZU605,645,655..SCB..(DCRTH,DCRTJ,DCRTK) ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 89402 - SENSOR, SUSPENSION STROKE, REAR(FOR DISCHARGE HEADLAMP) | ||||
| 89402-37031 |
XZC605,645,655,XZU605,645,655..SCB..(DCRTH,DCRTJ,DCRTK) ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91611-B0816 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-80800 | ||||
