XZC600D-TWTMX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

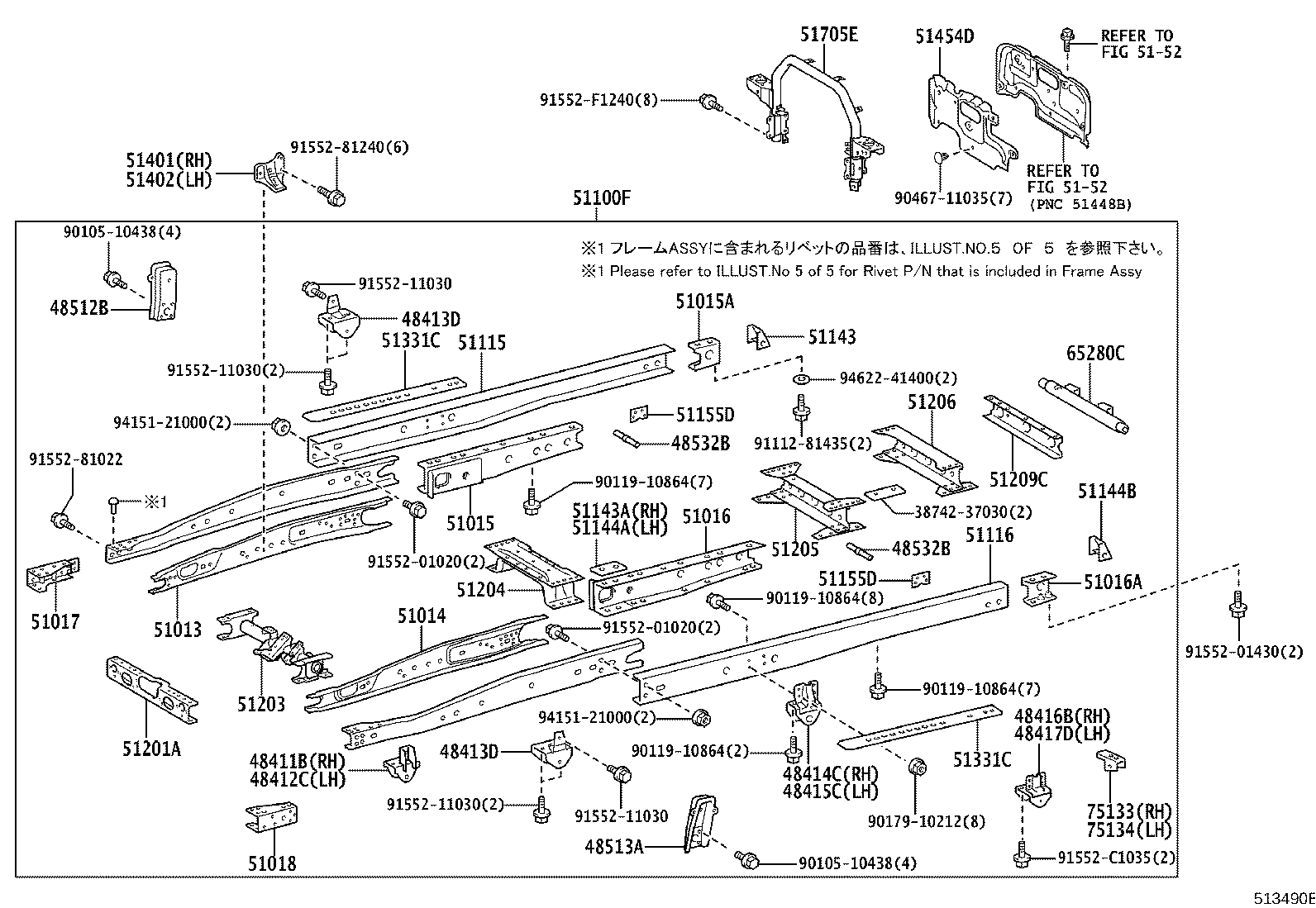

ILLUST NO. 2 OF 5(1905- )XZC600,XZU600..DM5

Click highlighted areas on diagram

diagram 3874237030 48411B 48412C 48413D 48413D 48414C 48415C 48416B 48417D 48512B 48513A 48532B 48532B 51013 51014 51015 51015A 51016 51016A 51017 51018 51100F 51115 51116 51143 51143A 51144A 51144B 51155D 51155D 51201A 51203 51204 51205 51206 51209C 51331C 51331C 51401 51402 51454D 5152 5152 51705E 65280C 75133 75134 9010510438 9010510438 9011910864 9011910864 9011910864 9011910864 9017910212 9046711035 9111281435 9155201020 9155201020 9155201430 9155211030 9155211030 9155211030 9155211030 9155281022 9155281240 91552C1035 91552F1240 9415121000 9415121000 9462241400
Part # Description Qty Price
48411B - BRACKET, SPRING, NO.1 RH
48411-37070

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

 1
48412C - BRACKET, SPRING, NO.1 LH
48412-37060

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

 1
48413D - BRACKET, SPRING, NO.2
48413-37110

XZC600,XZU600,602,640,642,650,652..DCRWD,DCVTO

 2
48413D - BRACKET, SPRING, NO.2
48413-37110

XZC600,XZU600,602,640,642,650,652..DCRWD,DCVTO

 2
48414C - BRACKET, SPRING, NO.3 RH
48414-37240

XZU645..20T..DCRWD;XZC60#,645,675,XZU600,605,675..(DM3,DM5,DM6,T2,T4,T5)..DCRWD

 1
48415C - BRACKET, SPRING, NO.3 LH
48414-37240

XZU645..20T..DCRWD;XZC60#,645,675,XZU600,605,675..(DM3,DM5,DM6,T2,T4,T5)..DCRWD

 1
48416B - BRACKET, SPRING, NO.4 RH
48416-37200

XZU645..20T..DCRWD;XZC60#,645,675,XZU600,605,675..(DM3,DM5,DM6,T2,T4,T5)..DCRWD

 1
48417D - BRACKET, SPRING, NO.4 LH
48416-37200

XZU645..20T..DCRWD;XZC60#,645,675,XZU600,605,675..(DM3,DM5,DM6,T2,T4,T5)..DCRWD

 1
48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-37050

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

 1
48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48512-37130

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

 1
48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT
48532-37010

XZC600,630,675,XZU600,630,675..(DM5,DM7)..DCRWD

 2
48532B - PIN, REAR SHOCK ABSORBER UPPER PIVOT
48532-37010

XZC600,630,675,XZU600,630,675..(DM5,DM7)..DCRWD

 2
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37570

XZC600,XZU600,602,640,642,650,652..DCRWD,DCVTO

 1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37540

XZC600,XZU600,602,640,642,650,652..DCRWD,DCVTO

 1
51015 - CHANNEL SUB-ASSY, SIDE RAIL, INNER REAR RH, NO.1
51015-37080

XZC600,XZU600..DM5

 1
51015A - CHANNEL SUB-ASSY, SIDE RAIL, INNER REAR RH, NO.2
51015-37090

XZC600,XZU600..DM5

 1
51016 - CHANNEL SUB-ASSY, SIDE RAIL, INNER REAR LH, NO.1
51016-37080

XZC600,XZU600..DM5

 1
51016A - CHANNEL SUB-ASSY, SIDE RAIL, INNER REAR LH, NO.2
51016-37090

XZC600,XZU600..DM5

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37180

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37230

XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
51100F - FRAME SUB-ASSY
51002-3VE80

XZC600,XZU600..DM5

 1
51115 - RAIL, FRAME SIDE, REAR RH
51107-37140

XZC600,XZU600..DM5

 1
51116 - RAIL, FRAME SIDE, REAR LH
51108-37500

XZC600,XZU600..DM5

 1
51143 - REINFORCEMENT, SIDE RAIL, REAR RH
51143-37030

XZC600,675,XZU600,675..DM5..DCRWD

 1
51143A - REINFORCEMENT, SIDE RAIL, FRONT RH
51141-37350

XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)

 2
51144A - REINFORCEMENT, SIDE RAIL, FRONT LH
51141-37350

XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)

 2
51144B - REINFORCEMENT, SIDE RAIL, REAR LH
51143-37030

XZC600,675,XZU600,675..DM5..DCRWD

 1
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37280

XZC600,XZU600..DM5

 2
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37280

XZC600,XZU600..DM5

 2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37280

XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37280

XZU600..DM5..IV3;XZU640..DCRWD..IV4;XZU600..(DM5,T3)..DCRWD..(CBU,IV4);XZC60#,630,645,655,675,XZU605,630,645,655,675,685,695..DCRWD

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37390

XZU600,640..SCB..(DCRWD,DCVTO);XZC60#,645,655,675,XZU602,605,642,645,65#,675,685,695..DCRWD,DCVTO

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37210

XZC600,XZU600..DM5

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206-37100

XZC600,675,XZU600,675..DM5..DCRWD

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37040

XZC675,XZU600,675..DM5..DCRWD;XZC600,645,655,XZU64#,65#,685,695..DCRWD,DCVTO

 1
51331C - GUSSET, FRAME NO.3 CROSSMEMBER
51331-37140

XZC600,675,XZU600,675..DM5..DCRWD

 2
51331C - GUSSET, FRAME NO.3 CROSSMEMBER
51331-37140

XZC600,675,XZU600,675..DM5..DCRWD

 2
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-37081

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

TYPE B:ｲﾗｽﾄ参照

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-37141

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

TYPE B:ｲﾗｽﾄ参照

 1
51454D - SILENCER, ENGINE REAR COVER
51454-37310

XZC600,XZU600,605,642..(DM3,DM5,DM6,DM7)..DCRWD..(CBU,IV3,IV5)

 1
51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING
51705-37B30

XZC600,XZU600,602,640,642,650,652..SCB..(DCRWD,DCVTO)

 1
65280C - SHAFT ASSY, VESSEL HINGE
65280-37080

XZC600,675,XZU600,675..DM5..DCRWD

 1
75133 - BASE, COMBINATION REAR LAMP BRACKET, RH
75133-37030

XZC600,675,XZU600,675..DM5..DCRWD

 1
75134 - BASE, COMBINATION REAR LAMP BRACKET, LH
75133-37030

XZC600,675,XZU600,675..DM5..DCRWD

 1
Common parts
38742-37030
90105-10438
90119-10864
90179-10212
90467-11035
91112-81435
91552-01020
91552-01430
91552-11030
91552-81022
91552-81240
91552-C1035
91552-F1240
94151-21000
94622-41400
Linked diagrams
5152

ILLUST NO. 4 OF 5(1905- )DCRWD,DCVTO

Click highlighted areas on diagram

ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ

diagram 51569 51569C 9155180825 9155180825
Part # Description Qty Price
51569 - GUARD, PROPELLER SHAFT
51569-37500

XZC600,675,XZU600,675..DM5..DCRWD

 1
Common parts
91551-80825
