Toyota Dyna/toyoace XZC600 POWER TAKE-OFF LEVER & LINK

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZC600D-TWTMX3 (2019)
3605 - POWER TAKE-OFF LEVER & LINK

XZC600D-TWTMX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999

Engine N04C

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1905- )XZU600..DM5..6FC..30T ; (1905- )XZC600,XZU600,602..DM5,T3..6FC..20T,4

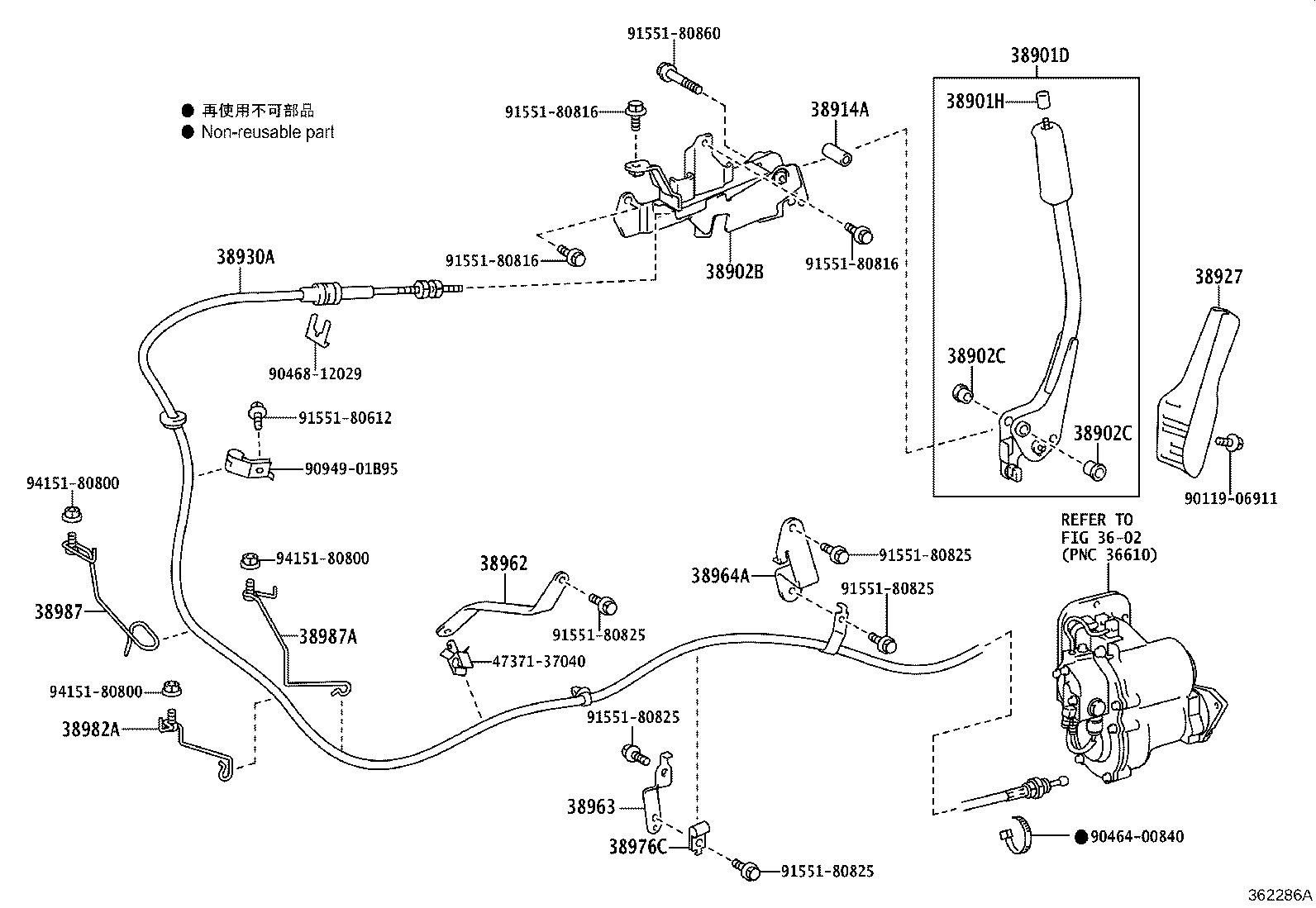

Click highlighted areas on diagram

Part #	Description	Period	Qty
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-37131C0	XZU642..6F..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,650,652,685..MTM..(DCRWD,DCVTO)..IV6 BLACK,TRIM1#	05/2019 - 12/2999	1
38901H - KNOB, VALVE CONTROL LEVER
46217-20020C0	XZU642..6F..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,650,652,685..MTM..(DCRWD,DCVTO)..IV6 BLACK,TRIM1#	05/2019 - 12/2999	1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-37111	XZU642..IV3;XZC600,XZU600..DM5..6FC	05/2019 - 12/2999	1
38902-37111	XZU655..DCB..DCRWD..IV3;XZU605..T5..20T..DCRWD..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZU600,605..(DM5,T5)..6F..30T..IV3;XZU600,605,675,685..SCB..(T2,T3,T4)..DCRWD..IV3;XZC600,XZU600..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6);XZC605,675,XZU602,640,642..(T2,T3,T4,T5)..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 12/2999	1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU642..6F..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6,IV7);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU642..6F..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6,IV7);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	2
38914A - PIPE, VALVE CONTROL LEVER
38914-37010	XZU642..6F..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6,IV7);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38927 - COVER, VALVE CONTROL LEVER
38927-37010	XZU642..6F..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38930A - CABLE ASSY, PUSH PULL
38930-37730	XZC600,XZU600..DM5..6F..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
38930-37730	XZC600,630,XZU600,630..(DM3,DM5,DM7)..6F	05/2019 - 12/2999	1
38930-37740	XZC600,XZU600..DM5..6FC	05/2019 - 12/2999	1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-37350	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
38962-37350	XZC600,630,XZU630..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU602,640,642,650,652..6F..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38963 - BRACKET, CABLE CLAMP, NO.3
38962-37610	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
38962-37610	XZC600,630,XZU630..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU602,640,642,650,652..6F..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38964A - BRACKET, CABLE CLAMP, NO.4
38962-37410	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
38962-37410	XZC600,630,XZU630..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU602,640,642,650,652..6F..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38976C - CLAMP, PUSH PULL CABLE
38976-37030	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	2
38976-37030	XZU685..DCRWD..IV6;XZC600,675,XZU600,675..DM5..(5F,6FC)..DCRWD	05/2019 - 12/2999	1
38976-37030	XZU600..(DM3,DM5)..6F..IV3;XZC600,630,XZU602,630..6F..DCRWD;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU640,642,650,652..6F..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	2
38982A - CLAMP, PUSH PULL CABLE, NO.2
38976-37170	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
38976-37170	XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,642,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38987 - CLAMP, CABLE PUSH PULL
38976-37190	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
38976-37190	XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,642,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38987A - CLAMP, PUSH PULL CABLE
38976-37180	XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,642,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38976-37180	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
Common parts
47371-37040
90119-06911
90464-00840
90468-12029
90949-01B95
91551-80612
91551-80816
91551-80825
91551-80860
94151-80800
Linked diagrams
3602

(1905- )DM5..6F..30T ; (1905- )XZC600,630,XZU602,630..6F..DCRWD ; (1905- )

Click highlighted areas on diagram

ｵｲﾙﾎﾟﾝﾌﾟｲｯﾀｲｼｷ

Part #	Description	Period	Qty
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-37131C0	XZU642..6F..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,650,652,685..MTM..(DCRWD,DCVTO)..IV6 BLACK,TRIM1#	05/2019 - 12/2999	1
38901H - KNOB, VALVE CONTROL LEVER
46217-20020C0	XZU642..6F..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,650,652,685..MTM..(DCRWD,DCVTO)..IV6 BLACK,TRIM1#	05/2019 - 12/2999	1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-37111	XZU642..IV3;XZC600,XZU600..DM5..6FC	05/2019 - 12/2999	1
38902-37111	XZU655..DCB..DCRWD..IV3;XZU605..T5..20T..DCRWD..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZU600,605..(DM5,T5)..6F..30T..IV3;XZU600,605,675,685..SCB..(T2,T3,T4)..DCRWD..IV3;XZC600,XZU600..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6);XZC605,675,XZU602,640,642..(T2,T3,T4,T5)..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 12/2999	1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU642..6F..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6,IV7);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU642..6F..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6,IV7);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	2
38914A - PIPE, VALVE CONTROL LEVER
38914-37010	XZU642..6F..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6,IV7);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38927 - COVER, VALVE CONTROL LEVER
38927-37010	XZU642..6F..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38930A - CABLE ASSY, PUSH PULL
38930-37730	XZC600,XZU600..DM5..6F..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
38930-37730	XZC600,630,XZU600,630..(DM3,DM5,DM7)..6F	05/2019 - 12/2999	1
38930-37740	XZC600,XZU600..DM5..6FC	05/2019 - 12/2999	1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-37350	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
38962-37350	XZC600,630,XZU630..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU602,640,642,650,652..6F..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38963 - BRACKET, CABLE CLAMP, NO.3
38962-37610	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
38962-37610	XZC600,630,XZU630..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU602,640,642,650,652..6F..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38964A - BRACKET, CABLE CLAMP, NO.4
38962-37410	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
38962-37410	XZC600,630,XZU630..DCRWD;XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU602,640,642,650,652..6F..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38976C - CLAMP, PUSH PULL CABLE
38976-37030	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	2
38976-37030	XZU685..DCRWD..IV6;XZC600,675,XZU600,675..DM5..(5F,6FC)..DCRWD	05/2019 - 12/2999	1
38976-37030	XZU600..(DM3,DM5)..6F..IV3;XZC600,630,XZU602,630..6F..DCRWD;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU640,642,650,652..6F..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	2
38976C - CLAMP, PUSH PULL CABLE
38976-37030	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	2
38976-37030	XZU685..DCRWD..IV6;XZC600,675,XZU600,675..DM5..(5F,6FC)..DCRWD	05/2019 - 12/2999	1
38976-37030	XZU600..(DM3,DM5)..6F..IV3;XZC600,630,XZU602,630..6F..DCRWD;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU640,642,650,652..6F..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	2
38982A - CLAMP, PUSH PULL CABLE, NO.2
38976-37170	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
38976-37170	XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,642,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38987 - CLAMP, CABLE PUSH PULL
38976-37190	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
38976-37190	XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,642,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38987A - CLAMP, PUSH PULL CABLE
38976-37180	XZU600..(DM3,DM5)..DCRWD..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZC600,630,675,XZU630,675..(DM5,DM7)..DCRWD;XZU602,605,640,642,650,652,685..MTM..(DCRWD,DCVTO)..IV6	05/2019 - 12/2999	1
38976-37180	XZU600..DM5..6F..30T..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZC600,XZU600,602,640,642..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 03/2021	1
Common parts
47371-37040
90119-06911
90464-00840
90468-12029
90949-01B95
91551-80612
91551-80816
91551-80825
91551-80860
94151-80800
Linked diagrams
3602
