XZC600D-TWFMX3 (2019)
Toyota Dyna/Toyoace

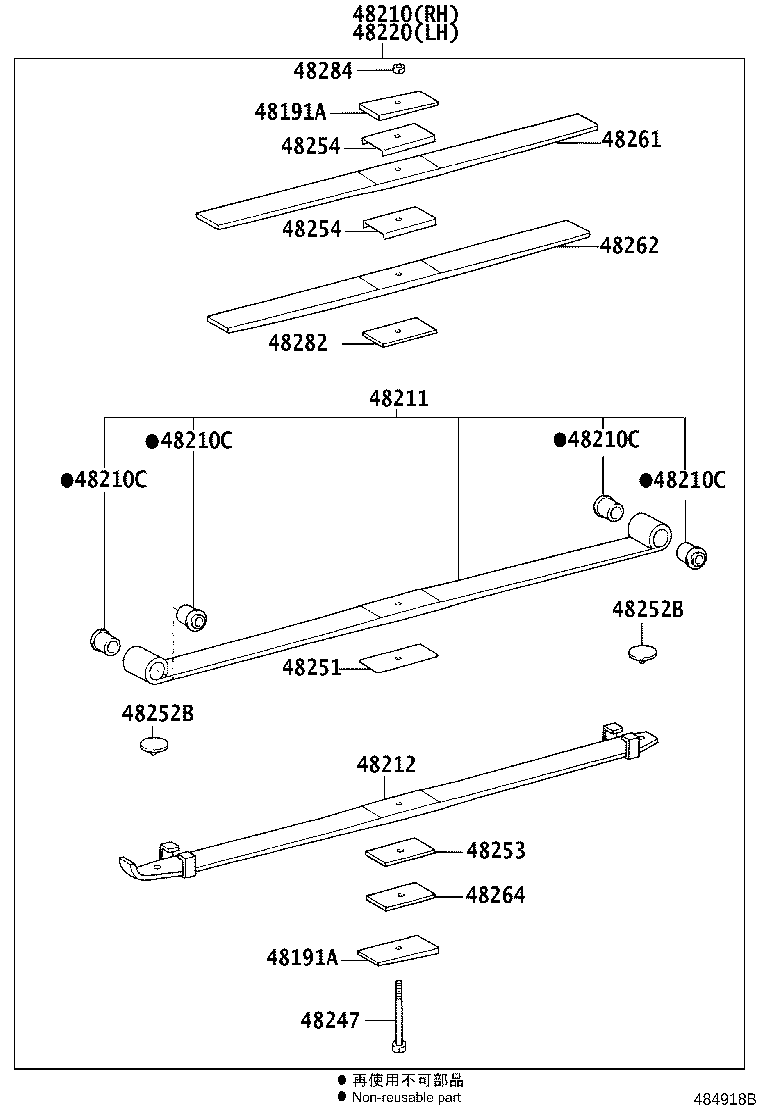

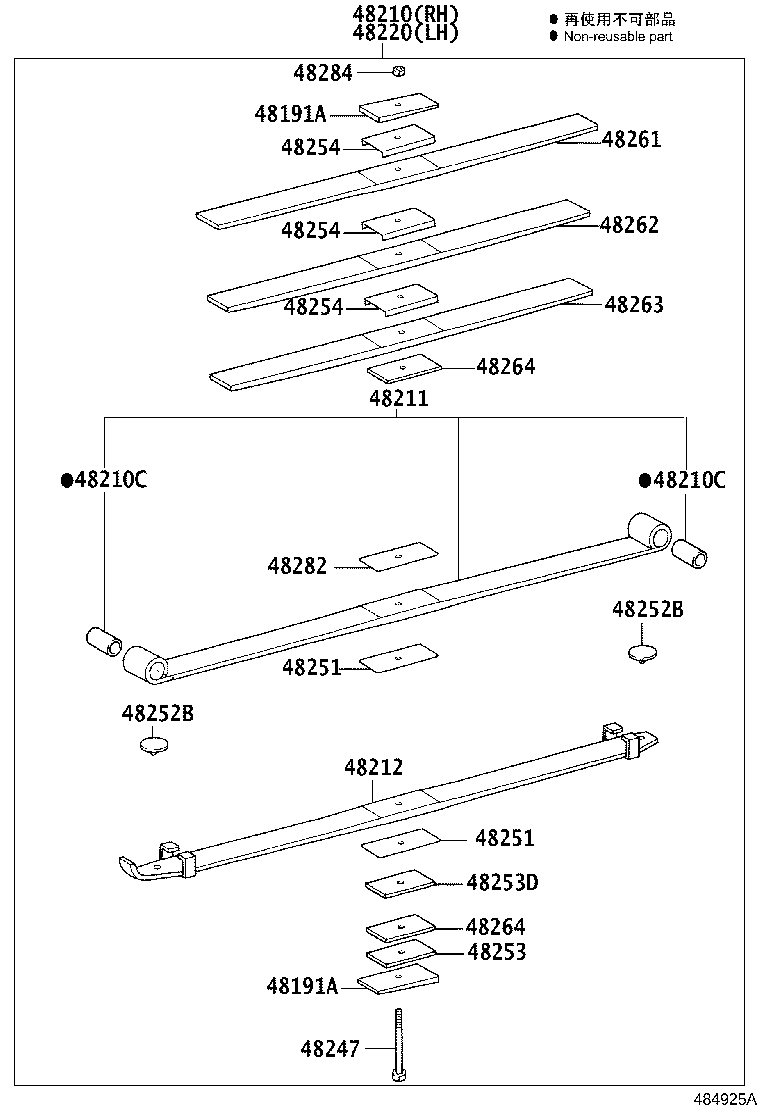

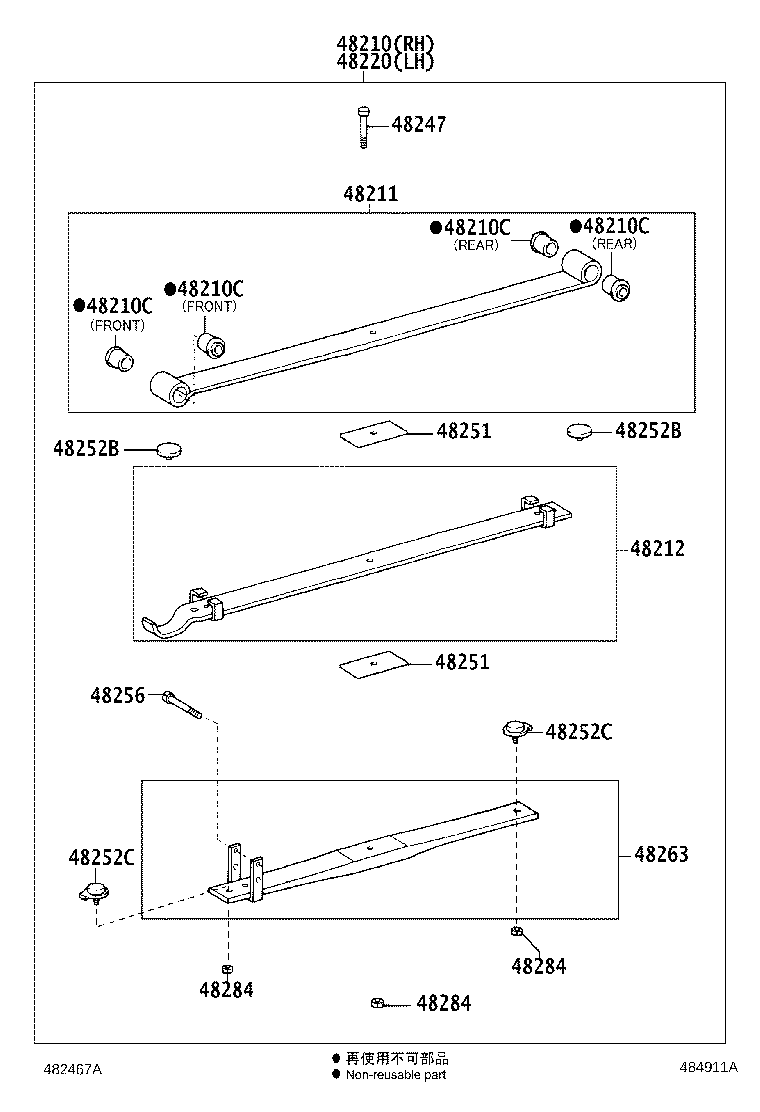

ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 1-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37S50 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||

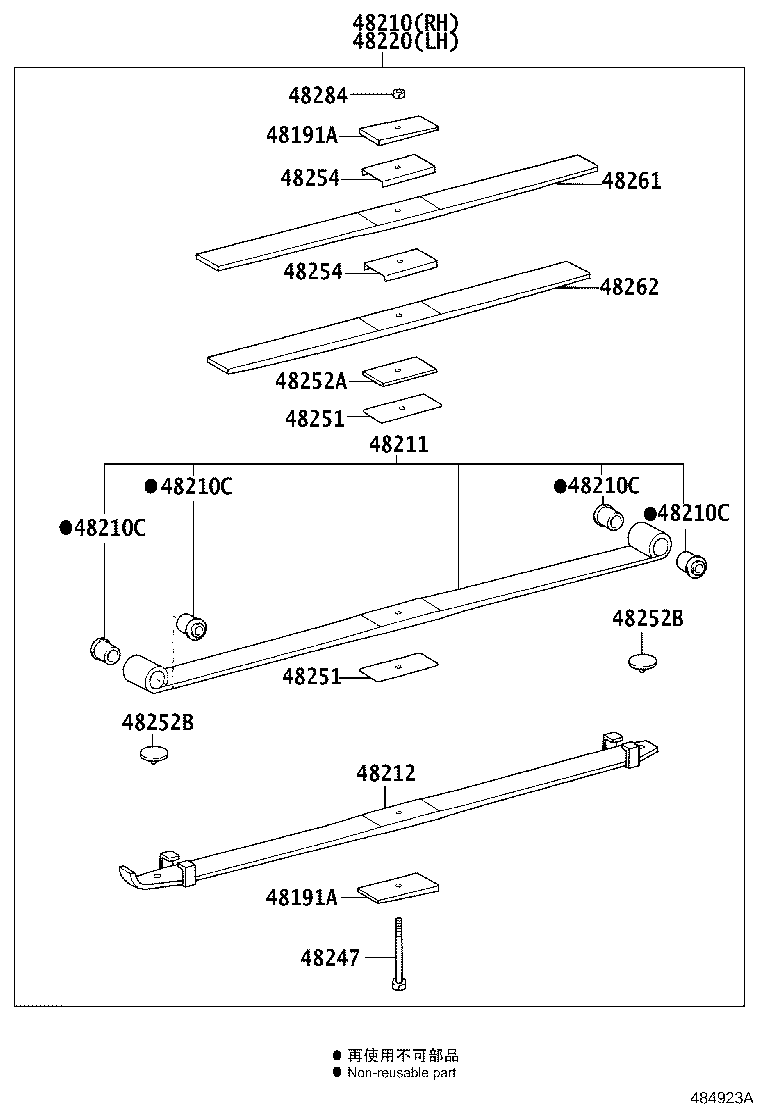

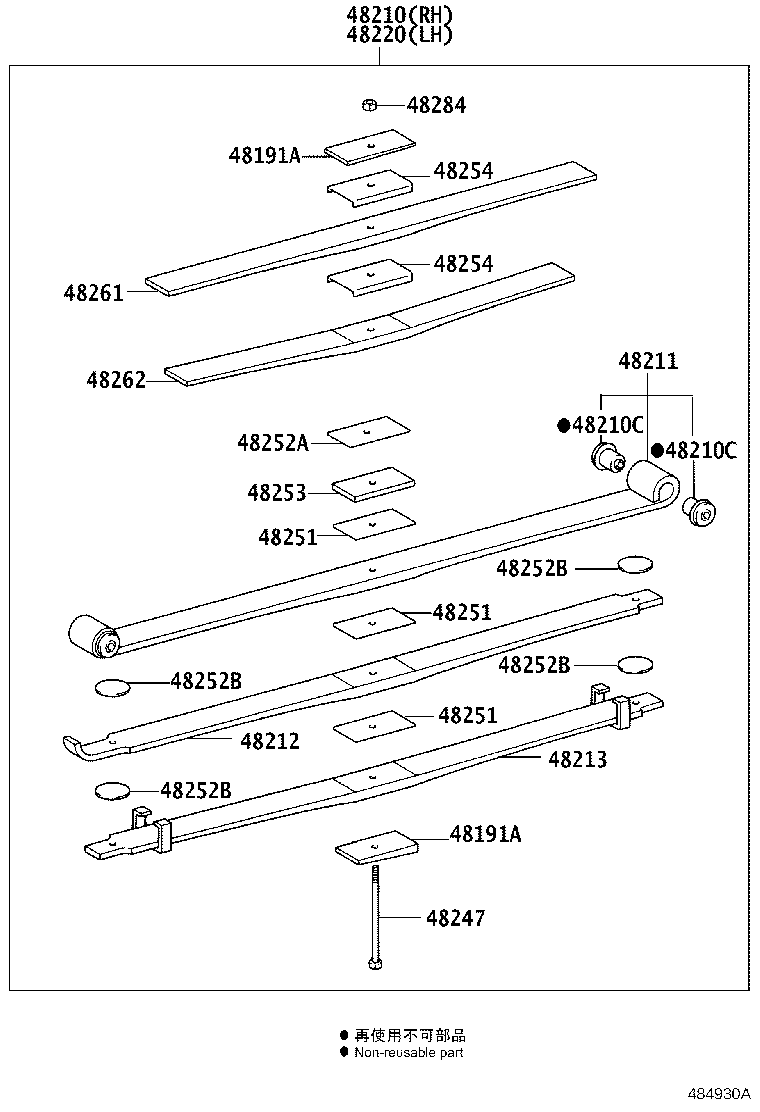

ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 1-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37S50 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37S40 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||

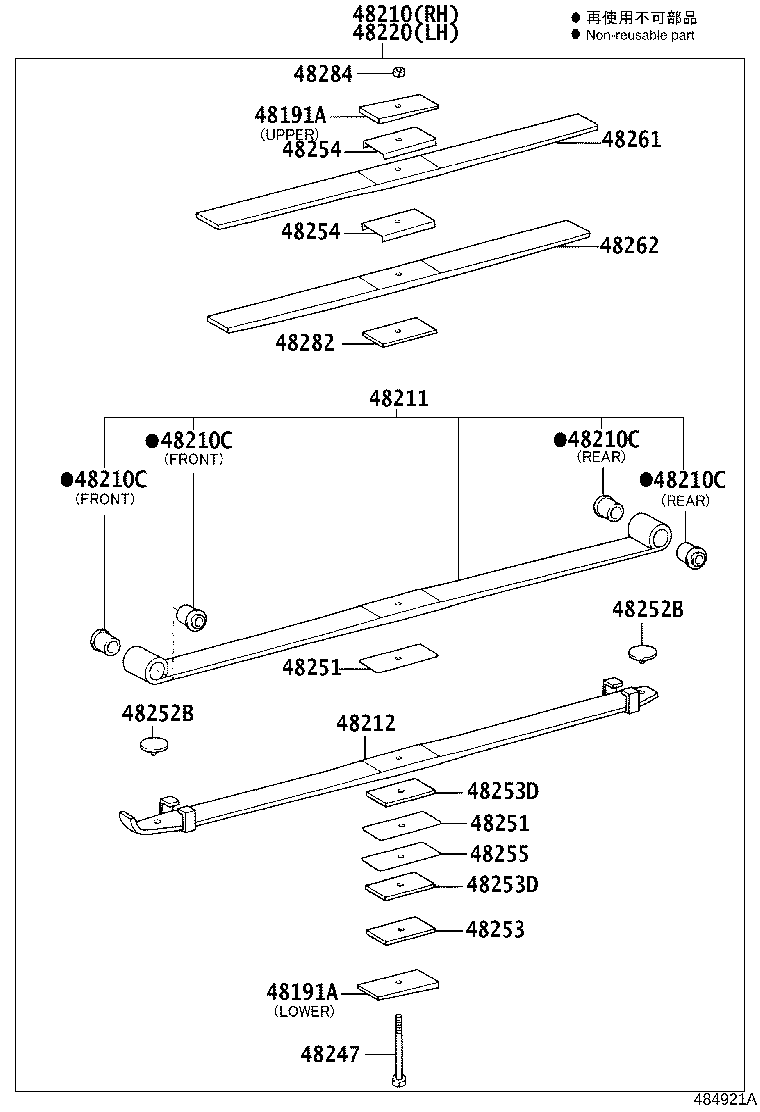

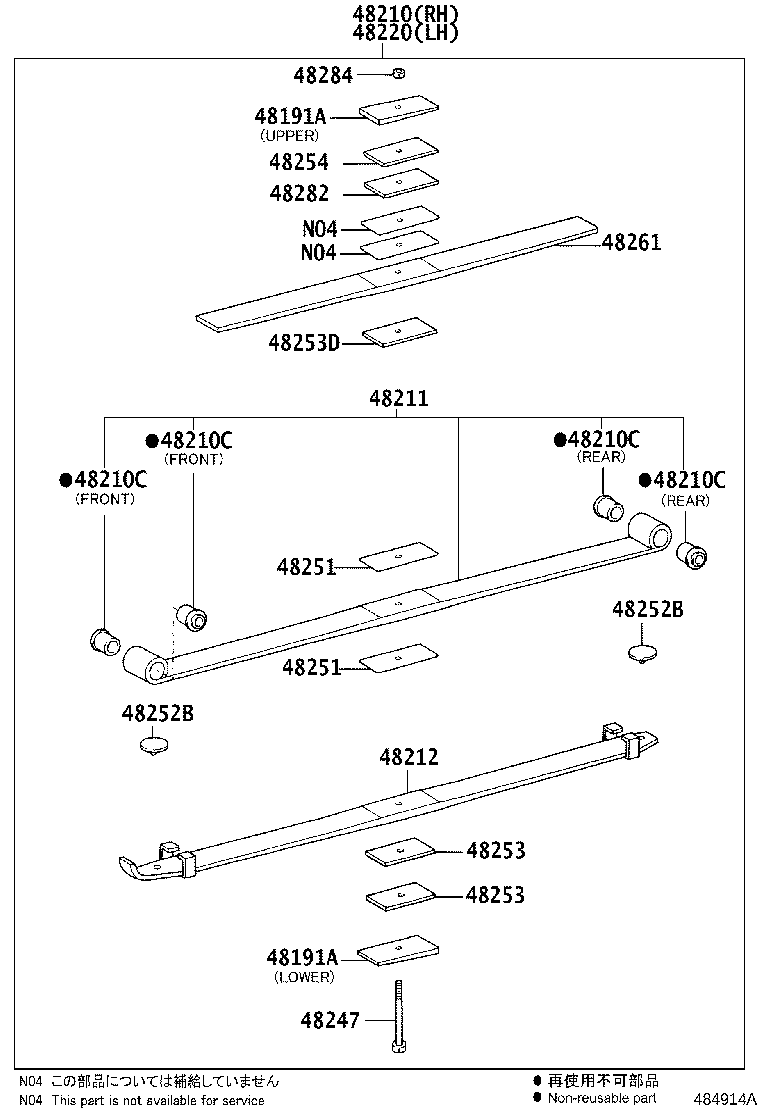

ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 1-LEAF,TYPE C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37S40 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||

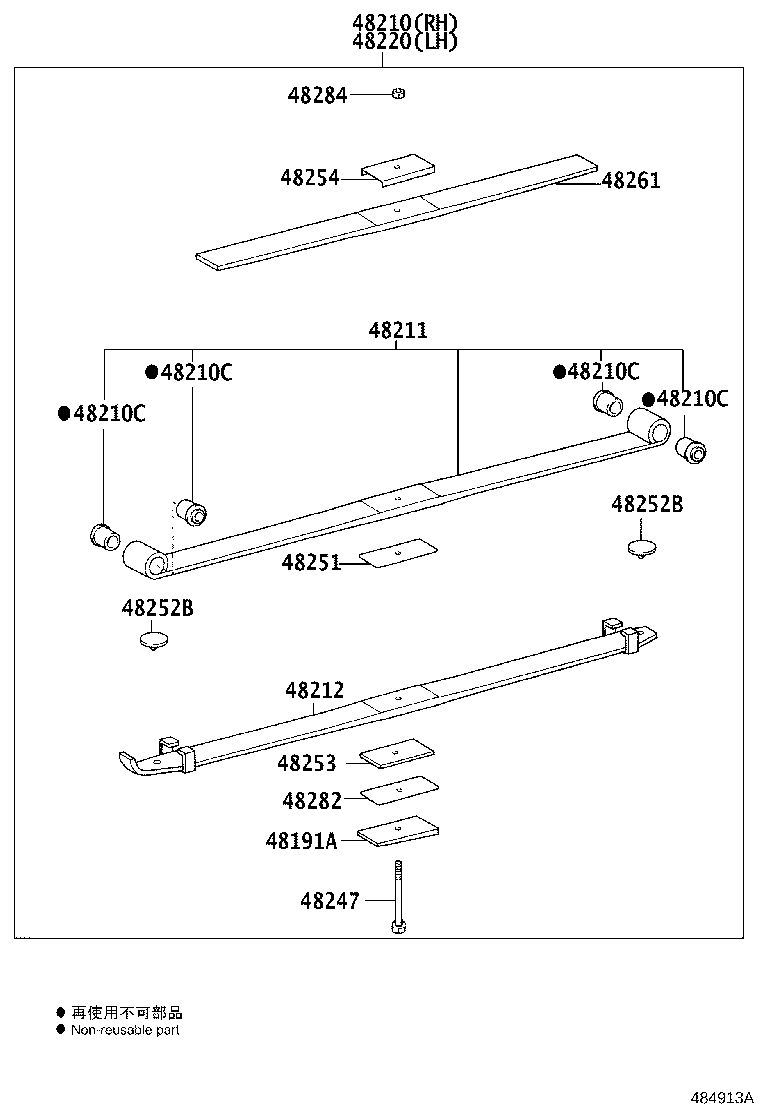

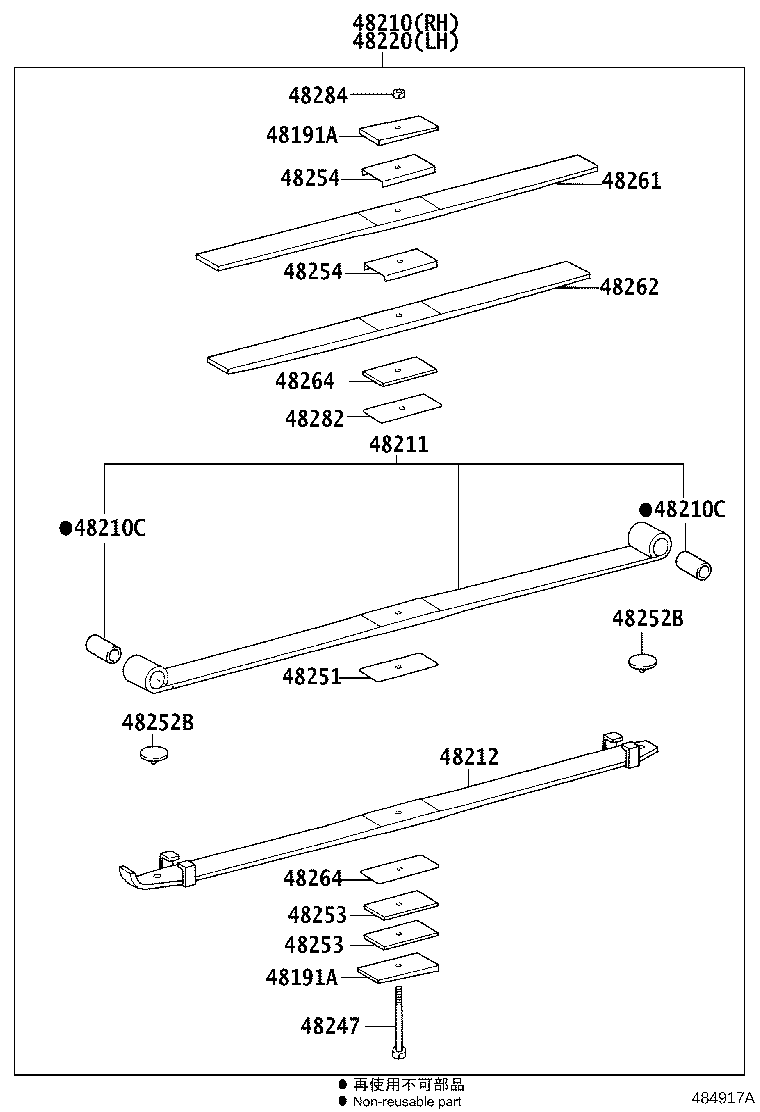

ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 1-LEAF,TYPE D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37S40 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||

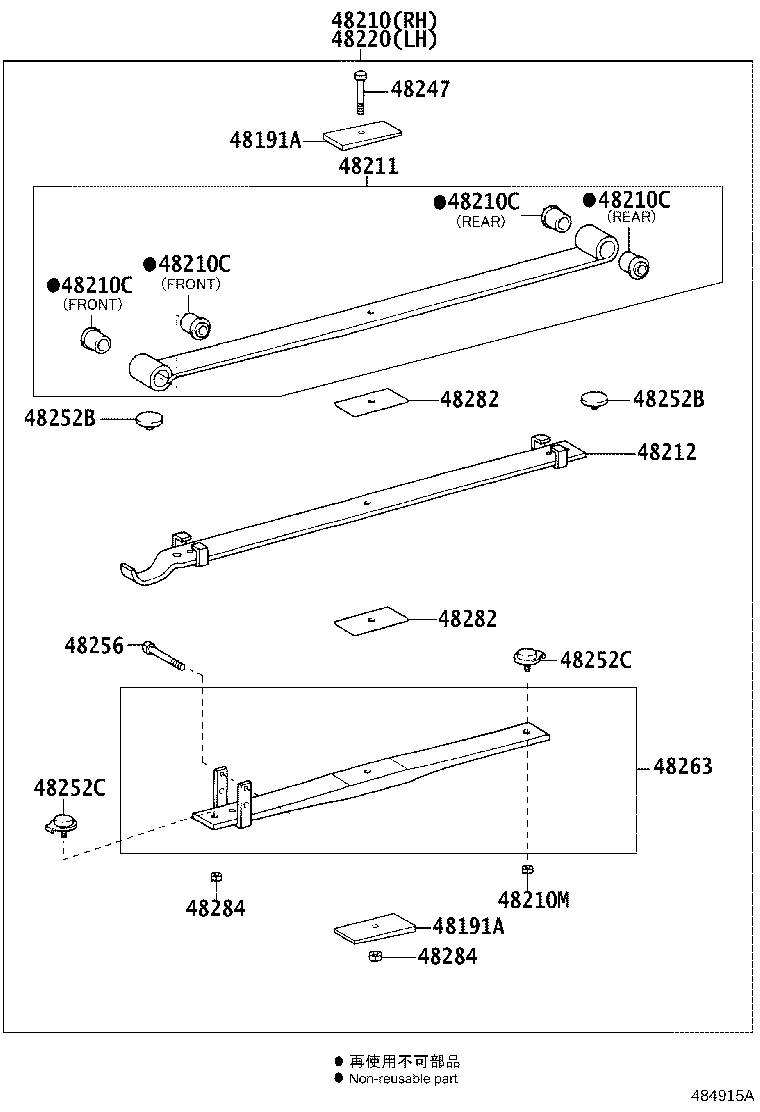

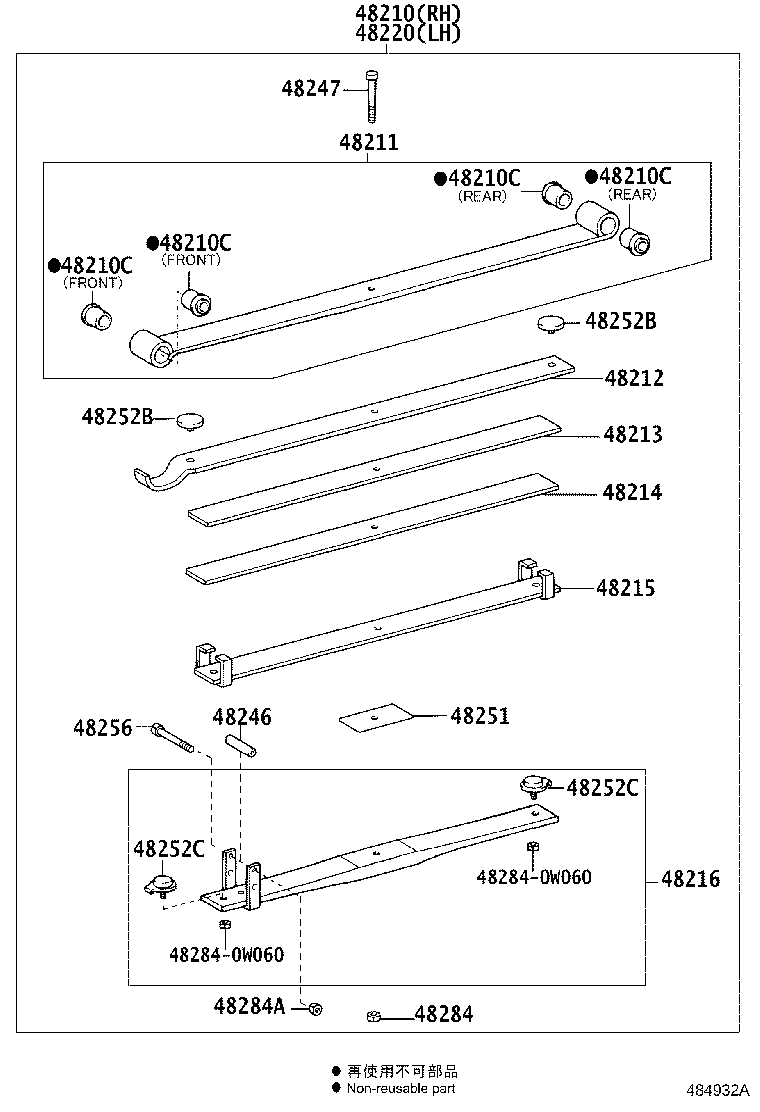

ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 1-LEAF,TYPE F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37S50 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37S40 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37S40 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 2-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37S40 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 2-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37S40 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 2-LEAF,TYPE C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37S40 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 2-LEAF,TYPE D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 2-LEAF,TYPE E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37S40 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 2-LEAF,TYPE F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37S40 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 2-LEAF,TYPE G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 3-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37S40 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 2+HELPER 3-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-37S40 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
3-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37S50 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
3-LEAF,TYPE C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
3-LEAF,TYPE D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 3+HELPER 2-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
MAIN 3+HELPER 2-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD ﾌﾛﾝﾄ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 90389-16027 |
XZC60#,XZU600,605..(DM5,T5)..20T..DCRWD ﾘﾔ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37T20 |
XZC600..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37T20 |
XZC600..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V00 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37S50 |
XZC60#,XZU605..(DM5,T5)..20T..DCRWD TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU685..30T..DCRWD;XZC60#,XZU605,642..(DM5,DM7,T5)..(20T,40T)..DCRWD;XZU600,640,645,650,655,695..(T3,T4)..30T..DCRWD..(CBU,IV3,IV7) TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| Common parts | ||||
| 48284-0W060 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
