XZC600-TQMMA3 (2011)
Toyota Dyna/Toyoace
(1107- )XZC600,610,630..WT

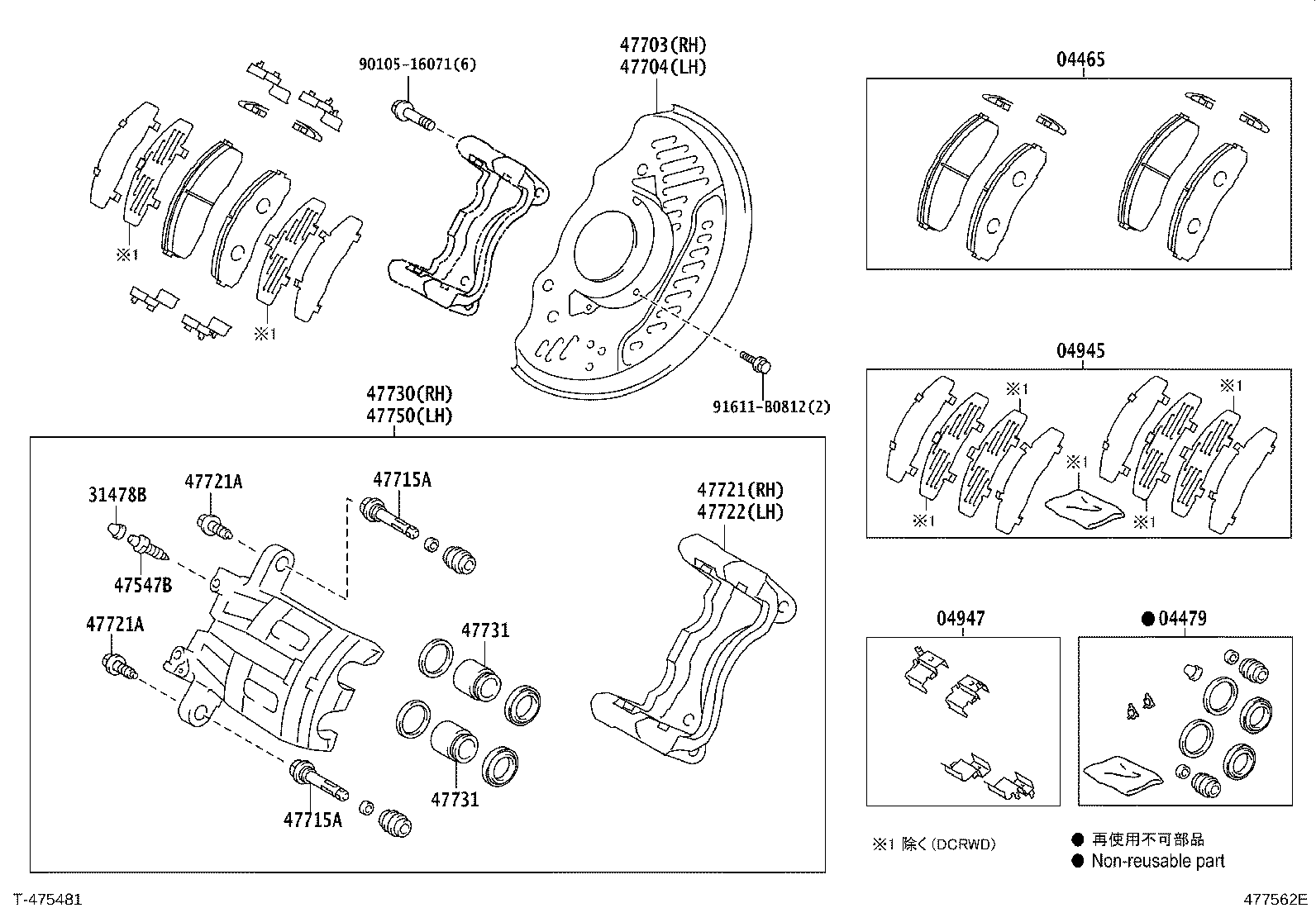

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-37220 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT ﾏｰｸ ADVICS VC035 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 0447B-37010 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-37150 |
XZC60#,610,630,645,655..WT |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 0494A-37010 |
XZC60#,610,630,645,655..WT |
2 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
BZU600,TRC600,TRU600;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12030 |
XZC60#,610,630,645,655..WT |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-37260 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-37260 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-37250 |
XZC600,610,630..WT |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90015-AA601 |
XZC60#,610,630,645,655..WT *10−1.00PX20−9 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90015-AA601 |
XZC60#,610,630,645,655..WT *10−1.00PX20−9 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-37250 |
XZC600,610,630..WT |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-37252 |
XZC600,610,630..WT |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60070 |
XZC60#,610,630,645,655..WT |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60070 |
XZC60#,610,630,645,655..WT |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-37252 |
XZC600,610,630..WT |
1 | ||
| Common parts | ||||
| 90105-16071 | ||||
| 91611-B0812 | ||||
(1107- )XZC675,XZU675,685,695 ; (1107- )XZU655..T2,T3..20T..DCRTJ ; (1107-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-37220 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT ﾏｰｸ ADVICS VC035 |
1 | ||
| 04465-37220 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT ﾏｰｸ ADVICS VC035 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 0447B-37010 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 0447B-37010 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-37150 |
XZC60#,610,630,645,655..WT |
1 | ||
| 04945-37150 |
XZC60#,610,630,645,655..WT |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 0494A-37010 |
XZC60#,610,630,645,655..WT |
2 | ||
| 0494A-37010 |
XZC60#,610,630,645,655..WT |
2 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
BZU600,TRC600,TRU600;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 31478-30010 |
BZU600,TRC600,TRU600;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12030 |
XZC60#,610,630,645,655..WT |
2 | ||
| 47547-12030 |
XZC60#,610,630,645,655..WT |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47703-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47704-37030 |
BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-37250 |
XZC600,610,630..WT |
1 | ||
| 47721-37250 |
XZC600,610,630..WT |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90015-AA601 |
XZC60#,610,630,645,655..WT *10−1.00PX20−9 |
4 | ||
| 90015-AA601 |
XZC60#,610,630,645,655..WT *10−1.00PX20−9 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90015-AA601 |
XZC60#,610,630,645,655..WT *10−1.00PX20−9 |
4 | ||
| 90015-AA601 |
XZC60#,610,630,645,655..WT *10−1.00PX20−9 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-37250 |
XZC600,610,630..WT |
1 | ||
| 47722-37250 |
XZC600,610,630..WT |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-37252 |
XZC600,610,630..WT |
1 | ||
| 47730-37252 |
XZC600,610,630..WT |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60070 |
XZC60#,610,630,645,655..WT |
4 | ||
| 47731-60070 |
XZC60#,610,630,645,655..WT |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60070 |
XZC60#,610,630,645,655..WT |
4 | ||
| 47731-60070 |
XZC60#,610,630,645,655..WT |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-37252 |
XZC600,610,630..WT |
1 | ||
| 47750-37252 |
XZC600,610,630..WT |
1 | ||
| Common parts | ||||
| 90105-16073 | ||||
| 91611-B0812 | ||||
