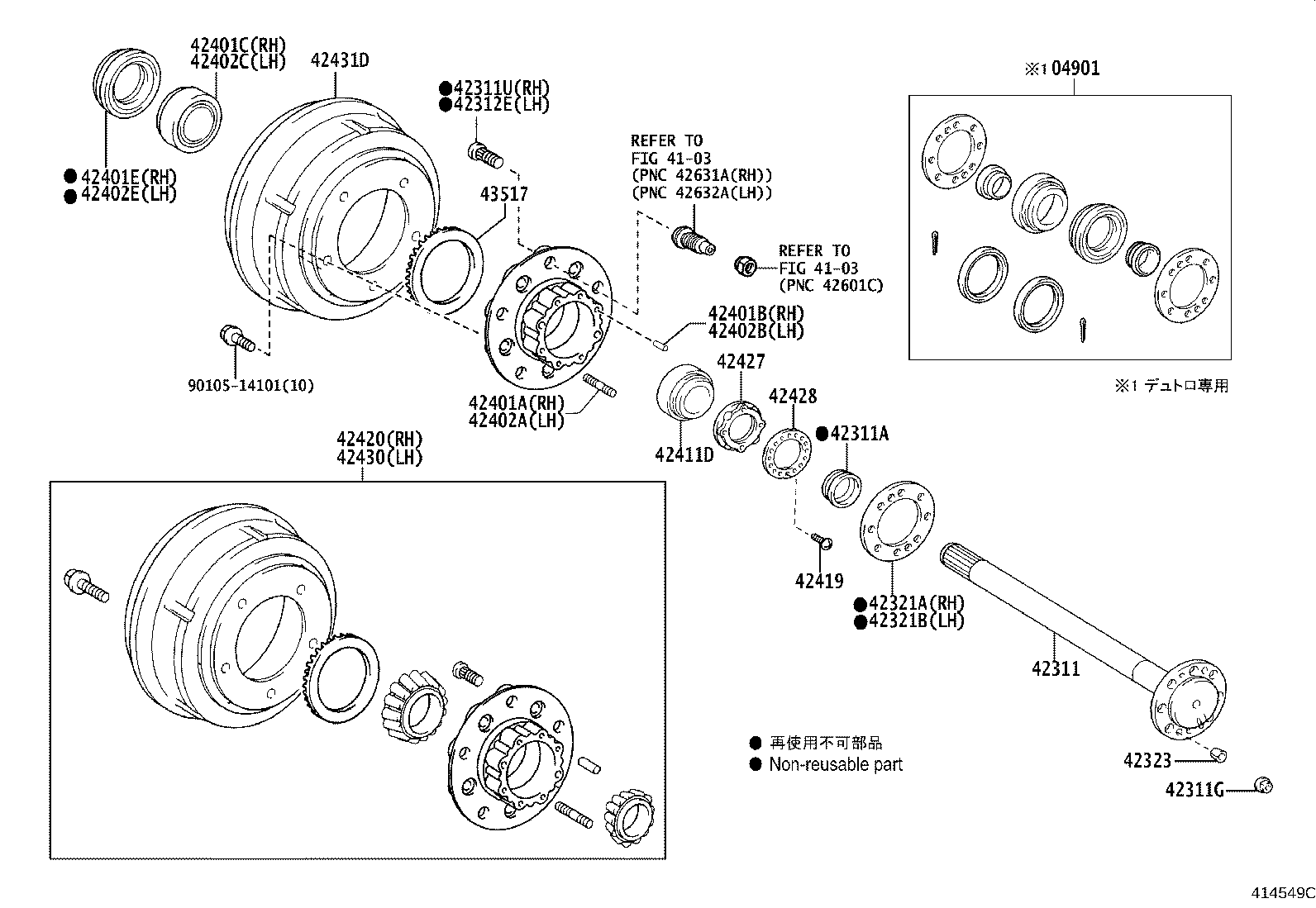

XZC600-TQMMA3 (2011)
Toyota Dyna/Toyoace
(1107-1605)BZU600,TRC600,TRU600,XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..
ﾃﾞｨｽｸﾌﾞﾚｰｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04901 - MAINTENANCE KIT, BRAKE | ||||
| 04901-37030 |
XZU655..T2..DCRTJ;XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,610,630,645,655..20T..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 04901-37030 |
XZU655..T2..DCRTJ;XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,610,630,645,655..20T..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 04901-37030 |
XZU655..T2..DCRTJ;XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,610,630,645,655..20T..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 04901-37030 |
XZU655..T2..DCRTJ;XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,610,630,645,655..20T..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 41252B - DEFLECTOR, DUST, RH | ||||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252C - DEFLECTOR, DUST, LH | ||||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-37060 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645..(03S,DM5,DM7,T2,T4,T5)..WT |
2 | ||
| 42311-37060 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645..(03S,DM5,DM7,T2,T4,T5)..WT |
2 | ||
| 42311-37060 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645..(03S,DM5,DM7,T2,T4,T5)..WT |
2 | ||
| 42311-37060 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645..(03S,DM5,DM7,T2,T4,T5)..WT |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 90310-38033 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 90310-38033 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 90310-38033 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-10067 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 90179-10067 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 90179-10067 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 90179-10067 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02085 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02085 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02085 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02085 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02071 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02071 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02071 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02071 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02072 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02072 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02072 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02072 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02086 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02086 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02086 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02086 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 42321A - GASKET, REAR AXLE SHAFT, RH | ||||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321B - GASKET, REAR AXLE SHAFT, LH | ||||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 42323-36010 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 42323-36010 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 42323-36010 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90366-55054 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90366-55054 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90366-55054 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90366-55054 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 93311-16012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 93311-16012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 93311-16012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42430-39685 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42430-39685 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42430-39685 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42430-39685 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42427-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42427-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42427-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42428-36020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42428-36020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42428-36020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39695 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42430-39695 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42430-39695 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42430-39695 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-37091 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42431-37091 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42431-37091 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42431-37091 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42431-37090 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(20T,30T)..WT |
2 | ||
| 42431-37090 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(20T,30T)..WT |
2 | ||
| 42431-37090 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(20T,30T)..WT |
2 | ||
| 42431-37090 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(20T,30T)..WT |
2 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-37040 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 43517-37040 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 43517-37040 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 43517-37040 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| Common parts | ||||
| 90031-09085 | ||||
| 90105-14101 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(1605- )BZU600,XZC60#,645,655,XZU605,640,645,650,655..20T,30T..WT..DCRTH,DCRTJ,D
ﾃﾞｨｽｸﾌﾞﾚｰｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04901 - MAINTENANCE KIT, BRAKE | ||||
| 04901-37030 |
XZU655..T2..DCRTJ;XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,610,630,645,655..20T..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 04901-37030 |
XZU655..T2..DCRTJ;XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,610,630,645,655..20T..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 04901-37030 |
XZU655..T2..DCRTJ;XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,610,630,645,655..20T..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 04901-37030 |
XZU655..T2..DCRTJ;XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,610,630,645,655..20T..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 41252B - DEFLECTOR, DUST, RH | ||||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252C - DEFLECTOR, DUST, LH | ||||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 41252-37050 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-37060 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645..(03S,DM5,DM7,T2,T4,T5)..WT |
2 | ||
| 42311-37060 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645..(03S,DM5,DM7,T2,T4,T5)..WT |
2 | ||
| 42311-37060 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645..(03S,DM5,DM7,T2,T4,T5)..WT |
2 | ||
| 42311-37060 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645..(03S,DM5,DM7,T2,T4,T5)..WT |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 90310-38033 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 90310-38033 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 90310-38033 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-10067 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 90179-10067 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 90179-10067 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 90179-10067 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02085 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02085 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02085 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02085 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02071 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02071 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02071 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02071 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02072 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02072 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02072 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02072 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02086 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02086 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02086 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02086 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 42321A - GASKET, REAR AXLE SHAFT, RH | ||||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321B - GASKET, REAR AXLE SHAFT, LH | ||||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 42323-36010 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 42323-36010 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 42323-36010 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90366-55054 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90366-55054 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90366-55054 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 90366-55054 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 93311-16012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 93311-16012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 93311-16012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42430-39685 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42430-39685 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42430-39685 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42430-39685 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42427-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42427-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42427-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42428-36020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42428-36020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42428-36020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39695 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42430-39695 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42430-39695 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42430-39695 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-37091 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42431-37091 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42431-37091 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42431-37091 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42431-37090 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(20T,30T)..WT |
2 | ||
| 42431-37090 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(20T,30T)..WT |
2 | ||
| 42431-37090 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(20T,30T)..WT |
2 | ||
| 42431-37090 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(20T,30T)..WT |
2 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-37040 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 43517-37040 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 43517-37040 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 43517-37040 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| Common parts | ||||
| 90031-09085 | ||||
| 90105-14101 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(1605- )XZC610,630,XZU600,610,620,630..DM3,DM5,DM7..DCRTJ,DCRTK ; (1905- )XZC
ﾄﾞﾗﾑﾌﾞﾚｰｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04901 - MAINTENANCE KIT, BRAKE | ||||
| 04901-37030 |
XZU655..T2..DCRTJ;XZU600,605..(T2,T4)..20T..(DCRTH,DCRTJ);BZU600,TRC600,XZC60#,610,630,645,655..20T..(DCRTH,DCRTJ,EFI,LPG)..(CBU,IV3) |
1 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-37060 |
XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645..(03S,DM5,DM7,T2,T4,T5)..WT |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-10067 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02085 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 90942-02071 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02072 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
5 | ||
| 90942-02086 |
XZC60#,630,645,655..(DM7,T3,T4,T5)..WT..IV3 ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ用(16ｲﾝﾁ) |
5 | ||
| 42321A - GASKET, REAR AXLE SHAFT, RH | ||||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42321B - GASKET, REAR AXLE SHAFT, LH | ||||
| 42321-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
12 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-10191 |
XZU655..T2;XZC600..5F..ST;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
6 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10055 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90366-60012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-78001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90366-55054 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42430-39685 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39695 |
XZU655..T2;XZU60#..(T2,T4)..20T..(DCRTH,DCRTJ);XZC60#,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-37040 |
XZU685..IV4;XZU650..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| Common parts | ||||
| 90105-14101 | ||||
| Linked diagrams | ||||
| 4103 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
