XZC600-TPTLB (2011)
Toyota Dyna/Toyoace
(1107- )XZC600,XZU600..T4,T5 ; (1107- )XZU650..20T,30T..DCRTJ,DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-37490 |
XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;XZC600,XZU600..(T3,T5)..6FC..(20T,40T) |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37470 |
XZC600..6FC..ST;XZU650..T4..30T;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;XZC600,XZU600..(T3,T5)..6FC..(20T,40T) |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30030 |
XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;XZC600,XZU600..(T3,T5)..6FC..(20T,40T) |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-37320 |
XZC600..6FC..ST;XZU650..T4..30T;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37670 |
XZC600..6FC..ST;XZU650..T4..30T;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-37141 |
XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;XZC600,XZU600..(T3,T5)..6FC..(20T,40T) |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37310 |
XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;XZC600,XZU600..(T3,T5)..6FC..(20T,40T) |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37030 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) NO.1 |
1 | ||
| 44448-37080 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) NO.3 |
2 | ||
| 44448-37060 |
XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;XZC600,XZU600..(T3,T5)..6FC..(20T,40T) NO.2 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37030 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) NO.1 |
1 | ||
| 44448-37080 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) NO.3 |
2 | ||
| 44448-37060 |
XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;XZC600,XZU600..(T3,T5)..6FC..(20T,40T) NO.2 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37030 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) NO.1 |
1 | ||
| 44448-37080 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) NO.3 |
2 | ||
| 44448-37060 |
XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;XZC600,XZU600..(T3,T5)..6FC..(20T,40T) NO.2 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37030 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) NO.1 |
1 | ||
| 44448-37080 |
XZC600..6FC..ST;XZU650..T4..30T;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU;TRU600,XZU640..T3..5F..(DCRTJ,EFI)..IV3;TRC600,XZU600..(DM5,T3)..(5F,6FC)..(20T,40T) NO.3 |
2 | ||
| 44448-37060 |
XZU650..T4..30T;XZU640..DCRTJ..CBU;XZU640..T4..6FC..IV3;XZU650..T3..30T..IV3;XZU640..T3..5F..DCRTJ..IV3;XZU650..T3..30T..DCRTK..CBU;XZC600,XZU600..(T3,T5)..6FC..(20T,40T) NO.2 |
1 | ||
| Common parts | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 94125-41600 | ||||

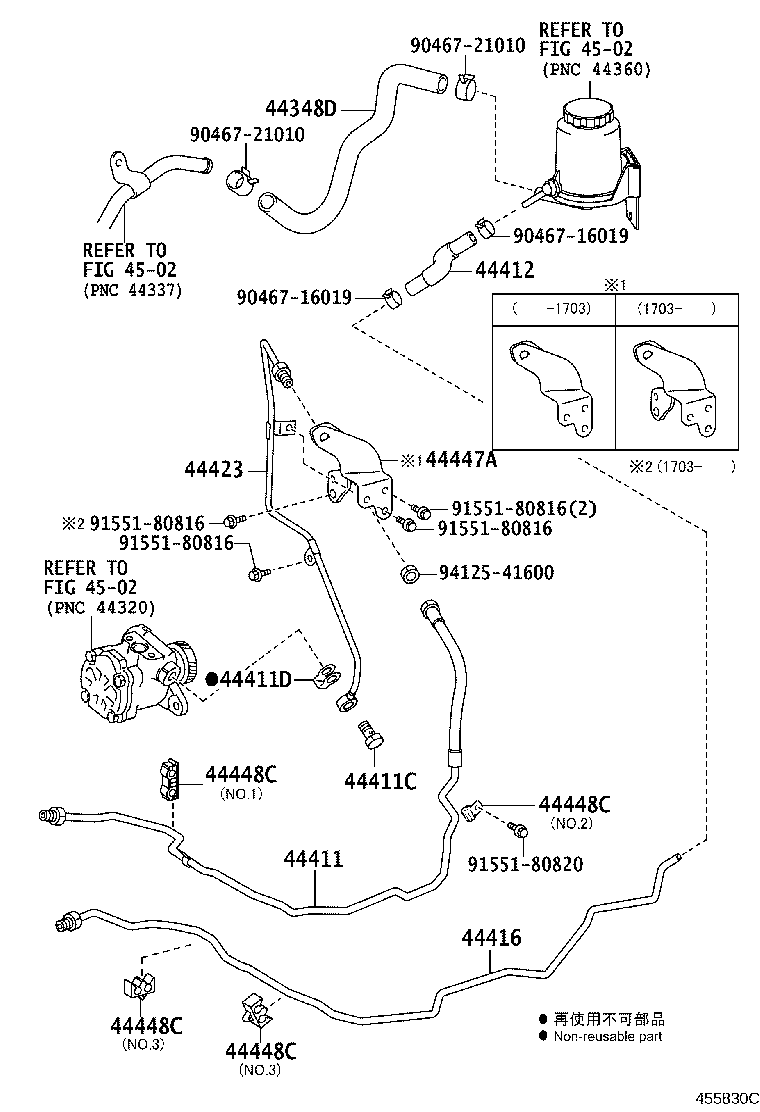

| Linked diagrams | ||||
| 4502 | ||||
