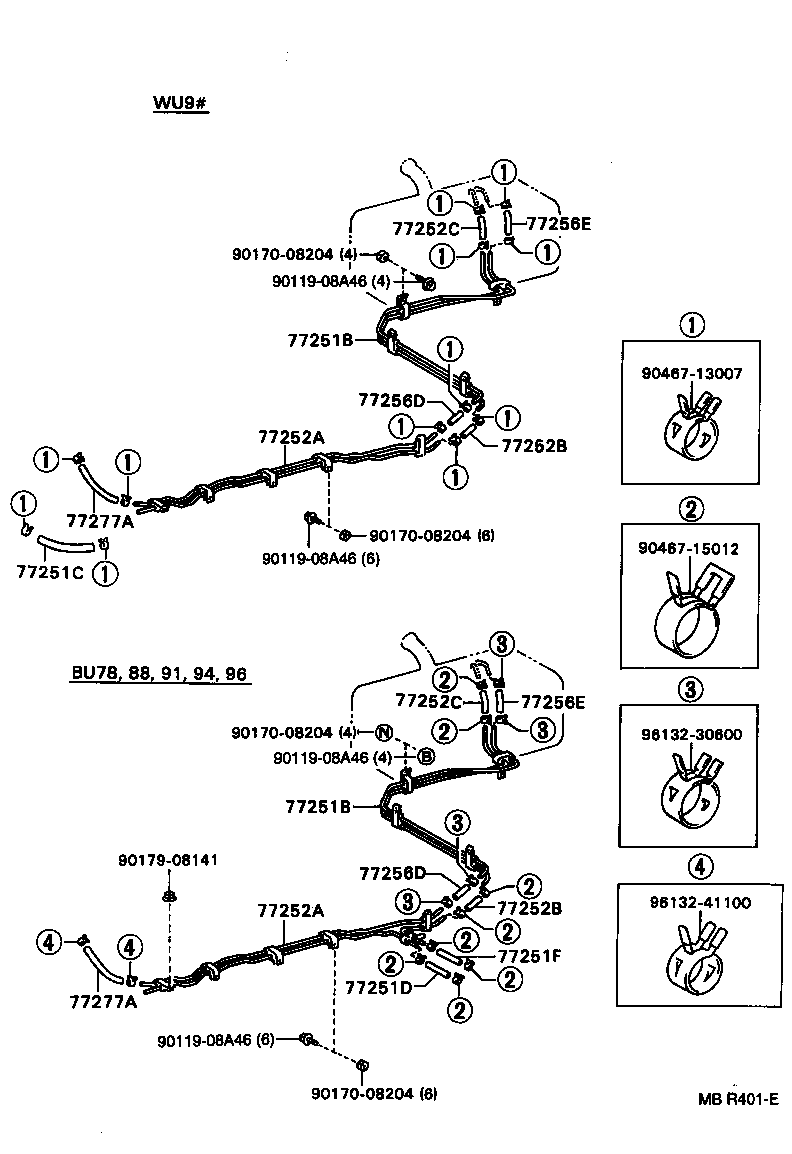

WU95-MDDTJ3 (1988)
Toyota Dyna/Toyoace
(8808- )BU85,90,95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08A46 | ||||
| 90170-08204 | ||||
| 90467-13007 | ||||
| 96132-41300 | ||||
(8808- )DMP,TR..DSL,TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36181 |
WU75,85,9#,YU6#..(DM1,T3)..(CBR,DSL) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
WU75,85,9# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
WU75,85,9# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B100 |
WU75,85,9#..DM1,T3 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
WU75,85,9#,YU6#,70..CBR,DSL |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
WU75,85,9#,YU6#,70..CBR,DSL |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
WU85,9#..T3..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-) |
2 | ||
| 77601-36140 |
YU60..T3..ST..CBR;WU75,85,9#..DM1,T3 |
2 | ||
| 77601-36150 |
WU85,9#..T3..IV3;YU6#..(DM1,T3)..WT..CBR |
2 | ||
| 77601-36140 |
WU93..T3..IV3;WU85,90,95..T3..(30T,35T)..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
WU75,85,9#,YU6#..03S..(CBR,DSL) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36090 |
YU60..T3..ST..CBR;WU75,85,9#..DM1,T3 |
2 | ||
| 77633-36090 |
WU93..T3..IV3;WU85,90,95..T3..(30T,35T)..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ) |
2 | ||
| 77501-36080 |
WU85,9#..T3..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-) |
2 | ||
| 77501-36080 |
YU61;WU85,9#..T3..IV3 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36100 |
WU75,85,9#,YU60..(DM1,T3)..(CBR,DSL) |
2 | ||
| Common parts | ||||
| 90119-10533 | ||||
| 90159-40155 | ||||
| 90170-10028 | ||||
| 90467-13007 | ||||
| 91612-40616 | ||||
| 91651-40616 | ||||
| 94110-40800 | ||||
| 96132-30600 | ||||
(8808- )BU87..V ; (8808- )BU87..06S..IV3 ;(8808- )BU66..175..CBU ; (8808-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36181 |
WU75,85,9#,YU6#..(DM1,T3)..(CBR,DSL) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
WU75,85,9# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
WU75,85,9# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B100 |
WU75,85,9#..DM1,T3 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
WU75,85,9#,YU6#,70..CBR,DSL |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
WU75,85,9#,YU6#,70..CBR,DSL |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
WU85,9#..T3..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-) |
2 | ||
| 77601-36140 |
YU60..T3..ST..CBR;WU75,85,9#..DM1,T3 |
2 | ||
| 77601-36150 |
WU85,9#..T3..IV3;YU6#..(DM1,T3)..WT..CBR |
2 | ||
| 77601-36140 |
WU93..T3..IV3;WU85,90,95..T3..(30T,35T)..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
WU75,85,9#,YU6#..03S..(CBR,DSL) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36090 |
YU60..T3..ST..CBR;WU75,85,9#..DM1,T3 |
2 | ||
| 77633-36090 |
WU93..T3..IV3;WU85,90,95..T3..(30T,35T)..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ) |
2 | ||
| 77501-36080 |
WU85,9#..T3..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-) |
2 | ||
| 77501-36080 |
YU61;WU85,9#..T3..IV3 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36100 |
WU75,85,9#,YU60..(DM1,T3)..(CBR,DSL) |
2 | ||
| Common parts | ||||
| 90119-10581 | ||||
| 90159-40155 | ||||
| 90159-60047 | ||||
| 90170-10028 | ||||
| 90467-13007 | ||||
| 91611-10533 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 93315-15012 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
(8808- )BU85,87,88,9#..T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
WU75,85,9# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 95332-10014 |
WU9#..T3;WU85..30T *H,L=140 |
2 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 95332-10014 |
WU9#..T3;WU85..30T *H,L=140 |
2 | ||
| 77100T - UNION(FOR FUEL SUB-TANK) | ||||
| 90405-10008 |
WU9#..T3;WU85..30T |
2 | ||
| 77100T - UNION(FOR FUEL SUB-TANK) | ||||
| 90405-10008 |
WU9#..T3;WU85..30T |
2 | ||
| 77100Z - TANK SUB-ASSY, FUEL SUB | ||||
| 77001-3B130 |
WU9#..T3;WU85..30T |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
WU85,9#..T3..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-) |
2 | ||
| 77601-36140 |
YU60..T3..ST..CBR;WU75,85,9#..DM1,T3 |
2 | ||
| 77601-36150 |
WU85,9#..T3..IV3;YU6#..(DM1,T3)..WT..CBR |
2 | ||
| 77601-36140 |
WU93..T3..IV3;WU85,90,95..T3..(30T,35T)..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
WU75,85,9#,YU6#..03S..(CBR,DSL) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36090 |
YU60..T3..ST..CBR;WU75,85,9#..DM1,T3 |
2 | ||
| 77633-36090 |
WU93..T3..IV3;WU85,90,95..T3..(30T,35T)..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ) |
2 | ||
| 77501-36080 |
WU85,9#..T3..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-) |
2 | ||
| 77501-36080 |
YU61;WU85,9#..T3..IV3 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36100 |
WU75,85,9#,YU60..(DM1,T3)..(CBR,DSL) |
2 | ||
| 77710 - COCK ASSY, FUEL CHANGE | ||||
| 77710-36030 |
WU9#..T3;WU85..30T |
1 | ||
| 77712 - VALVE, FUEL CHANGE COCK | ||||
| 77712-36011 |
WU9#..T3;WU85..30T |
1 | ||
| 77713 - LEVER, FUEL CHANGE COCK | ||||
| 77713-36010 |
WU9#..T3;WU85..30T |
1 | ||
| 77714 - CAP, FUEL CHANGE COCK | ||||
| 77714-36010 |
WU9#..T3;WU85..30T |
1 | ||
| Common parts | ||||
| 90119-10531 | ||||
| 90170-10028 | ||||
| 90202-09047 | ||||
| 90250-03031 | ||||
| 90386-08164 | ||||
| 90401-12007 | ||||
| 90461-07033 | ||||
| 90467-13007 | ||||
| 90480-14006 | ||||
| 91651-40616 | ||||
| 93319-15010 | ||||
| 94110-40800 | ||||
| 96132-30600 | ||||
| 96132-31000 | ||||
| 96713-19019 | ||||
| 96713-24011 | ||||
(8808- )WU75,85,9#,YU6#..CBR,DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36181 |
WU75,85,9#,YU6#..(DM1,T3)..(CBR,DSL) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
WU75,85,9# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
WU75,85,9# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B100 |
WU75,85,9#..DM1,T3 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
WU75,85,9#,YU6#,70..CBR,DSL |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
WU75,85,9#,YU6#,70..CBR,DSL |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
WU85,9#..T3..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-) |
2 | ||
| 77601-36140 |
YU60..T3..ST..CBR;WU75,85,9#..DM1,T3 |
2 | ||
| 77601-36150 |
WU85,9#..T3..IV3;YU6#..(DM1,T3)..WT..CBR |
2 | ||
| 77601-36140 |
WU93..T3..IV3;WU85,90,95..T3..(30T,35T)..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
WU75,85,9#,YU6#..03S..(CBR,DSL) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36090 |
YU60..T3..ST..CBR;WU75,85,9#..DM1,T3 |
2 | ||
| 77633-36090 |
WU93..T3..IV3;WU85,90,95..T3..(30T,35T)..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ) |
2 | ||
| 77501-36080 |
WU85,9#..T3..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-) |
2 | ||
| 77501-36080 |
YU61;WU85,9#..T3..IV3 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36100 |
WU75,85,9#,YU60..(DM1,T3)..(CBR,DSL) |
2 | ||
| Common parts | ||||
| 90119-10533 | ||||
| 90159-40155 | ||||
| 90170-10028 | ||||
| 90467-13007 | ||||
| 91612-40616 | ||||
| 91651-40616 | ||||
| 94110-40800 | ||||
| 96132-30600 | ||||
(8808- )WU85,9#..T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
WU75,85,9# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
WU75,85,9#,YU6#..03S..(CBR,DSL) *H,L=300 |
2 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 95332-10014 |
WU9#..T3;WU85..30T *H,L=140 |
2 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 95332-10014 |
WU9#..T3;WU85..30T *H,L=140 |
2 | ||
| 77100T - UNION(FOR FUEL SUB-TANK) | ||||
| 90405-10008 |
WU9#..T3;WU85..30T |
2 | ||
| 77100T - UNION(FOR FUEL SUB-TANK) | ||||
| 90405-10008 |
WU9#..T3;WU85..30T |
2 | ||
| 77100Z - TANK SUB-ASSY, FUEL SUB | ||||
| 77001-3B130 |
WU9#..T3;WU85..30T |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
WU85,9#..T3..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-) |
2 | ||
| 77601-36140 |
YU60..T3..ST..CBR;WU75,85,9#..DM1,T3 |
2 | ||
| 77601-36150 |
WU85,9#..T3..IV3;YU6#..(DM1,T3)..WT..CBR |
2 | ||
| 77601-36140 |
WU93..T3..IV3;WU85,90,95..T3..(30T,35T)..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
WU75,85,9#,YU6#..03S..(CBR,DSL) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-36090 |
YU60..T3..ST..CBR;WU75,85,9#..DM1,T3 |
2 | ||
| 77633-36090 |
WU93..T3..IV3;WU85,90,95..T3..(30T,35T)..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ｻﾌﾞﾀﾝｸ) |
2 | ||
| 77501-36080 |
WU85,9#..T3..IV3 ｱﾘ(ﾌﾕ-ｴﾙ ﾀﾝｸ ﾛﾝｸﾞ ｽﾃ-) |
2 | ||
| 77501-36080 |
YU61;WU85,9#..T3..IV3 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36100 |
WU75,85,9#,YU60..(DM1,T3)..(CBR,DSL) |
2 | ||
| 77710 - COCK ASSY, FUEL CHANGE | ||||
| 77710-36030 |
WU9#..T3;WU85..30T |
1 | ||
| 77712 - VALVE, FUEL CHANGE COCK | ||||
| 77712-36011 |
WU9#..T3;WU85..30T |
1 | ||
| 77713 - LEVER, FUEL CHANGE COCK | ||||
| 77713-36010 |
WU9#..T3;WU85..30T |
1 | ||
| 77714 - CAP, FUEL CHANGE COCK | ||||
| 77714-36010 |
WU9#..T3;WU85..30T |
1 | ||
| Common parts | ||||
| 90119-10531 | ||||
| 90170-10028 | ||||
| 90202-09047 | ||||
| 90250-03031 | ||||
| 90386-08164 | ||||
| 90401-12007 | ||||
| 90461-07033 | ||||
| 90467-13007 | ||||
| 90480-14006 | ||||
| 91651-40616 | ||||
| 93319-15010 | ||||
| 94110-40800 | ||||
| 96132-30600 | ||||
| 96132-31000 | ||||
| 96713-19019 | ||||
| 96713-24011 | ||||
(8808- )WU9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-36200 |
WU93,95 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-36200 |
WU93,95 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 23271-56050 |
WU75,85,9# *H,L=180 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77206-36310 |
WU9# |
1 | ||
| 77206-36311 |
WU85,9# |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77206-36310 |
WU9# |
1 | ||
| 77206-36311 |
WU85,9# |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95333-08040 |
WU93,95 長さ=400 |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95333-08040 |
WU93,95 長さ=400 |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95333-08030 |
WU85,9# |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95333-08030 |
WU85,9# |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-08040 |
WU93,95 |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-08040 |
WU93,95 |
1 | ||
| 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-08030 |
WU85,9# |
1 | ||
| 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 95333-08030 |
WU85,9# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-08020 |
WU75,85,9# 長さ=200,内径=8 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-08020 |
WU75,85,9# 長さ=200,内径=8 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90170-08204 | ||||
| 90179-08141 | ||||
| 90467-13007 | ||||
| 90467-15012 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
