WU95-MDDTJ (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )B,11B,14B#,3B

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116B 11116C 11116C 11116D 11116E 11117A 11117A 11122 11126 11158 11201 11201A 11212A 11213 12108 12108A 1701 1701 9211260820 9211260832 9211260835
Part # Description Qty Price
Common parts
92112-60820
92112-60832
92112-60835
Linked diagrams
1701

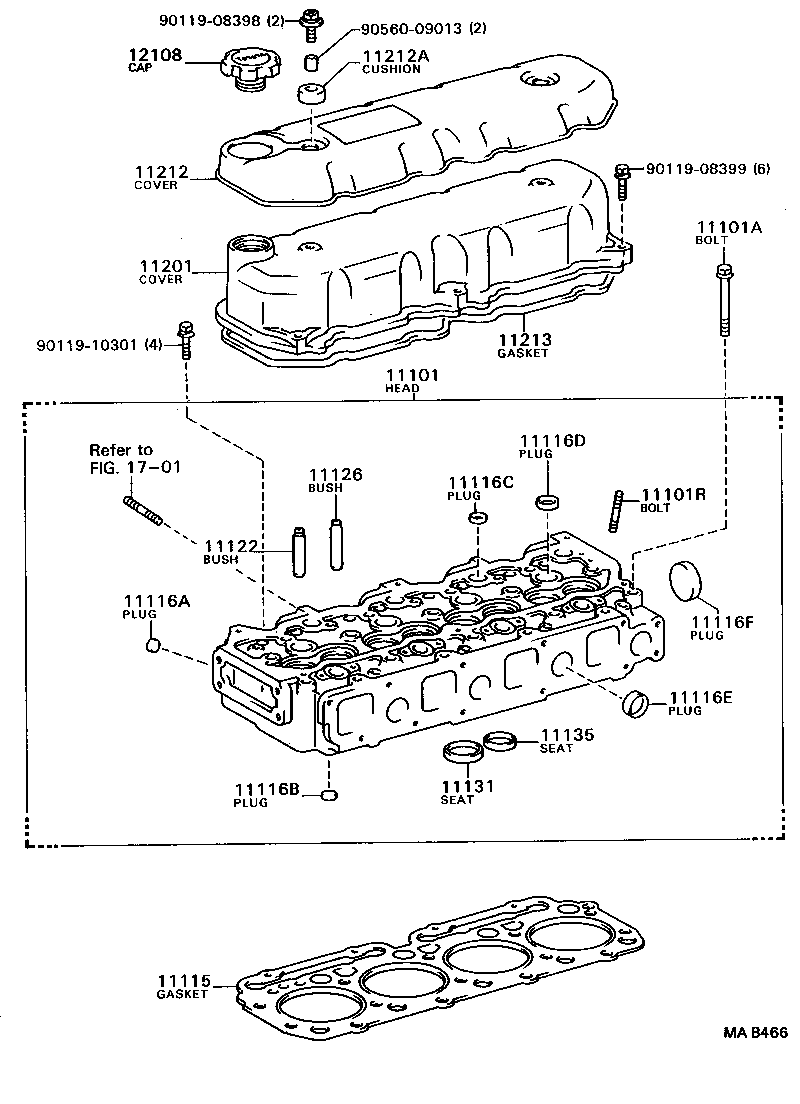

(8808- )1W

Click highlighted areas on diagram

diagram 11101 11101A 11101R 11115 11116A 11116B 11116C 11116D 11116E 11116F 11122 11126 11131 11135 11201 11212 11212A 11213 12108 1701 9011908398 9011908399 9011910301 9056009013
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11110-78010

1W..WU75,9#

 1
11110-89010

1W..WU75,85,9#

 1
11110-78010

1W..WU75,90,95

ｶﾝﾚｲﾁ ｼﾖｳ

 1
11110-78030

1W..WU75,85,9#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-12073

1W..WU75,85,9#

 13
11101R - BOLT, STUD(FOR FUEL PIPE)
90116-08173

1W..WU75,85,9#

 8
11115 - GASKET, CYLINDER HEAD
11115-78011

1W..WU75,85,9#

 1
11115-78012

1W..WU75,85,9#

 1
11115-78011

1W..WU75,90,95

ｶﾝﾚｲﾁｼﾖｳ

 1
11116A - PLUG, TIGHT, NO.1
90331-14005

1W..WU75,85,9#

 4
11116B - PLUG, TIGHT, NO.2
90331-22001

1W..WU75,85,9#

 4
11116C - PLUG, TIGHT, NO.3
90331-24001

1W..WU75,85,9#

 4
11116D - PLUG, TIGHT, NO.4
90331-26001

1W..WU75,85,9#

 4
11116E - PLUG, TIGHT, NO.5
90331-30001

1W..WU75,85,9#

 4
11116F - PLUG, TIGHT, NO.6
90331-50002

1W..WU75,85,9#

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-78010

1W..WU75,85,9#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-78010

1W..WU75,85,9#

STD

 4
11131 - SEAT, INTAKE VALVE
11131-78010

1W..WU75,85,9#

STD

 4
11135 - SEAT, EXHAUST VALVE
11135-78010

1W..WU75,85,9#

STD

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11211-78010

1W..WU75,85,9#

 1
11212 - COVER, CYLINDER HEAD, NO.2
11201-78010

1W..WU75,85,9#

 1
11212A - CUSHION, CYLINDER HEAD COVER
90540-11005

1W..WU75,85,9#

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-78010

1W..WU75,85,9#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12108-78010

1W..WU75,85,9#

 1
Common parts
90119-08398
90119-08399
90119-10301
90560-09013
Linked diagrams
1701
