WU95-MDDT3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

COOLER IDLE UP

diagram 88031 88031 88031 88645A 88691 88691 88691U 88691U 9046320473 9046400082 9046400082 9046400141 9046400233 9046400233 9165146016 9165146016 9165160616 9338518016 9338518016
Part # Description Qty Price
Common parts
90463-20473
90464-00082
90464-00141
90464-00233
91651-46016
91651-60616
93385-18016

(8708- )BU61,62,64,81,82,85,9#

Click highlighted areas on diagram

HEATER IDLE UP

diagram 88031 88031 88648B 88648B 88691 88691 88691C 88691C 88691D 88691D 88691U 9046320743 9046400082 9046400082 9046400139 9092901060 9161161014 9165160616 9165160616
Part # Description Qty Price
Common parts
90463-20743
90464-00082
90464-00139
90929-01060
91611-61014
91651-60616

(8708- )

Click highlighted areas on diagram

COOLER IDLE UP

diagram 88031 88031 88645A 88691 88691 88691U 88691U 9009120607 9046400074 9046400082 9046400082 9046400082 9046400233 9338518016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-36060

WU75,9#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-36060

WU75,9#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95427

WU75,9#

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88690-95417

WU75,9#

ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95427

WU75,9#

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88690-95417

WU75,9#

ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691U - WAY(FOR VACUUM HOSE)
90413-04005

WU75,9#

ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
90413-04001

WU75,9#

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691U - WAY(FOR VACUUM HOSE)
90413-04005

WU75,9#

ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
90413-04001

WU75,9#

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
Common parts
90091-20607
90464-00074
90464-00082
90464-00233
93385-18016

(8708- )WU75,9#

Click highlighted areas on diagram

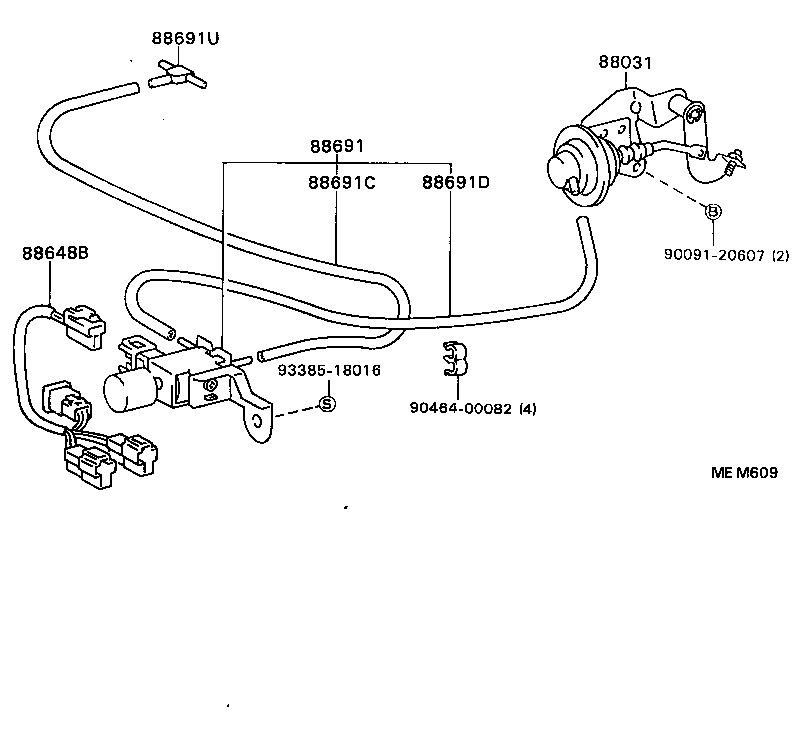

HEATER IDLE UP

diagram 88031 88648B 88691 88691C 88691D 88691U 9009120607 9046400082 9338518016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-36060

WU75,9#

 1
88648B - WIRING, COOLER, NO.1
88648-95425

WU75,9#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95427

WU75,9#

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88690-95417

WU75,9#

ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

WU75,9#

*H,L=510,ﾏｰｸ=#0

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
95411-19995

WU75,9#

*H,L=750,ﾏｰｸ=#*

 1
88691U - WAY(FOR VACUUM HOSE)
90413-04005

WU75,9#

ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
90413-04001

WU75,9#

ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ

 1
Common parts
90091-20607
90464-00082
93385-18016
