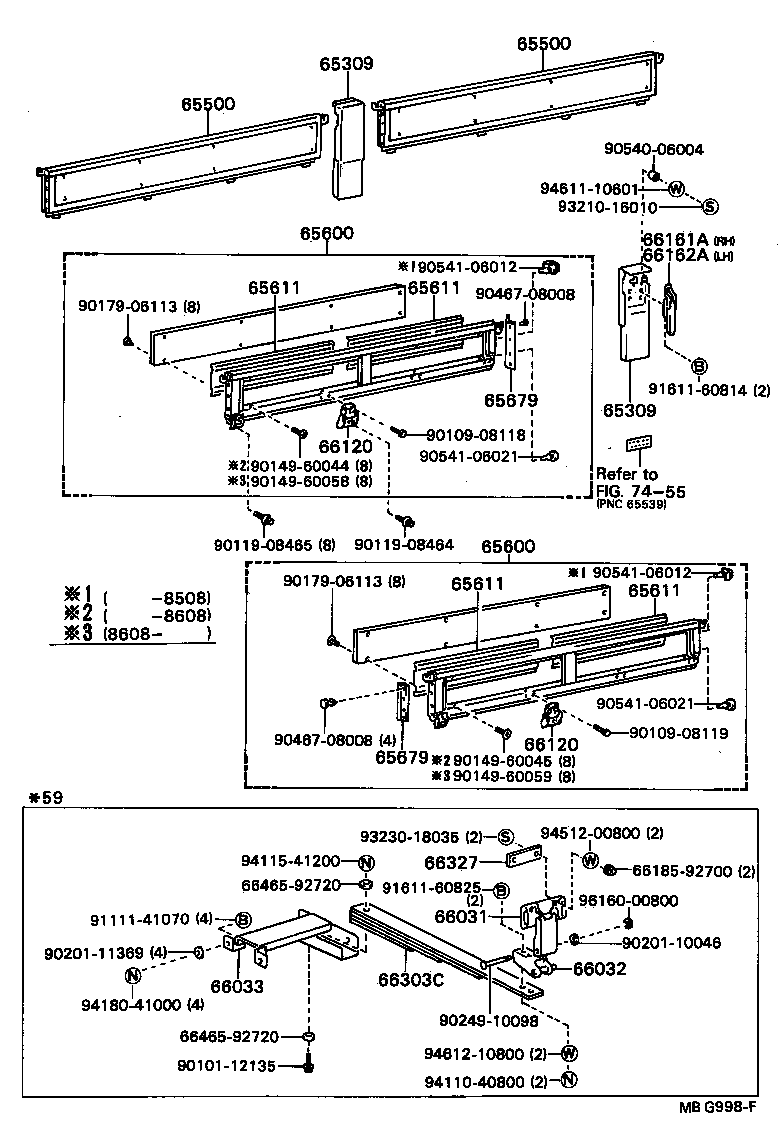

WU95-MDDT3 (1984)
Toyota Dyna/Toyoace
(8409- )BU93,95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65309 - POST SUB-ASSY, CENTER | ||||
| 65309-92801 |
WU95 |
2 | ||
| 65309-92800 |
WU95 |
2 | ||
| 65309 - POST SUB-ASSY, CENTER | ||||
| 65309-92801 |
WU95 |
2 | ||
| 65309-92800 |
WU95 |
2 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65660-92801 |
WU95 RR |
1 | ||
| 65500-92810 |
WU95 FR |
1 | ||
| 65660-92800 |
WU95 RR |
1 | ||
| 65500-92826 |
WU95 *59 |
1 | ||
| 65660-92802 |
WU95 RR |
1 | ||
| 65500-92841 |
WU95 *59 |
1 | ||
| 65500-92840 |
WU95 FR |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65660-92801 |
WU95 RR |
1 | ||
| 65500-92810 |
WU95 FR |
1 | ||
| 65660-92800 |
WU95 RR |
1 | ||
| 65500-92826 |
WU95 *59 |
1 | ||
| 65660-92802 |
WU95 RR |
1 | ||
| 65500-92841 |
WU95 *59 |
1 | ||
| 65500-92840 |
WU95 FR |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92810 |
WU95 FR |
1 | ||
| 65670-92800 |
WU95 RR |
1 | ||
| 65600-92826 |
WU95 *59 |
1 | ||
| 65670-92801 |
WU95 RR |
1 | ||
| 65670-92802 |
WU95 RR |
1 | ||
| 65600-92840 |
WU95 FR |
1 | ||
| 65600-92841 |
WU95 *59 |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92810 |
WU95 FR |
1 | ||
| 65670-92800 |
WU95 RR |
1 | ||
| 65600-92826 |
WU95 *59 |
1 | ||
| 65670-92801 |
WU95 RR |
1 | ||
| 65670-92802 |
WU95 RR |
1 | ||
| 65600-92840 |
WU95 FR |
1 | ||
| 65600-92841 |
WU95 *59 |
1 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65679 - DRIP, SIDE GATE | ||||
| 65679-92701 |
WU95 FR |
2 | ||
| 65679-92706 |
WU95 FR |
2 | ||
| 65679-92801 |
WU95 CTR,RR |
4 | ||
| 65679 - DRIP, SIDE GATE | ||||
| 65679-92701 |
WU95 FR |
2 | ||
| 65679-92706 |
WU95 FR |
2 | ||
| 65679-92801 |
WU95 CTR,RR |
4 | ||
| 66031 - BRACKET SUB-ASSY, GATE HELPER, NO.1 | ||||
| 66031-92800 |
WU95 |
4 | ||
| 66031-92801 |
WU95 |
4 | ||
| 66032 - BRACKET SUB-ASSY, GATE HELPER, NO.2 | ||||
| 66032-92800 |
WU95 |
4 | ||
| 66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3 | ||||
| 66033-92803 |
WU95 FR RH |
1 | ||
| 66034-92803 |
WU95 FR LH |
1 | ||
| 66033-92801 |
WU95 RR RH |
1 | ||
| 66034-92801 |
WU95 RR LH |
1 | ||
| 66120 - HINGE ASSY, SIDE GATE | ||||
| 65010-92701 |
WU95 RH 2ND,3RD,4TH,5TH |
4 | ||
| 65050-92701 |
WU95 RH 1ST,6TH |
2 | ||
| 65020-92701 |
WU95 LH 2ND,3RD,4TH,5TH |
4 | ||
| 65060-92701 |
WU95 LH 1ST,6TH |
2 | ||
| 65060-92702 |
WU95 *59,LH 1ST,8TH |
2 | ||
| 65050-92702 |
WU95 *59,RH 1ST,8TH |
2 | ||
| 65010-92701 |
WU95 *59,RH 2ND-7TH |
6 | ||
| 65020-92701 |
WU95 *59,LH 2ND-7TH |
6 | ||
| 65010-92702 |
WU95 *59,RH 2ND-7TH |
6 | ||
| 65010-92700 |
WU95 LH 2ND,3RD,4TH,5TH |
4 | ||
| 65020-92700 |
WU95 *59,LH 2ND-7TH |
6 | ||
| 65060-92700 |
WU95 LH 1ST,6TH |
2 | ||
| 65010-92702 |
WU95 RH 2ND,3RD,4TH,5TH |
4 | ||
| 65050-92703 |
WU95 RH 1ST,6TH |
2 | ||
| 65050-92704 |
WU95 *59,RH 1ST,8TH |
2 | ||
| 65060-92703 |
WU95 *59,LH 1ST,8TH |
2 | ||
| 66120 - HINGE ASSY, SIDE GATE | ||||
| 65010-92701 |
WU95 RH 2ND,3RD,4TH,5TH |
4 | ||
| 65050-92701 |
WU95 RH 1ST,6TH |
2 | ||
| 65020-92701 |
WU95 LH 2ND,3RD,4TH,5TH |
4 | ||
| 65060-92701 |
WU95 LH 1ST,6TH |
2 | ||
| 65060-92702 |
WU95 *59,LH 1ST,8TH |
2 | ||
| 65050-92702 |
WU95 *59,RH 1ST,8TH |
2 | ||
| 65010-92701 |
WU95 *59,RH 2ND-7TH |
6 | ||
| 65020-92701 |
WU95 *59,LH 2ND-7TH |
6 | ||
| 65010-92702 |
WU95 *59,RH 2ND-7TH |
6 | ||
| 65010-92700 |
WU95 LH 2ND,3RD,4TH,5TH |
4 | ||
| 65020-92700 |
WU95 *59,LH 2ND-7TH |
6 | ||
| 65060-92700 |
WU95 LH 1ST,6TH |
2 | ||
| 65010-92702 |
WU95 RH 2ND,3RD,4TH,5TH |
4 | ||
| 65050-92703 |
WU95 RH 1ST,6TH |
2 | ||
| 65050-92704 |
WU95 *59,RH 1ST,8TH |
2 | ||
| 65060-92703 |
WU95 *59,LH 1ST,8TH |
2 | ||
| 66161A - HANDLE, SIDE GATE LATCH, RH | ||||
| 65080-92701 |
WU95 |
2 | ||
| 66162A - HANDLE, SIDE GATE LATCH, LH | ||||
| 65080-92701 |
WU95 |
2 | ||
| 66303C - SPRING SUB-ASSY, GATE HELPER SET | ||||
| 66303-92804 |
WU95 |
4 | ||
| 66327 - PLATE, GATE HELPER | ||||
| 66327-92801 |
WU95 |
4 | ||
| Common parts | ||||
| 66185-92700 | ||||
| 66465-92720 | ||||
| 90101-12135 | ||||
| 90109-08118 | ||||
| 90109-08119 | ||||
| 90119-08464 | ||||
| 90119-08465 | ||||
| 90149-60044 | ||||
| 90149-60045 | ||||
| 90149-60058 | ||||
| 90149-60059 | ||||
| 90179-06113 | ||||
| 90201-10046 | ||||
| 90201-11369 | ||||
| 90249-10098 | ||||
| 90467-08008 | ||||
| 90540-06004 | ||||
| 90541-06012 | ||||
| 90541-06021 | ||||
| 91111-41070 | ||||
| 91611-60814 | ||||
| 91611-60825 | ||||
| 93210-16010 | ||||
| 93230-18035 | ||||
| 94110-40800 | ||||
| 94115-41200 | ||||
| 94180-41000 | ||||
| 94512-00800 | ||||
| 94611-10601 | ||||
| 94612-10800 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7455 | ||||
(8409- )BU77,8#,90,93,95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65660-92801 |
WU95 RR |
1 | ||
| 65500-92810 |
WU95 FR |
1 | ||
| 65660-92800 |
WU95 RR |
1 | ||
| 65500-92826 |
WU95 *59 |
1 | ||
| 65660-92802 |
WU95 RR |
1 | ||
| 65500-92841 |
WU95 *59 |
1 | ||
| 65500-92840 |
WU95 FR |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92810 |
WU95 FR |
1 | ||
| 65670-92800 |
WU95 RR |
1 | ||
| 65600-92826 |
WU95 *59 |
1 | ||
| 65670-92801 |
WU95 RR |
1 | ||
| 65670-92802 |
WU95 RR |
1 | ||
| 65600-92840 |
WU95 FR |
1 | ||
| 65600-92841 |
WU95 *59 |
1 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65679 - DRIP, SIDE GATE | ||||
| 65679-92701 |
WU95 FR |
2 | ||
| 65679-92706 |
WU95 FR |
2 | ||
| 65679-92801 |
WU95 CTR,RR |
4 | ||
| 66031 - BRACKET SUB-ASSY, GATE HELPER, NO.1 | ||||
| 66031-92800 |
WU95 |
4 | ||
| 66031-92801 |
WU95 |
4 | ||
| 66032 - BRACKET SUB-ASSY, GATE HELPER, NO.2 | ||||
| 66032-92800 |
WU95 |
4 | ||
| 66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3 | ||||
| 66033-92803 |
WU95 FR RH |
1 | ||
| 66034-92803 |
WU95 FR LH |
1 | ||
| 66033-92801 |
WU95 RR RH |
1 | ||
| 66034-92801 |
WU95 RR LH |
1 | ||
| 66120 - HINGE ASSY, SIDE GATE | ||||
| 65010-92701 |
WU95 RH 2ND,3RD,4TH,5TH |
4 | ||
| 65050-92701 |
WU95 RH 1ST,6TH |
2 | ||
| 65020-92701 |
WU95 LH 2ND,3RD,4TH,5TH |
4 | ||
| 65060-92701 |
WU95 LH 1ST,6TH |
2 | ||
| 65060-92702 |
WU95 *59,LH 1ST,8TH |
2 | ||
| 65050-92702 |
WU95 *59,RH 1ST,8TH |
2 | ||
| 65010-92701 |
WU95 *59,RH 2ND-7TH |
6 | ||
| 65020-92701 |
WU95 *59,LH 2ND-7TH |
6 | ||
| 65010-92702 |
WU95 *59,RH 2ND-7TH |
6 | ||
| 65010-92700 |
WU95 LH 2ND,3RD,4TH,5TH |
4 | ||
| 65020-92700 |
WU95 *59,LH 2ND-7TH |
6 | ||
| 65060-92700 |
WU95 LH 1ST,6TH |
2 | ||
| 65010-92702 |
WU95 RH 2ND,3RD,4TH,5TH |
4 | ||
| 65050-92703 |
WU95 RH 1ST,6TH |
2 | ||
| 65050-92704 |
WU95 *59,RH 1ST,8TH |
2 | ||
| 65060-92703 |
WU95 *59,LH 1ST,8TH |
2 | ||
| 66303C - SPRING SUB-ASSY, GATE HELPER SET | ||||
| 66303-92804 |
WU95 |
4 | ||
| 66327 - PLATE, GATE HELPER | ||||
| 66327-92801 |
WU95 |
4 | ||
| Common parts | ||||
| 66185-92700 | ||||
| 66465-92720 | ||||
| 90101-12135 | ||||
| 90109-08119 | ||||
| 90119-08464 | ||||
| 90149-60044 | ||||
| 90149-60058 | ||||
| 90149-80009 | ||||
| 90179-06113 | ||||
| 90201-10046 | ||||
| 90201-11369 | ||||
| 90249-10098 | ||||
| 90467-08008 | ||||
| 90541-06012 | ||||
| 90541-06021 | ||||
| 91111-41070 | ||||
| 91611-60825 | ||||
| 93230-18035 | ||||
| 94110-40800 | ||||
| 94115-41200 | ||||
| 94180-41000 | ||||
| 94531-00800 | ||||
| 94612-10800 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7551 | ||||
(8409- )WU95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65309 - POST SUB-ASSY, CENTER | ||||
| 65309-92801 |
WU95 |
2 | ||
| 65309-92800 |
WU95 |
2 | ||
| 65309 - POST SUB-ASSY, CENTER | ||||
| 65309-92801 |
WU95 |
2 | ||
| 65309-92800 |
WU95 |
2 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65660-92801 |
WU95 RR |
1 | ||
| 65500-92810 |
WU95 FR |
1 | ||
| 65660-92800 |
WU95 RR |
1 | ||
| 65500-92826 |
WU95 *59 |
1 | ||
| 65660-92802 |
WU95 RR |
1 | ||
| 65500-92841 |
WU95 *59 |
1 | ||
| 65500-92840 |
WU95 FR |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65660-92801 |
WU95 RR |
1 | ||
| 65500-92810 |
WU95 FR |
1 | ||
| 65660-92800 |
WU95 RR |
1 | ||
| 65500-92826 |
WU95 *59 |
1 | ||
| 65660-92802 |
WU95 RR |
1 | ||
| 65500-92841 |
WU95 *59 |
1 | ||
| 65500-92840 |
WU95 FR |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92810 |
WU95 FR |
1 | ||
| 65670-92800 |
WU95 RR |
1 | ||
| 65600-92826 |
WU95 *59 |
1 | ||
| 65670-92801 |
WU95 RR |
1 | ||
| 65670-92802 |
WU95 RR |
1 | ||
| 65600-92840 |
WU95 FR |
1 | ||
| 65600-92841 |
WU95 *59 |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92810 |
WU95 FR |
1 | ||
| 65670-92800 |
WU95 RR |
1 | ||
| 65600-92826 |
WU95 *59 |
1 | ||
| 65670-92801 |
WU95 RR |
1 | ||
| 65670-92802 |
WU95 RR |
1 | ||
| 65600-92840 |
WU95 FR |
1 | ||
| 65600-92841 |
WU95 *59 |
1 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65679 - DRIP, SIDE GATE | ||||
| 65679-92701 |
WU95 FR |
2 | ||
| 65679-92706 |
WU95 FR |
2 | ||
| 65679-92801 |
WU95 CTR,RR |
4 | ||
| 65679 - DRIP, SIDE GATE | ||||
| 65679-92701 |
WU95 FR |
2 | ||
| 65679-92706 |
WU95 FR |
2 | ||
| 65679-92801 |
WU95 CTR,RR |
4 | ||
| 66031 - BRACKET SUB-ASSY, GATE HELPER, NO.1 | ||||
| 66031-92800 |
WU95 |
4 | ||
| 66031-92801 |
WU95 |
4 | ||
| 66032 - BRACKET SUB-ASSY, GATE HELPER, NO.2 | ||||
| 66032-92800 |
WU95 |
4 | ||
| 66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3 | ||||
| 66033-92803 |
WU95 FR RH |
1 | ||
| 66034-92803 |
WU95 FR LH |
1 | ||
| 66033-92801 |
WU95 RR RH |
1 | ||
| 66034-92801 |
WU95 RR LH |
1 | ||
| 66120 - HINGE ASSY, SIDE GATE | ||||
| 65010-92701 |
WU95 RH 2ND,3RD,4TH,5TH |
4 | ||
| 65050-92701 |
WU95 RH 1ST,6TH |
2 | ||
| 65020-92701 |
WU95 LH 2ND,3RD,4TH,5TH |
4 | ||
| 65060-92701 |
WU95 LH 1ST,6TH |
2 | ||
| 65060-92702 |
WU95 *59,LH 1ST,8TH |
2 | ||
| 65050-92702 |
WU95 *59,RH 1ST,8TH |
2 | ||
| 65010-92701 |
WU95 *59,RH 2ND-7TH |
6 | ||
| 65020-92701 |
WU95 *59,LH 2ND-7TH |
6 | ||
| 65010-92702 |
WU95 *59,RH 2ND-7TH |
6 | ||
| 65010-92700 |
WU95 LH 2ND,3RD,4TH,5TH |
4 | ||
| 65020-92700 |
WU95 *59,LH 2ND-7TH |
6 | ||
| 65060-92700 |
WU95 LH 1ST,6TH |
2 | ||
| 65010-92702 |
WU95 RH 2ND,3RD,4TH,5TH |
4 | ||
| 65050-92703 |
WU95 RH 1ST,6TH |
2 | ||
| 65050-92704 |
WU95 *59,RH 1ST,8TH |
2 | ||
| 65060-92703 |
WU95 *59,LH 1ST,8TH |
2 | ||
| 66120 - HINGE ASSY, SIDE GATE | ||||
| 65010-92701 |
WU95 RH 2ND,3RD,4TH,5TH |
4 | ||
| 65050-92701 |
WU95 RH 1ST,6TH |
2 | ||
| 65020-92701 |
WU95 LH 2ND,3RD,4TH,5TH |
4 | ||
| 65060-92701 |
WU95 LH 1ST,6TH |
2 | ||
| 65060-92702 |
WU95 *59,LH 1ST,8TH |
2 | ||
| 65050-92702 |
WU95 *59,RH 1ST,8TH |
2 | ||
| 65010-92701 |
WU95 *59,RH 2ND-7TH |
6 | ||
| 65020-92701 |
WU95 *59,LH 2ND-7TH |
6 | ||
| 65010-92702 |
WU95 *59,RH 2ND-7TH |
6 | ||
| 65010-92700 |
WU95 LH 2ND,3RD,4TH,5TH |
4 | ||
| 65020-92700 |
WU95 *59,LH 2ND-7TH |
6 | ||
| 65060-92700 |
WU95 LH 1ST,6TH |
2 | ||
| 65010-92702 |
WU95 RH 2ND,3RD,4TH,5TH |
4 | ||
| 65050-92703 |
WU95 RH 1ST,6TH |
2 | ||
| 65050-92704 |
WU95 *59,RH 1ST,8TH |
2 | ||
| 65060-92703 |
WU95 *59,LH 1ST,8TH |
2 | ||
| 66161A - HANDLE, SIDE GATE LATCH, RH | ||||
| 65080-92701 |
WU95 |
2 | ||
| 66162A - HANDLE, SIDE GATE LATCH, LH | ||||
| 65080-92701 |
WU95 |
2 | ||
| 66303C - SPRING SUB-ASSY, GATE HELPER SET | ||||
| 66303-92804 |
WU95 |
4 | ||
| 66327 - PLATE, GATE HELPER | ||||
| 66327-92801 |
WU95 |
4 | ||
| Common parts | ||||
| 66185-92700 | ||||
| 66465-92720 | ||||
| 90101-12135 | ||||
| 90109-08118 | ||||
| 90109-08119 | ||||
| 90119-08464 | ||||
| 90119-08465 | ||||
| 90149-60044 | ||||
| 90149-60045 | ||||
| 90149-60058 | ||||
| 90149-60059 | ||||
| 90179-06113 | ||||
| 90201-10046 | ||||
| 90201-11369 | ||||
| 90249-10098 | ||||
| 90467-08008 | ||||
| 90540-06004 | ||||
| 90541-06012 | ||||
| 90541-06021 | ||||
| 91111-41070 | ||||
| 91611-60814 | ||||
| 91611-60825 | ||||
| 93210-16010 | ||||
| 93230-18035 | ||||
| 94110-40800 | ||||
| 94115-41200 | ||||
| 94180-41000 | ||||
| 94512-00800 | ||||
| 94611-10601 | ||||
| 94612-10800 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7455 | ||||
(8409- )WU9#,YU80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65660-92801 |
WU95 RR |
1 | ||
| 65500-92810 |
WU95 FR |
1 | ||
| 65660-92800 |
WU95 RR |
1 | ||
| 65500-92826 |
WU95 *59 |
1 | ||
| 65660-92802 |
WU95 RR |
1 | ||
| 65500-92841 |
WU95 *59 |
1 | ||
| 65500-92840 |
WU95 FR |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-92810 |
WU95 FR |
1 | ||
| 65670-92800 |
WU95 RR |
1 | ||
| 65600-92826 |
WU95 *59 |
1 | ||
| 65670-92801 |
WU95 RR |
1 | ||
| 65670-92802 |
WU95 RR |
1 | ||
| 65600-92840 |
WU95 FR |
1 | ||
| 65600-92841 |
WU95 *59 |
1 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65611 - PANEL, SIDE GATE | ||||
| 65621-92807 |
WU95 L=1085 |
8 | ||
| 65621-92802 |
WU95 *59,L=1319 |
4 | ||
| 65621-92832 |
WU95 *59,L=1324(RH-FR,LH-RR) |
2 | ||
| 65621-92809 |
WU95 *59,L=2105 |
2 | ||
| 65621-92831 |
WU95 *59,L=2001 |
2 | ||
| 65621-92829 |
WU95 L=1076(RH-FR,LH-RR) |
4 | ||
| 65621-92830 |
WU95 *59.L=1324(LH-FR,RH-RR) |
2 | ||
| 65621-92828 |
WU95 L=1076(LH-FR,RH-RR) |
4 | ||
| 65679 - DRIP, SIDE GATE | ||||
| 65679-92701 |
WU95 FR |
2 | ||
| 65679-92706 |
WU95 FR |
2 | ||
| 65679-92801 |
WU95 CTR,RR |
4 | ||
| 66031 - BRACKET SUB-ASSY, GATE HELPER, NO.1 | ||||
| 66031-92800 |
WU95 |
4 | ||
| 66031-92801 |
WU95 |
4 | ||
| 66032 - BRACKET SUB-ASSY, GATE HELPER, NO.2 | ||||
| 66032-92800 |
WU95 |
4 | ||
| 66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3 | ||||
| 66033-92803 |
WU95 FR RH |
1 | ||
| 66034-92803 |
WU95 FR LH |
1 | ||
| 66033-92801 |
WU95 RR RH |
1 | ||
| 66034-92801 |
WU95 RR LH |
1 | ||
| 66120 - HINGE ASSY, SIDE GATE | ||||
| 65010-92701 |
WU95 RH 2ND,3RD,4TH,5TH |
4 | ||
| 65050-92701 |
WU95 RH 1ST,6TH |
2 | ||
| 65020-92701 |
WU95 LH 2ND,3RD,4TH,5TH |
4 | ||
| 65060-92701 |
WU95 LH 1ST,6TH |
2 | ||
| 65060-92702 |
WU95 *59,LH 1ST,8TH |
2 | ||
| 65050-92702 |
WU95 *59,RH 1ST,8TH |
2 | ||
| 65010-92701 |
WU95 *59,RH 2ND-7TH |
6 | ||
| 65020-92701 |
WU95 *59,LH 2ND-7TH |
6 | ||
| 65010-92702 |
WU95 *59,RH 2ND-7TH |
6 | ||
| 65010-92700 |
WU95 LH 2ND,3RD,4TH,5TH |
4 | ||
| 65020-92700 |
WU95 *59,LH 2ND-7TH |
6 | ||
| 65060-92700 |
WU95 LH 1ST,6TH |
2 | ||
| 65010-92702 |
WU95 RH 2ND,3RD,4TH,5TH |
4 | ||
| 65050-92703 |
WU95 RH 1ST,6TH |
2 | ||
| 65050-92704 |
WU95 *59,RH 1ST,8TH |
2 | ||
| 65060-92703 |
WU95 *59,LH 1ST,8TH |
2 | ||
| 66303C - SPRING SUB-ASSY, GATE HELPER SET | ||||
| 66303-92804 |
WU95 |
4 | ||
| 66327 - PLATE, GATE HELPER | ||||
| 66327-92801 |
WU95 |
4 | ||
| Common parts | ||||
| 66185-92700 | ||||
| 66465-92720 | ||||
| 90101-12135 | ||||
| 90109-08119 | ||||
| 90119-08464 | ||||
| 90149-60044 | ||||
| 90149-60058 | ||||
| 90149-80009 | ||||
| 90179-06113 | ||||
| 90201-10046 | ||||
| 90201-11369 | ||||
| 90249-10098 | ||||
| 90467-08008 | ||||
| 90541-06012 | ||||
| 90541-06021 | ||||
| 91111-41070 | ||||
| 91611-60825 | ||||
| 93230-18035 | ||||
| 94110-40800 | ||||
| 94115-41200 | ||||
| 94180-41000 | ||||
| 94531-00800 | ||||
| 94612-10800 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7551 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
