WU95-MDDT (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )B,11B,14B#,3B ; (9311- )27LPG

Click highlighted areas on diagram

diagram 29300 29300G 29311 29331 29336 29342 29342 29342 29342 29342 29351 29364 29369 9009690031 9009904577 9009905185 9020114099 9020114099 9040109001 9161261032 9516110413
Part # Description Qty Price
Common parts
90096-90031
90099-04577
90099-05185
90201-14099
90401-09001
91612-61032
95161-10413

(8808- )1W

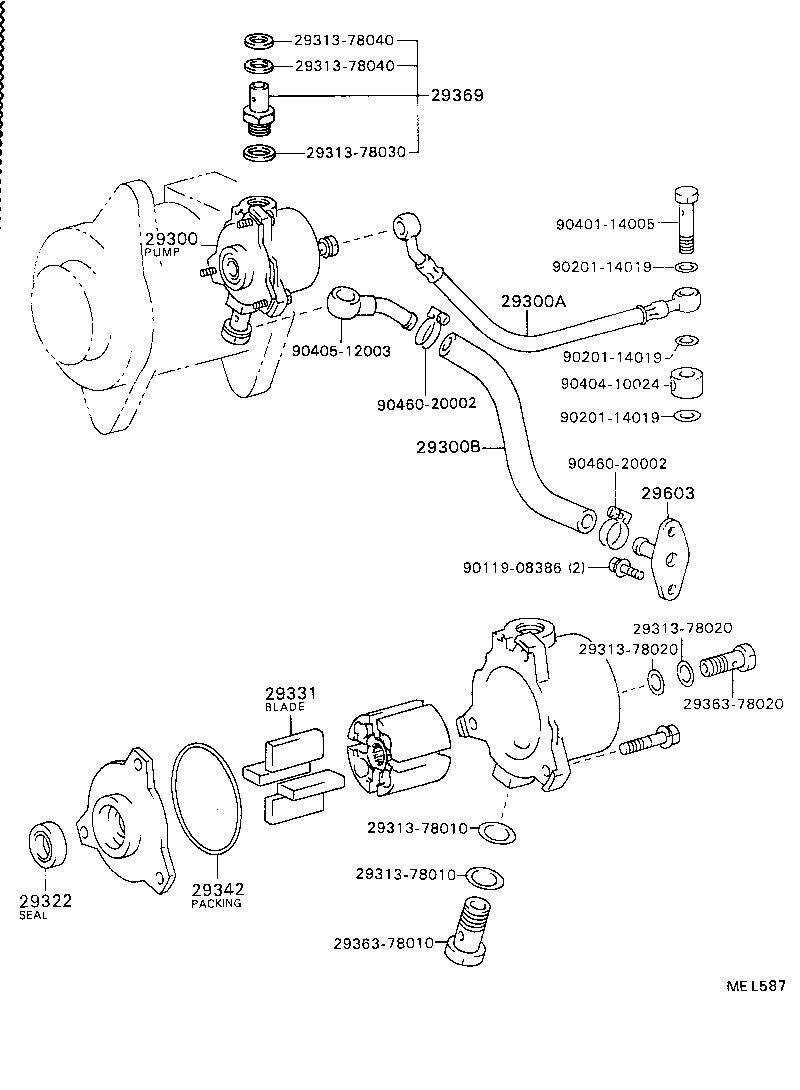

Click highlighted areas on diagram

diagram 29300 29300A 29300B 2931378010 2931378010 2931378020 2931378020 2931378030 2931378040 2931378040 29322 29331 29342 2936378010 2936378020 29369 29603 9011908386 9020114019 9020114019 9020114019 9040114005 9040410024 9040512003 9046020002 9046020002
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-78020

1W..WU75,85,9#

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02090

1W..WU75,85,9#

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02092

1W..WU75,85,9#

 1
29322 - BUSH, OIL SEAL, VACUUM PUMP
29322-78011

1W..WU75,85,9#

 1
29331 - BLADE, VACUUM PUMP, A
29331-78020

1W..WU75,85,9#

 4
29342 - PACKING, VACUUM PUMP
29342-78010

1W..WU75,85,9#

 1
29369 - VALVE SUB-ASSY, CHECK
29369-78010

1W..WU75,85,9#

 1
29603 - PIPE, VACUUM PUMP OIL OUTLET
15773-78010

1W..WU75,85,9#

 1
Common parts
29313-78010
29313-78020
29313-78030
29313-78040
29363-78010
29363-78020
90119-08386
90201-14019
90401-14005
90404-10024
90405-12003
90460-20002
