WU93-MDDHTJ3 (1991)
Toyota Dyna/Toyoace

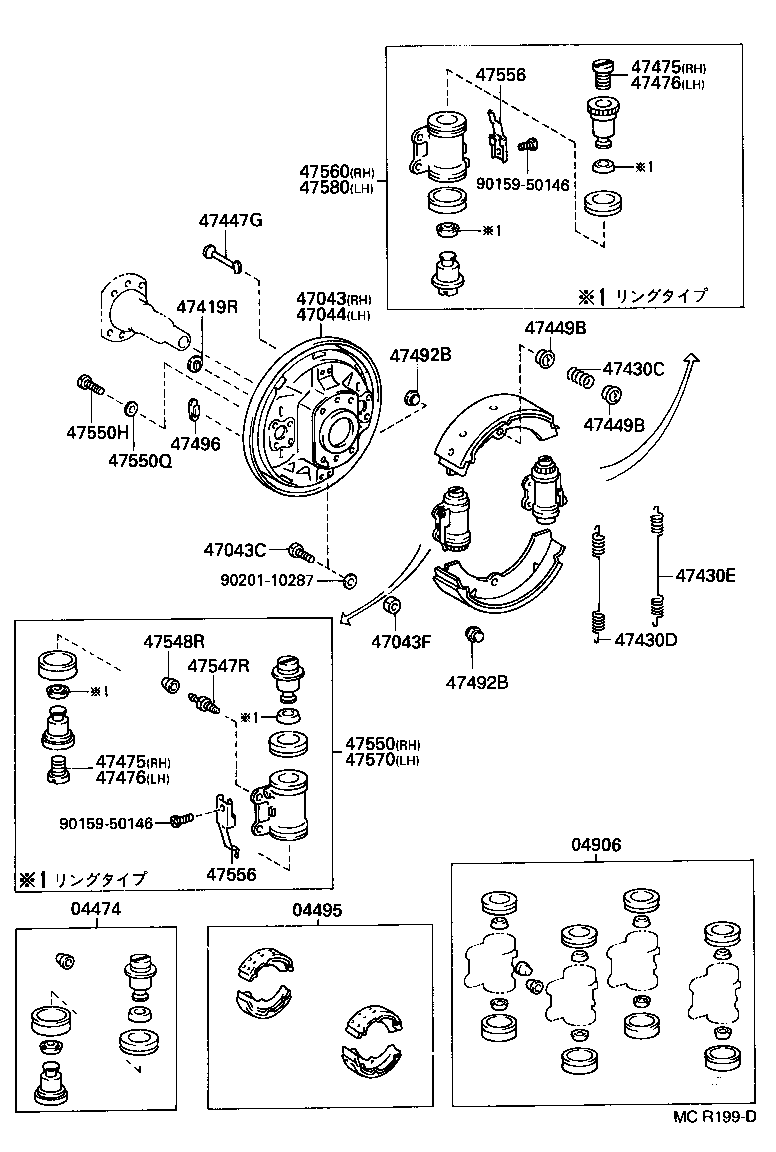

(9303- )WU85,93,YU60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36150 |
WU85,93;YU60..T3..WT..CBR..IV3 ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ),左側 |
2 | ||
| 04474-36140 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ),右側 |
2 | ||
| 04474-36140 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ,RH |
2 | ||
| 04474-36120 |
WU85,93 右側 |
2 | ||
| 04474-36140 |
WU85,93;YU60..T3..WT..CBR..IV3 ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ),右側 |
2 | ||
| 04474-36150 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ),左側 |
2 | ||
| 04474-36130 |
WU85,93 左側 |
2 | ||
| 04474-36150 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ,LH |
2 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36180 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 04906-36120 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 04906-36180 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 04906-36170 |
WU85,93 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36140 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
1 | ||
| 47043-36110 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
WU85,93,YU6#,70..DM1,SRF,T1,T3,T4,TW1 *10−1.25PX31−21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
WU85,93,YU6#,70..DM1,SRF,T1,T3,T4,TW1 |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36110 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
1 | ||
| 47044-36140 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
1 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
WU85,93,YU6#,70 |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
WU75,85,9#,YU6#,70 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
WU75,85,9#,YU6#,70 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
WU75,85,9#,YU6#,70 |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 47553-36070 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47553-36070 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 47553-36070 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47553-36070 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47554-36060 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 47554-36070 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47554-36060 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 47554-36070 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
4 | ||
| 47492-28010 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
4 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
4 | ||
| 47492-28010 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
WU75,85,9#,YU6#,70 |
4 | ||
| 47491-36010 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
8 | ||
| 47491-36010 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
WU75,85,9#,YU6#,70 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
WU75,85,9#,YU6#,70 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36230 |
WU85,93 |
1 | ||
| 47550-36240 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47550-36240 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47550-36140 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
16 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
WU85,93,YU6#,70 |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
WU85,93,YU6#,70 |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36240 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47560-36230 |
WU85,93 |
1 | ||
| 47560-36240 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47560-36140 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36140 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47570-36240 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47570-36240 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47570-36230 |
WU85,93 |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36240 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47580-36230 |
WU85,93 |
1 | ||
| 47580-36240 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47580-36140 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||

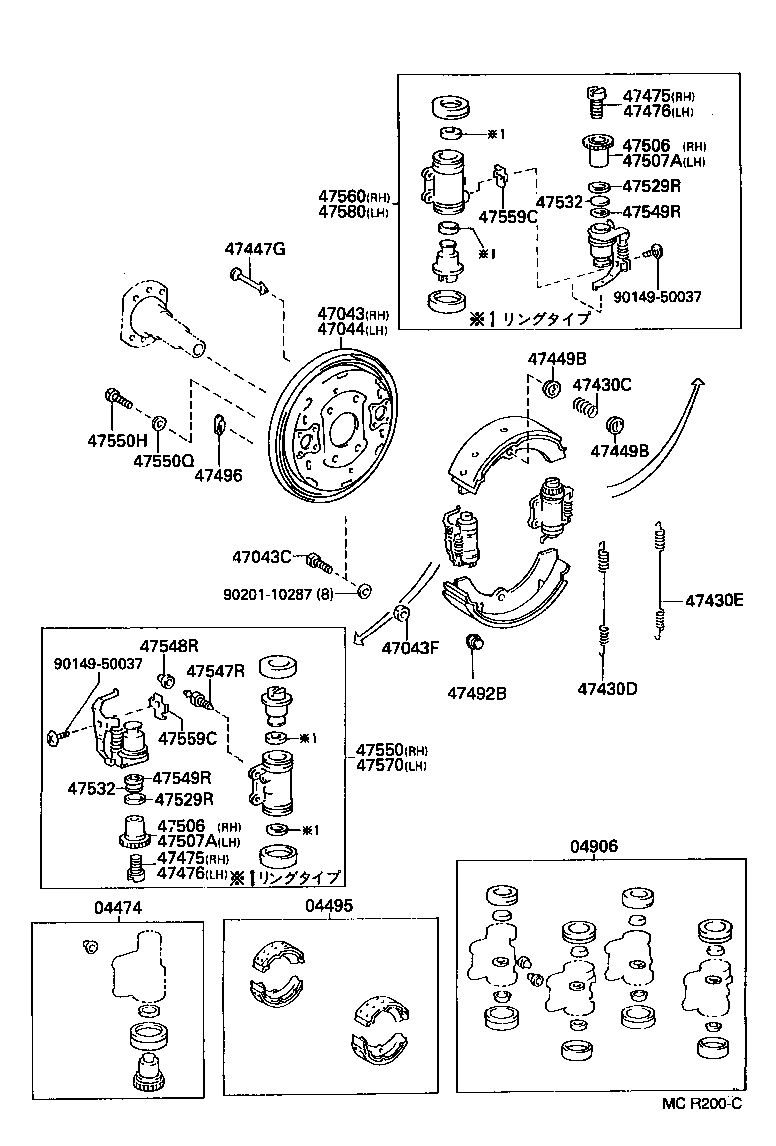

(9303- )WU85,93,YU60
ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-36150 |
WU85,93;YU60..T3..WT..CBR..IV3 ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ),左側 |
2 | ||
| 04474-36140 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ),右側 |
2 | ||
| 04474-36140 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ,RH |
2 | ||
| 04474-36120 |
WU85,93 右側 |
2 | ||
| 04474-36140 |
WU85,93;YU60..T3..WT..CBR..IV3 ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ),右側 |
2 | ||
| 04474-36150 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ),左側 |
2 | ||
| 04474-36130 |
WU85,93 左側 |
2 | ||
| 04474-36150 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ,LH |
2 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36180 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 04906-36120 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 04906-36180 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 04906-36170 |
WU85,93 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36140 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
1 | ||
| 47043-36110 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
WU85,93,YU6#,70..DM1,SRF,T1,T3,T4,TW1 *10−1.25PX31−21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
WU85,93,YU6#,70..DM1,SRF,T1,T3,T4,TW1 |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36110 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
1 | ||
| 47044-36140 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
WU75,85,9#,YU6#,70 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
WU75,85,9#,YU6#,70 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
WU75,85,9#,YU6#,70 |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 47553-36070 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47553-36070 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 47553-36070 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47553-36070 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47554-36060 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 47554-36070 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47554-36060 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 47554-36070 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
4 | ||
| 47492-28010 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
WU75,85,9#,YU6#,70 |
4 | ||
| 47491-36010 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
8 | ||
| 47491-36010 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
8 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
WU85,93;YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3 |
2 | ||
| 47506-36010 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47506 - NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47506-36010 |
WU85,93;YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3 |
2 | ||
| 47506-36010 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
WU85,93;YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3 |
2 | ||
| 47507-36010 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47507A - NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
WU85,93;YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3 |
2 | ||
| 47507-36010 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47529-36010 |
WU85,93;YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3 |
4 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47529-36010 |
WU85,93;YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
WU75,85,9#,YU6#,70 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
WU75,85,9#,YU6#,70 |
2 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
WU85,93;YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3 |
4 | ||
| 47549-36010 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
WU85,93;YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3 |
4 | ||
| 47549-36010 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36230 |
WU85,93 |
1 | ||
| 47550-36240 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47550-36240 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47550-36140 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-10127 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-10287 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT |
16 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
WU85,93;YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3 |
4 | ||
| 47559-36010 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ OR ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
WU85,93;YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3 |
4 | ||
| 47559-36010 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ OR ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36240 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47560-36230 |
WU85,93 |
1 | ||
| 47560-36240 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47560-36140 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36140 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47570-36240 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47570-36240 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47570-36230 |
WU85,93 |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36240 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47580-36230 |
WU85,93 |
1 | ||
| 47580-36240 |
WU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3 ｴｲｷﾞﾖｳｼﾔ ｶｽﾀﾑ ｼﾖｳ;ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 47580-36140 |
WU85,93,YU60..(T3,T4)..WT ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
