WU90-MDFTJ3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU78,85,88,9#

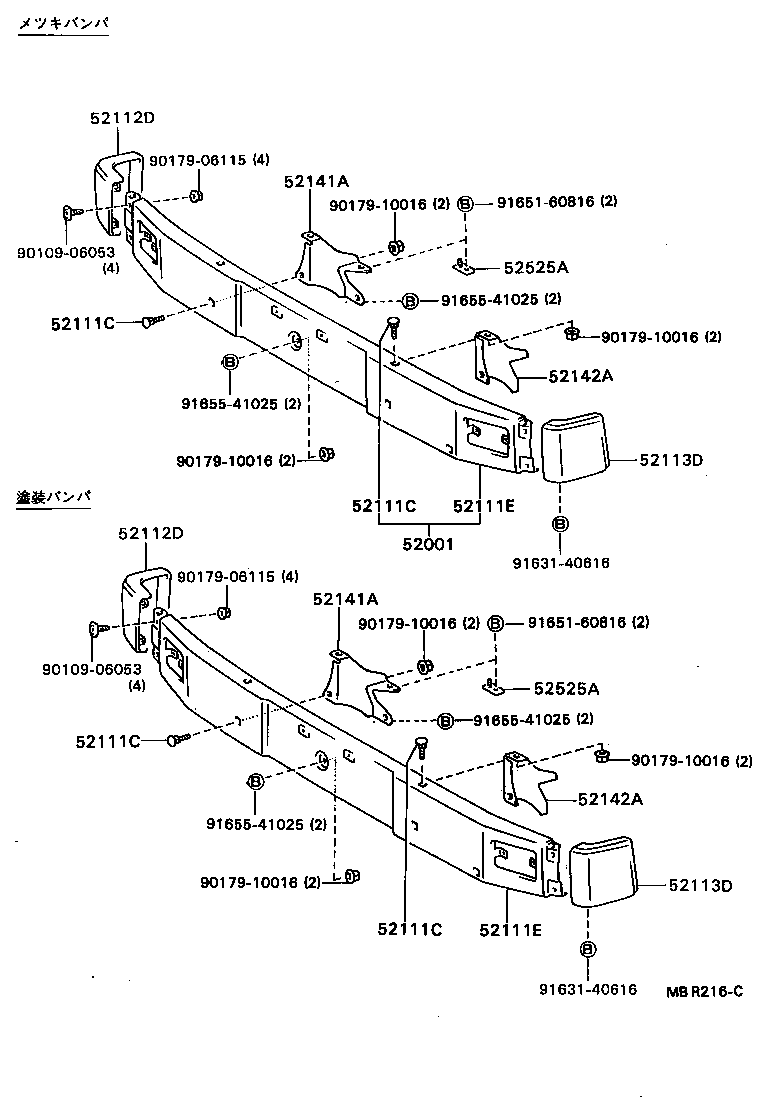

Click highlighted areas on diagram

diagram 52001 52111C 52111C 52111C 52111C 52111E 52111E 52112D 52112D 52113D 52113D 52141A 52141A 52142A 52142A 52525A 52525A 9010906053 9010906053 9017906115 9017906115 9017910016 9017910016 9017910016 9017910016 9017910016 9017910016 9163140616 9163140616 9165160816 9165160816 9165541025 9165541025 9165541025 9165541025
Part # Description Qty Price
52001 - FRONT BUMPER SET
52001-95401

WU75,85,9#

***

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 4
52111E - BAR, FRONT BUMPER
52101-95407A0

WU75,85,9#

WHITE,TRIM1#&048

 1
52101-9540703

WU75,85,9#

SILVER M,SILVER M

 1
52101-9540705

WU75,85,9#

BEIGE M,048 ,4E4

 1
52101-95408

WU75,85,9#

ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 1
52101-95407J0

WU75,85,9#..TOY

BLUE,8E5

 1
52111E - BAR, FRONT BUMPER
52101-95407A0

WU75,85,9#

WHITE,TRIM1#&048

 1
52101-9540703

WU75,85,9#

SILVER M,SILVER M

 1
52101-9540705

WU75,85,9#

BEIGE M,048 ,4E4

 1
52101-95408

WU75,85,9#

ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 1
52101-95407J0

WU75,85,9#..TOY

BLUE,8E5

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-95406

WU75,85,9#,YU6#,70

 1
52112-37010A0

WU75,85,9#,YU6#,70

WHITE,048

 1
52112-37010J0

WU75,85,9#,YU6#..TOY

BLUE,8E5

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-95406

WU75,85,9#,YU6#,70

 1
52112-37010A0

WU75,85,9#,YU6#,70

WHITE,048

 1
52112-37010J0

WU75,85,9#,YU6#..TOY

BLUE,8E5

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-37010A0

WU75,85,9#,YU6#,70

WHITE,048

 1
52113-37010J0

WU75,85,9#,YU6#..TOY

BLUE,8E5

 1
52113-95406

WU75,85,9#,YU6#,70

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-37010A0

WU75,85,9#,YU6#,70

WHITE,048

 1
52113-37010J0

WU75,85,9#,YU6#..TOY

BLUE,8E5

 1
52113-95406

WU75,85,9#,YU6#,70

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-95404

WU75,85,9#

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-95404

WU75,85,9#

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52142-95404

WU75,85,9#

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52142-95404

WU75,85,9#

 1
52525A - RETAINER, FRONT BUMPER BRACKET
52525-95400

WU75,85,9#

 2
52525A - RETAINER, FRONT BUMPER BRACKET
52525-95400

WU75,85,9#

 2
Common parts
90109-06053
90179-06115
90179-10016
91631-40616
91651-60816
91655-41025

(8808- )WU75,85,9#

Click highlighted areas on diagram

diagram 52001 52111C 52111C 52111C 52111C 52111E 52111E 52112D 52112D 52113D 52113D 52141A 52141A 52142A 52142A 52525A 52525A 9010906053 9010906053 9017906115 9017906115 9017910016 9017910016 9017910016 9017910016 9017910016 9017910016 9163140616 9163140616 9165160816 9165160816 9165541025 9165541025 9165541025 9165541025
Part # Description Qty Price
52001 - FRONT BUMPER SET
52001-95401

WU75,85,9#

***

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

 4
90112-10002

WU75,85,9#,YU6#,70

ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 4
52111E - BAR, FRONT BUMPER
52101-95407A0

WU75,85,9#

WHITE,TRIM1#&048

 1
52101-9540703

WU75,85,9#

SILVER M,SILVER M

 1
52101-9540705

WU75,85,9#

BEIGE M,048 ,4E4

 1
52101-95408

WU75,85,9#

ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 1
52101-95407J0

WU75,85,9#..TOY

BLUE,8E5

 1
52111E - BAR, FRONT BUMPER
52101-95407A0

WU75,85,9#

WHITE,TRIM1#&048

 1
52101-9540703

WU75,85,9#

SILVER M,SILVER M

 1
52101-9540705

WU75,85,9#

BEIGE M,048 ,4E4

 1
52101-95408

WU75,85,9#

ｱﾘ(ﾒﾂｷ ﾊﾞﾝﾊﾟ)

 1
52101-95407J0

WU75,85,9#..TOY

BLUE,8E5

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-95406

WU75,85,9#,YU6#,70

 1
52112-37010A0

WU75,85,9#,YU6#,70

WHITE,048

 1
52112-37010J0

WU75,85,9#,YU6#..TOY

BLUE,8E5

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-95406

WU75,85,9#,YU6#,70

 1
52112-37010A0

WU75,85,9#,YU6#,70

WHITE,048

 1
52112-37010J0

WU75,85,9#,YU6#..TOY

BLUE,8E5

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-37010A0

WU75,85,9#,YU6#,70

WHITE,048

 1
52113-37010J0

WU75,85,9#,YU6#..TOY

BLUE,8E5

 1
52113-95406

WU75,85,9#,YU6#,70

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-37010A0

WU75,85,9#,YU6#,70

WHITE,048

 1
52113-37010J0

WU75,85,9#,YU6#..TOY

BLUE,8E5

 1
52113-95406

WU75,85,9#,YU6#,70

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-95404

WU75,85,9#

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-95404

WU75,85,9#

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52142-95404

WU75,85,9#

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52142-95404

WU75,85,9#

 1
52525A - RETAINER, FRONT BUMPER BRACKET
52525-95400

WU75,85,9#

 2
52525A - RETAINER, FRONT BUMPER BRACKET
52525-95400

WU75,85,9#

 2
Common parts
90109-06053
90179-06115
90179-10016
91631-40616
91651-60816
91655-41025
