WU90-MDFTJ3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

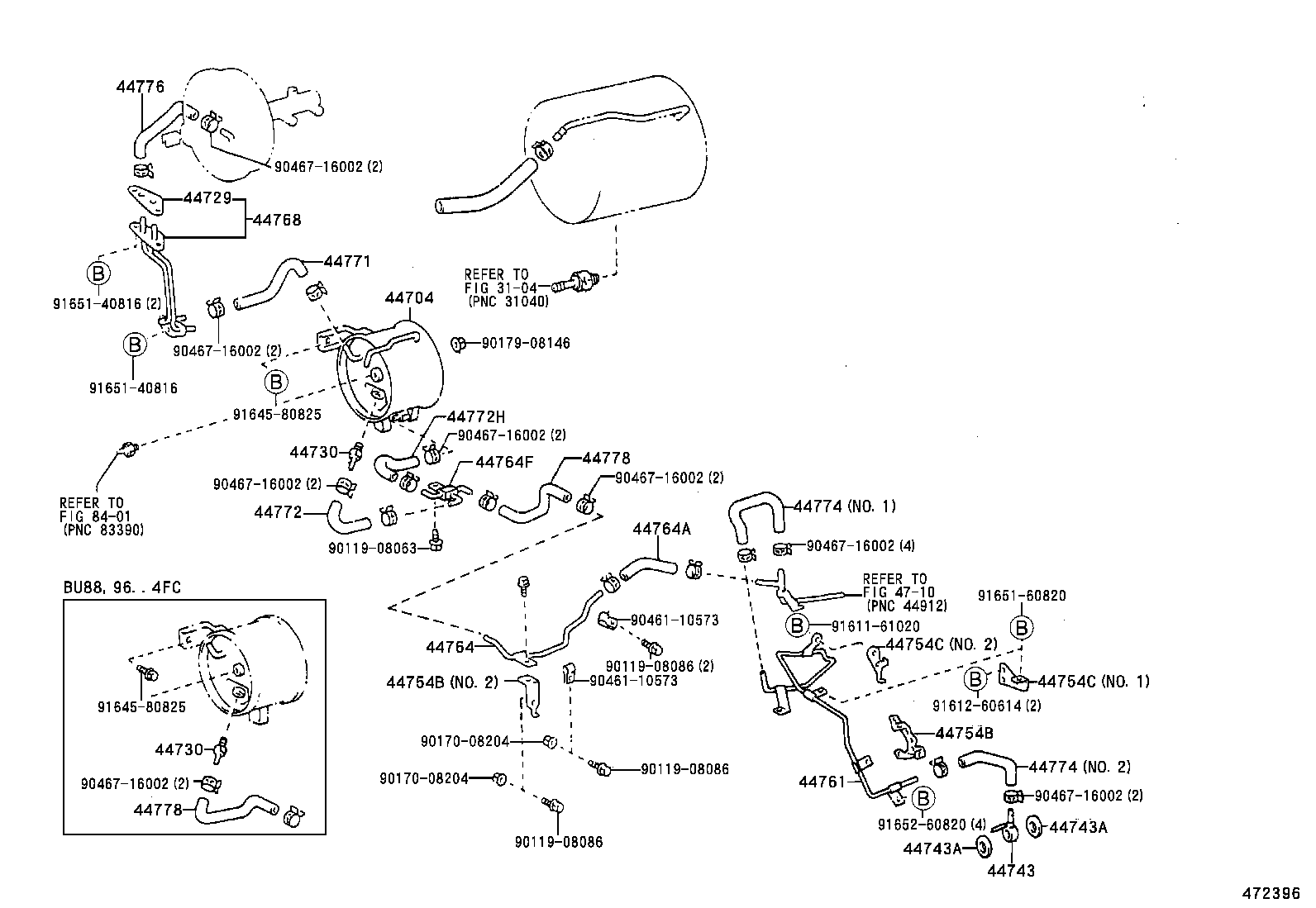

ILLUST NO. 2 OF 2(8808- )BU78,85,88,9#

Click highlighted areas on diagram

diagram 3104 44704 44729 44730 44730 44743 44743A 44743A 44754B 44754B 44754C 44754C 44761 44764 44764A 44764F 44768 44771 44772 44772H 44774 44774 44776 44778 44778 4710 8401 9011908063 9011908086 9011908086 9011908086 9017008204 9017008204 9017908146 9046110573 9046110573 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9161161020 9161260614 9164580825 9164580825 9165140816 9165140816 9165160820 9165260820
Part # Description Qty Price
Common parts
90119-08063
90119-08086
90170-08204
90179-08146
90461-10573
90467-16002
91611-61020
91612-60614
91645-80825
91651-40816
91651-60820
91652-60820
Linked diagrams
3104
4710
8401

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44647A 44673A 44730 44731C 44735C 9017908038 9017908146
Part # Description Qty Price
Common parts
90179-08038
90179-08146

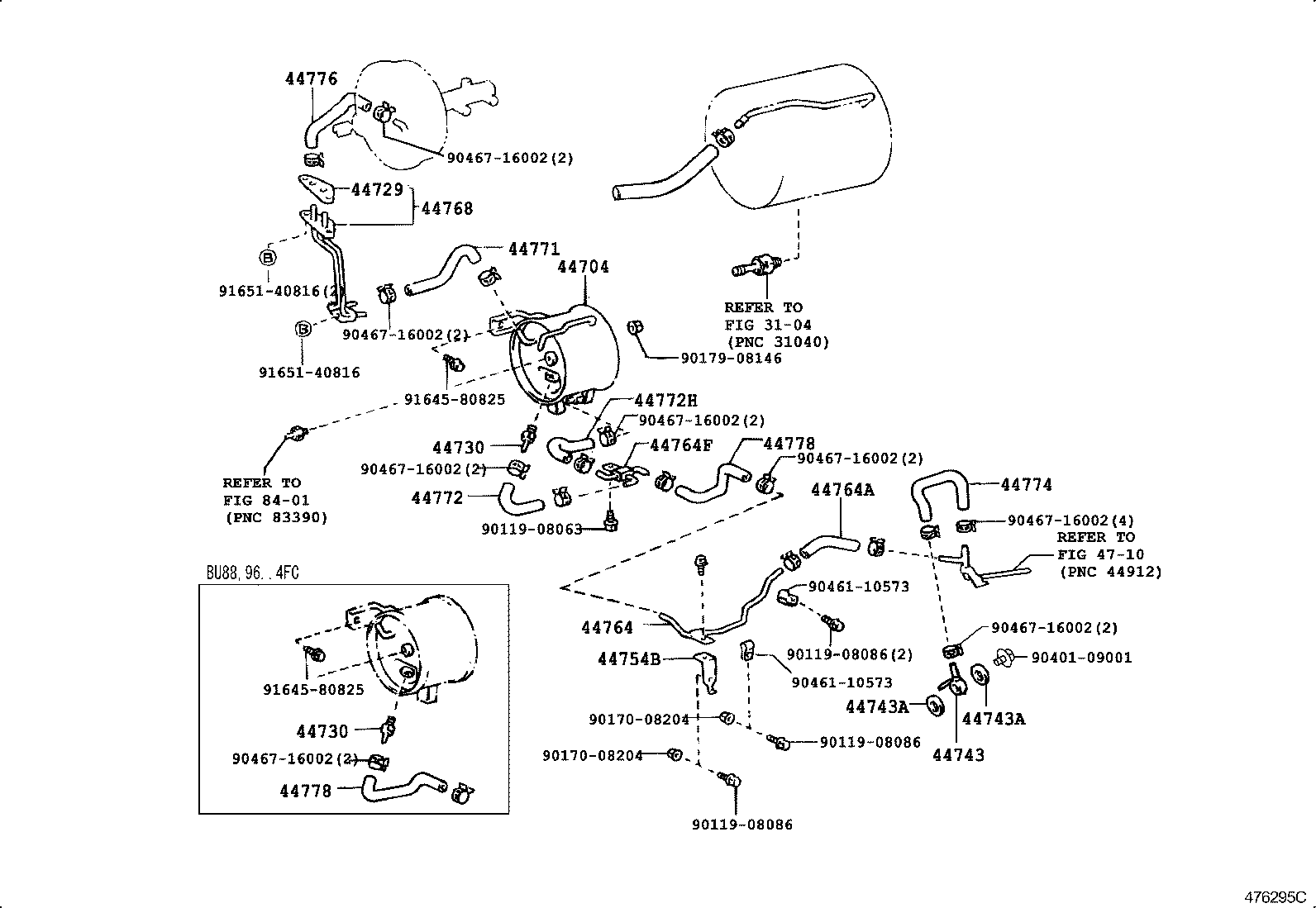

(8808- )WU75,85,9#

Click highlighted areas on diagram

diagram 3104 44704 44729 44730 44730 44743 44743A 44743A 44754B 44764 44764A 44764F 44768 44771 44772 44772H 44774 44776 44778 44778 4710 8401 9011908063 9011908086 9011908086 9011908086 9017008204 9017008204 9017908146 9040109001 9046110573 9046110573 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9164580825 9164580825 9165140816 9165140816
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-36220

WU75,85,9#

 1
44704-36221

WU75,85,9#

 1
44729 - GASKET, VACUUM TUBE
44729-36020

WU75,85,9#,YU6#,70

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

WU75,85,9#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

WU75,85,9#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09103

WU75,85,9#

 1
44743A - GASKET(FOR VACUUM PUMP UNION)
90201-14099

WU75,85,9#

 2
44743A - GASKET(FOR VACUUM PUMP UNION)
90201-14099

WU75,85,9#

 2
44754B - BRACKET, VACUUM TUBE
44754-36030

WU75,85,9#

 1
44764 - TUBE, BOOSTER VACUUM
44764-36330

WU75,85,9#

 1
44764A - HOSE, BOOSTER VACUUM
95441-09300

WU75,85,9#

 1
95446-09200

WU75,85,9#

 1
44764F - WAY(FOR BOOSTER VACUUM TUBE)
90413-09035

WU75,85,9#

 1
44768 - TUBE, BOOSTER VACUUM
44768-36090

WU75,85,9#

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-36150

WU75,85,9#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-14032

WU75,85,9#

 1
44772H - HOSE, CHECK VALVE TO 3 WAY
44772-36070

WU75,85,9#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36110

WU75,85,9#

 1
44776 - HOSE, BRAKE BOOSTER
44776-36050

WU75,85,9#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-36030

WU75,85,9#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-36030

WU75,85,9#

 1
Common parts
90119-08063
90119-08086
90170-08204
90179-08146
90401-09001
90461-10573
90467-16002
91645-80825
91651-40816
Linked diagrams
3104
4710
8401

(8808- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44647A 44673A 44696 44730 44758 9017908038 9017908146
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-36091

WU75,90,95

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-36220

WU75,85,9#,YU6#,70

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-25150

WU75,85,9#,YU6#,70

 1
44610 - BOOSTER ASSY, BRAKE
44610-36321

WU75,90,95

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

WU75,85,9#,YU6#,70

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-25150

WU75,85,9#,YU6#,70

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-36220

WU75,85,9#,YU6#,70

 1
44647A - ROD, BOOSTER PISTON
44647-25150

WU75,85,9#,YU6#,70

 1
44673A - BODY, BOOSTER VALVE
44673-36321

WU75,90,95

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

WU75,85,9#

 1
Common parts
90179-08038
90179-08146
