WU90-MDFTJ3 (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808-9210)1W

Click highlighted areas on diagram

diagram 28011 28100 28110 28110 28111 2811278010 2811278020 2811278020 2811278030 28113 28118A 28121 28125 28130 28139 28140 28142 28143 28150B 28151 28160 28160A 28160A 28163 28170 2817578020 2817578030 28209 2821978011 9011914011 9020115011 9411571400 9451101400
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-54010

1W..WU75,85,9#

 1
28011-78012

1W..WU75,85,9#

 1
28100 - STARTER ASSY
28100-78030

1W..WU75,85,9#

24V 4.5KW

 1
28100-78011

1W..WU75,85,9#

24V 4.5KW

 1
28100-78031

1W..WU75,85,9#

24V 4.5KW

 1
28100-78050

1W..WU75,85,9#

24V 4.5KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28115-78030

1W..WU75,85,9#

NO.2

 1
28115-78021

1W..WU75,85,9#

NO.1

 1
28115-78010

1W..WU75,85,9#

 1
28110 - HOUSING ASSY, STARTER DRIVE
28115-78030

1W..WU75,85,9#

NO.2

 1
28115-78021

1W..WU75,85,9#

NO.1

 1
28115-78010

1W..WU75,85,9#

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-78011

1W..WU75,85,9#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-78010

1W..WU75,85,9#

 1
28118A - PLATE(FOR STARTER YOKE)
28118-78011

1W..WU75,85,9#

 1
28118-77090

1W..WU75,85,9#

 1
28121 - COIL, STARTER FIELD
28121-78010

1W..WU75,85,9#

 2
28125 - BUSH, STARTER CENTER BEARING
28125-78010

1W..WU75,85,9#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-78020

1W..WU75,85,9#

 1
28130-78030

1W..WU75,85,9#

 1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-78010

1W..WU75,85,9#

 1
28139-17010

1W..WU75,85,9#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-78010

1W..WU75,85,9#

 1
28140-77090

1W..WU75,85,9#

 1
28142 - BRUSH, STARTER
28142-78010

1W..WU75,85,9#

 4
28143 - SPRING, STARTER BRUSH
28143-78010

1W..WU75,85,9#

 4
28150B - SWITCH ASSY, MAGNETIC
28150-78030

1W..WU75,85,9#

 1
28150-78021

1W..WU75,85,9#

 1
28151 - PLATE, LEAD, SWITCH CONNECTING
28151-78010

1W..WU75,85,9#

 1
28160 - ARMATURE ASSY, STARTER
28160-78010

1W..WU75,85,9#

 1
28160-56140

1W..WU75,85,9#

 1
28160A - BEARING, STARTER ARMATURE
28253-78010

1W..WU75,85,9#

NO.2

 1
90099-10131

1W..WU75,85,9#

NO.2

 1
90099-54120

1W..WU75,85,9#

NO.1

 1
28126-78010

1W..WU75,85,9#

NO.1

 1
28160A - BEARING, STARTER ARMATURE
28253-78010

1W..WU75,85,9#

NO.2

 1
90099-10131

1W..WU75,85,9#

NO.2

 1
90099-54120

1W..WU75,85,9#

NO.1

 1
28126-78010

1W..WU75,85,9#

NO.1

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-78010

1W..WU75,85,9#

 1
28170 - COVER ASSY, STARTER
28170-78010

1W..WU75,85,9#

 1
28209 - SHAFT SUB-ASSY, STARTER
28209-78010

1W..WU75,85,9#

 1
Common parts
28112-78010
28112-78020
28112-78030
28175-78020
28175-78030
28219-78011
90119-14011
90201-15011
94115-71400
94511-01400

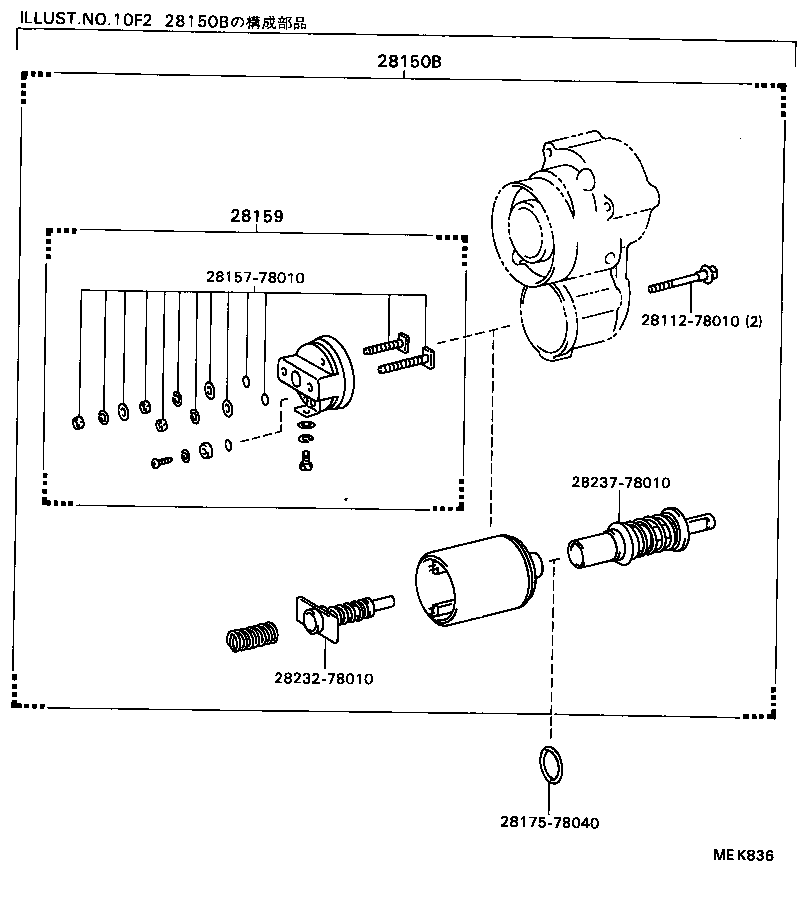

ILLUST NO. 2 OF 2(8808-9210)1W

Click highlighted areas on diagram

diagram 2811278010 28150B 2815778010 28159 2817578040 2823278010 2823778010
Part # Description Qty Price
28150B - SWITCH ASSY, MAGNETIC
28150-78030

1W..WU75,85,9#

 1
28150-78021

1W..WU75,85,9#

 1
28159 - COVER, STARTER PROTECTOR
28159-78010

1W..WU75,85,9#

 1
Common parts
28112-78010
28157-78010
28175-78040
28232-78010
28237-78010

(9210- )1W

Click highlighted areas on diagram

diagram 28011 28100 28110 28118A 28119A 28120 28130 28139A 28140 28150B 28160 28160A 28160A 28165 28222 28228A 28229A 28252 9009221001 9009221001 9009221001 9009900158 9009902325 9009912009 9010506191 9020106037 9111251465 9331915008 9411541400 9451101000 9451101000 9451101400 9451101400
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-54010

1W..WU75,85,9#

 1
28011-78012

1W..WU75,85,9#

 1
28100 - STARTER ASSY
28100-78030

1W..WU75,85,9#

24V 4.5KW

 1
28100-78011

1W..WU75,85,9#

24V 4.5KW

 1
28100-78031

1W..WU75,85,9#

24V 4.5KW

 1
28100-78050

1W..WU75,85,9#

24V 4.5KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28115-78030

1W..WU75,85,9#

NO.2

 1
28115-78021

1W..WU75,85,9#

NO.1

 1
28115-78010

1W..WU75,85,9#

 1
28118A - PLATE(FOR STARTER YOKE)
28118-78011

1W..WU75,85,9#

 1
28118-77090

1W..WU75,85,9#

 1
28119A - COVER, STARTER END FRAME
28199-46080

1W..WU75,85,9#

 1
28120 - YOKE ASSY, STARTER
28120-56071

1W..WU75,85,9#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-78020

1W..WU75,85,9#

 1
28130-78030

1W..WU75,85,9#

 1
28139A - WIRE, LEAD, NO.2(FOR STARTER)
28139-56150

1W..WU75,85,9#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-78010

1W..WU75,85,9#

 1
28140-77090

1W..WU75,85,9#

 1
28150B - SWITCH ASSY, MAGNETIC
28150-78030

1W..WU75,85,9#

 1
28150-78021

1W..WU75,85,9#

 1
28160 - ARMATURE ASSY, STARTER
28160-78010

1W..WU75,85,9#

 1
28160-56140

1W..WU75,85,9#

 1
28160A - BEARING, STARTER ARMATURE
28253-78010

1W..WU75,85,9#

NO.2

 1
90099-10131

1W..WU75,85,9#

NO.2

 1
90099-54120

1W..WU75,85,9#

NO.1

 1
28126-78010

1W..WU75,85,9#

NO.1

 1
28160A - BEARING, STARTER ARMATURE
28253-78010

1W..WU75,85,9#

NO.2

 1
90099-10131

1W..WU75,85,9#

NO.2

 1
90099-54120

1W..WU75,85,9#

NO.1

 1
28126-78010

1W..WU75,85,9#

NO.1

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-77090

1W..WU75,85,9#

 1
28222 - WASHER, STARTER IDLE GEAR CLUTCH
28222-77090

1W..WU75,85,9#

 1
28228A - ROLLER, STARTER CLUTCH
28228-56080

1W..WU75,85,9#

 5
28229A - RETAINER, STARTER IDLE GEAR
28229-56080

1W..WU75,85,9#

 1
28252 - GEAR, STARTER IDLE
28254-77090

1W..WU75,85,9#

 1
Common parts
90092-21001
90099-00158
90099-02325
90099-12009
90105-06191
90201-06037
91112-51465
93319-15008
94115-41400
94511-01000
94511-01400
